Model Image
Manufacturer

Whirlpool

Model Number

MDB4040AWW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP99001290 WP99001290 ACTUATOR

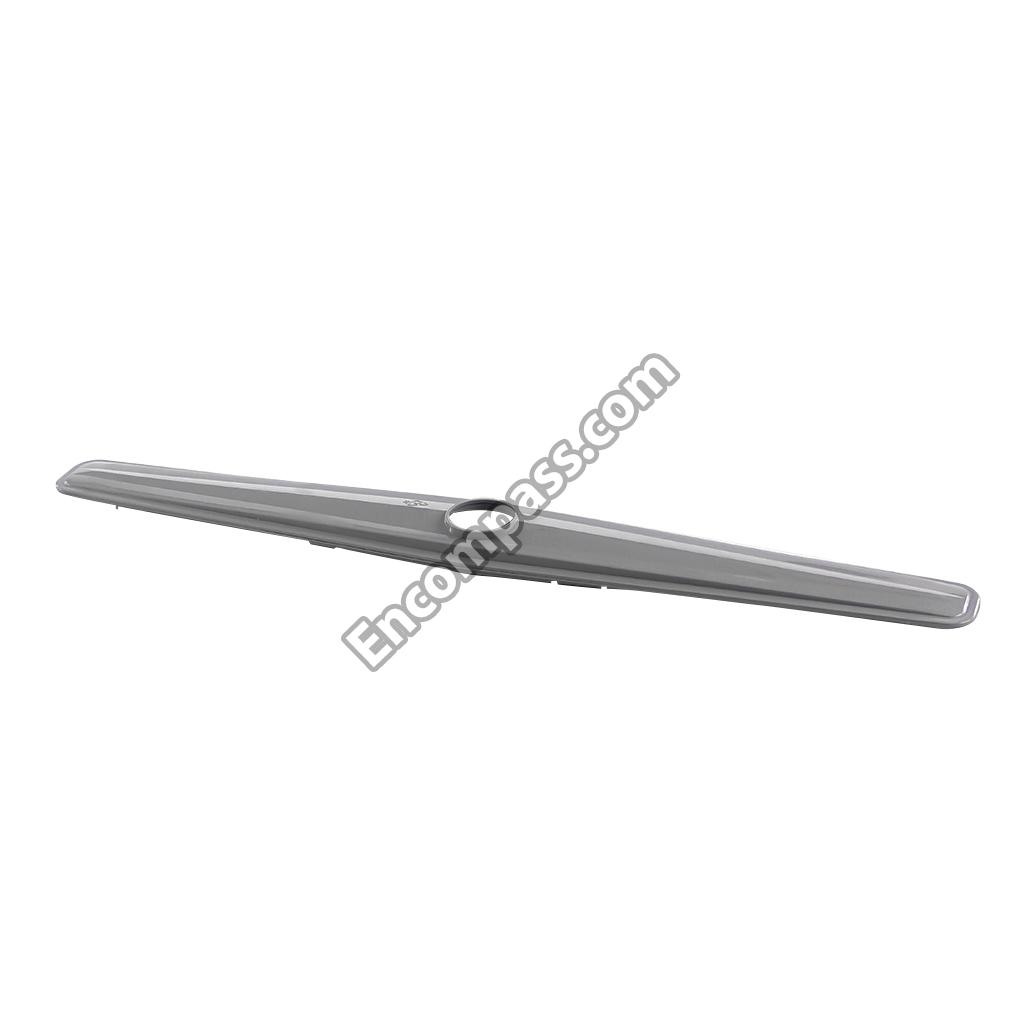

WP99002043 WP99002043 ARM-SPRAY
WP99001788 WP99001788 ARM-SPRAY
12001446 12001446 ARM-SPRAY
903303 903303 ASSEMBLY
99001798 99001798 BALL, CHECK
Y912668 Y912668 BAR REINF
99001545 99001545 BARRIER C
WP6-918873 WP6-918873 BASKT-WARE
912563 912563 BOX TERMI
Y913156 Y913156 BRACKET R
912651 912651 BRACKET, ADJUSTING
Y912541 Y912541 BRACKET, HEATING ELEMENT
6-912656 6-912656 BRACKET- W
99002017 99002017 CAP RACK
99002016 99002016 CAP RACK
Y912659 Y912659 CAP, AIR INLET
WPW10548433 WPW10548433 CLAMP
WP596669 WP596669 CLAMP
WP616099 WP616099 CLAMP
99001008 99001008 CLIP THER
99001800 99001800 CLIP, RETAINER
WPY912709 WPY912709 CLIP- ADJU
4396672 4396672 CONNECTOR
WP99002354 WP99002354 COVER
99001795 99001795 COVER, DRAIN
WP99001885 WP99001885 DEFLECTOR-
912310 912310 DISC CUTT
WP99001442 WP99001442 DIVERTER-
WP99001291 WP99001291 DOOR LATCH
903098 903098 DOOR LATCH
WP6-920568 WP6-920568 DOOR, INNER (W/VENT ASSEMBLY)
99001419 99001419 DOOR, OUTER
99001892 99001892 DOOR, OUTER
912317 912317 DRAIN IMPE
WP6-903304 WP6-903304 DRAIN IMPELLER ASSEMBLY
WP99001995 WP99001995 ELEMENT- H
911917 911917 FASTENER, INSULATION
99001057 99001057 FASTENER, PANEL
99001415 99001415 FILLER FR
WP6-914124 WP6-914124 FILTER ASSEMBLY., SECONDARY
WP99001791 WP99001791 FILTER- PU
99001799 99001799 FLAPPER V
WP99002363 WP99002363 FLOAT
99001402 99001402 FOAM, DOOR LATCH HANDLE
WP902894 WP902894 GASKET
WP99001326 WP99001326 GASKET, DISCHARGE HSNG (UPR)
WP912529 WP912529 GASKET, PUMP
WP99001553 WP99001553 GROMMET
99001805 99001805 GROMMET V
99001688 99001688 GROUND WIR
WP99001796 WP99001796 GUARD
WP99002085 WP99002085 HANDLE- LA
Y912708 Y912708 HANDLE-SI
6-914561 6-914561 HINGE
99001898 99001898 HINGE (LT)
99001899 99001899 HINGE (RT)
6-914562 6-914562 HINGE (RT)
WP99001355 WP99001355 HOOK, DOOR LATCH
WPY912790 WPY912790 HOOK- DRAI
WP912647 WP912647 HOSE, TOP SHOWER
WP99001782 WP99001782 HOSE- DRAI
912633 912633 HOSE- INJE
6-905323 6-905323 HOUSING, DISCHARGE (UPR)
WP902461 WP902461 IMPELLER A
WP912533 WP912533 INJECTOR-
99002413 99002413 INSULATION, ACCESS PANEL
99001856 99001856 KNOB TIME
WP6-903123 WP6-903123 KNOB- RINS
99001860 99001860 LENS INDI
912014 912014 LEVER
WPW10143258 WPW10143258 LEVLER-LEG
WP903115 WP903115 LIGHT-IND
WP912653 WP912653 LINK- DOOR
99001822 99001822 MANUAL, USE & CARE
99001825 99001825 MANUAL, USE & CARE (FRCH)
99001807 99001807 MOTOR- WAX
WP902899 WP902899 MOTOR-WAX
99001934 99001934 MOTOR/PUMP HOUSING ASSEMBLY
WP911265 WP911265 NUT
WP99001443 WP99001443 NUT
WP99001428 WP99001428 NUT
912645 912645 NUT HEATI
WP99002005 WP99002005 NUT, RESERVOIR
WP99001426 WP99001426 NUT- DISCH
WP99001797 WP99001797 O-RING
WP912510 WP912510 O-RING
WPY913079 WPY913079 O-RING- HE
99001979 99001979 O-RING- PU
WP912680 WP912680 OUTLET- SN
99001401 99001401 PAD LATCH
WPW10223013 WPW10223013 PAD-INS
WPW10117748 WPW10117748 PAD-INS
WP6-920580 WP6-920580 PAD-INS
DAX2000AXM DAX2000AXM PANEL ACCESSORY KIT (ALM)
99001416 99001416 PANEL DEC
99001106 99001106 PANEL TOE
99001756 99001756 PANEL, CONTROL (WHT)
99002299 99002299 PANEL- ACC
99002531 99002531 PIN, LEVER PIVOT
WP6-912678 WP6-912678 PIN- HINGE
WPY912679 WPY912679 PIN- HINGE
WP99001287 WP99001287 PIVOT
99001793 99001793 PLATE- SUC
WP6-903124 WP6-903124 PLUNGER ASSEMBLY
12001489 12001489 PUMP MODUL
99001487 99001487 RACK ASSEMBLY (LWR)
99001454 99001454 RACK ASSEMBLY (UPR)
99001425 99001425 RELAY MOT
WP99002833 WP99002833 RESERVOIR
WP99001288 WP99001288 RETAINER
WPW10116811 WPW10116811 RETAINER
99001806 99001806 RETAINER, GROMMET
Y912666 Y912666 RETAINER, WIRE
6-912650 6-912650 RETAINER-
WP912644 WP912644 RING
Y912686 Y912686 RING LOCK
912313 912313 RING- SEAL
WP99002003 WP99002003 RING-O
WP910934 WP910934 RING-O
WP489491 WP489491 SCREW
3400409 3400409 SCREW
912622 912622 SCREW
912383 912383 SCREW
WP489128 WP489128 SCREW
WP6-912366 WP6-912366 SCREW
WPY912620 WPY912620 SCREW
WP33002917 WP33002917 SCREW
WP132780 WP132780 SCREW
99001194 99001194 SCREW
99001075 99001075 SCREW
WP910654 WP910654 SCREW
912613 912613 SCREW, ADJUSTING BRACKET
7101P131-60 7101P131-60 SCREW, DECORATOR PANEL (WHT)
61002031 61002031 SCREW, HANDLE
99001790 99001790 SCREW, SECONDARY FILTER
99001783 99001783 SEAL, VENT BACK
902882 902882 SEAL- PUMP
903436 903436 SHELF, RACK (LWR)
99001429 99001429 SHELF, RACK (UPR)
WP6-918554 WP6-918554 SHIELD
99002288 99002288 SHIELD, RADIANT
WPW10116789 WPW10116789 SLEEVE
99001333 99001333 SLEEVE IN
WP99001289 WP99001289 SLIDER
WPY912547 WPY912547 SPRING
WPW10116816 WPW10116816 SPRING
912648 912648 SPRING LA
WP912652 WP912652 SPRING- DO
WP99002135 WP99002135 STOP- RACK
99001444 99001444 STRAP, HARNESS
99001076 99001076 STRAP, INSULATION
WP912654 WP912654 SUPPORT
99001794 99001794 SUPPORT F
99001422 99001422 SUPPORT, SPRAY ARM
99002254 99002254 SWITCH
99001855 99001855 SWITCH CO
WP99002560 WP99002560 SWITCH- WA
WP99001852 WP99001852 THERMOSTAT
99001981 99001981 THERMOSTAT, BOOST
99001005 99001005 THERMOSTAT, BOOST (36TX02)
WPW10339879 WPW10339879 TIE-WIRE

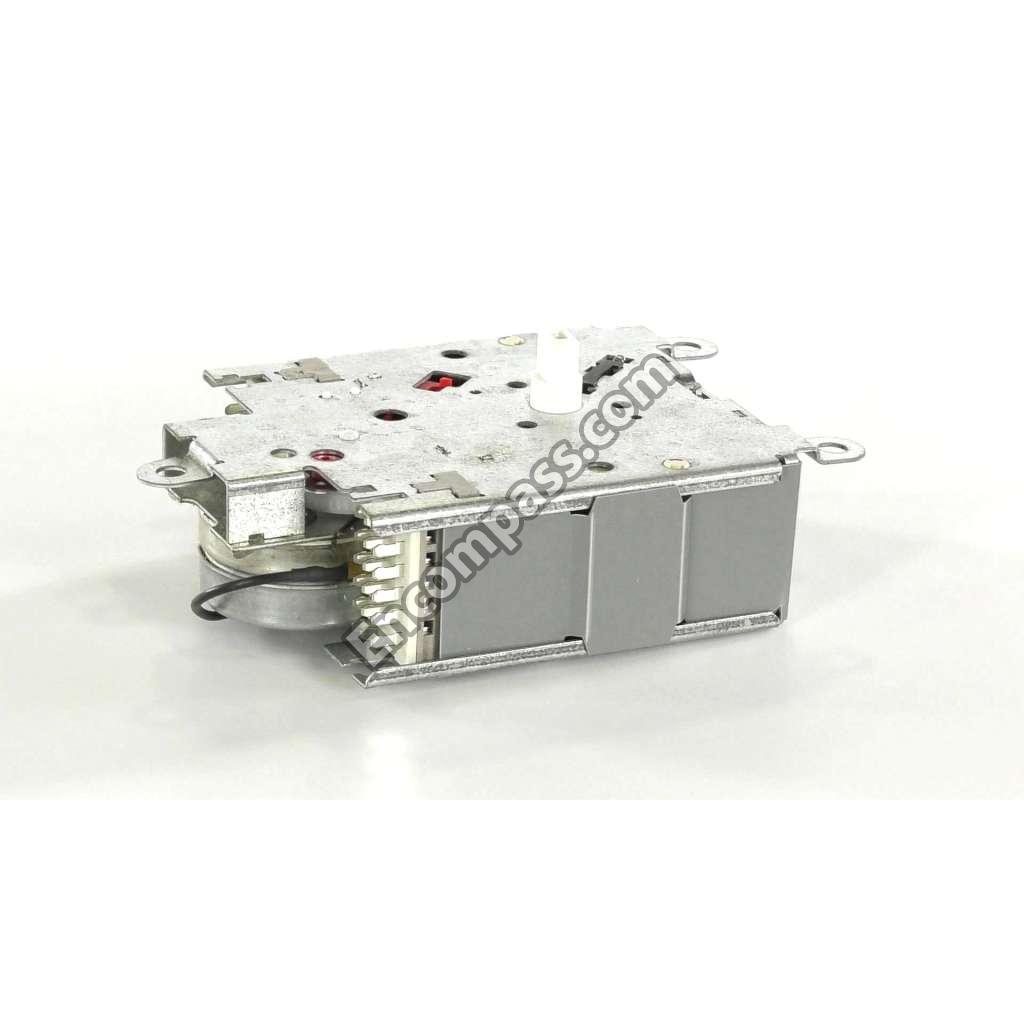

WP99001946 WP99001946 TIMER
12001533 12001533 TIMER (6 & 8 BUTTON)
WP99002138 WP99002138 TINE-ROW
12002218 12002218 TINE-ROW
WP99001787 WP99001787 TOWER
WP99003318 WP99003318 TOWER, SPRAY (W/SHAFT-GRAY)
WPY912545 WPY912545 TRACK
WP99002947 WP99002947 TUB WHEEL
Y913096 Y913096 TUBE INLE
WP99001359 WP99001359 VALVE- WAT
Y913095 Y913095 VENT, INLET
WPY912798 WPY912798 WASHER- TU
910069 910069 WASHER- TU
WP99002780 WP99002780 WHEEL
WP903093 WP903093 WHEEL
WP99002342 WP99002342 WHEEL- TUB

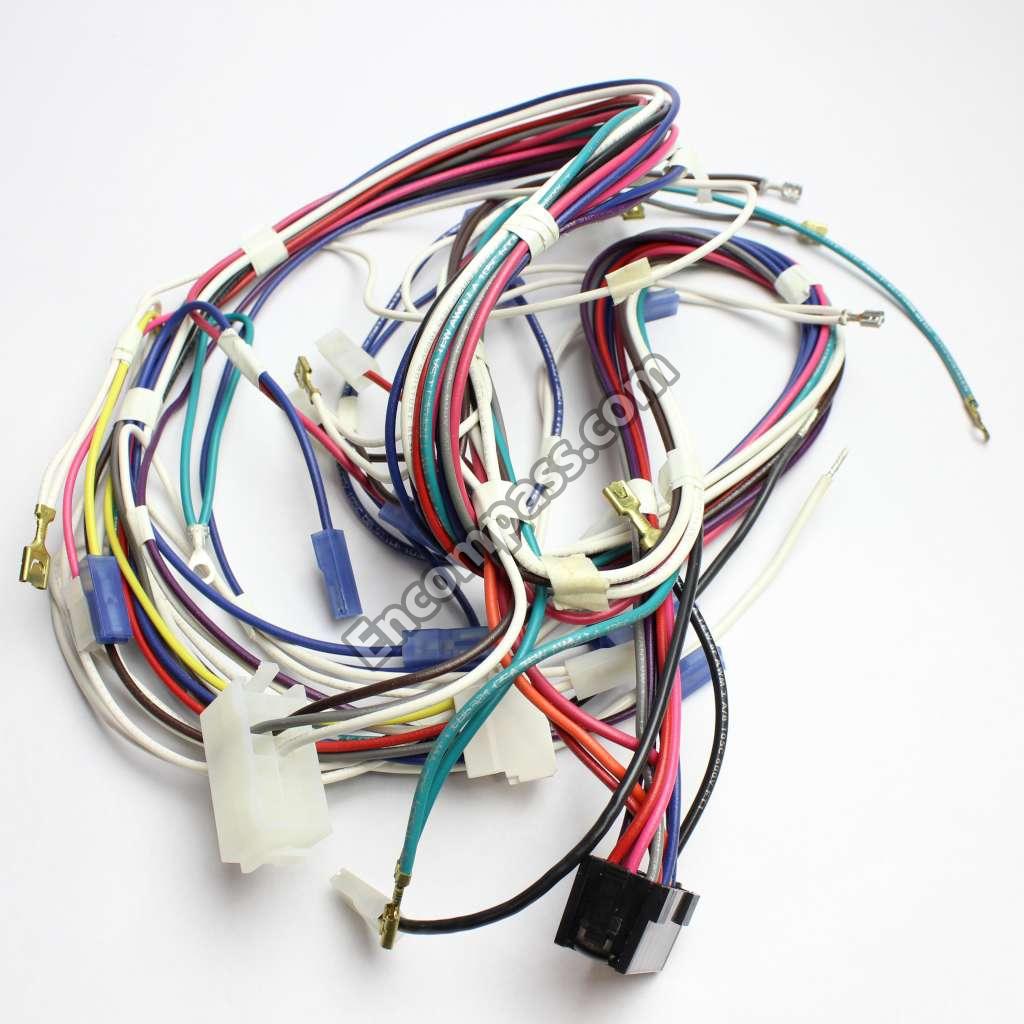

WP99002045 WP99002045 WIRE HARNESS
15002685 15002685 WIRING INFORMATION
15002235 15002235 WIRING INFORMATION
