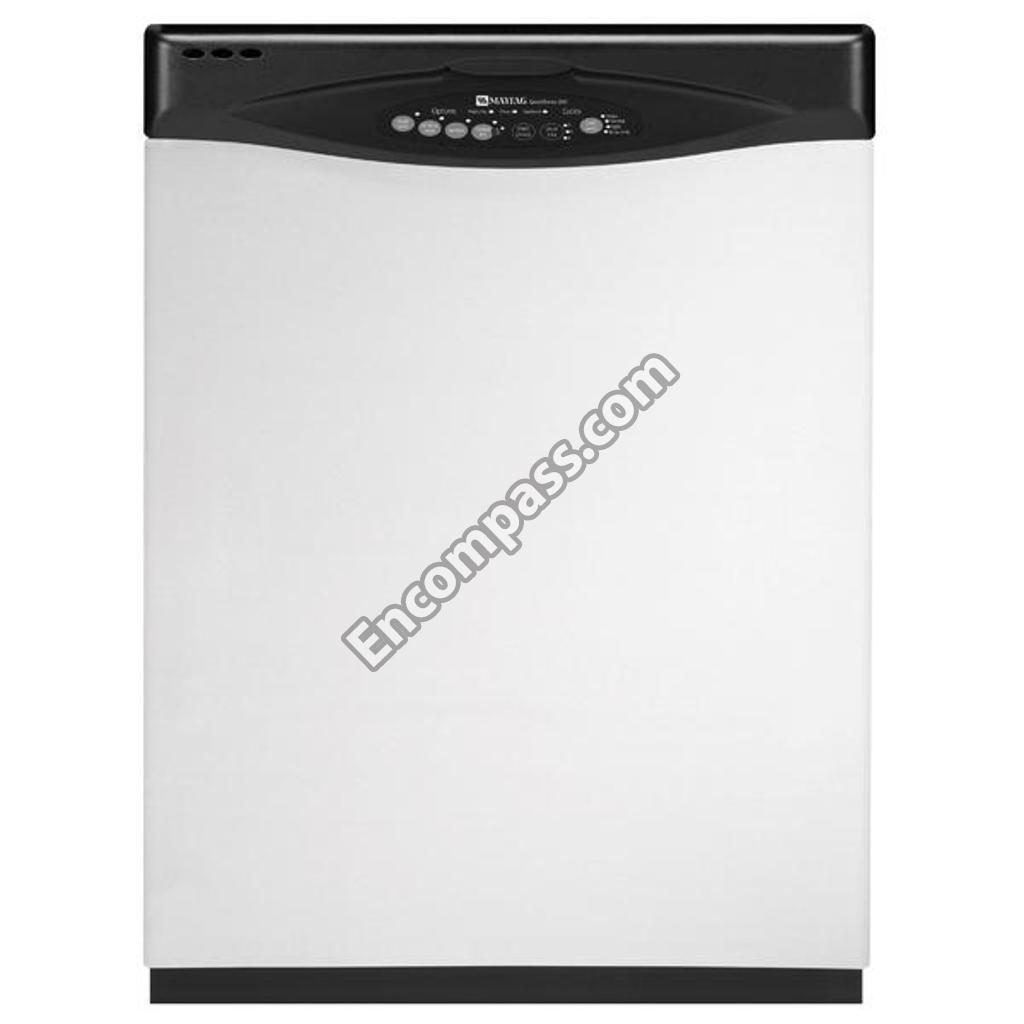

Model Image
Manufacturer

Whirlpool

Model Number

MDB4651AWS2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10192799 WPW10192799 ACCUMULATR
WP99003070 WP99003070 ARM, WASH (UPPER)
WP6-917644 WP6-917644 ARM-SPRAY
WP6-919119 WP6-919119 BAFFLE
4396277 4396277 BARRIER
WP6-918873 WP6-918873 BASKT-WARE
WPW10118637 WPW10118637 BRACKET
WPW10118638 WPW10118638 BRACKET
99003541 99003541 BRACKET S
WPW10173920 WPW10173920 BRACKET, CABLE
WP6-917103 WP6-917103 BRACKET, JUNCTION BOX
6-918346 6-918346 BRACKET, SPRING ADJUSTMENT
6-916979 6-916979 BRACKET, SUPPORT (LEFT)
WP6-916881 WP6-916881 BRACKET- C
6-918900 6-918900 BRACKET- D
WP99002643 WP99002643 BRACKET- M
WP6-917262 WP6-917262 BRACKT-HTR
WP99002665 WP99002665 CAPACITOR-
6-919353 6-919353 CHOPPER
WP596669 WP596669 CLAMP
WP99002669 WP99002669 CLIP
99002634 99002634 CLIP- THER
99002945 99002945 CLIP- UPR
WPW10218834 WPW10218834 CONTROL BOARD
99002575 99002575 COVER
99002638 99002638 COVER, JUNCTION BOX
99002671 99002671 CUP SHELF
99002590 99002590 DEFLECTOR
W10280784 W10280784 DISHRACK
WPW10243301 WPW10243301 DISHRACK, UPPER
WP99003317 WP99003317 DISPENSER
WP99003446 WP99003446 DOOR CABLE
WPW10275768 WPW10275768 DOOR DOOR LATCH
WP6-918615 WP6-918615 DOOR-INNER
W10185633 W10185633 DOOR-INNER
W10421247 W10421247 DRAIN PUMP
W10208026 W10208026 ENERGY GUIDE
W10278635RP W10278635RP FILL HOSE KIT
WPW10166788 WPW10166788 FILTER-PLT
W10202535 W10202535 FLOAT
99003481 99003481 FOAM STRIP
WP6-917025 WP6-917025 GASKET
WP99002948 WP99002948 GRILL,AIR/WATER INLET
W10157791 W10157791 GUIDE, USE & CARE (ENGLISH/FRENCH)
W10157792 W10157792 GUIDE, USE & CARE (SPANISH)
6-919770 6-919770 HARNESS, WIRING
W10283681 W10283681 HEATER ELEMENT ASSEMBLY W/ GASKET
8212486 8212486 HOSE
8212488RC 8212488RC HOSE
WP99002652 WP99002652 HOSE- DRAI
WP99002852 WP99002852 HOSE- INJE
4396897RW 4396897RW HOSE-FILL
WPW10212440 WPW10212440 HOUSING
WPW10205539 WPW10205539 HOUSING
WPW10190890 WPW10190890 HOUSING, VENT ASSEMBLY
WP99002659 WP99002659 IMPELLER
W11082871 W11082871 INLET VALVE
WP99002645 WP99002645 INLET- AIR
W10158012 W10158012 INSTRUCTIONS, INSTALLATION
WP99002614 WP99002614 KNOB- RINS
WPW10143258 WPW10143258 LEVLER-LEG
WP99002642 WP99002642 MANIFOLD-
WP99003688 WP99003688 NUT
WP6-920168 WP6-920168 NUT-HEATER
WP99002857 WP99002857 O-RING- DR
99002651 99002651 O-RING- TU
WPW10223013 WPW10223013 PAD-INS
WPW10117748 WPW10117748 PAD-INS
WPW10223015 WPW10223015 PAD-INS
99002591 99002591 PANEL
6-917696 6-917696 PANEL FRONT-STAINLESS
6-917693 6-917693 PANEL, FRONT (BLACK)
99003300 99003300 PANEL, FRONT (WHITE)
6-919807 6-919807 PANEL- CONTROL (BISQUE)
6-919806 6-919806 PANEL-CON
6-919818 6-919818 PANEL-CON
WP6-917688 WP6-917688 PANEL-TOE
W10826937 W10826937 PANEL-TOE
WP99002753 WP99002753 RETAINER
WP99002608 WP99002608 ROLLER- CA
WP99002664 WP99002664 SCREW
WPW10202904 WPW10202904 SCREW
WP99003687 WP99003687 SCREW
WP33002917 WP33002917 SCREW
WPY912620 WPY912620 SCREW
WP6-912366 WP6-912366 SCREW
99002740 99002740 SCREW
99002666 99002666 SCREW
99002601 99002601 SCREW
99001194 99001194 SCREW
99001075 99001075 SCREW
99002692 99002692 SCREW TRI
W10174581 W10174581 SEAL
W10174569 W10174569 SEAL
6-919082 6-919082 SEAL
WP99002588 WP99002588 SEAL- DOOR
WP99002186 WP99002186 SEAL- DOOR
WPW10120019 WPW10120019 SENSOR
WP6-920587 WP6-920587 SHIELD
W10218606 W10218606 SHIELD
W10167912 W10167912 SHIELD, CAPACITOR
99002698 99002698 SOUND SEAL
99002694 99002694 SOUND SEAL
WP99002598 WP99002598 SPRING- DO
99003476 99003476 STOP- RACK
WPW10119337 WPW10119337 STRIKE
W10137496 W10137496 SUPPORT
W10137495 W10137495 SUPPORT
WP6-918114 WP6-918114 SUPPORT
WP99002751 WP99002751 SWITCH- DO
WP99002633 WP99002633 THERMOSTAT, LIMITING
99002621 99002621 TRACK
W10164707 W10164707 TRIM
W10164706 W10164706 TRIM
W10164698 W10164698 TRIM
W10142297 W10142297 TUB ASSEMBLY
WP99002947 WP99002947 TUB WHEEL
WP6-917647 WP6-917647 TUBE
4392899 4392899 TUCHUP
72017 72017 TUCHUP
72032 72032 TUCHUP
WP99003222 WP99003222 VENT SEAL-
WP6-917642 WP6-917642 WASH ARM-
WP6-917643 WP6-917643 WASH MANIF
6-919922 6-919922 WASH MOTOR
WP99002781 WP99002781 WHEEL
WP99002780 WP99002780 WHEEL
