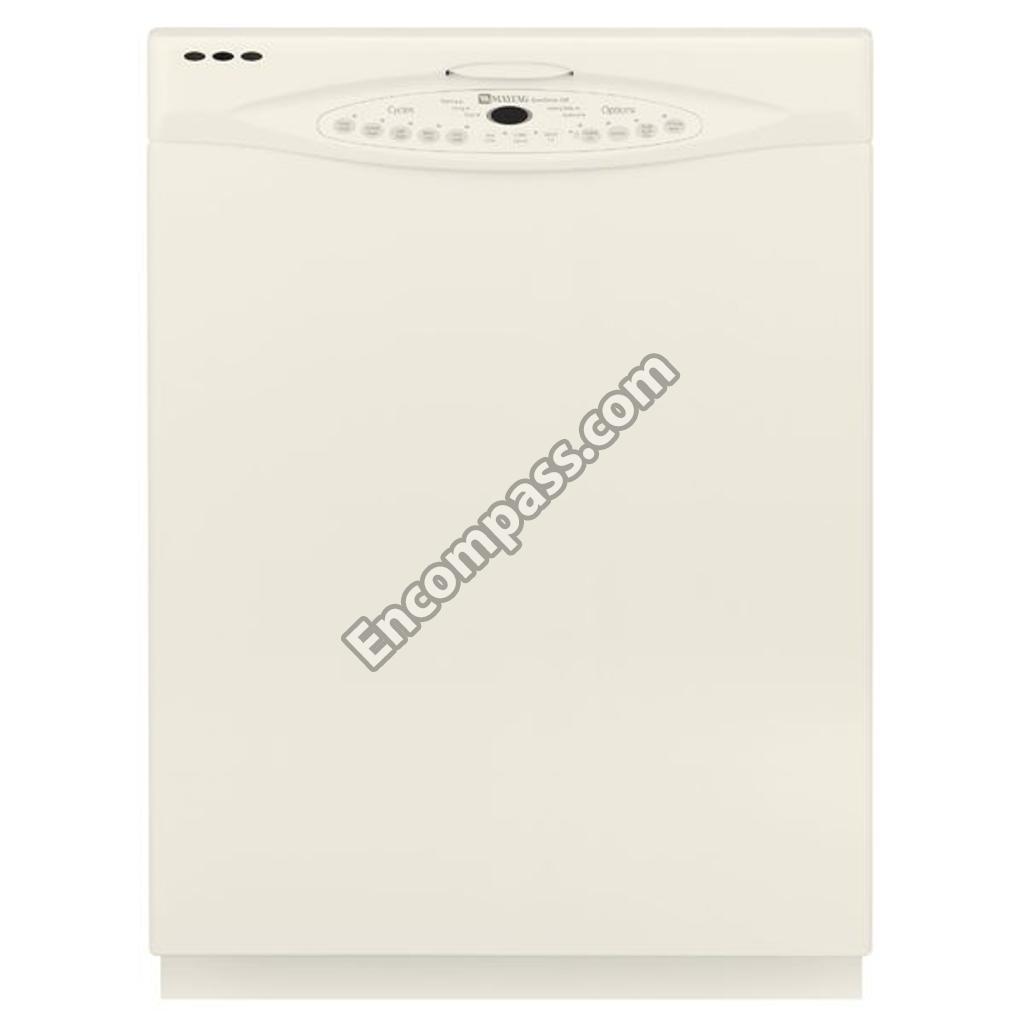

Model Image
Manufacturer

Whirlpool

Model Number

MDB6701AWQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10192799 WPW10192799 ACCUMULATR
W10169393 W10169393 ADJUSTER
W10169392 W10169392 ADJUSTER
WP6-918806 WP6-918806 ARM- LOWER
WP6-917644 WP6-917644 ARM-SPRAY
WP6-919119 WP6-919119 BAFFLE
4396277 4396277 BARRIER
WP6-918873 WP6-918873 BASKT-WARE
W11175758 W11175758 BASKT-WARE
WPW10118637 WPW10118637 BRACKET
WPW10118638 WPW10118638 BRACKET
99003541 99003541 BRACKET S
WPW10173920 WPW10173920 BRACKET, CABLE
WP6-917103 WP6-917103 BRACKET, JUNCTION BOX
6-918346 6-918346 BRACKET, SPRING ADJUSTMENT
6-916979 6-916979 BRACKET, SUPPORT (LEFT)
WP6-916881 WP6-916881 BRACKET- C
6-918900 6-918900 BRACKET- D
WP99002643 WP99002643 BRACKET- M
WP6-917262 WP6-917262 BRACKT-HTR
99003243 99003243 CAP
WP99003083 WP99003083 CAP- WASH
WP99002665 WP99002665 CAPACITOR-
6-919353 6-919353 CHOPPER
WP596669 WP596669 CLAMP
99003072 99003072 CLIP
99002634 99002634 CLIP- THER
99003071 99003071 CLIP- UPR
WPW10218837 WPW10218837 CONTROL BOARD
WP99002576 WP99002576 COVER
99003191 99003191 COVER
99002575 99002575 COVER
99002638 99002638 COVER, JUNCTION BOX
W10169388 W10169388 DEFLECTOR
W10169387 W10169387 DEFLECTOR
W10280784 W10280784 DISHRACK
W10570142 W10570142 DISHRACK, UPPER
WP99003317 WP99003317 DISPENSER
WP99003446 WP99003446 DOOR CABLE
WPW10275768 WPW10275768 DOOR DOOR LATCH
WP6-918615 WP6-918615 DOOR-INNER
W10185633 W10185633 DOOR-INNER
W10421247 W10421247 DRAIN PUMP
W10208036 W10208036 ENERGY GUIDE
99002640 99002640 FASTENER-
W10278635RP W10278635RP FILL HOSE KIT
W10202536 W10202536 FLOAT
99003481 99003481 FOAM STRIP
WP6-917025 WP6-917025 GASKET
W10166790 W10166790 GUARD, FILTER
W10157789 W10157789 GUIDE, USE & CARE
W10162610 W10162610 HANDLE
W10162608 W10162608 HANDLE
W10237911 W10237911 HARNS-WIRE
W10283681 W10283681 HEATER ELEMENT ASSEMBLY W/ GASKET
8212486 8212486 HOSE
8212488RC 8212488RC HOSE
WP99002652 WP99002652 HOSE- DRAI
WP99002852 WP99002852 HOSE- INJE
4396897RW 4396897RW HOSE-FILL
WPW10205539 WPW10205539 HOUSING
WP99002659 WP99002659 IMPELLER
W11082871 W11082871 INLET VALVE
WPW10190890 WPW10190890 INLET, AIR/WATER
WP99002645 WP99002645 INLET- AIR
W10158012 W10158012 INSTRUCTIONS, INSTALLATION
99003276 99003276 LEVER RAC
WPW10143258 WPW10143258 LEVLER-LEG
WP99003688 WP99003688 NUT
WP6-920168 WP6-920168 NUT-HEATER
WP99002857 WP99002857 O-RING- DR
99002651 99002651 O-RING- TU
WP6-918807 WP6-918807 OUTLET
WPW10223013 WPW10223013 PAD-INS
WPW10117748 WPW10117748 PAD-INS
WPW10223015 WPW10223015 PAD-INS
6-917696 6-917696 PANEL FRONT-STAINLESS
6-919822 6-919822 PANEL, CONTROL (BLACK)
99003383 99003383 PANEL, CONTROL (BSQ)
6-917694 6-917694 PANEL, FRONT (BISQUE)
6-917693 6-917693 PANEL, FRONT (BLACK)
99002770 99002770 PANEL, FRONT (WHITE)
99002767 99002767 PANEL, TOE (BISQUE)
WP6-917688 WP6-917688 PANEL-TOE
W10826937 W10826937 PANEL-TOE
WP99002753 WP99002753 RETAINER
WP99002608 WP99002608 ROLLER- CA
WP6-912799 WP6-912799 SCREW
WP99003687 WP99003687 SCREW
WP33002917 WP33002917 SCREW
WPY912620 WPY912620 SCREW
WP6-912366 WP6-912366 SCREW
99003010 99003010 SCREW
99002740 99002740 SCREW
99002666 99002666 SCREW
99002601 99002601 SCREW
99001194 99001194 SCREW
99001075 99001075 SCREW
99002668 99002668 SCREW STA
99002692 99002692 SCREW TRI
6-919082 6-919082 SEAL
WP99002588 WP99002588 SEAL- DOOR
WP99002186 WP99002186 SEAL- DOOR
WPW10120019 WPW10120019 SENSOR
6-918867 6-918867 SHELF
99003252 99003252 SHELF CUP
W10218606 W10218606 SHIELD
W10167912 W10167912 SHIELD, CAPACITOR
WP99002598 WP99002598 SPRING- DO
99003193 99003193 STABILIZER
W10169390 W10169390 STOP
WPW10119337 WPW10119337 STRIKE
W10137496 W10137496 SUPPORT
W10137495 W10137495 SUPPORT
99003152 99003152 SUPPORT, FRONT (BLACK)
99003153 99003153 SUPPORT, FRONT (WHITE)
WP99002751 WP99002751 SWITCH- DO
WP99002633 WP99002633 THERMOSTAT, LIMITING
99002621 99002621 TRACK
W10236659 W10236659 TRIM
W10236658 W10236658 TRIM
W10170236 W10170236 TUB ASSEMBLY
WP99002947 WP99002947 TUB WHEEL
WP6-917647 WP6-917647 TUBE
WP99003081 WP99003081 TUBE-FEED
4392899 4392899 TUCHUP
72017 72017 TUCHUP
72032 72032 TUCHUP
6-919922 6-919922 WASH MOTOR
WP99003149 WP99003149 WHEEL
