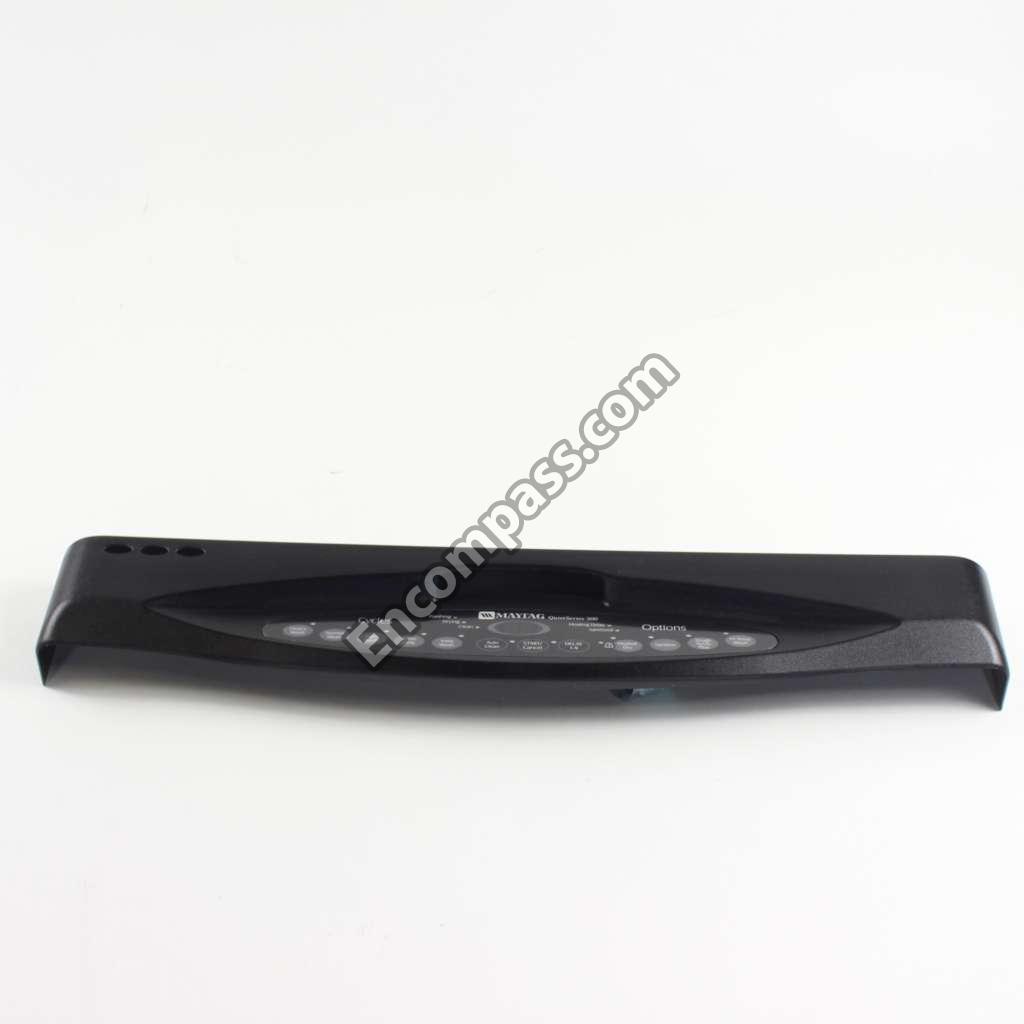

Model Image
Manufacturer

Whirlpool

Model Number

MDB6702AWS10

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10192799 WPW10192799 ACCUMULATR
WP6-918806 WP6-918806 ARM- LOWER
WP99003070 WP99003070 ARM- WASH
WP6-917644 WP6-917644 ARM-SPRAY
WP6-919119 WP6-919119 BAFFLE
4396277 4396277 BARRIER
WP6-918873 WP6-918873 BASKT-WARE
W11175758 W11175758 BASKT-WARE
WPW10118638 WPW10118638 BRACKET
WPW10118637 WPW10118637 BRACKET
WPW10173920 WPW10173920 BRACKET, CABLE
WP6-917103 WP6-917103 BRACKET, JUNCTION BOX
6-918346 6-918346 BRACKET, SPRING ADJUSTMENT
6-916979 6-916979 BRACKET, SUPPORT (LEFT)
WP6-916881 WP6-916881 BRACKET- C
6-918900 6-918900 BRACKET- D
WP99002643 WP99002643 BRACKET- M
99003243 99003243 CAP
WP99003083 WP99003083 CAP- WASH
WP99002665 WP99002665 CAPACITOR-
6-919353 6-919353 CHOPPER
WP596669 WP596669 CLAMP
99003072 99003072 CLIP
99002634 99002634 CLIP- THER
99003071 99003071 CLIP- UPR
WPW10218837 WPW10218837 CONTROL BOARD
WP99002576 WP99002576 COVER
99002575 99002575 COVER
99002638 99002638 COVER, JUNCTION BOX
W10169387 W10169387 DEFLECTOR
W10280784 W10280784 DISHRACK
W10570142 W10570142 DISHRACK, UPPER
WP99003317 WP99003317 DISPENSER
WP99003446 WP99003446 DOOR CABLE
WPW10275768 WPW10275768 DOOR DOOR LATCH
WP6-918615 WP6-918615 DOOR-INNER
W10421247 W10421247 DRAIN PUMP
W10184365 W10184365 ENERGY GUIDE
99002640 99002640 FASTENER-
W10278635RP W10278635RP FILL HOSE KIT
W10202535 W10202535 FLOAT
WP6-917025 WP6-917025 GASKET
99003468 99003468 GUARD
W10166790 W10166790 GUARD, FILTER
6-919770 6-919770 HARNESS, WIRING
W10283681 W10283681 HEATER ELEMENT ASSEMBLY W/ GASKET
8212486 8212486 HOSE
8212488RC 8212488RC HOSE
WP99002652 WP99002652 HOSE- DRAI
WP99002852 WP99002852 HOSE- INJE
4396897RW 4396897RW HOSE-FILL
WP99002659 WP99002659 IMPELLER
W11082871 W11082871 INLET VALVE
WPW10190890 WPW10190890 INLET, AIR/WATER
WP99002645 WP99002645 INLET- AIR
W10158012 W10158012 INSTRUCTIONS, INSTALLATION
WPW10143258 WPW10143258 LEVLER-LEG
100000 100000 NOTE: IF HEATER ELEMENT IS REMOVED, IT MUST BE REPLACED.
WP99003688 WP99003688 NUT
WP6-920168 WP6-920168 NUT-HEATER
WP99002857 WP99002857 O-RING- DR
99002651 99002651 O-RING- TU
WP6-918807 WP6-918807 OUTLET
Y6920186 Y6920186 OWNERS MAN
WPW10223013 WPW10223013 PAD-INS
WPW10223015 WPW10223015 PAD-INS
6-917696 6-917696 PANEL FRONT-STAINLESS
6-919822 6-919822 PANEL, CONTROL (BLACK)
6-917694 6-917694 PANEL, FRONT (BISQUE)
6-917693 6-917693 PANEL, FRONT (BLACK)
99002770 99002770 PANEL, FRONT (WHITE)
99002767 99002767 PANEL, TOE (BISQUE)
WP6-917688 WP6-917688 PANEL-TOE
W10826937 W10826937 PANEL-TOE
6-916824 6-916824 PIVOT, WASH ARM
99002943 99002943 PLATE
WP99002753 WP99002753 RETAINER
WP99002608 WP99002608 ROLLER- CA
WP99003687 WP99003687 SCREW
WP33002917 WP33002917 SCREW
WPY912620 WPY912620 SCREW
WP6-912366 WP6-912366 SCREW
99002740 99002740 SCREW
99002666 99002666 SCREW
99002601 99002601 SCREW
99001194 99001194 SCREW
99001075 99001075 SCREW
99002668 99002668 SCREW STA
99002692 99002692 SCREW TRI
W10174581 W10174581 SEAL
W10174569 W10174569 SEAL
WP99002588 WP99002588 SEAL- DOOR
WP99002186 WP99002186 SEAL- DOOR
WPW10120019 WPW10120019 SENSOR
W10167918 W10167918 SHIELD
W10167912 W10167912 SHIELD, CAPACITOR
WP99002598 WP99002598 SPRING- DO
W10169390 W10169390 STOP
WPW10119337 WPW10119337 STRIKE
WPW10164704 WPW10164704 STRIP,TRIM LEFT (WHITE)
W10137496 W10137496 SUPPORT
W10137495 W10137495 SUPPORT
99003152 99003152 SUPPORT, FRONT (BLACK)
99003153 99003153 SUPPORT, FRONT (WHITE)
WP99002751 WP99002751 SWITCH- DO
WP99002633 WP99002633 THERMOSTAT, LIMITING
99002621 99002621 TRACK
WPW10164705 WPW10164705 TRIM
WP6-919669 WP6-919669 TRIM
W10164759 W10164759 TRIM
W10164758 W10164758 TRIM
W10164707 W10164707 TRIM
W10164706 W10164706 TRIM
W10142297 W10142297 TUB ASSEMBLY
WP99002947 WP99002947 TUB WHEEL
WP6-917647 WP6-917647 TUBE
WP99003081 WP99003081 TUBE-FEED
4392899 4392899 TUCHUP
72017 72017 TUCHUP
72032 72032 TUCHUP
6-919922 6-919922 WASH MOTOR
WP99003149 WP99003149 WHEEL
