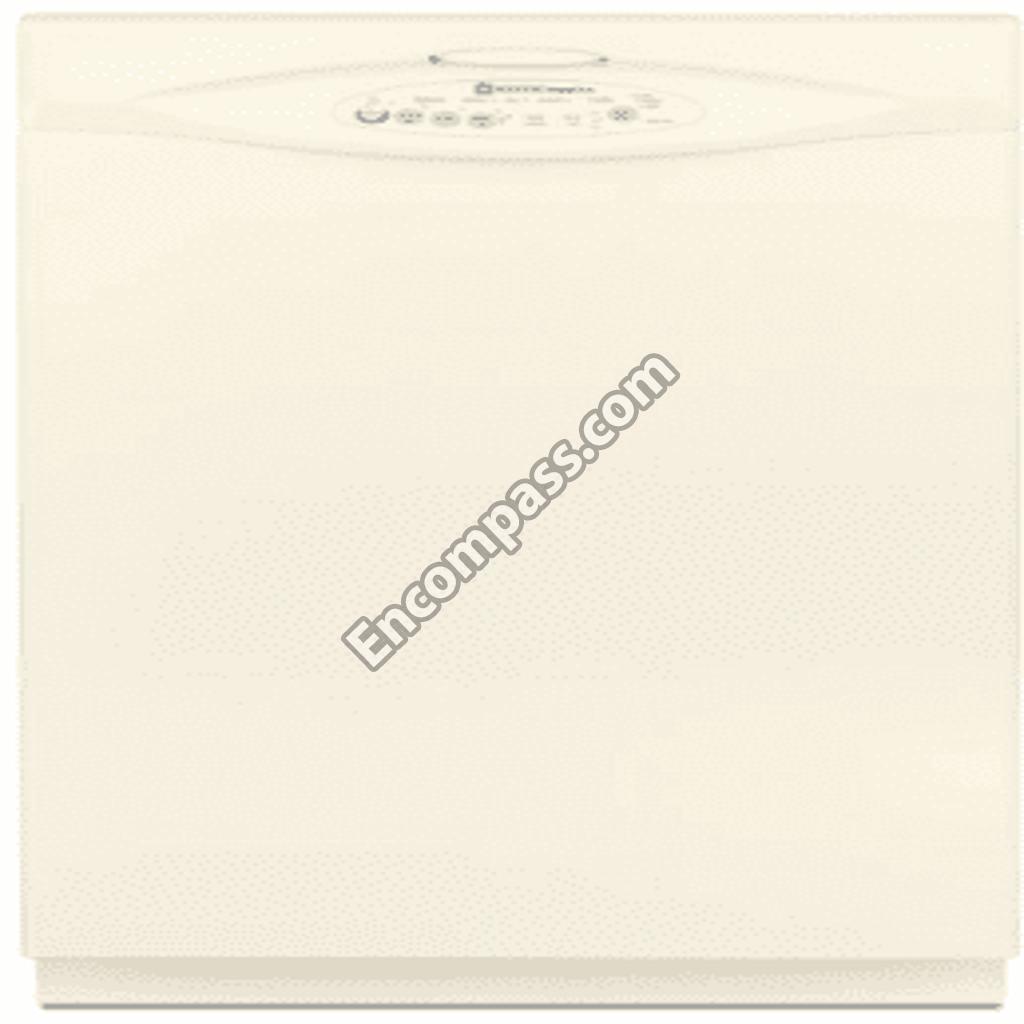

Model Image
Manufacturer

Whirlpool

Model Number

MDB7851AWQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10192799 WPW10192799 ACCUMULATR
W10130109 W10130109 ADAPTER, FLOAT
WP6-918806 WP6-918806 ARM- LOWER
WP99003070 WP99003070 ARM- WASH
WP6-917644 WP6-917644 ARM-SPRAY
WP6-919119 WP6-919119 BAFFLE
4396277 4396277 BARRIER
99003048 99003048 BARRIER F
WP6-918873 WP6-918873 BASKT-WARE
WP99003068 WP99003068 BEARING- B
99003046 99003046 BLOCK FOA
99003047 99003047 BLOCK FOA
WPW10118637 WPW10118637 BRACKET
WPW10118638 WPW10118638 BRACKET
W10167660 W10167660 BRACKET
99002465 99002465 BRACKET D
99003032 99003032 BRACKET H
WPW10173920 WPW10173920 BRACKET, CABLE
WP6-917103 WP6-917103 BRACKET, JUNCTION BOX
WP6-916881 WP6-916881 BRACKET- C
WP99002643 WP99002643 BRACKET- M
6-918346 6-918346 BRACKET- S
6-916979 6-916979 BRACKET- S
W10167916 W10167916 BRKT-REAR
W10877169 W10877169 CAGE- BALL
99003243 99003243 CAP
WP99002665 WP99002665 CAPACITOR-
6-919353 6-919353 CHOPPER
WP596669 WP596669 CLAMP
99003072 99003072 CLIP
99001008 99001008 CLIP THER
99003071 99003071 CLIP- UPR
WPW10218838 WPW10218838 CONTROL BOARD
WP99002576 WP99002576 COVER
99002575 99002575 COVER
6-916711 6-916711 COVER JUN
WPW10212444 WPW10212444 DISCHARGE, HOUSING ASSEMBLY
W10280784 W10280784 DISHRACK
WPW10243281 WPW10243281 DISHRACK, UPPER
WP99003317 WP99003317 DISPENSER
WP99003446 WP99003446 DOOR CABLE
WPW10275768 WPW10275768 DOOR DOOR LATCH
WPW10130695 WPW10130695 DOOR LATCH KIT
W10421247 W10421247 DRAIN PUMP
W10208037 W10208037 ENERGY GUIDE
99002640 99002640 FASTENER-
W10278635RP W10278635RP FILL HOSE KIT
WPW10268755 WPW10268755 FLOAT
W10202536 W10202536 FLOAT
12002361 12002361 GASKET
6-918397 6-918397 GRILL-VENT
W10166790 W10166790 GUARD, FILTER
W10157791 W10157791 GUIDE, USE & CARE
W10237912 W10237912 HARNS-WIRE
W10283681 W10283681 HEATER ELEMENT ASSEMBLY W/ GASKET
8212488RC 8212488RC HOSE
8212486 8212486 HOSE
WP99002652 WP99002652 HOSE- DRAI
WP99002852 WP99002852 HOSE- INJE
4396897RW 4396897RW HOSE-FILL
WPW10205539 WPW10205539 HOUSING
WP99002659 WP99002659 IMPELLER
W11082871 W11082871 INLET VALVE
WP99003028 WP99003028 INLET-AIR
W10120976 W10120976 INNER DOOR W/ DAMPER
W10158012 W10158012 INSTRUCTIONS, INSTALLATION
99003044 99003044 INSULATION
99002693 99002693 INSULATION, DOOR
99003056 99003056 LEVER- MOT
WPW10143258 WPW10143258 LEVLER-LEG
WP99003688 WP99003688 NUT
WP99003033 WP99003033 NUT, HEATER
WP99002857 WP99002857 O-RING- DR
99002651 99002651 O-RING- TU
WPW10223013 WPW10223013 PAD-INS
99002592 99002592 PANEL
6-917696 6-917696 PANEL FRONT-STAINLESS
6-917694 6-917694 PANEL, FRONT (BISQUE)
6-917693 6-917693 PANEL, FRONT (BLACK)
99002770 99002770 PANEL, FRONT (WHITE)
99002767 99002767 PANEL, TOE (BISQUE)

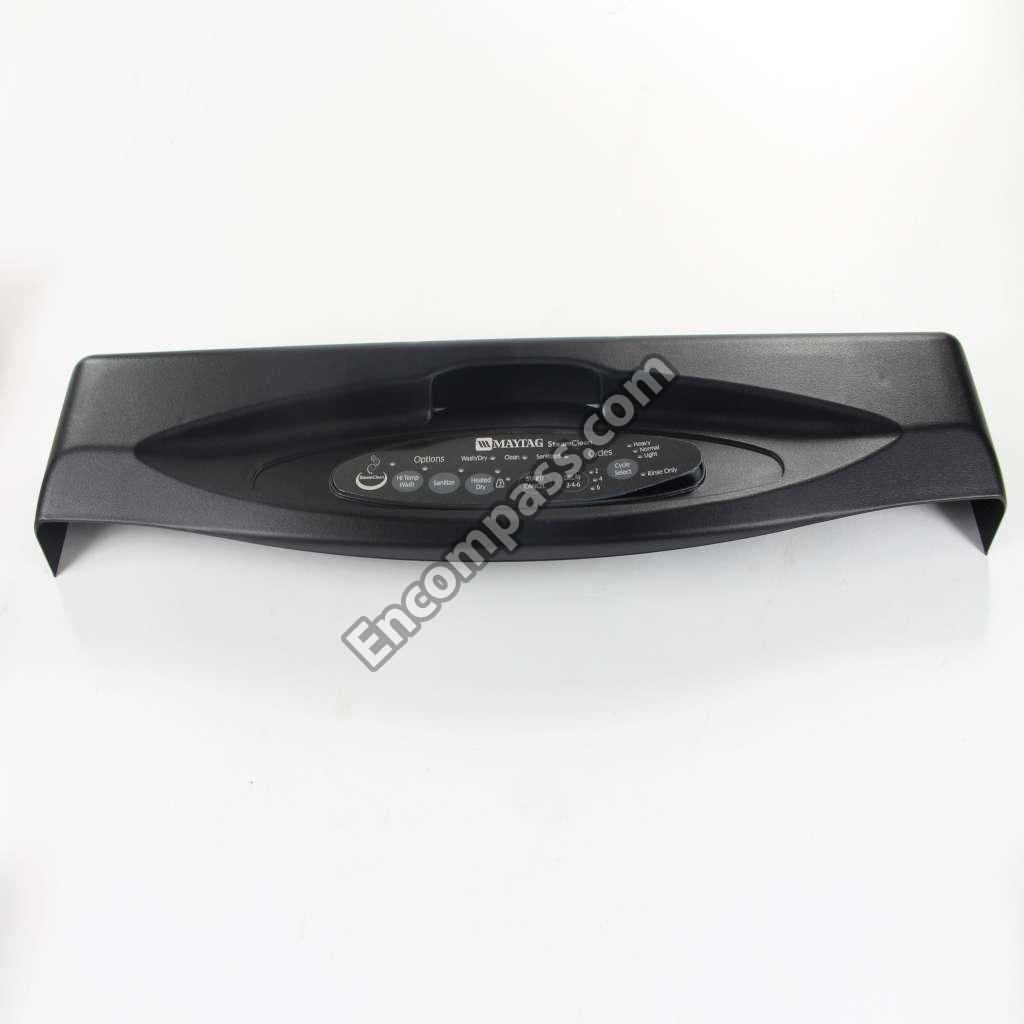

W10197307 W10197307 PANEL-CNTL
W10197309 W10197309 PANEL-CNTL
WP6-917688 WP6-917688 PANEL-TOE
W10826937 W10826937 PANEL-TOE
99003057 99003057 PLUNGER- M
WP99002753 WP99002753 RETAINER
WP99002608 WP99002608 ROLLER- CA
WP99002664 WP99002664 SCREW
WP6-912799 WP6-912799 SCREW
WP99003687 WP99003687 SCREW
WP33002917 WP33002917 SCREW
WPY912620 WPY912620 SCREW
WP6-912366 WP6-912366 SCREW
99001075 99001075 SCREW
99001194 99001194 SCREW
99002601 99002601 SCREW
99002666 99002666 SCREW
99002740 99002740 SCREW
99002114 99002114 SCREW BSQ
99002668 99002668 SCREW STA
WP6-917273 WP6-917273 SCREW, TRIM MOUNTING
W10174569 W10174569 SEAL
W10174581 W10174581 SEAL
W10163635 W10163635 SEAL
W10163633 W10163633 SEAL
WP99002150 WP99002150 SEAL- AIR
WP99003337 WP99003337 SEAL- DOOR
WP99003045 WP99003045 SEAL- DOOR
W10833055 W10833055 SEAL- STAN
WPW10120019 WPW10120019 SENSOR
W10167912 W10167912 SHEILD, CAPACITOR
WP6-920587 WP6-920587 SHIELD
W10218606 W10218606 SHIELD
WP99002598 WP99002598 SPRING- DO
WPW10169391 WPW10169391 STOP
WPW10119337 WPW10119337 STRIKE
WPW10117484 WPW10117484 SUPPORT
WPW10117485 WPW10117485 SUPPORT
WP6-918113 WP6-918113 SUPPORT, FRONT (BLACK)
WP6-918114 WP6-918114 SUPPORT, FRONT (WHITE)
WP99002633 WP99002633 THERMOSTAT, LIMITING
WPW10144736 WPW10144736 TRACK
WP99003041 WP99003041 TRIM
WP99003038 WP99003038 TRIM
WP99003039 WP99003039 TRIM
W10164700 W10164700 TRIM
W10164701 W10164701 TRIM
W10164702 W10164702 TRIM
N_P N_P TUB ASSEMBLY (NOT SERVICED)
WP6-917647 WP6-917647 TUBE
WP99003081 WP99003081 TUBE-FEED
72032 72032 TUCHUP
72017 72017 TUCHUP
4392899 4392899 TUCHUP
99003142 99003142 WASH MANIFOLD ASSEMBLY (UPPER)
6-919963 6-919963 WASH MOTOR ASSEMBLY.
WP99003149 WP99003149 WHEEL
99003049 99003049 WRAP- FOAM
