Model Image
Manufacturer

Whirlpool

Model Number

MDBH980AWW10

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10192799 WPW10192799 ACCUMULATR
WP6-918806 WP6-918806 ARM- LOWER
WP99003070 WP99003070 ARM- WASH
WP6-917644 WP6-917644 ARM-SPRAY
WP6-919119 WP6-919119 BAFFLE
4396277 4396277 BARRIER
99003048 99003048 BARRIER F
WP6-918873 WP6-918873 BASKT-WARE
99003047 99003047 BLOCK FOA
99003046 99003046 BLOCK FOA
WPW10118638 WPW10118638 BRACKET
WPW10118637 WPW10118637 BRACKET
W10167660 W10167660 BRACKET
99002465 99002465 BRACKET D
WPW10173920 WPW10173920 BRACKET, CABLE
WP6-917103 WP6-917103 BRACKET, JUNCTION BOX
6-918346 6-918346 BRACKET, SPRING ADJUSTMENT
6-916979 6-916979 BRACKET, SUPPORT (LEFT)
WP6-916881 WP6-916881 BRACKET- C
WP99002643 WP99002643 BRACKET- M
WP99003083 WP99003083 CAP- WASH
WP99002665 WP99002665 CAPACITOR-
6-919353 6-919353 CHOPPER
WP596669 WP596669 CLAMP
99003072 99003072 CLIP
99003249 99003249 CLIP CUP
99001008 99001008 CLIP THER
99003071 99003071 CLIP- UPR

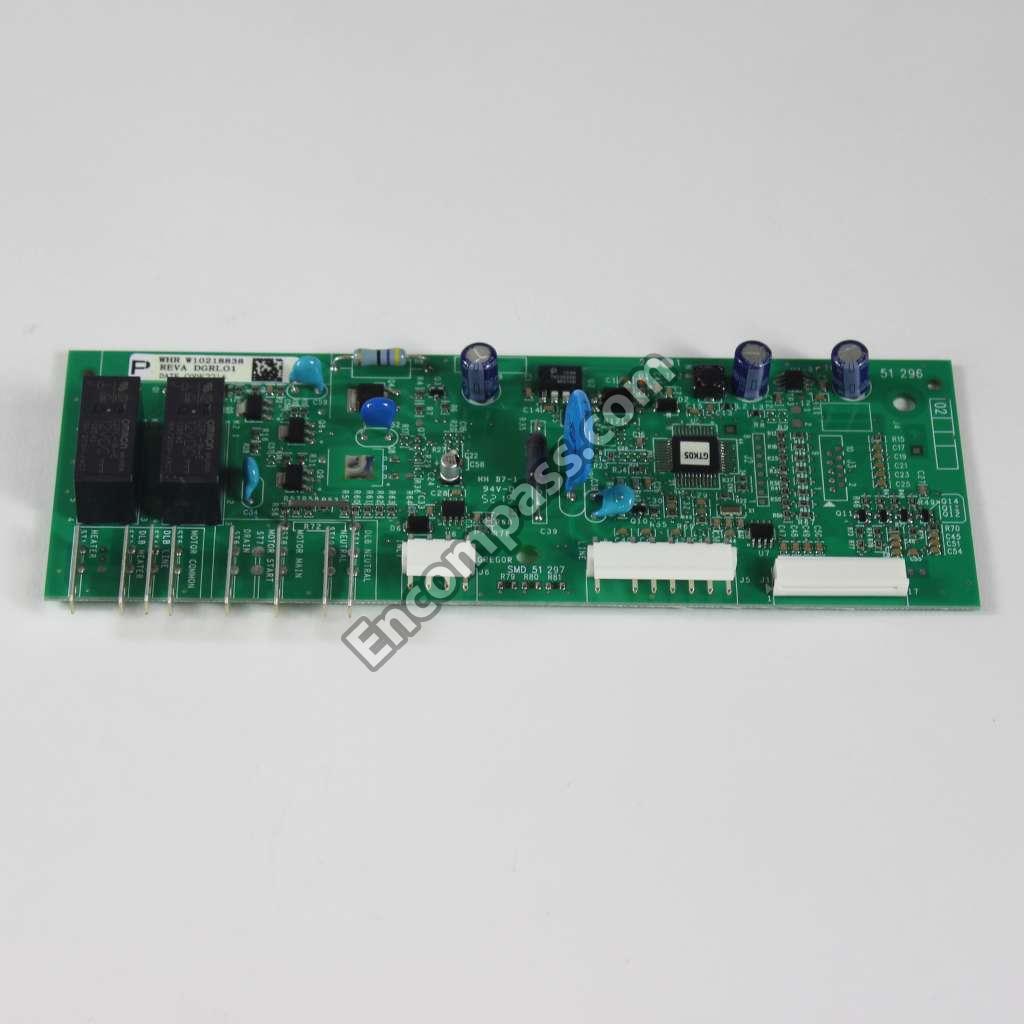

WPW10218838 WPW10218838 CONTROL BOARD
WP99002576 WP99002576 COVER
99002575 99002575 COVER
99003079 99003079 COVER SWI
99002638 99002638 COVER, JUNCTION BOX
W10280784 W10280784 DISHRACK
WPW10243281 WPW10243281 DISHRACK
WP99003317 WP99003317 DISPENSER
WP99003446 WP99003446 DOOR CABLE
WPW10275768 WPW10275768 DOOR DOOR LATCH
W10421247 W10421247 DRAIN PUMP
W10184366 W10184366 ENERGY GUIDE
99002640 99002640 FASTENER-
W10278635RP W10278635RP FILL HOSE KIT
WPW10268755 WPW10268755 FLOAT
W10202535 W10202535 FLOAT
12002361 12002361 GASKET
6-918397 6-918397 GRILL,AIR/WATER INLET
99003468 99003468 GUARD
W10166790 W10166790 GUARD, FILTER
W10237912 W10237912 HARNESS, WIRING
W10283681 W10283681 HEATER ELEMENT ASSEMBLY W/ GASKET
99003031 99003031 HOLDER- FL
8212486 8212486 HOSE
8212488RC 8212488RC HOSE
WP99002652 WP99002652 HOSE- DRAI
WP99002852 WP99002852 HOSE- INJE
4396897RW 4396897RW HOSE-FILL
WP99002659 WP99002659 IMPELLER
W11082871 W11082871 INLET VALVE
WP99003028 WP99003028 INLET-AIR
W10158012 W10158012 INSTRUCTIONS, INSTALLATION
99003044 99003044 INSULATION
99002693 99002693 INSULATION, DOOR
99002992 99002992 KNOB- RINS
99003056 99003056 LEVER- MOT
Y6920187 Y6920187 M*OWNERS M
100000 100000 NOTE: IF HEATER ELEMENT IS REMOVED, IT MUST BE REPLACED.
WP99003688 WP99003688 NUT
WP99003033 WP99003033 NUT, HEATER
WP99002857 WP99002857 O-RING- DR
99002651 99002651 O-RING- TU
WP6-918807 WP6-918807 OUTLET
WPW10223013 WPW10223013 PAD-INS
W10203662 W10203662 PANEL
99002592 99002592 PANEL
99002591 99002591 PANEL
6-917696 6-917696 PANEL FRONT-STAINLESS
6-917694 6-917694 PANEL, FRONT (BISQUE)
6-917693 6-917693 PANEL, FRONT (BLACK)
99003300 99003300 PANEL, FRONT (WHITE)
99002767 99002767 PANEL, TOE (BISQUE)
W10197309 W10197309 PANEL-CNTL
W10197307 W10197307 PANEL-CNTL
W10826937 W10826937 PANEL-TOE
WP6-917688 WP6-917688 PANEL-TOE
6-916824 6-916824 PIVOT, WASH ARM
99003057 99003057 PLUNGER- M
WP99002753 WP99002753 RETAINER
WP99002608 WP99002608 ROLLER- CA
WP99002664 WP99002664 SCREW
WP99003687 WP99003687 SCREW
WPY912620 WPY912620 SCREW
WP33002917 WP33002917 SCREW
WP6-912366 WP6-912366 SCREW
99002740 99002740 SCREW
99002666 99002666 SCREW
99002601 99002601 SCREW
99001194 99001194 SCREW
99001075 99001075 SCREW
99002114 99002114 SCREW BSQ
99002668 99002668 SCREW STA
99002692 99002692 SCREW TRI
WP99002150 WP99002150 SEAL- AIR
WP99003337 WP99003337 SEAL- DOOR
WP99003045 WP99003045 SEAL- DOOR
W10833055 W10833055 SEAL- STAN
WPW10120019 WPW10120019 SENSOR
WP6-920587 WP6-920587 SHIELD
W10167918 W10167918 SHIELD
W10167912 W10167912 SHIELD, CAPACITOR
99002698 99002698 SOUND SEAL
99002694 99002694 SOUND SEAL
WP99002598 WP99002598 SPRING- DO
WPW10169391 WPW10169391 STOP
WPW10119337 WPW10119337 STRIKE
99003036 99003036 STRIP TRI
99003035 99003035 STRIP TRI
99003034 99003034 STRIP TRI
WPW10117484 WPW10117484 SUPPORT
WPW10117485 WPW10117485 SUPPORT
WP6-918114 WP6-918114 SUPPORT
WP99002751 WP99002751 SWITCH- DO
WP99002633 WP99002633 THERMOSTAT, LIMITING
WPW10144736 WPW10144736 TRACK
WP99003041 WP99003041 TRIM
WP99003038 WP99003038 TRIM
WP99003039 WP99003039 TRIM
WP6-918984 WP6-918984 TRIM
WP6-918983 WP6-918983 TRIM
W10142298 W10142298 TUB ASSEMBLY (INCLUDES HEATER)
WP6-917647 WP6-917647 TUBE
WP99003081 WP99003081 TUBE-FEED
4392899 4392899 TUCHUP
72017 72017 TUCHUP
72032 72032 TUCHUP
99003142 99003142 WASH MANIFOLD (UPPER)
6-919963 6-919963 WASH MOTOR ASSEMBLY.
WP99003148 WP99003148 WHEEL
WP99003149 WP99003149 WHEEL
99003049 99003049 WRAP- FOAM
