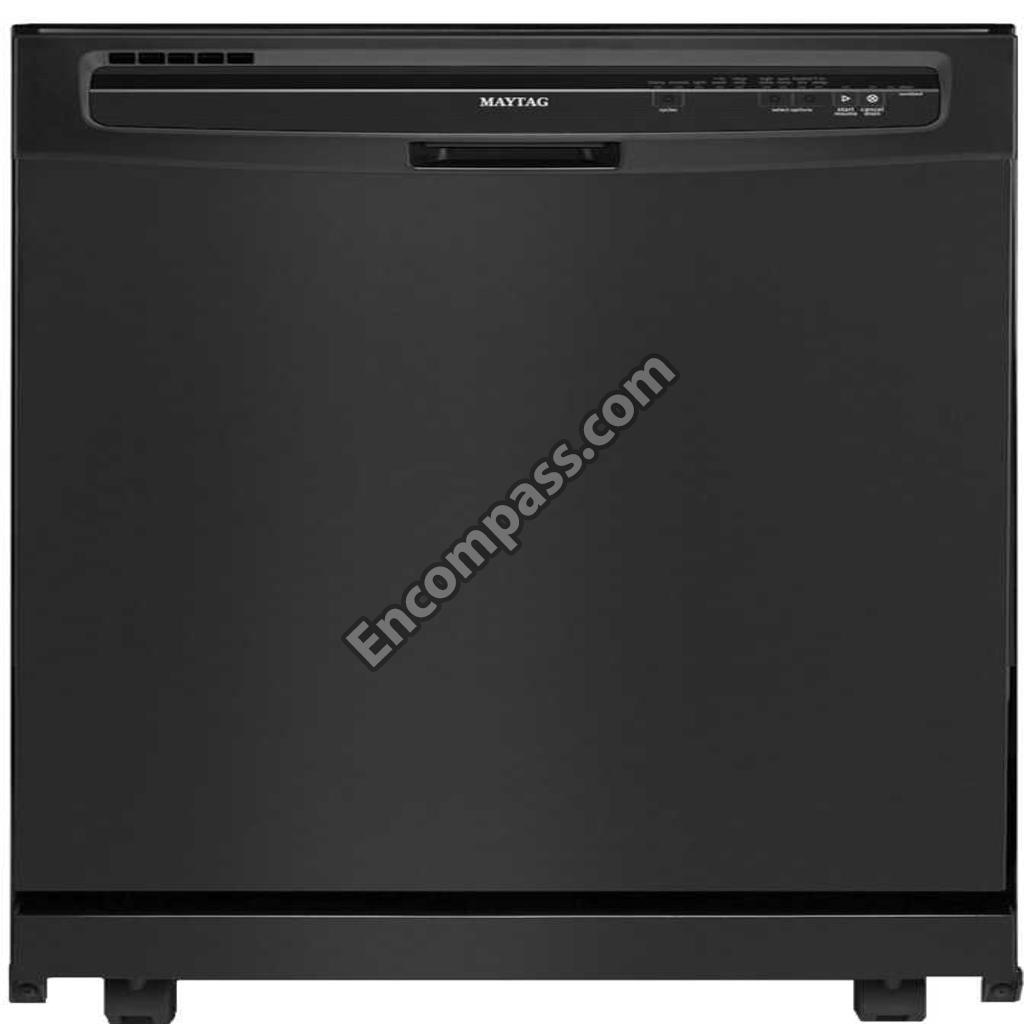

Model Image
Manufacturer

WHI

Model Number

MDC4809PAB2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part 3385556
Whirlpool
3385556
ACCESSORIES, DRAIN HOSE 12 FT.
Checking…
View Product
Part 4396277
Whirlpool
4396277
ACCESSORIES, MOISTURE BARRIER KIT
Checking…
View Product
Part 8171658
Whirlpool
8171658
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE)
Checking…
View Product
Part 8171657
Whirlpool
8171657
ACCESSORIES, SIDE PANEL KITS (BLACK)
Checking…
View Product
Part 8171659
Whirlpool
8171659
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL)
Checking…
View Product
Part 8171656
Whirlpool
8171656
ACCESSORIES, SIDE PANEL KITS (WHITE)
Checking…
View Product
Part 8193918
Whirlpool
8193918
ACCUMULATR
Checking…
View Product
Part WP8524472
Whirlpool
WP8524472
ACTUATOR
Checking…
View Product
Part WPW10254672
Whirlpool
WPW10254672
ADAPTER
Checking…
View Product
Part 8171477
Whirlpool
8171477
ANTI-TIP KIT, FLOOR MOUNT KIT
Checking…
View Product
Part 8212560
Whirlpool
8212560
ANTI-TIP KIT, SIDE MOUNT KIT
Checking…
View Product
Part WPW10330588
Whirlpool
WPW10330588
ARM-SPRAY
Checking…
View Product
Part WPW10082841
Whirlpool
WPW10082841
ARM-SPRAY
Checking…
View Product
Part WP8268340
Whirlpool
WP8268340
BEARING
Checking…
View Product
Part WPW10274884
Whirlpool
WPW10274884
BOLT-DOOR LATCH
Checking…
View Product
Part WPW10372484
Whirlpool
WPW10372484
BRACE
Checking…
View Product
Part WPW10462232
Whirlpool
WPW10462232
BRCKT-DISP
Checking…
View Product
Part W10539489
Whirlpool
W10539489
BRCKT-STAT
Checking…
View Product
Part WP8268990
Whirlpool
WP8268990
BUSHING
Checking…
View Product
Part W10274842
Whirlpool
W10274842
BUTTON
Checking…
View Product
Part WP8268317
Whirlpool
WP8268317
CAP
Checking…
View Product
Part WPW10524922
Whirlpool
WPW10524922
CAP
Checking…
View Product
Part WPW10334457
Whirlpool
WPW10334457
CAPACITOR
Checking…
View Product
Part WP8559933
Whirlpool
WP8559933
CASTER
Checking…
View Product
Part W11676533
Whirlpool
W11676533
CASTR-SHRD
Checking…
View Product
Part W10270155
Whirlpool
W10270155
CASTR-SHRD
Checking…
View Product
Part W10083957
Whirlpool
W10083957
CHOPPER
Checking…
View Product
Part WP596669
Whirlpool
WP596669
CLAMP
Checking…
View Product
Part W10783730
Whirlpool
W10783730
CONNECTOR
Checking…
View Product
Part W10475825
Whirlpool
W10475825
CONSOLE
Checking…
View Product
Part W10475826
Whirlpool
W10475826
CONSOLE
Checking…
View Product
Part W10804114
Whirlpool
W10804114
CONTROL BOARD
Checking…
View Product
Part W10831279
Whirlpool
W10831279
CORD, POWER
Checking…
View Product
Part WPW10482094
Whirlpool
WPW10482094
COVER
Checking…
View Product
Part WP3400919
Whirlpool
WP3400919
COVR-SCREW
Checking…
View Product
Part WPW10254548
Whirlpool
WPW10254548
DEFLECTOR
Checking…
View Product
Part W11752368
Whirlpool
W11752368
DISHRACK
Checking…
View Product
Part 4396853
Whirlpool
4396853
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
Checking…
View Product
Part WPW10428215
Whirlpool
WPW10428215
DISPENSER
Checking…
View Product
Part WPW10290199
Whirlpool
WPW10290199
DOOR DOOR LATCH
Checking…
View Product
Part WPW10290198
Whirlpool
WPW10290198
DOOR DOOR LATCH
Checking…
View Product
Part W11613573
Whirlpool
W11613573
DOOR HINGE
Checking…
View Product
Part W11613572
Whirlpool
W11613572
DOOR HINGE
Checking…
View Product
Part WPW10254547
Whirlpool
WPW10254547
DOOR-INNER
Checking…
View Product
Part WPW10348269
Whirlpool
WPW10348269
DRAIN PUMP
Checking…
View Product
Part W10490734
Whirlpool
W10490734
ENERGY GUIDE
Checking…
View Product
Part W10842407
Whirlpool
W10842407
FIL&DRNHOS
Checking…
View Product
Part WP8268913
Whirlpool
WP8268913
FLOAT-ASM
Checking…
View Product
Part W10254984
Whirlpool
W10254984
FRAME
Checking…
View Product
Part W11725437
Whirlpool
W11725437
GASKET
Checking…
View Product
Part WP8531323
Whirlpool
WP8531323
GASKET
Checking…
View Product
Part W10475829
Whirlpool
W10475829
GASKET
Checking…
View Product
Part W10274837
Whirlpool
W10274837
GUIDE
Checking…
View Product
Part W10240154
Whirlpool
W10240154
HANDLE
Checking…
View Product
Part W10240155
Whirlpool
W10240155
HANDLE
Checking…
View Product
Part W10496618
Whirlpool
W10496618
HARNS-WIRE
Checking…
View Product
Part W10518394
Whirlpool
W10518394
HEATER
Checking…
View Product
Part WP3385160
Whirlpool
WP3385160
HOLDER
Checking…
View Product
Part W10878507
Whirlpool
W10878507
HOSE-FILL
Checking…
View Product
Part W10219673
Whirlpool
W10219673
HOUSING
Checking…
View Product
Part 8193951A
Whirlpool
8193951A
IMPELLER
Checking…
View Product
Part W11175771
Whirlpool
W11175771
INLET VALVE
Checking…
View Product
Part WPW10195536
Whirlpool
WPW10195536
INLET-WATR
Checking…
View Product
Part W10255025
Whirlpool
W10255025
INSTRUCTIONS, INSTALLATION
Checking…
View Product
Part WP8268892
Whirlpool
WP8268892
LEVER
Checking…
View Product
Part 8193716
Whirlpool
8193716
LEVLER-LEG
Checking…
View Product
Part WPW10258149
Whirlpool
WPW10258149
MANIFOLD
Checking…
View Product
Part WP3385159
Whirlpool
WP3385159
MOUNT
Checking…
View Product
Part 8533949
Whirlpool
8533949
NUT
Checking…
View Product
Part W10446558
Whirlpool
W10446558
NUT
Checking…
View Product
Part WPW10477552
Whirlpool
WPW10477552
NUT-TERMNL
Checking…
View Product
Part WPW10508676
Whirlpool
WPW10508676
NUT-TUBE
Checking…
View Product
Part WP8268961
Whirlpool
WP8268961
PAD
Checking…
View Product
Part 4392900
Whirlpool
4392900
PAINT, BULK (1 QT. BISCUIT/BISQUE)
Checking…
View Product
Part 799344
Whirlpool
799344
PAINT, BULK (1 QT.) (WHITE)
Checking…
View Product
Part 350930
Whirlpool
350930
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
Checking…
View Product
Part 4392901
Whirlpool
4392901
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
Checking…
View Product
Part 285006
Whirlpool
285006
PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
Checking…
View Product
Part 4392899
Whirlpool
4392899
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
Checking…
View Product
Part 72032
Whirlpool
72032
PAINT, TOUCH-UP (1/2OZ.) (BLACK)
Checking…
View Product
Part 72017
Whirlpool
72017
PAINT, TOUCH-UP (1/2OZ.) (WHITE)
Checking…
View Product
Part W10299779
Whirlpool
W10299779
PANEL
Checking…
View Product
Part W10299778
Whirlpool
W10299778
PANEL
Checking…
View Product
Part W10441003
Whirlpool
W10441003
PANEL
Checking…
View Product
Part WP3373199
Whirlpool
WP3373199
PANEL-TOP
Checking…
View Product
Part 4317824
Whirlpool
4317824
POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)
Checking…
View Product
Part 8562095
Whirlpool
8562095
PROBE, MANIFOLD
Checking…
View Product
Part WP8531857
Whirlpool
WP8531857
PROTECTOR
Checking…
View Product
Part W10255097
Whirlpool
W10255097
PROTECTOR
Checking…
View Product
Part W10219682
Whirlpool
W10219682
PROTECTOR
Checking…
View Product
Part W10254751
Whirlpool
W10254751
PROTECTOR
Checking…
View Product
Part WPW10780877
Whirlpool
WPW10780877
PUMP & MOTOR
Checking…
View Product
Part WPW10239401
Whirlpool
WPW10239401
PUMP MOTOR
Checking…
View Product
Part WPW10757217
Whirlpool
WPW10757217
PUMP MOTOR
Checking…
View Product
Part 4396838RC
Whirlpool
4396838RC
RAK KIT
Checking…
View Product
Part 4396840RC
Whirlpool
4396840RC
RAK KIT
Checking…
View Product
Part WPW10503548
Whirlpool
WPW10503548
RETAINER
Checking…
View Product
Part 3378109
Whirlpool
3378109
SADDLE, HOSE
Checking…
View Product
Part W10084567
Whirlpool
W10084567
SCREEN
Checking…
View Product
Part WPW10349488
Whirlpool
WPW10349488
SCREW
Checking…
View Product
Part 3400217
Whirlpool
3400217
SCREW
Checking…
View Product
Part WP9741232
Whirlpool
WP9741232
SCREW
Checking…
View Product
Part WP3400014
Whirlpool
WP3400014
SCREW
Checking…
View Product
Part WP681414
Whirlpool
WP681414
SCREW
Checking…
View Product
Part W10817436
Whirlpool
W10817436
SCREW
Checking…
View Product
Part WPW10177098
Whirlpool
WPW10177098
SCREW
Checking…
View Product
Part WPW10348413
Whirlpool
WPW10348413
SCREW
Checking…
View Product
Part WP489069
Whirlpool
WP489069
SCREW
Checking…
View Product
Part WPW10109200
Whirlpool
WPW10109200
SCREW
Checking…
View Product
Part W10001330
Whirlpool
W10001330
SCREW
Checking…
View Product
Part W10165274
Whirlpool
W10165274
SCREW
Checking…
View Product
Part W10348405
Whirlpool
W10348405
SCREW
Checking…
View Product
Part WP8268433
Whirlpool
WP8268433
SEAL
Checking…
View Product
Part WP8269296
Whirlpool
WP8269296
SEAL
Checking…
View Product
Part W10356270
Whirlpool
W10356270
SHELL
Checking…
View Product
Part WPW10356271
Whirlpool
WPW10356271
SHELL
Checking…
View Product
Part 8283527
Whirlpool
8283527
SHIELD, MOTOR
Checking…
View Product
Part W10321574
Whirlpool
W10321574
SHIELD, THERMOSTAT
Checking…
View Product
Part WPW10438331
Whirlpool
WPW10438331
SILVERWARE, BASKET ASSEMBLY
Checking…
View Product
Part WPW10306228
Whirlpool
WPW10306228
SPACER
Checking…
View Product
Part WPW10337934
Whirlpool
WPW10337934
SPRING
Checking…
View Product
Part WPW10175383
Whirlpool
WPW10175383
STANDPIPE
Checking…
View Product
Part WP8268983
Whirlpool
WP8268983
STIFFENER
Checking…
View Product
Part WP8565925
Whirlpool
WP8565925
STOP
Checking…
View Product
Part WP8580309
Whirlpool
WP8580309
STRIKE
Checking…
View Product
Part WP8572618
Whirlpool
WP8572618
SUMP
Checking…
View Product
Part WPW10077898
Whirlpool
WPW10077898
SUPORT-ARM
Checking…
View Product
Part WPW10271702
Whirlpool
WPW10271702
SUPPORT
Checking…
View Product
Part W10328716
Whirlpool
W10328716
SUPPORT
Checking…
View Product
Part W11027055
Whirlpool
W11027055
SUPPRT-HTR
Checking…
View Product
Part WPW10102495
Whirlpool
WPW10102495
SWITCH
Checking…
View Product
Part WPW10274880
Whirlpool
WPW10274880
SWITCH
Checking…
View Product
Part WPW10300599
Whirlpool
WPW10300599
TAB-SUMP
Checking…
View Product
Part W10590890
Whirlpool
W10590890
TECH SHEET, ENGLISH
Checking…
View Product
Part W10590891
Whirlpool
W10590891
TECH SHEET, FRENCH
Checking…
View Product
Part 8578828
Whirlpool
8578828
THERMISTOR
Checking…
View Product
Part WP661566
Whirlpool
WP661566
THERMOSTAT
Checking…
View Product
Part WP3385089
Whirlpool
WP3385089
TRACK
Checking…
View Product
Part W10266934
Whirlpool
W10266934
TUB-DISHWR
Checking…
View Product
Part W10254531
Whirlpool
W10254531
TUBE-FEED
Checking…
View Product
Part WP676455
Whirlpool
WP676455
TUCHUP
Checking…
View Product
Part WP676453
Whirlpool
WP676453
TUCHUP
Checking…
View Product
Part W10596230
Whirlpool
W10596230
USE AND CARE GUIDE, ENGLISH/FRENCH
Checking…
View Product
Part WP8268375
Whirlpool
WP8268375
VALVE-CHEK
Checking…
View Product
Part W11622922
Whirlpool
W11622922
VOLUTE
Checking…
View Product
Part WP3378128
Whirlpool
WP3378128
WASHER
Checking…
View Product
Part WP8268645
Whirlpool
WP8268645
WHEEL
Checking…
View Product
Part W10888592
Whirlpool
W10888592
WHEEL
Checking…
View Product
Part WP8270016
Whirlpool
WP8270016
WHEEL-TUB
Checking…
View Product
    Main Menu x
