Model Image
Manufacturer

Whirlpool

Model Number

MDE17PDAZW1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
279731 279731 4``-90 ELBOW
W10545923 W10545923 ASSEMBLY, DRUM
WPW10113136 WPW10113136 BAFFLE-DRM
W11676491 W11676491 BASE
WP3405160 WP3405160 BELT
WPW10131172 WPW10131172 BELT
WP3397659 WP3397659 BLOCK-TERM
WPW10137319 WPW10137319 BOLT
WP3391943 WP3391943 BOOT-FOOT
W10802681 W10802681 BOX
8564011 8564011 BRACKET
8066099 8066099 BRACKET
W10124214 W10124214 BRACKET
W11204533 W11204533 BRACKET
WP697557 WP697557 BULKHEAD
W11299300 W11299300 BULKHEAD
693152 693152 BUMPER
W11417441 W11417441 CABINET
W11401086 W11401086 CAM
WPW10529176 WPW10529176 CASE
WP660658 WP660658 CLAMP
WP8066208 WP8066208 CLIP
WP3390902 WP3390902 CLIP
WP297092 WP297092 CLIP
W11712577 W11712577 CLIP
3391846 3391846 CLIP
W11684573 W11684573 CLIP
W11643135 W11643135 COIN DROP
W10231471 W10231471 CONSOLE

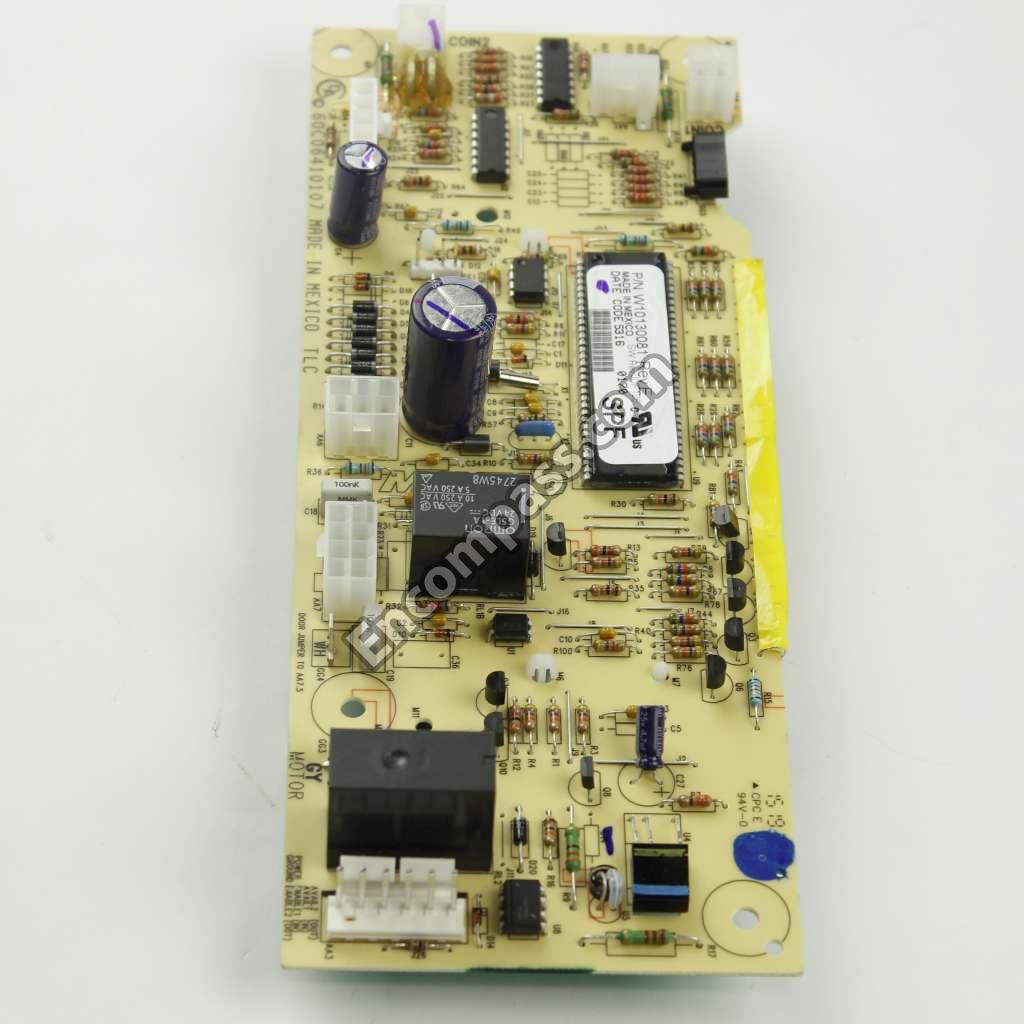

WPW10130081 WPW10130081 CONTROL BOARD
W11095079 W11095079 CORD-POWER
WPW10354249 WPW10354249 COVER
WPW10131114 WPW10131114 COVER
WPW10119283 WPW10119283 COVER-TERM
WP3954812 WP3954812 CUSHION
W11222846 W11222846 DOOR
W11663440 W11663440 DOOR
W11283272 W11283272 DOOR
279570 279570 DOOR LATCH
280083 280083 DOOR-REAR
W11234001 W11234001 DRIVE MOTOR
WP3387911 WP3387911 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
W11676492 W11676492 ELEMENT
49621 49621 FEET-LVLNG
WP3392519 WP3392519 FUSE-THRML
W11086603 W11086603 GRILL-OUT
W11209427 W11209427 HANDLE
W10111009 W10111009 HARNS-WIRE
W11175815 W11175815 HINGE
W11744012 W11744012 HOUSING
W11129408 W11129408 HOUSNG-OUT
W10184578 W10184578 INSTRUCTIONS INSTALLATION
279973 279973 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WP345670 WP345670 LOCK
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
WP90406 WP90406 NUT
WP3389249 WP3389249 NUT
WPW10131123 WPW10131123 NUT
WPW10139046 WPW10139046 NUT
W10135181 W10135181 OVERLAY
W11113654 W11113654 PAD
799344 799344 PAINT
W10242810 W10242810 PANEL
W11089934 W11089934 PANEL-REAR
279936 279936 PIPE-EXHST
3353813 3353813 PLATE, MOUNTING
8066086 8066086 PLUG
W10191265 W10191265 PLUG
WPW10344192 WPW10344192 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
WPW10424308 WPW10424308 PUSHBUTTON
WPW10193019 WPW10193019 RANGE THERMOSTAT
WPW10131836 WPW10131836 RANGE THERMOSTAT
WP3391914 WP3391914 RANGE THERMOSTAT
WPW10133335 WPW10133335 RELAY, MOTOR
W10184589 W10184589 REPAIR PARTS LIST
4392067 4392067 REPAIR-DYR
WP3388229 WP3388229 RETAINER
WPW10512946 WPW10512946 RING
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
WP3387230 WP3387230 SCREW
W10853898 W10853898 SCREW
WP693995 WP693995 SCREW
WP694091 WP694091 SCREW
WP488627 WP488627 SCREW
WP681414 WP681414 SCREW
W10850756 W10850756 SCREW
681615 681615 SCREW
WP3389420 WP3389420 SCREW
WP3400077 WP3400077 SCREW
WP308685 WP308685 SCREW
W10841059 W10841059 SCREW
WP90767 WP90767 SCREW
WP488729 WP488729 SCREW
WPW10139210 WPW10139210 SCREW
WP489128 WP489128 SCREW
WPW10131119 WPW10131119 SCREW
W11676450 W11676450 SCREW
W11715721 W11715721 SCREW
3353994 3353994 SCREW
279393 279393 SCREW
W10756178 W10756178 SCREW
W11117300 W11117300 SCREW
WP3395530 WP3395530 SCREW
W10002600 W10002600 SCREW
280114 280114 SEAL
WP697770 WP697770 SEAL
WP697813 WP697813 SEAL
WP3387242 WP3387242 SEAL
WP3390735 WP3390735 SEAL-DOOR
WPW10247389 WPW10247389 SENSOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W10161476 W10161476 SHIELD
W10133515 W10133515 SHIELD
W11117166 W11117166 SPACER
350930 350930 SPRAY
350938 350938 SPRAY
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
WPW10314173 WPW10314173 SUPPORT
W11247665 W11247665 SWITCH
WPW10135233 WPW10135233 SWITCH
WPW10237959 WPW10237959 SWITCH-DOR
WP8564010 WP8564010 SWITCH-PLG
WPW10131838 WPW10131838 SWITCH-VLT
W10183571 W10183571 TECH SHEET
279318 279318 TERMINAL
WP3406797 WP3406797 TOEPNL
WPW10136707 WPW10136707 TOP
WPW10131839 WPW10131839 TRANSFORMR
72017 72017 TUCHUP
W10470674 W10470674 VENT KIT
W11236646 W11236646 WASHER
W11089212 W11089212 WASHER
W11170663 W11170663 WASHER
356674 356674 WEDGE
WPW10349492 WPW10349492 WHEEL
8539892 8539892 WIRE
W10167613 W10167613 WIRE
W10847806 W10847806 WIRE HARNESS
