Model Image
Manufacturer

Whirlpool

Model Number

MDG21PDAGW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
33002459 33002459 ASSEMBLY, SPRING & PLUG
33002165 33002165 BACKUP PLA

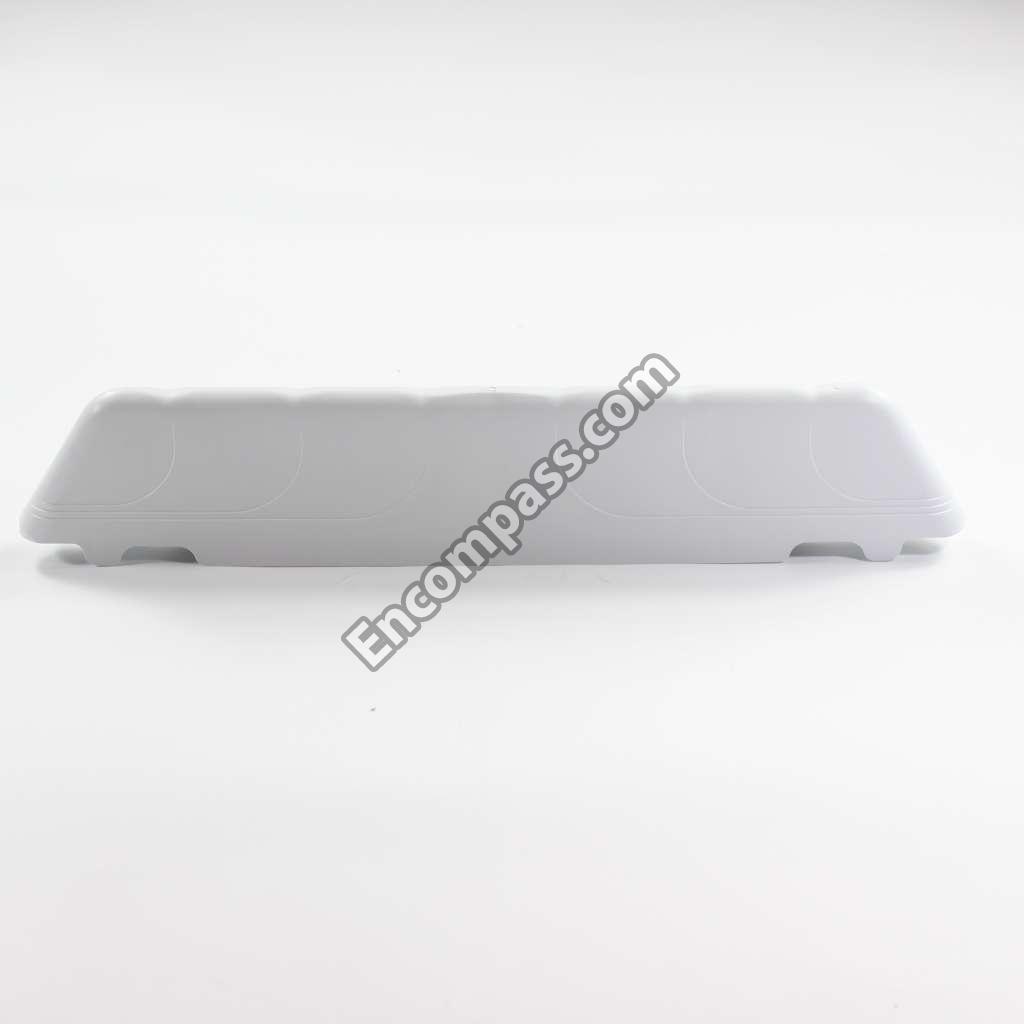

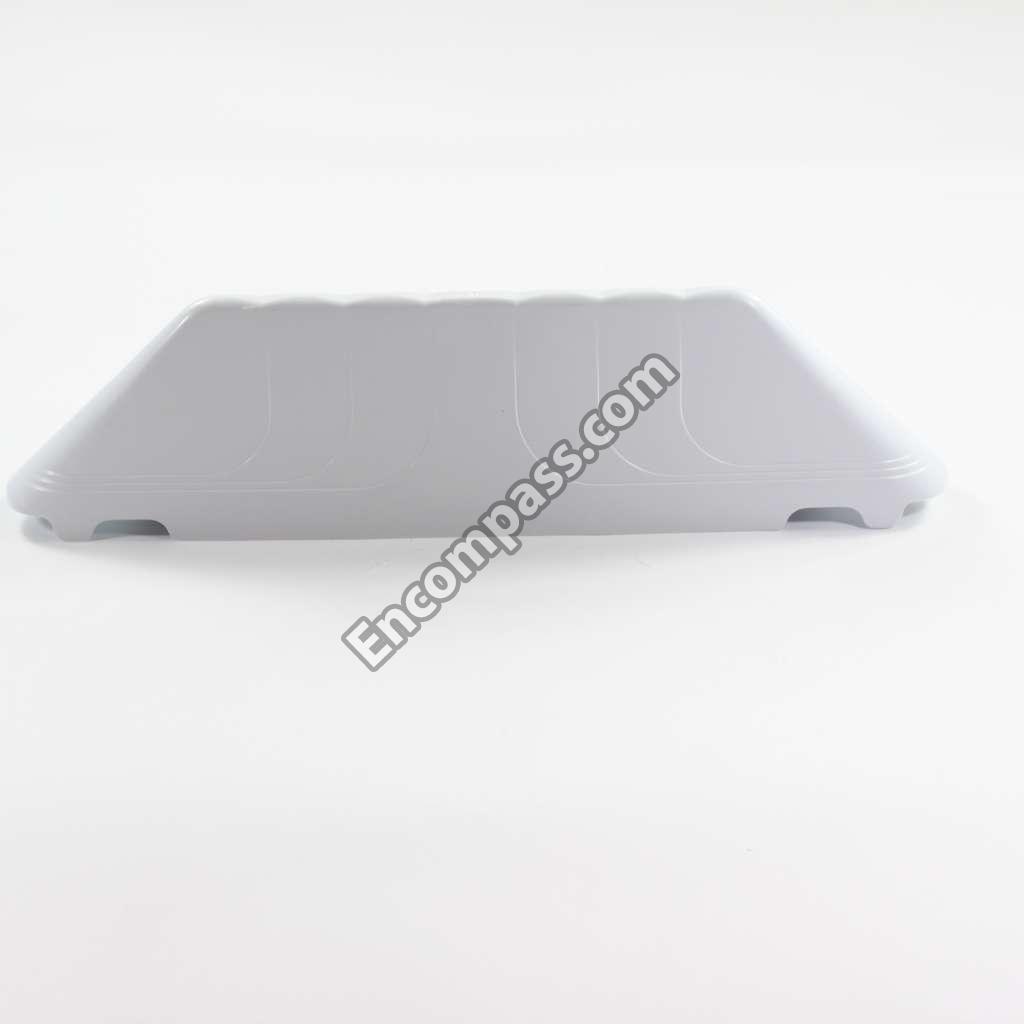

WP33001755 WP33001755 BAFFLE-DRM
WP33002032 WP33002032 BAFFLE-DRM
WP6-3700340 WP6-3700340 BEARING

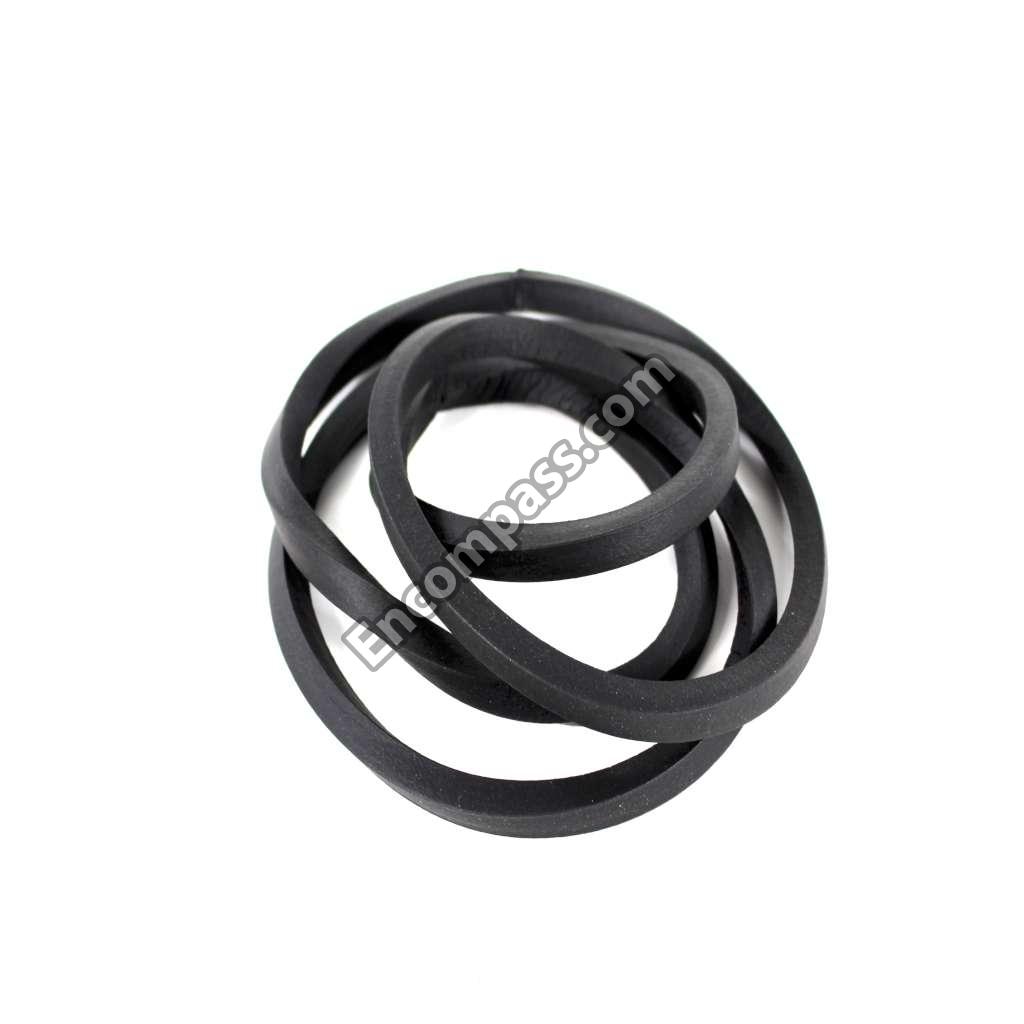

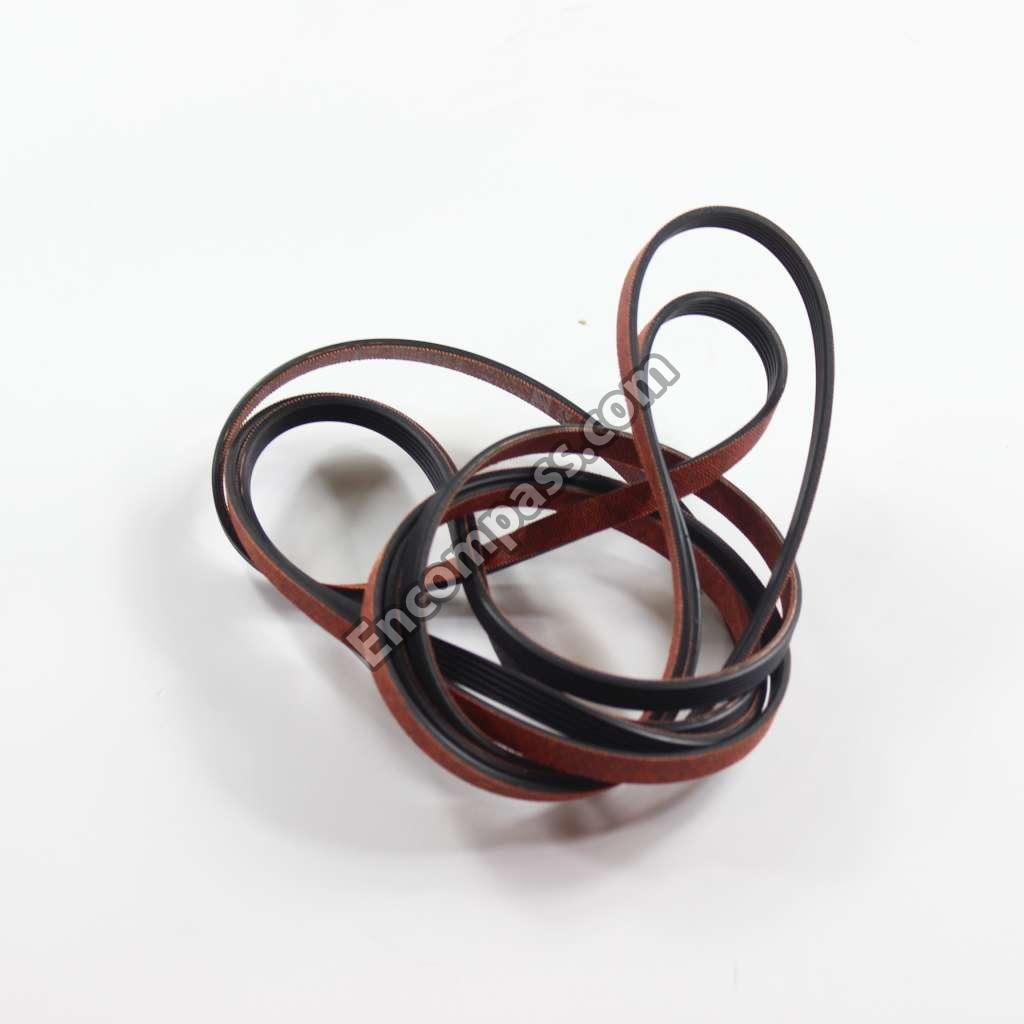

WP33002535 WP33002535 BELT
W11705611 W11705611 BLOCK TER
WP213035 WP213035 BOLT- LOCK
33002519 33002519 BRACKET B
33002710 33002710 BRACKET G
33001760 33001760 BRACKET H
22001404 22001404 BRACKET S
NLA NLA BRACKET, TERMINAL BLOCK----NA
WP33001793 WP33001793 BRACKET- S
33001801 33001801 BULKHEAD
WP33002793 WP33002793 BURNER ASY
22003639 22003639 CABINET ASSEMBLY. (WHT AS PK)
33001693 33001693 CAP GAS P
WP22002480 WP22002480 CASE
WP312967 WP312967 CLAMP
WP22002049 WP22002049 CLIP
22002038 22002038 CLIP DOOR
22002244 22002244 CLIP GROU
33002073 33002073 CLIP WIRE
Y310376 Y310376 CLIP WIRE
WP22002039 WP22002039 CLIP, DOOR (SINGLE)
WP22002239 WP22002239 CLIP- LOWE
WPY015825 WPY015825 CLIP- MOTO
WP307930 WP307930 COIL-VALVE
WPY307931 WPY307931 COIL-VALVE
33001946 33001946 CONE ASSEMBLY., COMBUSTION
22003089 22003089 CONSOLE W
WPW10130081 WPW10130081 CONTROL BOARD
33002667 33002667 CONTROL PA

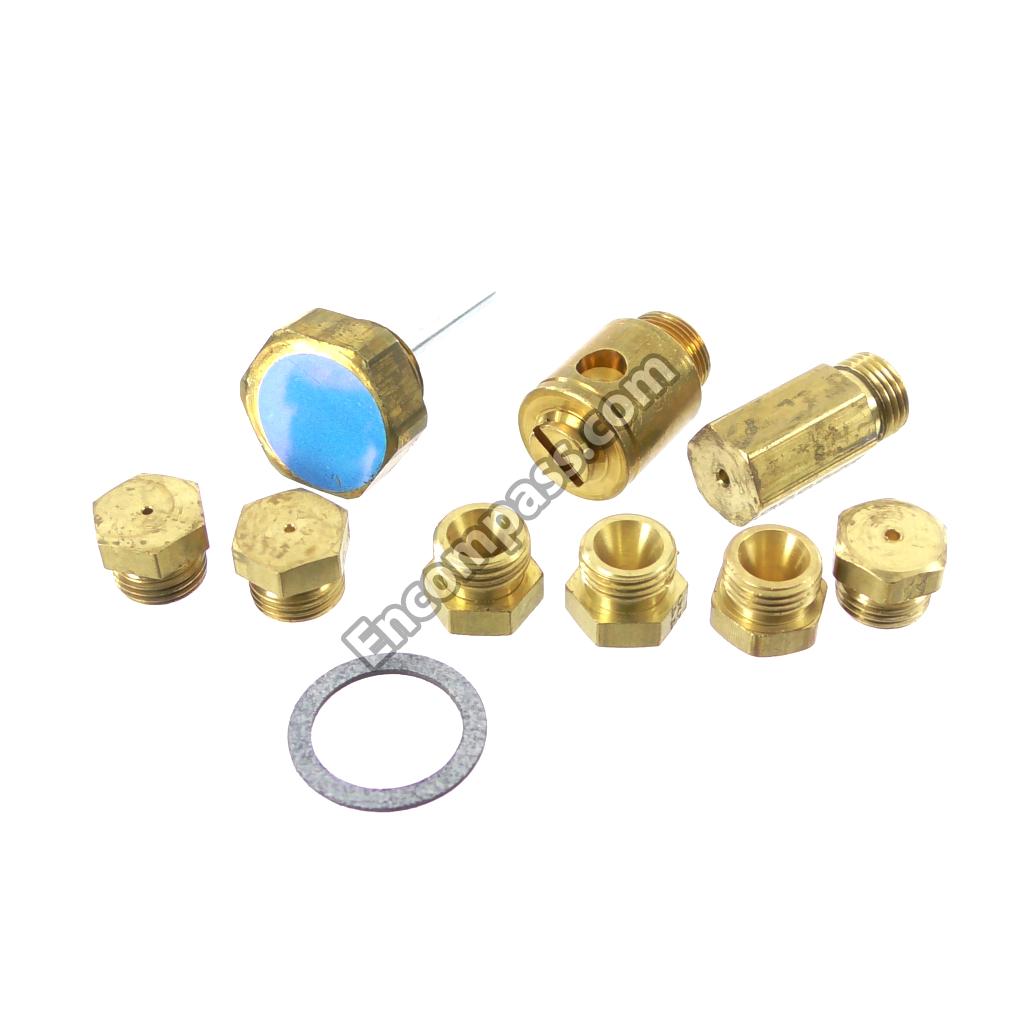

Y308377 Y308377 CONVERSION KIT (LP TO NATURAL)
22004405 22004405 CORD ADAPTER ASSEMBLY
WP33001764 WP33001764 COVER
WPW10131114 WPW10131114 COVER
33002711 33002711 COVER BLO
33001795 33001795 COVER TER
33001837 33001837 COVER, THERMOSTAT (ELEC ONLY)
33002629 33002629 COVER, TOP (WHT-AS PK)
22002954 22002954 DEFLECTOR
LA-1003 LA-1003 DOOR LATCH
WP33002544 WP33002544 DOOR- INNE
WP22003785 WP22003785 DOOR- OUTE
W10197708 W10197708 DRIVE MOTOR
33001800 33001800 DUCT ASM
3406051 3406051 ELBOW UNION ASSEMBLY
215003 215003 FASTENER
W10176519 W10176519 FEET-LVLNG
WPY314137 WPY314137 FOOT- RUBB
204439 204439 FRONT PANEL BRACKET/FASTENER

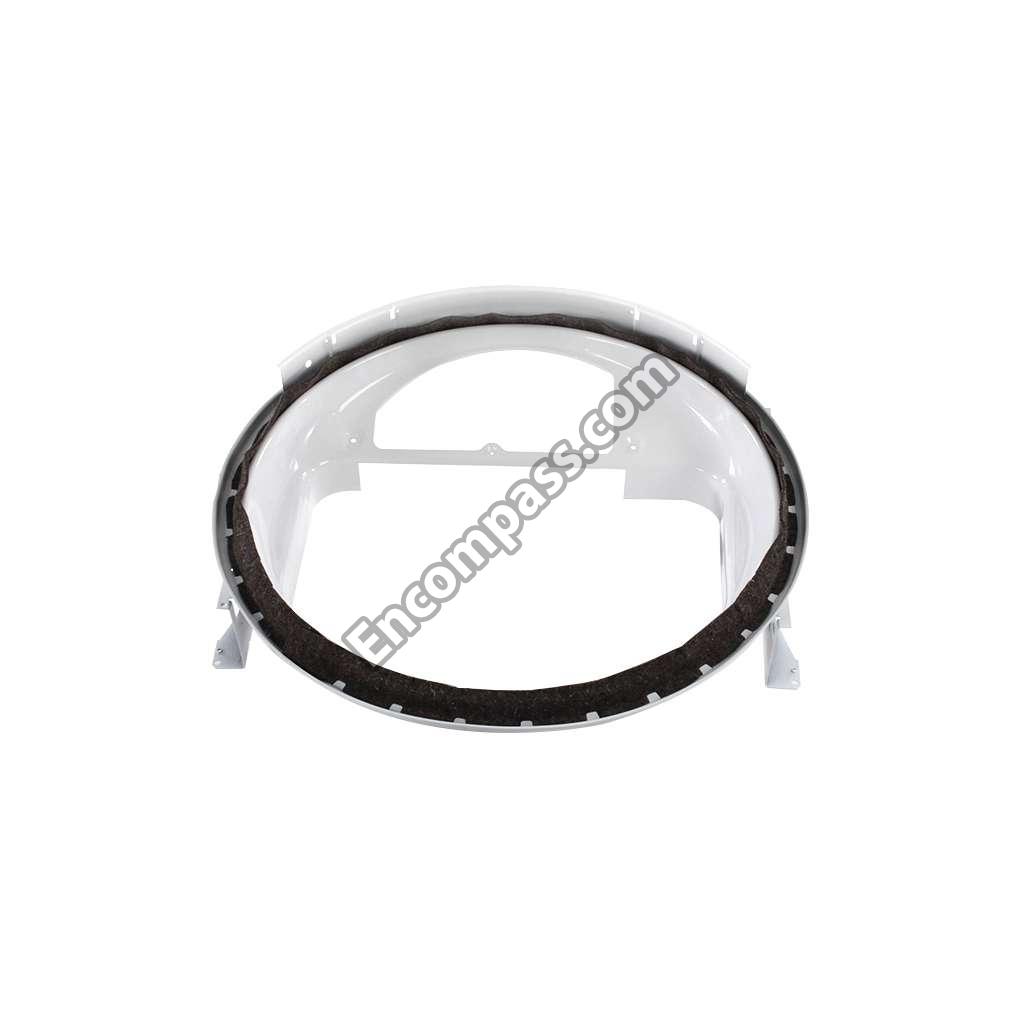

33001802 33001802 FRONT- TUM

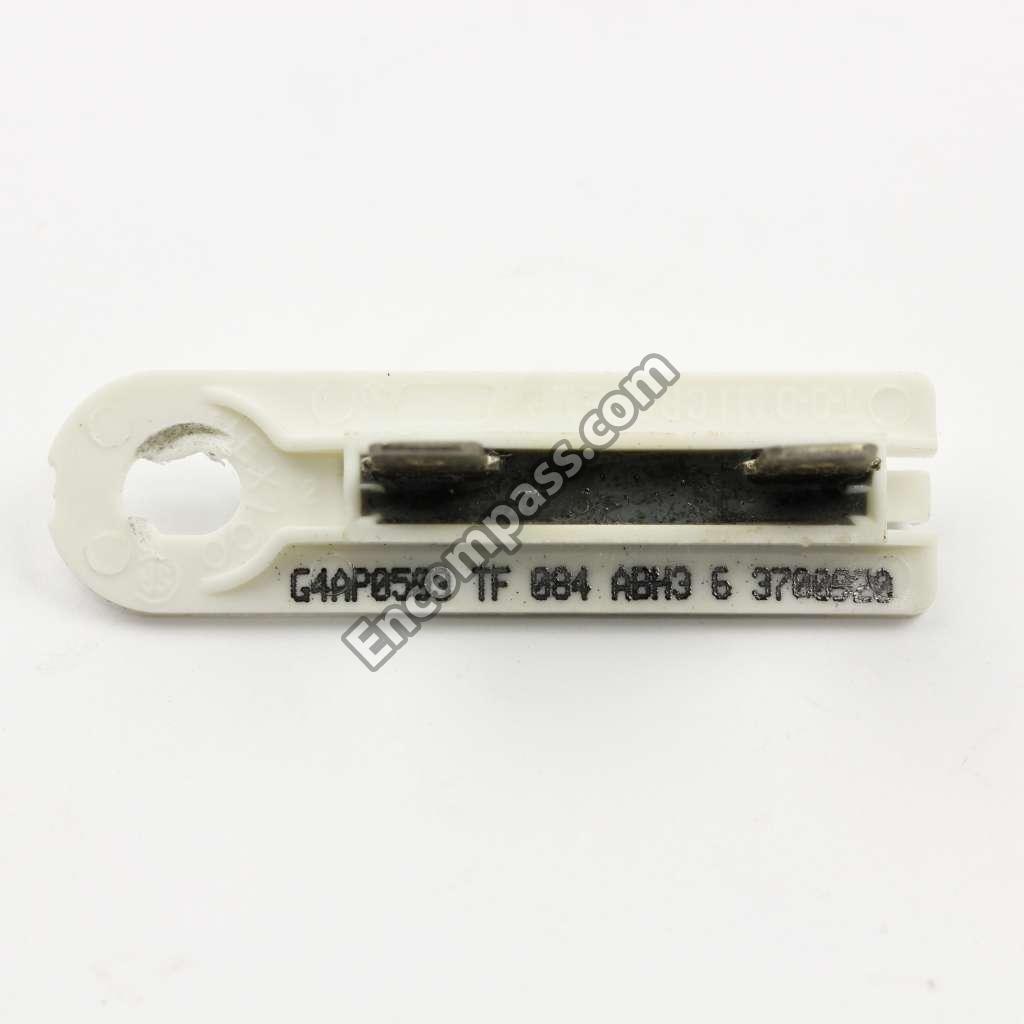

WP33001762 WP33001762 FUSE- THER
WP307927 WP307927 GAS VALVE
22002072 22002072 GASKET CO
216183 216183 GROMMET, CORD EXPORT
22001966 22001966 HARNESS S
W10116795 W10116795 HEATER

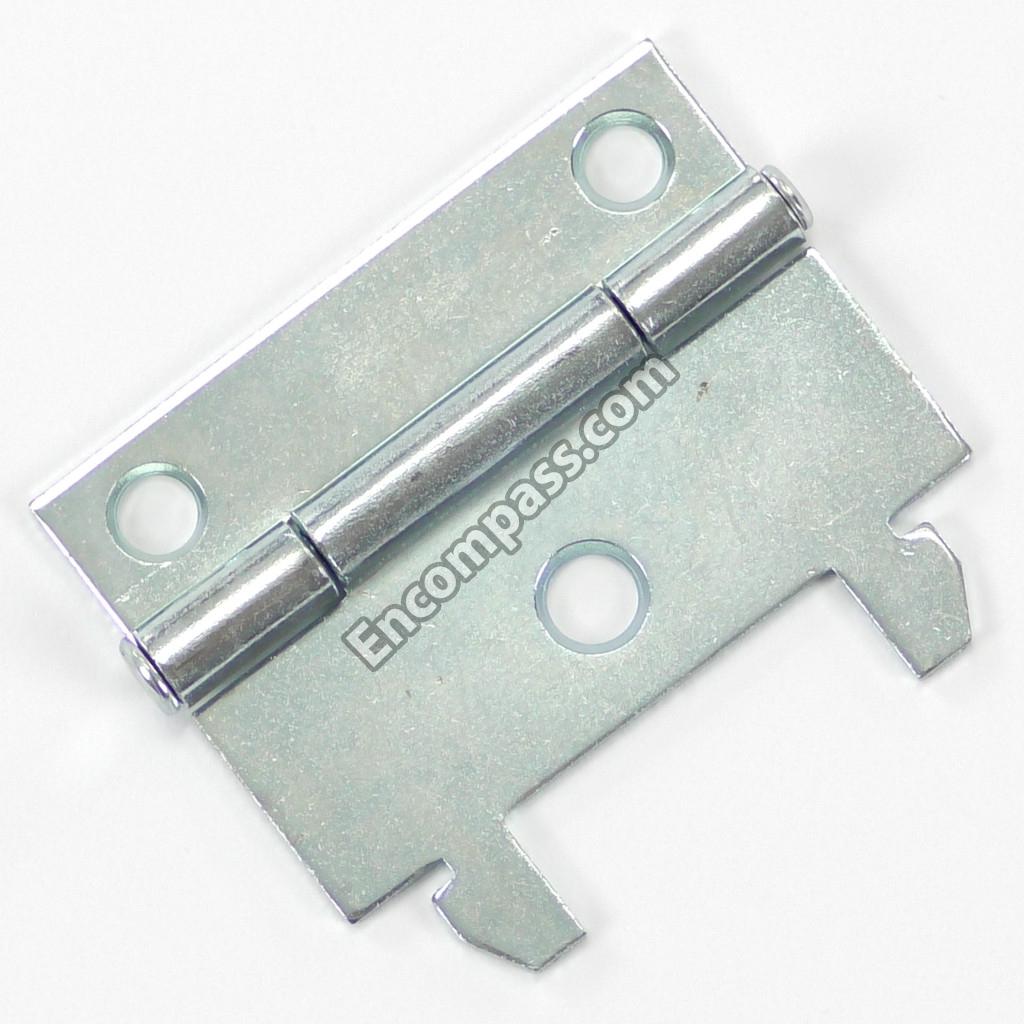

WP33001759 WP33001759 HINGE- DOO
WP22004095 WP22004095 HINGE- PLA
33002597 33002597 HOOK- SECU
WP33001789 WP33001789 HOUSING- B

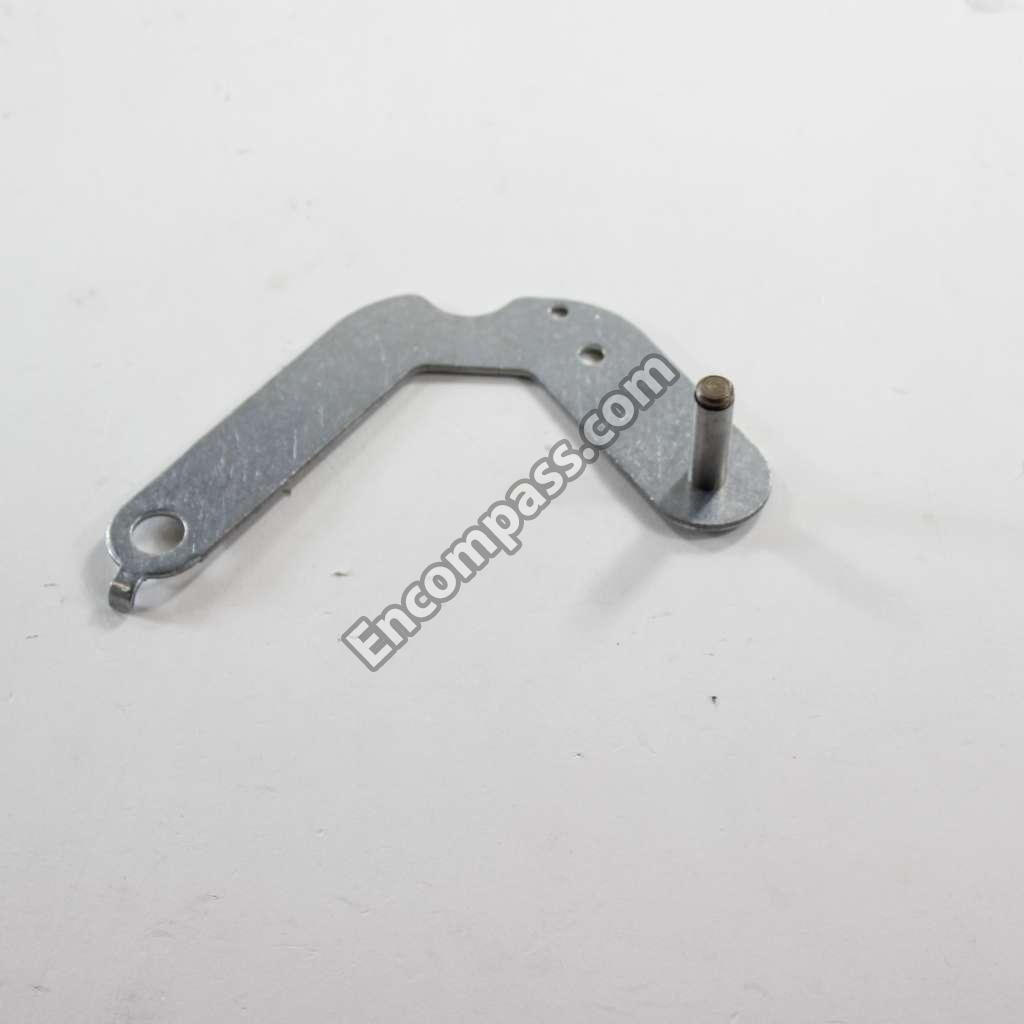

WP6-3705180 WP6-3705180 IDLER ARM
WP33002789 WP33002789 IGNITER AS

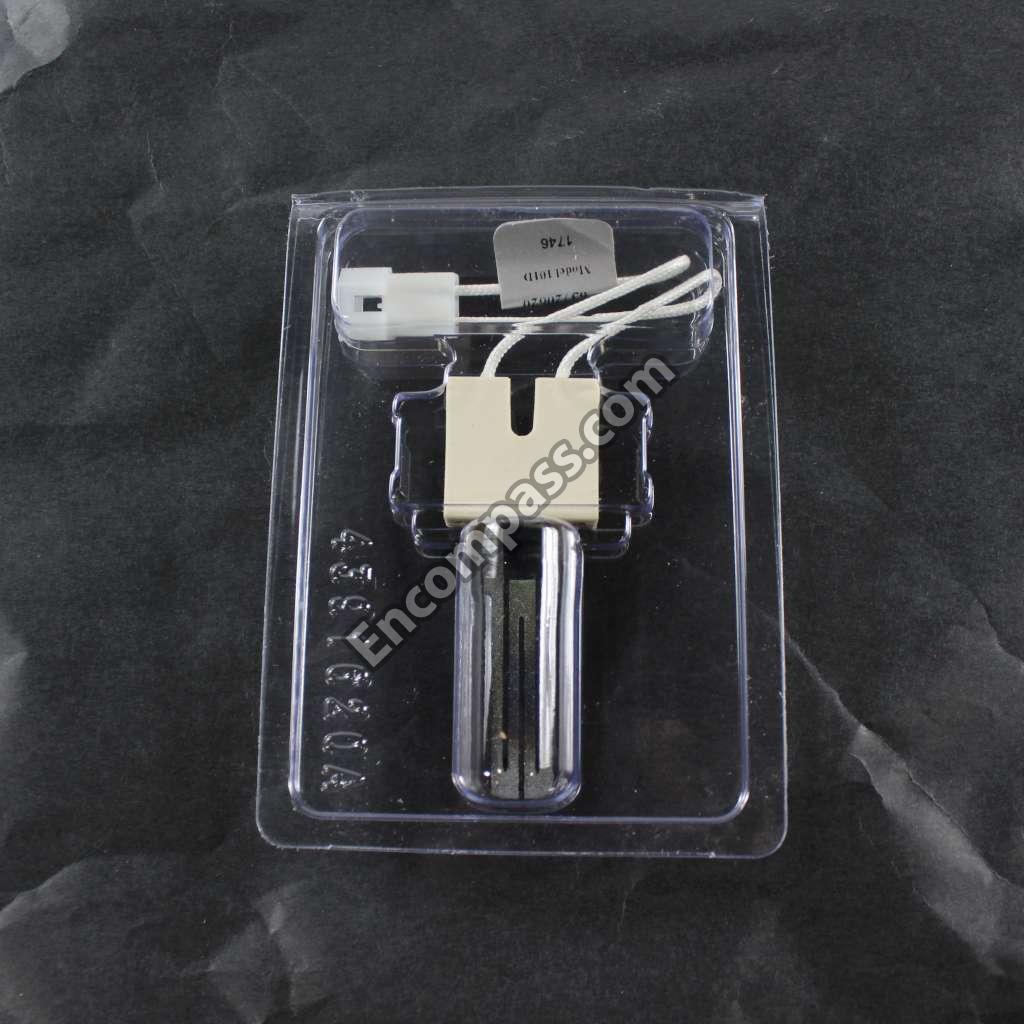

4391996 4391996 IGNITOR
33002952 33002952 INLET DUCT
306508 306508 KIT-BEARNG

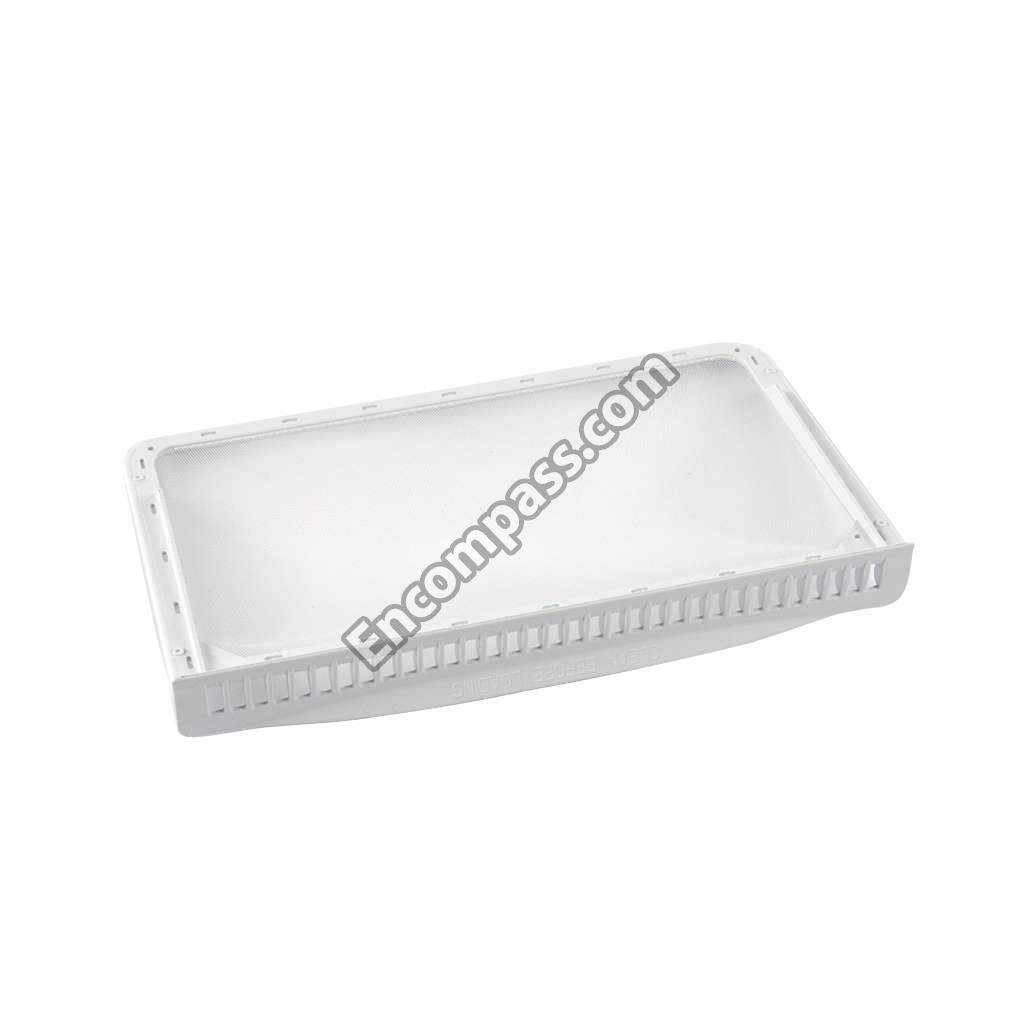

WP33002790 WP33002790 LINT FILTE
910181 910181 LOCK WASHE
W10864393 W10864393 LOCKING CAM
W10402145 W10402145 LP GAS CON
22003540 22003540 M*CORD- PO
33002712 33002712 MANUAL, OWNERS
WP112432 WP112432 NUT
WP62739 WP62739 NUT
M0282005 M0282005 NUT K
33002194 33002194 NUT SPEED
74005230 74005230 NUT, LOCK (8-32)
WP33001443 WP33001443 NUT- HEX
WP33001799 WP33001799 OUTLET DUCT ASSEMBLY
22002836 22002836 PANEL
WP33002461 WP33002461 PLUG FOR S
33001763 33001763 PLUG- INNE
WPW10424308 WPW10424308 PUSHBUTTON
WP694674 WP694674 RANGE THERMOSTAT
WP306398 WP306398 RELAY - SP
314627 314627 RELAY BRAC
WPW10133335 WPW10133335 RELAY, SPST 24VDC
WP22003298 WP22003298 RETAINER
Y312890 Y312890 RETAINER
WP354987 WP354987 RING-E
WP9703438 WP9703438 RING-RETNR
WP210720 WP210720 RIVET
WPY014874 WPY014874 SCREW
WPY313561 WPY313561 SCREW
WP33002917 WP33002917 SCREW
WP98006631 WP98006631 SCREW
WP22002063 WP22002063 SCREW
WP22002012 WP22002012 SCREW
WP3177991 WP3177991 SCREW
W11164114 W11164114 SCREW
W11573574 W11573574 SCREW
WP489399 WP489399 SCREW
WP489128 WP489128 SCREW
W10756178 W10756178 SCREW
WPW10131119 WPW10131119 SCREW
WP693995 WP693995 SCREW
WP90767 WP90767 SCREW
WP1163839 WP1163839 SCREW
WP33001787 WP33001787 SCREW
WP3395530 WP3395530 SCREW
215526 215526 SCREW
211251 211251 SCREW
304971 304971 SCREW
33001768 33001768 SCREW SHR
WP33002973 WP33002973 SCREW, BAFFLE
213007 213007 SCREW, CABINET
210932 210932 SCREW, NO.8 X 9/16 CTSK

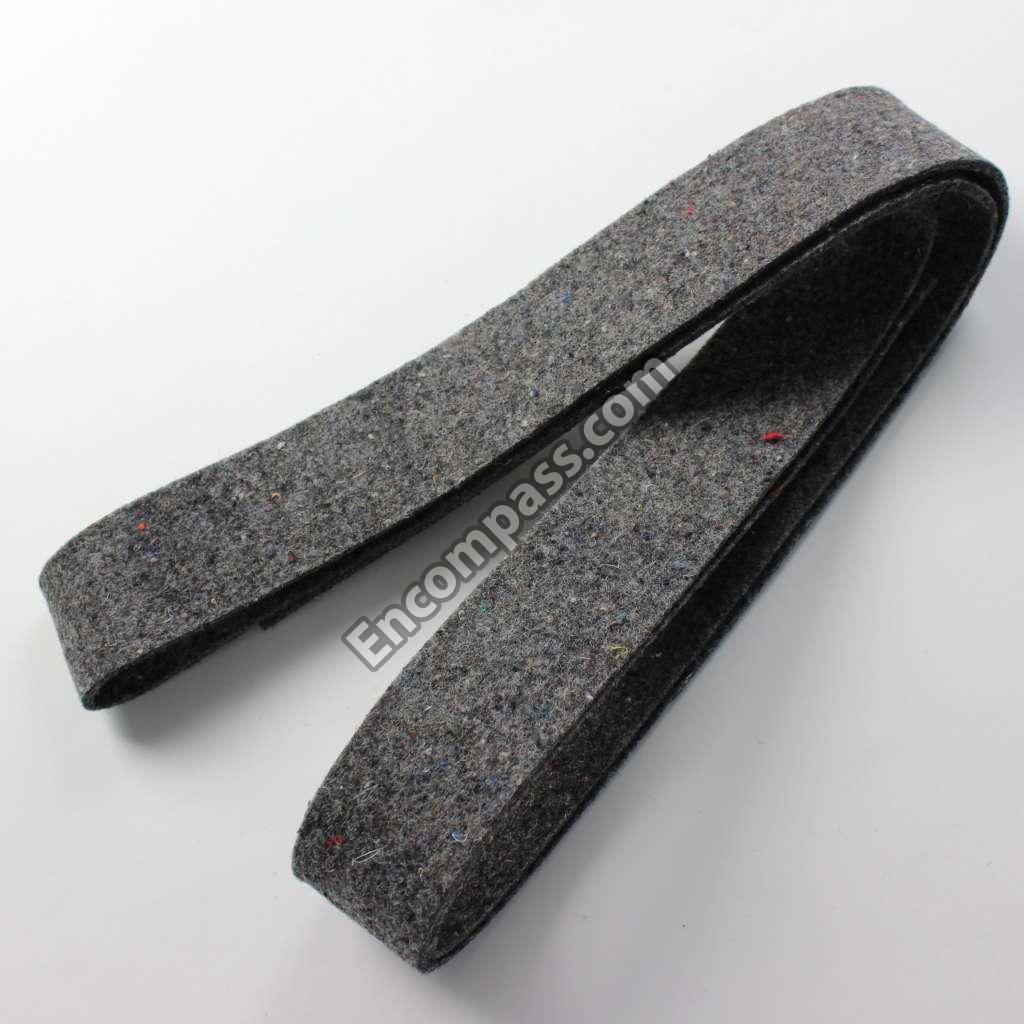

WP33001807 WP33001807 SEAL
33002560 33002560 SEAL, BLOWER
WP33001767 WP33001767 SEAL- SHRO
WP33002094 WP33002094 SEAL-DOOR
WP338906 WP338906 SENSOR
WPW10247389 WPW10247389 SENSOR
WP6-3129480 WP6-3129480 SHAFT
33002106 33002106 SHIELD TE
33002033 33002033 SHROUD WH
WP315772 WP315772 SLEEVE
410490 410490 SPRING WI
33001204 33001204 STANDOFF
33001836 33001836 STRAP TOP
Y312184 Y312184 STRAP, GROUND
22001810 22001810 STRAP, MOUNTING
WP33001761 WP33001761 STRIKE- DO
12001541 12001541 SUPPORT
33002466 33002466 SUPPORT, MOTOR
22002536 22002536 SWITCH SE
WPW10139323 WPW10139323 SWITCH-DOR
WP33303391 WP33303391 THERMOSTAT
WP303395 WP303395 THERMOSTAT
WP22003679 WP22003679 TIMER ACCE
33001821 33001821 TRANSFORME
22002139 22002139 TRANSFORME

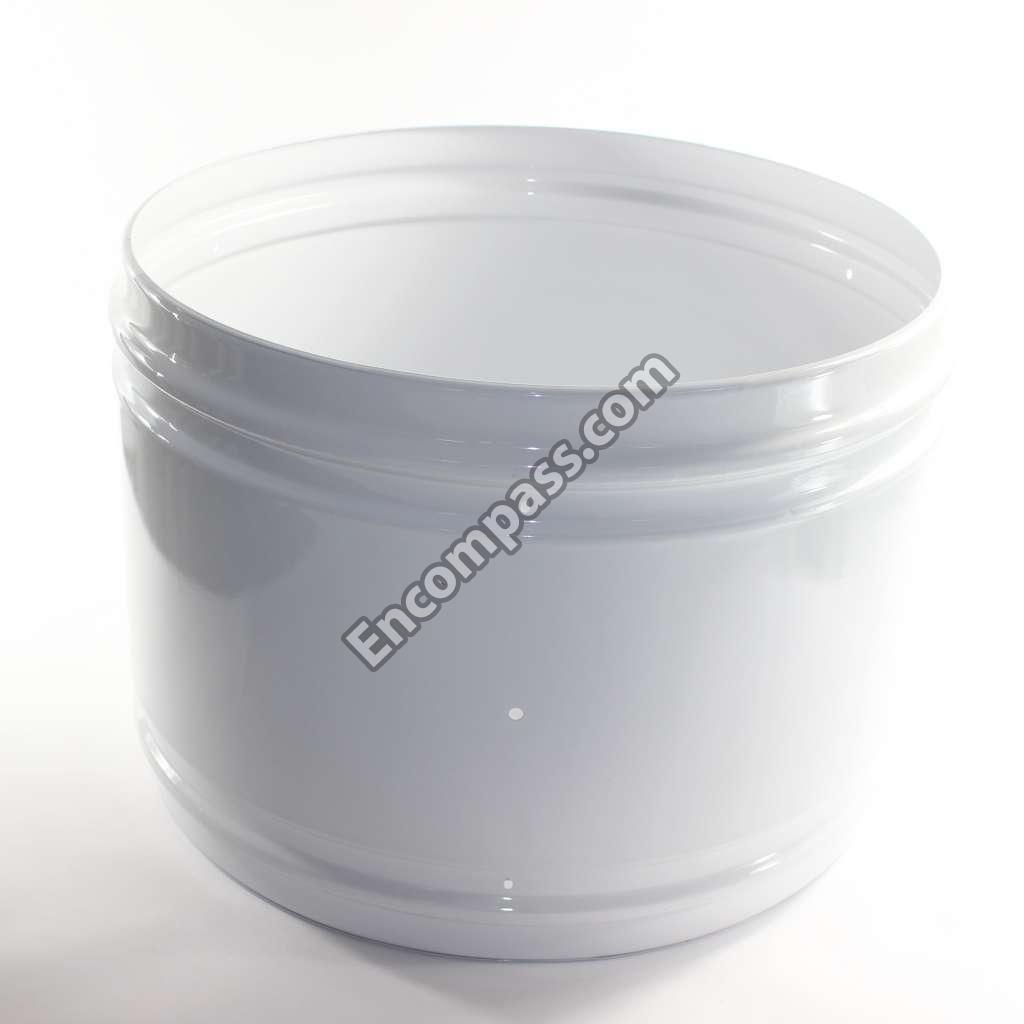

33001889 33001889 TUMBLER
WPY312527 WPY312527 WASHER
WP312535 WP312535 WASHER
22002350 22002350 WASHER
WP33002388 WP33002388 WASHER (HDWR PKG)
WPY311270 WPY311270 WASHER- TE

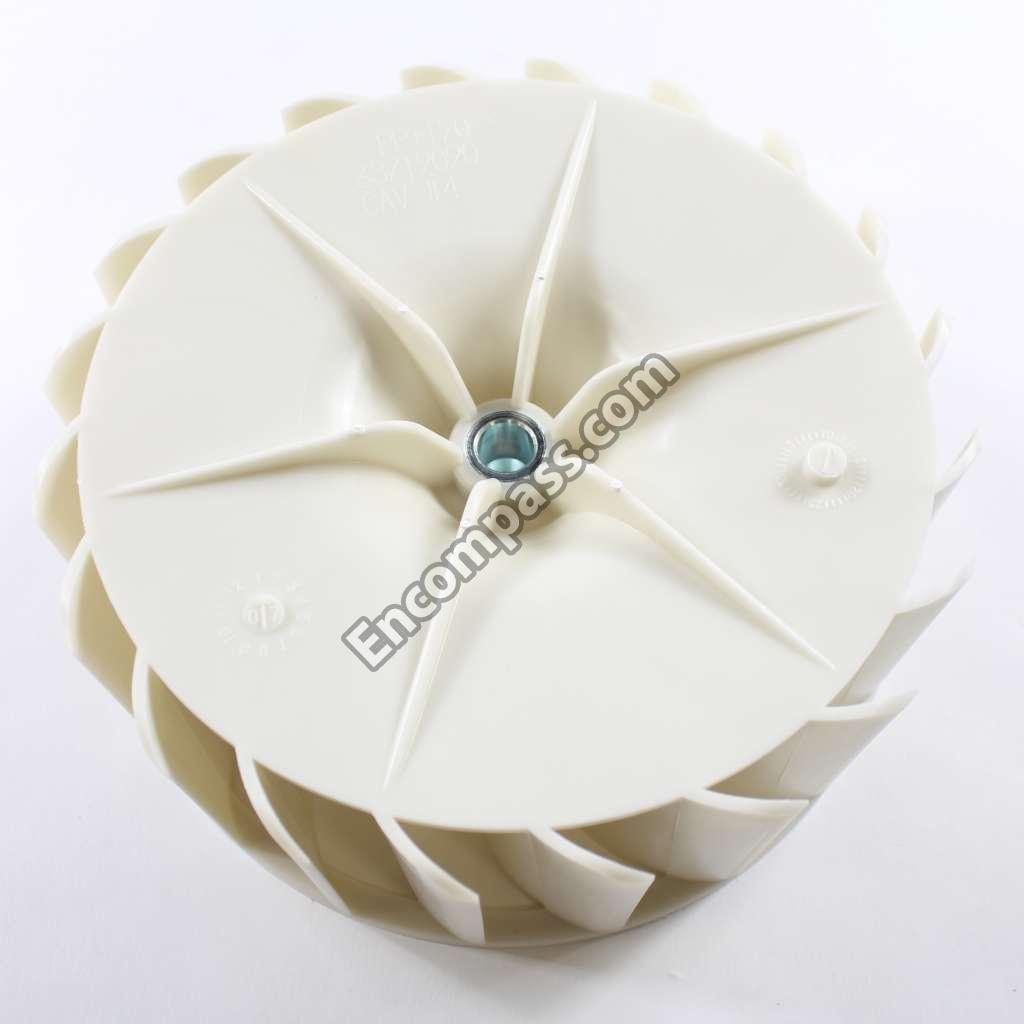

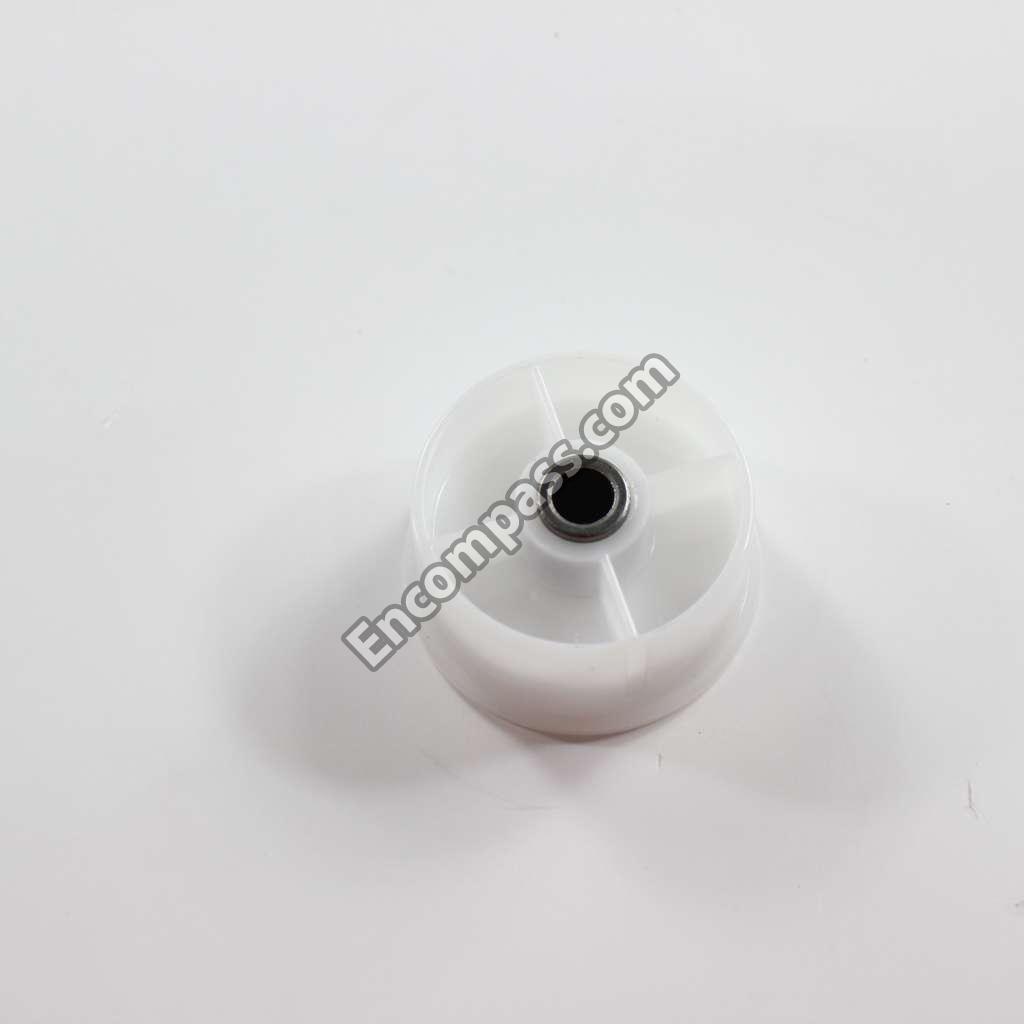

WP33002797 WP33002797 WHEEL

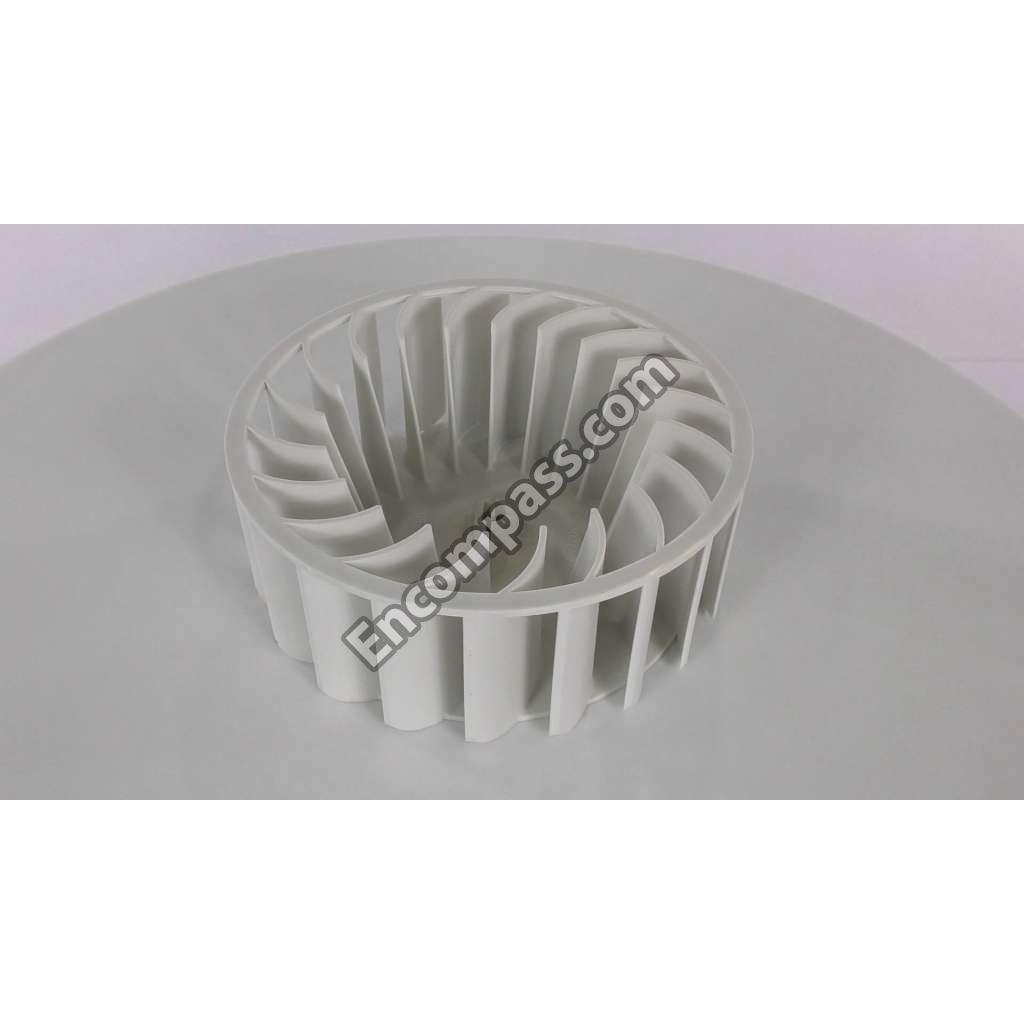

33001790 33001790 WHEEL
901220 901220 WIRE GROU
205810 205810 WIRE GROU
33001973 33001973 WIRE HARNESS, MAIN
33001953 33001953 WIRE HARNESS, MAIN
