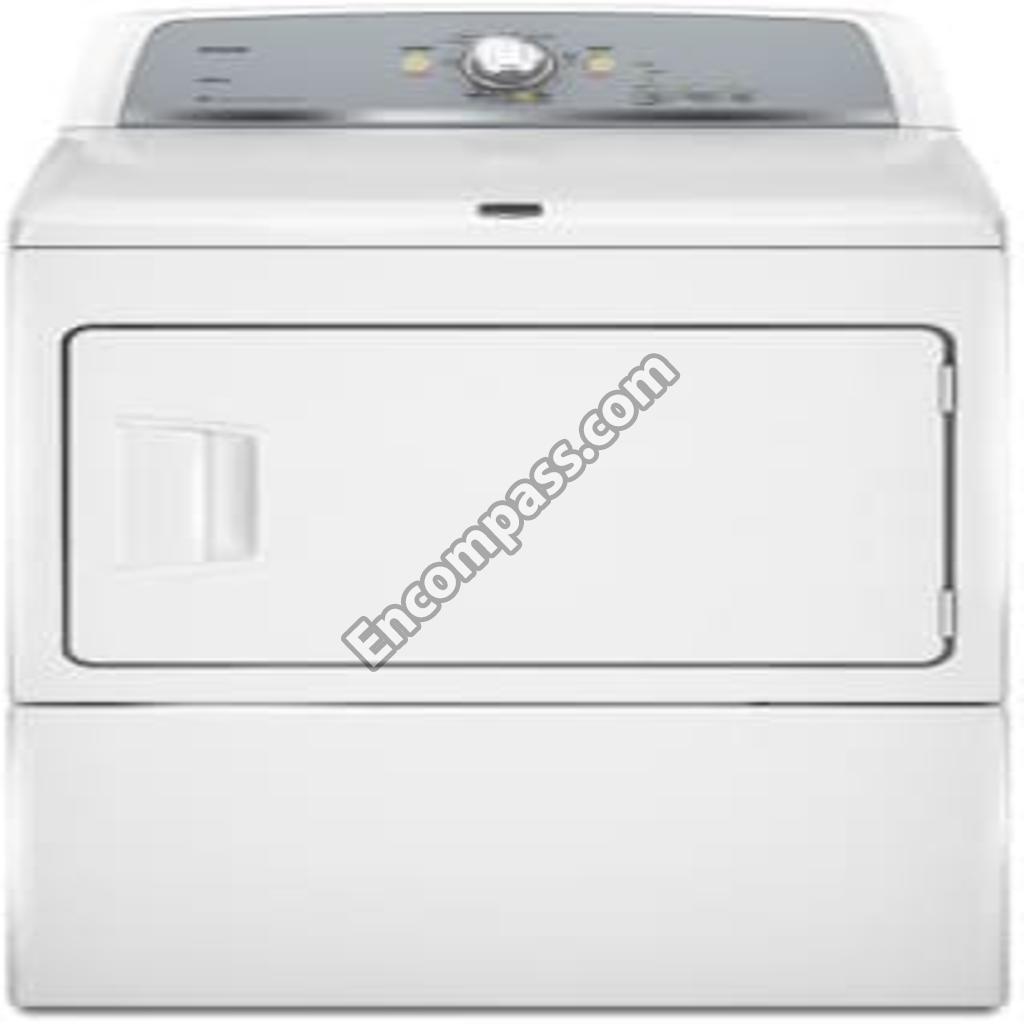

Model Image
Manufacturer

Whirlpool

Model Number

MEDX500XW1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
WPW10492808 WPW10492808 BADGE
WPW10113136 WPW10113136 BAFFLE-DRM
WPW10112954 WPW10112954 BELT
W10305134 W10305134 BEZEL
WP3397659 WP3397659 BLOCK-TERM
W10802681 W10802681 BOX
W10837240 W10837240 BRACKET
W11481730 W11481730 BRACKET
W10236068 W10236068 BRACKET
8578825 8578825 BRACKET, DRUM LIGHT
8066099 8066099 BRACKET, HEATER BOX
WP697557 WP697557 BULKHEAD
W11299301 W11299301 BULKHEAD
693152 693152 BUMPER
W11417441 W11417441 CABINET
W11226088 W11226088 CAMERA LENS
WPW10121316 WPW10121316 CLAMP
WP8066208 WP8066208 CLIP
W11684573 W11684573 CLIP
WP3390902 WP3390902 CLIP
WPW10291934 WPW10291934 CLIP
WP8312709 WP8312709 CLIP
WP8536939 WP8536939 CLIP
WPW10287062 WPW10287062 CONSOLE
WPW10317638 WPW10317638 CONTROL BOARD
WPW10272634 WPW10272634 CONTROL BOARD
WPW10354249 WPW10354249 COVER
WPW10119283 WPW10119283 COVER-TERM
W11222846 W11222846 DOOR
W10322551 W10322551 DOOR
279570 279570 DOOR LATCH
280083 280083 DOOR-REAR
WPW10508324 WPW10508324 DRIVE MOTOR
W10545923 W10545923 DRUM
8212450A 8212450A DRY RACK
WP3387911 WP3387911 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE
WP3387747 WP3387747 ELEMENT
49621 49621 FEET-LVLNG
WP3392519 WP3392519 FUSE-THRML
W11219327 W11219327 GRILL-OUT
W11086603 W11086603 GRILL-OUT
W10274524 W10274524 GROMMET
W10097013 W10097013 GUIDE, USE & CARE
WPW10284182 WPW10284182 HANDLE
W10253981 W10253981 HARNS-WIRE
W10285495 W10285495 HARNS-WIRE
W11175815 W11175815 HINGE
W10888146 W10888146 HOUSING
W10563341 W10563341 INSTALLATION INSTRUCTIONS
279973 279973 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WPW10251381 WPW10251381 KNOB
WP22002263 WP22002263 LIGHT BULB
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
WP3389249 WP3389249 NUT
799344 799344 PAINT, BULK (1 QT.) (WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
72017 72017 PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10231550 W10231550 PANEL
W10550615 W10550615 PANEL-REAR
279936 279936 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
W10279552 W10279552 PLUG
W10191265 W10191265 PLUG
WPW10404617 WPW10404617 PLUG
279640 279640 PULLEY-IDR
W10837625 W10837625 PULLEY-MTR
WP3391914 WP3391914 RANGE THERMOSTAT
4392067 4392067 REPAIR-DYR
WP3388229 WP3388229 RETAINER
WPW10512946 WPW10512946 RING
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
WP489463 WP489463 SCREW
WP3387230 WP3387230 SCREW
W11693756 W11693756 SCREW
WPW10273971 WPW10273971 SCREW
WP308685 WP308685 SCREW
WP681414 WP681414 SCREW
W10891954 W10891954 SCREW
WP488627 WP488627 SCREW
WP693995 WP693995 SCREW
WPW10139210 WPW10139210 SCREW
WP3389420 WP3389420 SCREW
WP3395530 WP3395530 SCREW
WP488729 WP488729 SCREW
WP90767 WP90767 SCREW
W10853898 W10853898 SCREW
279393 279393 SCREW KIT, TERMINAL BLOCK
WP697770 WP697770 SEAL
280114 280114 SEAL
WP697813 WP697813 SEAL
WP3387242 WP3387242 SEAL
W10280079 W10280079 SEAL
W10312811 W10312811 SEAL
W10336128 W10336128 SEAL
WP3390735 WP3390735 SEAL-DOOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W11257251 W11257251 SHIELD
W11222979 W11222979 SOCKET
W10326923 W10326923 SPACER
W10294344 W10294344 SPACER
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
W10847984 W10847984 SWITCH
WP3406107 WP3406107 SWITCH-DOR
W10417013 W10417013 TECH SHEET
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
WP8577274 WP8577274 THERMISTOR
WP3406797 WP3406797 TOEPNL
WPW10268730 WPW10268730 TOP
W10470674 W10470674 VENT KIT
W11236646 W11236646 WASHER
WPW10121334 WPW10121334 WASHER
WPW10349492 WPW10349492 WHEEL
WPW10298258 WPW10298258 WIRE HARNESS
W10259284 W10259284 WIRING DIAGRAM
