Model Image
Manufacturer

Whirlpool

Model Number

MER5550BAW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
74001772 74001772 BACKMAIN
3601F237-47 3601F237-47 BAFFLE BR
74003648 74003648 BAFFLE, DOOR
WPW10245259 WPW10245259 BLOCK-TERM
W10291024 W10291024 BOWL-DRIP
74003403 74003403 BOX, BURNER
WP3801F656-51 WP3801F656-51 BRACKET
74003627 74003627 BRACKET, CLOCK
W10190166 W10190166 BRACKET, POWER SUPPLY
74001632 74001632 BRACKET, SWITCH ACTUATOR
74001631 74001631 BUMPER- RO
74001256 74001256 BUSHING, PROP SUPPORT
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI

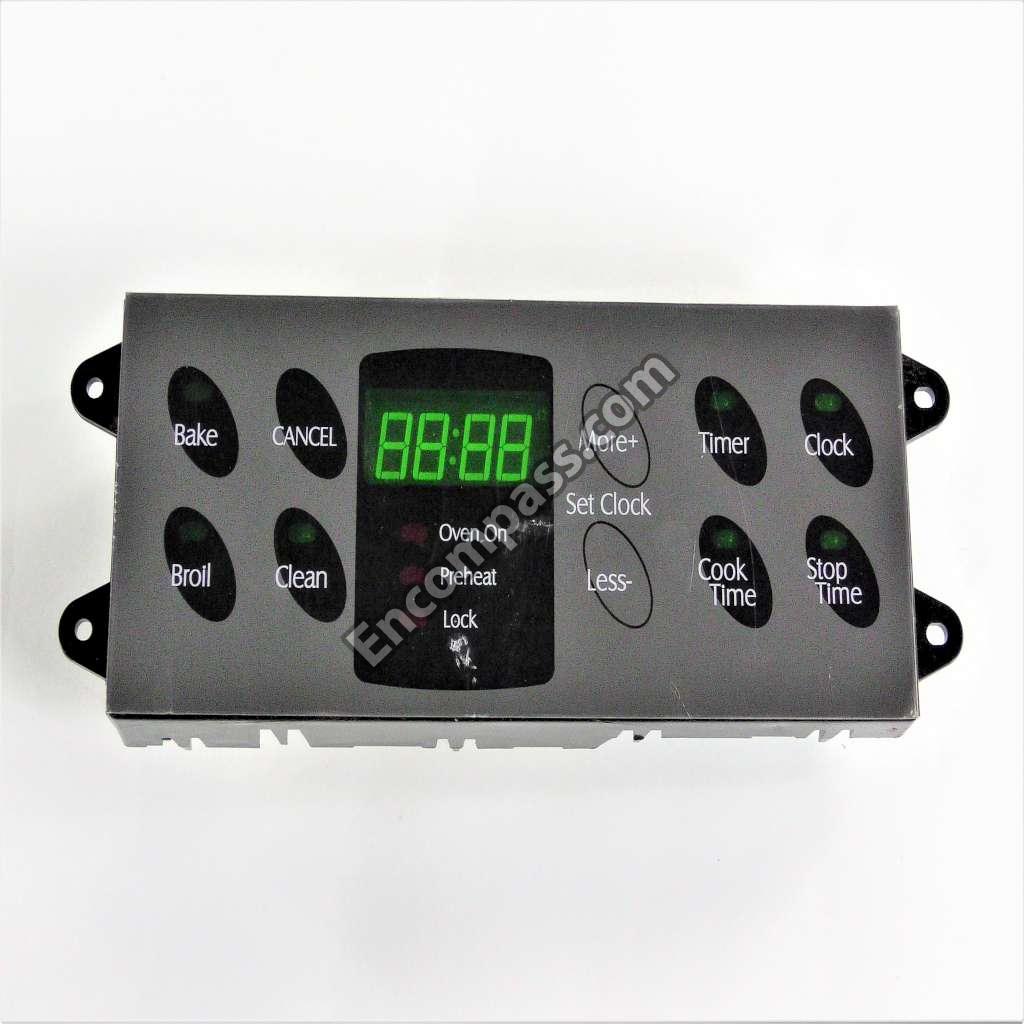

WP5701M379-60 WP5701M379-60 CONTROL BOARD
74003479 74003479 COVER DOO
4005F747-51 4005F747-51 COVER, ACCESS
74003389 74003389 COVER, BULB
74003241 74003241 COVER, MAIN BACK WIRE
4005F432-45 4005F432-45 COVER, VENT
WP74006381 WP74006381 DOOR HANDLE
WP74005575 WP74005575 DOOR LOCK MOTOR ASSEMBLY.
74008337 74008337 DRAWER, STORAGE
WP74010750 WP74010750 ELEMENT
WP12001559 WP12001559 ELEMENT KI
WP7406P218-60 WP7406P218-60 ELMNT-BROL
74003607 74003607 END CAP- C
74003608 74003608 END CAP- C
74006376 74006376 EXTENSION
74004551 74004551 EXTENSION, CONTROL PANEL
W11665456 W11665456 FOOT-LEVEL
74003644 74003644 FRAME, GLASS
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS W/TAPE ASSEMBLY
WP74006636 WP74006636 GLASS, DOOR (WHT)
74003645 74003645 GLASS-DOOR
74007624 74007624 HARNESS B
74007613 74007613 HARNESS B
74005489 74005489 HARNESS D
74006407 74006407 HARNESS D
74003638 74003638 HARNESS, SENSOR TO LOCK
74003371 74003371 HINGE MAI
WP74011141 WP74011141 HINGE- OVE
74003388 74003388 HOUSING, BULB
74004550 74004550 HOUSING, CONTROL PANEL
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
WP3413F018-19 WP3413F018-19 INSERT
WP7728P094-60 WP7728P094-60 INSERT, DOOR TRIM (WHT)
WP74009201 WP74009201 INSULATION
WP74010942 WP74010942 INSULATION
74003560 74003560 INSULATION
7002P246-60 7002P246-60 INSULATION
74001872 74001872 INSULATOR
12002358 12002358 KIT, DOOR TRIM (WHT)
WP74003611 WP74003611 KNOB WHT
8009 8009 LIGHT BULB
WP74004153 WP74004153 LIGHT- IND
WP2402W267-19 WP2402W267-19 LINING, DOOR
16010161 16010161 MANUAL, SRVC ELEC/GAS RANGE
74007489 74007489 MANUAL, USE & CARE
WP488130 WP488130 NUT
WP7103P027-60 WP7103P027-60 NUT
74005230 74005230 NUT
WP74003643 WP74003643 NUT, SNAP (SQUARE-BLK)
WP7103P114-60 WP7103P114-60 NUT- SNAP
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
WP3401F075-19 WP3401F075-19 PAN, BROIL
74006382 74006382 PANEL CON
74003399 74003399 PANEL, DRAWER (WHT)
74003236 74003236 PANEL, SIDE (WHT)
4020F001-80 4020F001-80 PEDESTAL
74006325 74006325 PEDESTAL, SIDE
WPW10282492 WPW10282492 RACK-OVEN
12001676 12001676 RECEPTACLE ASSEMBLY.
74003650 74003650 RETAINER
74003391 74003391 RETAINER
3804F231-51 3804F231-51 RETAINER, BOTTOM
74006400 74006400 RETAINER, INSULATION
74003562 74003562 ROD, DOOR LIGHT SWITCH
12001527 12001527 ROLLER, DRAWER
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNER, DRAWER (2)
WP74004005 WP74004005 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WP179051 WP179051 SCREW
WP98008544 WP98008544 SCREW
WP7101P309-60 WP7101P309-60 SCREW
W10856125 W10856125 SCREW
WP59002061 WP59002061 SCREW
W11693756 W11693756 SCREW
WP4159193 WP4159193 SCREW
W11233072 W11233072 SCREW
7101P345-60 7101P345-60 SCREW
W11684512 W11684512 SCREW
WP71003275 WP71003275 SCREW
74002451 74002451 SCREW 1 3
74008798 74008798 SCREW W/SHOULDER (NO.8)
7101P330-60 7101P330-60 SCREW, SWITCH
WP854334 WP854334 SEAL-STRIP
WP74005231 WP74005231 SHAFT, STORAGE DRAWER ROLLER
74001598 74001598 SHIELD DO
74002334 74002334 SHIELD WI
74003374 74003374 SHIELD, SIGHT
WP74003387 WP74003387 SOCKT-LITE
W10857933 W10857933 SPACER
8010P088-60 8010P088-60 SPACER, MAIN TOP (RT)
8010P087-60 8010P087-60 SPACER- MA
WP74005546 WP74005546 SPACER- RU
74001629 74001629 SPRING- DO
74003385 74003385 STRAP INS
3807F400-51 3807F400-51 SUPPORT O
74003563 74003563 SUPPORT, BROIL ELEMENT
74003604 74003604 SUPPORT, CONTROL PANEL (LT)
74003603 74003603 SUPPORT, CONTROL PANEL (RT)
74001170 74001170 SUPPORT, TOP
WPW10345410 WPW10345410 SURFACE ELEMENT
WP12001560 WP12001560 SURFACE ELEMENT
WPW10259868 WPW10259868 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH
74001802 74001802 SWITCH
74008717 74008717 SWITCH, ROCKER (WHT)
WP74004224 WP74004224 TAPE
8270P078-60 8270P078-60 TAPE, FOIL (29 1/2``)
74003660 74003660 TAPE, FOIL (8.75`` X 1``)
74003664 74003664 TAPE, FOIL 29`` X 2``
74003428 74003428 TOP, MAIN (WHT)
74006401 74006401 TRIM, DOOR TOP (WHT)
8026P019-60 8026P019-60 TUBE VENT
WP74001521 WP74001521 WASHER 1
12001323 12001323 WIRE TERMI
15003100 15003100 WIRING INFORMATION
15002849 15002849 WIRING INFORMATION
