Model Image
Manufacturer

Whirlpool

Model Number

MER5870ACW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
74001772 74001772 BACKMAIN
3601F237-47 3601F237-47 BAFFLE BR
74003648 74003648 BAFFLE, DOOR
WPW10245259 WPW10245259 BLOCK-TERM
74003379 74003379 BOX BURNE
4011F458-51 4011F458-51 BOX-BURNER
WP3801F656-51 WP3801F656-51 BRACKET
74003627 74003627 BRACKET, CLOCK
74003384 74003384 BRACKET, MAIN TOP
W10190166 W10190166 BRACKET, POWER SUPPLY
71003077 71003077 BRACKET, SWITCH
74001632 74001632 BRACKET, SWITCH ACTUATOR
71003070 71003070 BREAKER C
74001631 74001631 BUMPER- RO
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI
WP9781049 WP9781049 CAMERA LENS-LIGHT
W10355051 W10355051 CLEANER, COOKTOP
WP5701M515-60 WP5701M515-60 CLOCK W/OVERLAY (WHT)
7402P050-60 7402P050-60 CORD, POWER
4005F747-51 4005F747-51 COVER, ACCESS
74003389 74003389 COVER, BULB
74003241 74003241 COVER, MAIN BACK WIRE
74003697 74003697 COVER, OVEN BACK (CONVECT)
12002354 12002354 DOOR LATCH, DOOR LOCK
WP74005575 WP74005575 DOOR LOCK MOTOR ASSEMBLY.
74008337 74008337 DRAWER, STORAGE
WP74010750 WP74010750 ELEMENT

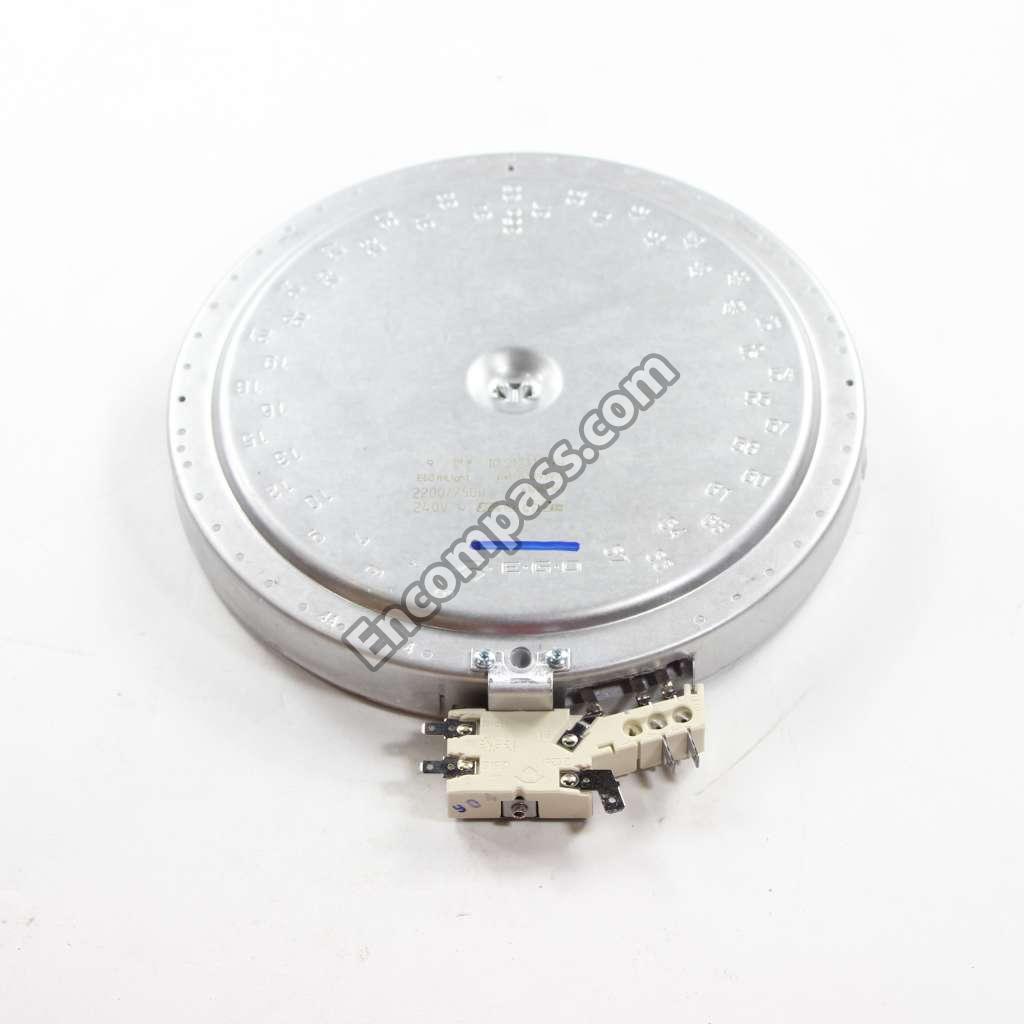

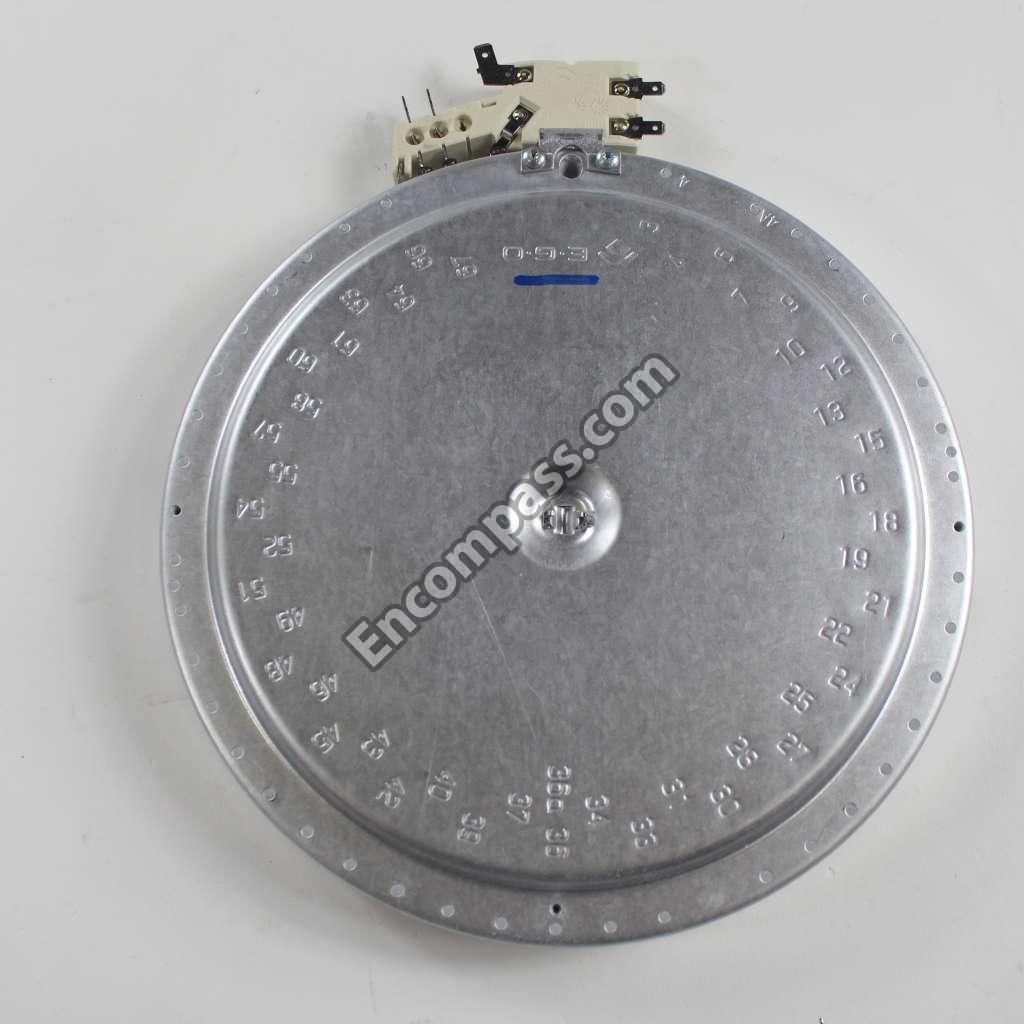

W10823703 W10823703 ELEMENT, CERAN. DUAL
WP7406P218-60 WP7406P218-60 ELMNT-BROL
74003607 74003607 END CAP- C
74003608 74003608 END CAP- C
74006376 74006376 EXTENSION
74004551 74004551 EXTENSION, CONTROL PANEL
3826W014-45 3826W014-45 EXTENSION, VENT
74001805 74001805 FAN ASSEMBLY. (CONVECTION)
74004007 74004007 FAN ASY. (CONVECTION)
8312P058-60 8312P058-60 FOIL, INSULATION RETAINER
W11665456 W11665456 FOOT-LEVEL
74004842 74004842 FRAME W/TAPE ASSEMBLY
74003644 74003644 FRAME, GLASS
74003285 74003285 GASKET VE
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS, DOOR
WP74006636 WP74006636 GLASS, DOOR (WHT)
74003645 74003645 GLASS-DOOR
W11189172 W11189172 GLIDE-DRWR
WP74003620 WP74003620 HANDLE, DOOR (WHT)
74003557 74003557 HARNESS S
74003371 74003371 HINGE MAI
WP74011141 WP74011141 HINGE- OVE
74003388 74003388 HOUSING, BULB
74004550 74004550 HOUSING, CONTROL PANEL
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
WP3413F018-19 WP3413F018-19 INSERT

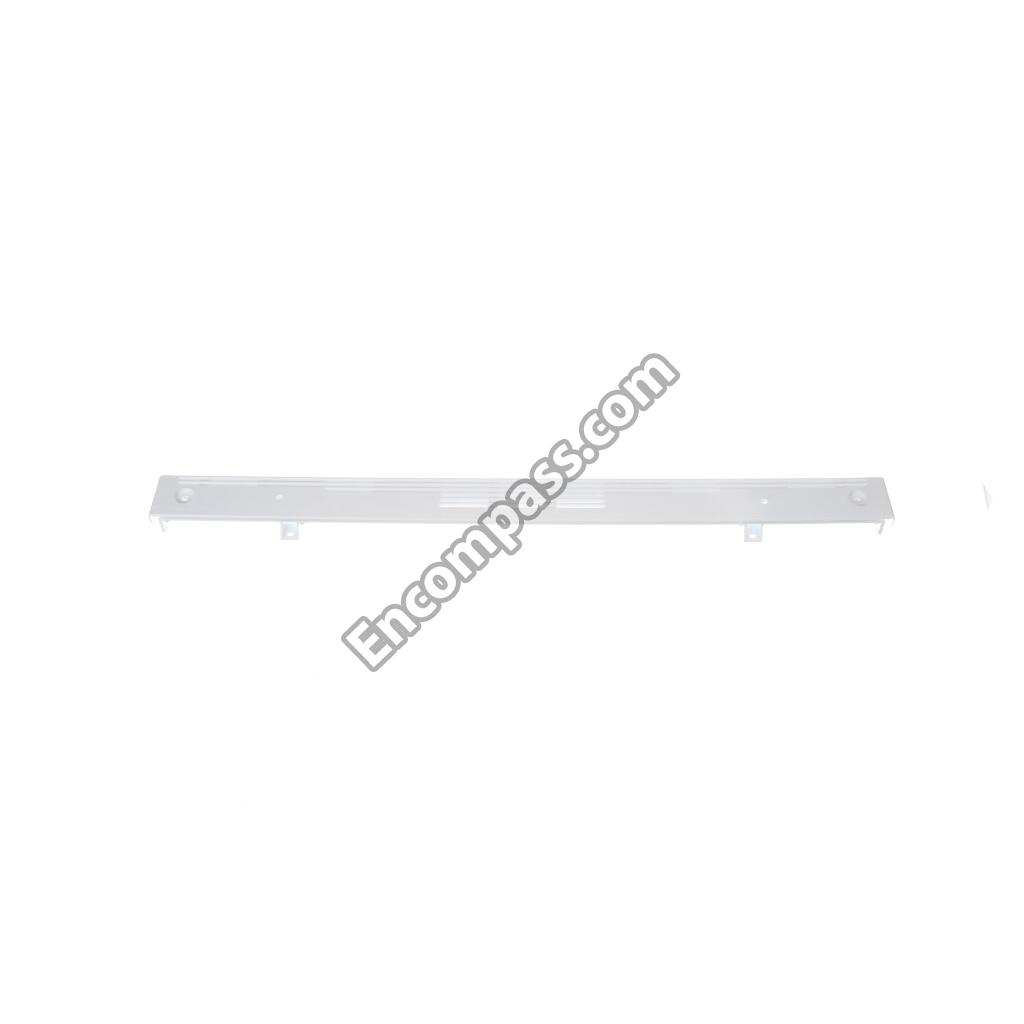

WP7728P094-60 WP7728P094-60 INSERT, DOOR TRIM (WHT)
WP74009201 WP74009201 INSULATION
WP74010942 WP74010942 INSULATION
74003560 74003560 INSULATION
7002P246-60 7002P246-60 INSULATION
74001872 74001872 INSULATOR
12002358 12002358 KIT, DOOR TRIM (WHT)
WP74003611 WP74003611 KNOB WHT
WP7407P182-60 WP7407P182-60 LAMP-ASM
8009 8009 LIGHT BULB
71003078 71003078 LIGHT, INDICATOR
WP74004153 WP74004153 LIGHT- IND
74002667 74002667 LIMITER
74002652 74002652 LIMITER (8``)
74004880 74004880 LIMITER (DUAL)
8053620 8053620 LIMITER, TEMP. (4)
WP2402W267-19 WP2402W267-19 LINING, DOOR
16010161 16010161 MANUAL, SRVC ELEC/GAS RANGE
74004067 74004067 MANUAL, USE & CARE
74003696 74003696 MANUAL, USE & CARE
74003730 74003730 MANUAL, USE & CARE (FRCH)
3605F174-51 3605F174-51 NLANPLATE, CONDUIT TUBING
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
WPW10131078 WPW10131078 NUT
WP488130 WP488130 NUT
WP7103P027-60 WP7103P027-60 NUT
WP74003643 WP74003643 NUT, SNAP (SQUARE-BLK)
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
WP3401F075-19 WP3401F075-19 PAN, BROIL
74003792 74003792 PANEL, CONTROL (WHT)
74003399 74003399 PANEL, DRAWER (WHT)
74003236 74003236 PANEL, SIDE (WHT)
4020F001-80 4020F001-80 PEDESTAL
74003393 74003393 PEDESTAL, SIDE
HALFRACK HALFRACK RACK-HALF
WPW10282492 WPW10282492 RACK-OVEN
71003069 71003069 RECEPTACLE
WP74003482 WP74003482 RELAY- AUX
74003480 74003480 REMOTE CONTROL
74003422 74003422 RETAINER
74003561 74003561 RETAINER
74003650 74003650 RETAINER
74003391 74003391 RETAINER
3804F245-51 3804F245-51 RETAINER, BOTTOM
74005498 74005498 RETAINER, INSULATION (CONVECT)
74003562 74003562 ROD, DOOR LIGHT SWITCH
12001527 12001527 ROLLER, DRAWER
W10182835 W10182835 RUNNER, DRAWER (2)
WA906B WA906B SCRAPER, COOKTOP
WP7101P072-60 WP7101P072-60 SCREW
WP179051 WP179051 SCREW
WP74001278 WP74001278 SCREW
WP98008544 WP98008544 SCREW
WP7101P309-60 WP7101P309-60 SCREW
W10856125 W10856125 SCREW
WP74004005 WP74004005 SCREW
3400409 3400409 SCREW
WPY706189 WPY706189 SCREW
W11693756 W11693756 SCREW
WP4159193 WP4159193 SCREW
W11233072 W11233072 SCREW
7101P345-60 7101P345-60 SCREW
W11684512 W11684512 SCREW
WP7101P498-60 WP7101P498-60 SCREW
74002451 74002451 SCREW 1 3
74008798 74008798 SCREW W/SHOULDER (NO.8)
WP854334 WP854334 SEAL-STRIP
74003374 74003374 SHIELD, SIGHT
WP74003387 WP74003387 SOCKT-LITE
W10857933 W10857933 SPACER
8010P085-60 8010P085-60 SPACER RU
8010P088-60 8010P088-60 SPACER, MAIN TOP (RT)
8010P087-60 8010P087-60 SPACER- MA
74001629 74001629 SPRING- DO
8004P093-60 8004P093-60 SUPPORT
3807F400-51 3807F400-51 SUPPORT O
74003563 74003563 SUPPORT, BROIL ELEMENT
74003604 74003604 SUPPORT, CONTROL PANEL (LT)
74003603 74003603 SUPPORT, CONTROL PANEL (RT)
W10823709 W10823709 SURFACE ELEMENT
W10823707 W10823707 SURFACE ELEMENT
W10823704 W10823704 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH
74001802 74001802 SWITCH
7403P384-60 7403P384-60 SWITCH, DUAL ELEMENT
71003076 71003076 SWITCH, LIMIT
74008717 74008717 SWITCH, ROCKER (WHT)
71002092 71002092 TAPE, DBL. SIDED (WHT)
8270P078-60 8270P078-60 TAPE, FOIL (29 1/2``)
74003660 74003660 TAPE, FOIL (8.75`` X 1``)
74003664 74003664 TAPE, FOIL 29`` X 2``
5706X358-81 5706X358-81 TOP, MAIN (WHT GLASS/WHT TRM)
WP74003653 WP74003653 TRIM- DOOR
74003394 74003394 VENT BOX A
12001323 12001323 WIRE TERMI
15002331 15002331 WIRING INFORMATION
15002785 15002785 WIRING INFORMATION (FRC)
