Model Image
Manufacturer

Whirlpool

Model Number

MER6775ACB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
4002F332-51 4002F332-51 BACK-MAIN
3601F373-51 3601F373-51 BAFFLE
3601F354-45 3601F354-45 BAFFLE
74009502 74009502 BAFFLE, OVEN DOOR
74009962 74009962 BASE, GEMINI
WPW10245259 WPW10245259 BLOCK-TERM
74009330 74009330 BOOKLET, COOKING MADE SIMPLE
W10283688 W10283688 BOTTM-BOX
74004522 74004522 BOX VENT
W10283722 W10283722 BOX, BURNER (LT)
WP3801F656-51 WP3801F656-51 BRACKET
74009988 74009988 BRACKET V
WP3801F844-51 WP3801F844-51 BRACKET, CLOCK
3801F832-45 3801F832-45 BRACKET, HANDLE (LEFT)
3801F831-45 3801F831-45 BRACKET, HANDLE (RIGHT)
74003384 74003384 BRACKET, MAIN TOP
W10190166 W10190166 BRACKET, POWER SUPPLY
74001632 74001632 BRACKET, SWITCH ACTUATOR
3801F706-51 3801F706-51 BRACKET- R
3801F705-51 3801F705-51 BRACKET- R
71003070 71003070 BREAKER C
3801F886-51 3801F886-51 BRKT-MNTG
WP74009925 WP74009925 BULB- HALO
74001631 74001631 BUMPER- RO
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI
WP9781049 WP9781049 CAMERA LENS-LIGHT
W10355051 W10355051 CLEANER, COOKTOP
W10769079 W10769079 CONTROL BOARD
7402P050-60 7402P050-60 CORD, POWER
4005F747-51 4005F747-51 COVER, ACCESS
4005F803-51 4005F803-51 COVER, BACKGUARD WIRE
W10167412 W10167412 COVER, MAIN WIRE
74004577 74004577 COVER, TERMINAL
WP3608F116-70 WP3608F116-70 DOOR TRIM
WP3608F117-70 WP3608F117-70 DOOR TRIM
W10201551 W10201551 ELEMENT, BROIL (UPPER)
WP74009899 WP74009899 ELEMENT- W
WP7406P428-60 WP7406P428-60 ELMNT-BAKE
74004105 74004105 ELMNT-BAKE
WPW10310249 WPW10310249 ELMNT-BROL
74009987 74009987 EXTENSION
W11665456 W11665456 FOOT-LEVEL
74004567 74004567 FRAME, GLASS
74003644 74003644 FRAME, GLASS
74004533 74004533 GASKET VE
WP7201P091-60 WP7201P091-60 GASKT-DOOR
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS, DOOR
WP74004571 WP74004571 GLASS, OVEN DOOR
74003645 74003645 GLASS-DOOR
74004566 74004566 GLASS-DOOR
W11189172 W11189172 GLIDE-DRWR
WP74009970 WP74009970 HALOGEN LAMP ASSEMBLY.
WP74011767 WP74011767 HANDLE- DO
74010393 74010393 HARNESS D
74010051 74010051 HARNESS L
74010398 74010398 HARNESS M
74008935 74008935 HARNESS S
74010392 74010392 HARNESS S
74010050 74010050 HARNESS T
5175P365-60 5175P365-60 HARNESS- D
74009965 74009965 HARNESS- S
74007830 74007830 HINGE ASSEMBLY. UPPER DOOR
74011142 74011142 HINGE, OVEN DOOR
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
WP3413F018-19 WP3413F018-19 INSERT
WP74007336 WP74007336 INSULATION
74009968 74009968 INSULATION
74009979 74009979 INSULATION
74007899 74007899 INSULATION
7002P246-60 7002P246-60 INSULATION
74004569 74004569 INSULATION, DOOR (8.5 X 21.5)
74001872 74001872 INSULATOR
74004532 74004532 INSULATOR
WP74007932 WP74007932 INSULATOR, TERMINAL
12002454 12002454 KIT DOOR
12002395 12002395 KIT- DOOR
WP74008945 WP74008945 KNOB BLK
WP8002P078-60 WP8002P078-60 LATCH-DOOR
8009 8009 LIGHT BULB
WP74004153 WP74004153 LIGHT- IND
WP74011278 WP74011278 LIGHT- OVE
WP2402W312-19 WP2402W312-19 LINER-DOOR
WP2402W267-19 WP2402W267-19 LINING, DOOR
74004564 74004564 LINING, OVEN DOOR
74007429 74007429 LOCK- DOOR
8113P570-60 8113P570-60 MANUAL, USE & CARE
8113P440-60 8113P440-60 MANUAL, USE & CARE
74009971 74009971 MINI-MANUAL (ELECTRIC)
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
WP74001574 WP74001574 NUT- SNAP
WP7103P114-60 WP7103P114-60 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
WP74009994 WP74009994 OVERLAY- H
WP3401F075-19 WP3401F075-19 PAN, BROIL
74010395 74010395 PANEL CON
74003283 74003283 PANEL, SIDE (BLK)
74004517 74004517 PLUG HOLE
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
74005218 74005218 RACK, TELESCOPING ASSEMBLY
WPW10273816 WPW10273816 RACK-OVEN
WPW10282492 WPW10282492 RACK-OVEN
UXA4905ADX UXA4905ADX RACK-OVEN
71003068 71003068 RECEPTACLE
74009845 74009845 RELAY- AUX
74003650 74003650 RETAINER
74004592 74004592 RETAINER
74003562 74003562 ROD, DOOR LIGHT SWITCH
WA906B WA906B SCRAPER, COOKTOP
WP7101P126-60 WP7101P126-60 SCREW
WP90767 WP90767 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP74003976 WP74003976 SCREW
W10856125 W10856125 SCREW
WPY706189 WPY706189 SCREW
WP98008545 WP98008545 SCREW
WP4159193 WP4159193 SCREW
W11233072 W11233072 SCREW
7101P345-60 7101P345-60 SCREW
W11111008 W11111008 SCREW
7101P287-60 7101P287-60 SCREW
74003975 74003975 SCREW
74008798 74008798 SCREW
WP74006515 WP74006515 SCREW
7101P330-60 7101P330-60 SCREW, SWITCH
74004518 74004518 SEAL- FRAM
3604F335-51 3604F335-51 SHIELD
3604F387-51 3604F387-51 SHIELD
3604F405-51 3604F405-51 SHIELD
74001598 74001598 SHIELD DO
74005653 74005653 SHIELD, POWER CORD
W10857933 W10857933 SPACER
8010P088-60 8010P088-60 SPACER, MAIN TOP (RT)
8010P087-60 8010P087-60 SPACER- MA
WP74005546 WP74005546 SPACER- RU
3823F015-51 3823F015-51 SPACER- SI
74001629 74001629 SPRING- DO
WP3807F708-70 WP3807F708-70 SUPPORT
8004P093-60 8004P093-60 SUPPORT
74003386 74003386 SUPPORT B
74005499 74005499 SUPPORT O
74005500 74005500 SUPPORT O
WP3807F734-70 WP3807F734-70 SUPPORT, BACKGUARD (LT-BLK)
3807F176-19 3807F176-19 SUPPORT, BROIL ELEMENT
3807F733-70 3807F733-70 SUPPORT- B

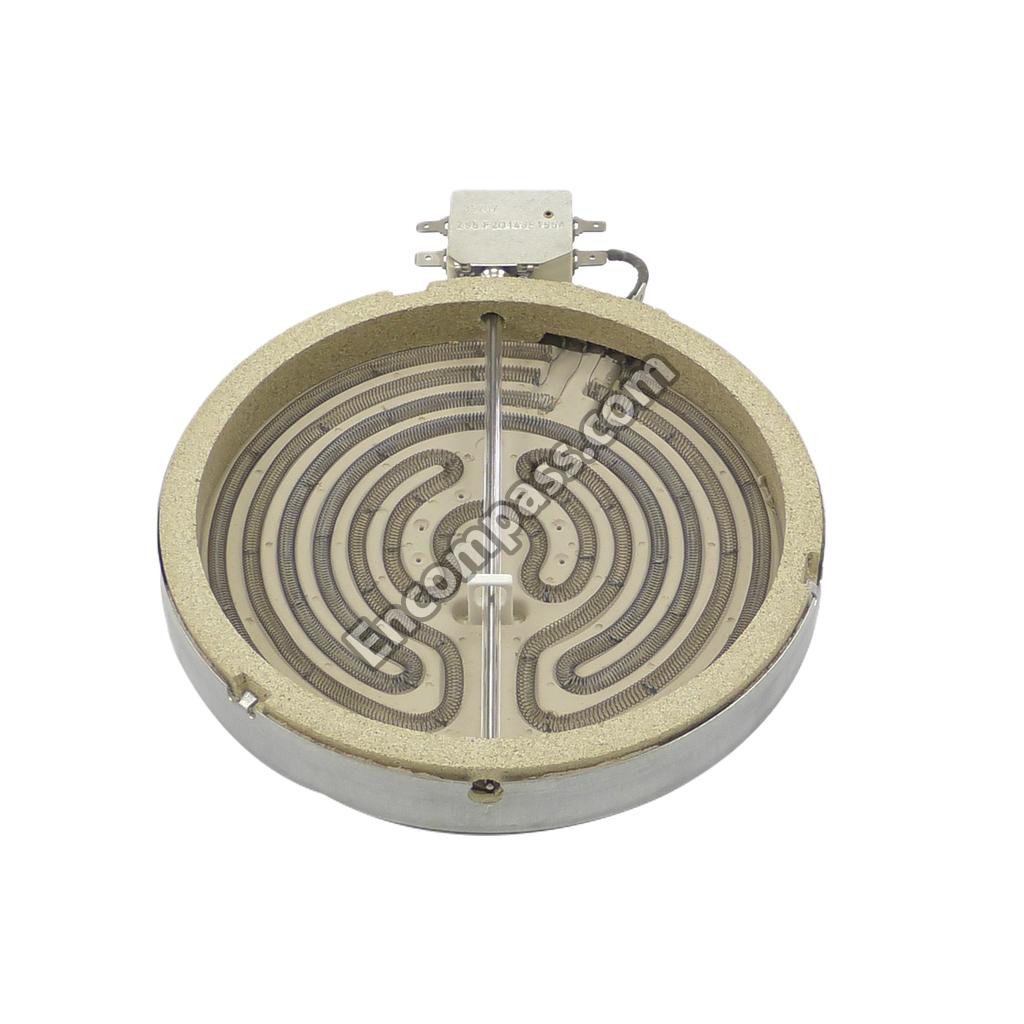

W10823713 W10823713 SURFACE ELEMENT
W10823711 W10823711 SURFACE ELEMENT
W10823716 W10823716 SURFACE ELEMENT
74004536 74004536 SWITCH
7403P985-60 7403P985-60 SWITCH, DUAL (BLACK)
74009969 74009969 SWITCH- HI
WP74003122 WP74003122 SWITCH- IN
74003664 74003664 TAPE, FOIL 29`` X 2``
WP74009025 WP74009025 TAPE- DBL
74010030 74010030 TOP, MAIN (BLK)
WP7430P044-60 WP7430P044-60 TOP-OVEN
3608F141-70 3608F141-70 TRIM, DOOR TOP (BLK)
3608F118-70 3608F118-70 TRIM-DOOR
3608F119-70 3608F119-70 TRIM-DOOR
3608F091-70 3608F091-70 TRIM-KICK
74003394 74003394 VENT BOX A
4022W017-45 4022W017-45 VENT-OVEN
15003623 15003623 WIRING INFORMATION
15003624 15003624 WIRING INFORMATION (FRC)
