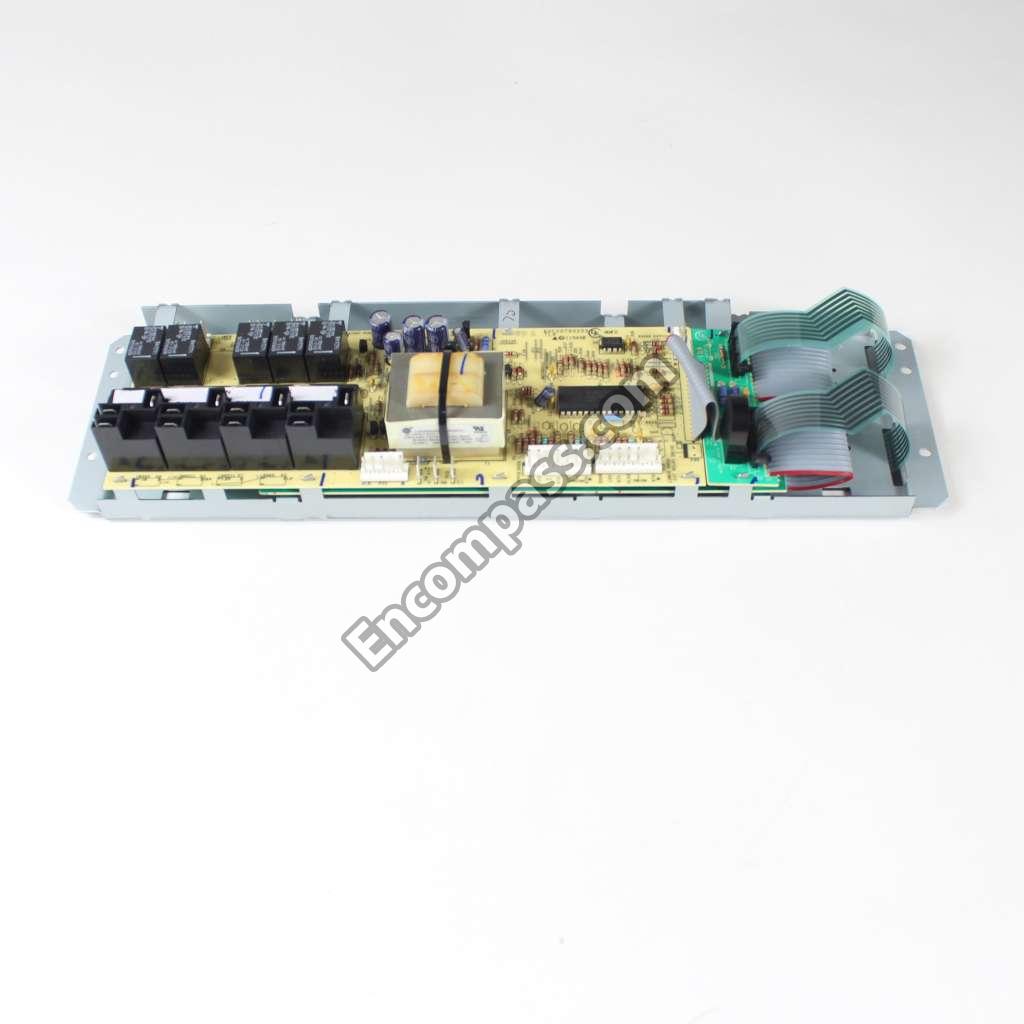

Model Image
Manufacturer

Whirlpool

Model Number

MER6870AAQ

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
16009690 16009690 *NLA*COOKBOOK (GEMINI)
74007648 74007648 BACK- MAIN
3601F237-45 3601F237-45 BAFFLE BR
3601F354-45 3601F354-45 BAFFLE, DOOR
74003648 74003648 BAFFLE, DOOR
74004828 74004828 BASE, PLATE
WPW10245259 WPW10245259 BLOCK-TERM
4011F483-19 4011F483-19 BOTTOM, BURNER BOX
74003379 74003379 BOX BURNE
74004522 74004522 BOX VENT
4011F458-51 4011F458-51 BOX-BURNER
WP3801F656-51 WP3801F656-51 BRACKET
74005392 74005392 BRACKET C
74005393 74005393 BRACKET C
74005484 74005484 BRACKET D
WP3801F646-51 WP3801F646-51 BRACKET, CLOCK
74003384 74003384 BRACKET, MAIN TOP
W10190166 W10190166 BRACKET, POWER SUPPLY
74001632 74001632 BRACKET, SWITCH ACTUATOR
WP74009925 WP74009925 BULB- HALO
74001631 74001631 BUMPER- RO
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI
WP74004607 WP74004607 CAMERA LENS-LIGHT
74005237 74005237 CAP, END (LT-BSQ)
74005236 74005236 CAP, END (RT-BSQ)
W10355051 W10355051 CLEANER, COOKTOP
WP5701M406-60 WP5701M406-60 CLOCK, (CONVECT)
4005F747-51 4005F747-51 COVER, ACCESS
74005783 74005783 COVER, CONVECT
W10167412 W10167412 COVER, MAIN WIRE
74004577 74004577 COVER, TERMINAL
WPW10202401 WPW10202401 DOOR HINGE
74005485 74005485 DOOR LOCK DOOR LATCH ASSEMBLY (LWR)
WP74005495 WP74005495 DOOR LOCK DOOR LATCH ASSEMBLY (UPR)
W10201551 W10201551 ELEMENT, BROIL (UPPER)
WP7406P428-60 WP7406P428-60 ELMNT-BAKE
74004105 74004105 ELMNT-BAKE
WP7406P218-60 WP7406P218-60 ELMNT-BROL
74006376 74006376 EXTENSION
74004551 74004551 EXTENSION, CONTROL PANEL
74004534 74004534 EXTENSION, VENT ASSEMBLY
74004007 74004007 FAN ASY. (CONVECTION)
W11665456 W11665456 FOOT-LEVEL
74005242 74005242 FRAME, DOOR (BSQ)
74005162 74005162 FRAME, DOOR (BSQ)
74004567 74004567 FRAME, GLASS
74003644 74003644 FRAME, GLASS
74004533 74004533 GASKET VE
WP7201P091-60 WP7201P091-60 GASKT-DOOR
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS, DOOR
74005243 74005243 GLASS, DOOR (BSQ)
WP74004571 WP74004571 GLASS, OVEN DOOR
74005240 74005240 GLASS, OVEN DOOR (BSQ)
74003645 74003645 GLASS-DOOR
74004566 74004566 GLASS-DOOR
W11189172 W11189172 GLIDE-DRWR
74007136 74007136 GUIDE, COOKING (TRILINGUAL)
74004521 74004521 HALOGEN LA
74004974 74004974 HANDLE DO
74005490 74005490 HARNESS C
74005489 74005489 HARNESS D
74005491 74005491 HARNESS M
74005493 74005493 HARNESS O
74005492 74005492 HARNESS S
74004537 74004537 HARNESS, DOOR LOGIC SWITCH
74005494 74005494 HARNESS, TOP/ELEMENTS
WP74011141 WP74011141 HINGE- OVE
74004550 74004550 HOUSING, CONTROL PANEL
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
WP3413F018-19 WP3413F018-19 INSERT
74004978 74004978 INSERT, DOOR TRIM (BSQ)
7002P246-60 7002P246-60 INSULATION
74007899 74007899 INSULATION, BURNER BOX
74004569 74004569 INSULATION, DOOR (8.5 X 21.5)
74004520 74004520 INSULATION, OVEN FRONT (UPR)
74009968 74009968 INSULATION, WRAP
74001872 74001872 INSULATOR
74004532 74004532 INSULATOR
74004653 74004653 INSULATOR
74005143 74005143 KNOB SWIT
71003078 71003078 LIGHT, INDICATOR
WP74004153 WP74004153 LIGHT- IND
74002176 74002176 LIMITER (DUAL)
8053620 8053620 LIMITER, TEMP. (4)
WP2402W267-19 WP2402W267-19 LINING, DOOR
74004564 74004564 LINING, OVEN DOOR
74005180 74005180 MAIN, TOP (ALM GLASS/BSQ TRM)
74005366 74005366 MANUAL, USE & CARE (TRILINGUAL
74005531 74005531 MOTOR LOC
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
WP74003643 WP74003643 NUT, SNAP (SQUARE-BLK)
WP7103P114-60 WP7103P114-60 NUT- SNAP
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
74005468 74005468 OVERLAY, CLOCK (BSQ)
WP3401F075-19 WP3401F075-19 PAN, BROIL
74005234 74005234 PANEL CON
74004965 74004965 PANEL, SIDE (BSQ)
74004517 74004517 PLUG HOLE
74005218 74005218 RACK, TELESCOPING ASSEMBLY
WPW10282492 WPW10282492 RACK-OVEN
WPW10273816 WPW10273816 RACK-OVEN
74005498 74005498 RETAINER
74005496 74005496 RETAINER
74003650 74003650 RETAINER
74004592 74004592 RETAINER
74003562 74003562 ROD, DOOR LIGHT SWITCH
WA906B WA906B SCRAPER, COOKTOP
74003633 74003633 SCREEN, SMOKE ELIMINATOR
WP179051 WP179051 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP74004005 WP74004005 SCREW
W10856125 W10856125 SCREW
W11233072 W11233072 SCREW
WPY706189 WPY706189 SCREW
WP74009541 WP74009541 SCREW
WP4159193 WP4159193 SCREW
W11693756 W11693756 SCREW
7101P345-60 7101P345-60 SCREW
74003975 74003975 SCREW
74005401 74005401 SCREW
WP7101P498-60 WP7101P498-60 SCREW
74004982 74004982 SCREW 6AB
71003201 71003201 SCREW W/WA
74009803 74009803 SCREW, (8 X 1/4) (BSQ)
7101P330-60 7101P330-60 SCREW, SWITCH
74004518 74004518 SEAL- FRAM
74005653 74005653 SHIELD, POWER CORD
74003374 74003374 SHIELD, SIGHT
W10857933 W10857933 SPACER
8010P085-60 8010P085-60 SPACER RU
8010P088-60 8010P088-60 SPACER, MAIN TOP (RT)
8010P087-60 8010P087-60 SPACER- MA
74001629 74001629 SPRING- DO
8004P093-60 8004P093-60 SUPPORT
74005500 74005500 SUPPORT O
74005499 74005499 SUPPORT O
3807F176-19 3807F176-19 SUPPORT, BROIL ELEMENT
74003563 74003563 SUPPORT, BROIL ELEMENT
W10823709 W10823709 SURFACE ELEMENT
W10823707 W10823707 SURFACE ELEMENT
W10823704 W10823704 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH
74004536 74004536 SWITCH
74005532 74005532 SWITCH LO
7403P384-60 7403P384-60 SWITCH, DUAL ELEMENT
WP74004530 WP74004530 SWITCH- LI
WP74004224 WP74004224 TAPE
74004593 74004593 TAPE FOIL
74003660 74003660 TAPE, FOIL (8.75`` X 1``)
74003664 74003664 TAPE, FOIL 29`` X 2``
WP7430P044-60 WP7430P044-60 TOP-OVEN
74005456 74005456 TRANSFORME
74005241 74005241 TRIM, DOOR TOP (BSQ)
74007480 74007480 TRIM, KICKPLATE (BSQ)
74005239 74005239 TRIMBOTTM
74003394 74003394 VENT BOX A
4022W017-45 4022W017-45 VENT-OVEN
15002728 15002728 WIRING INFORMATION
15002788 15002788 WIRING INFORMATION
