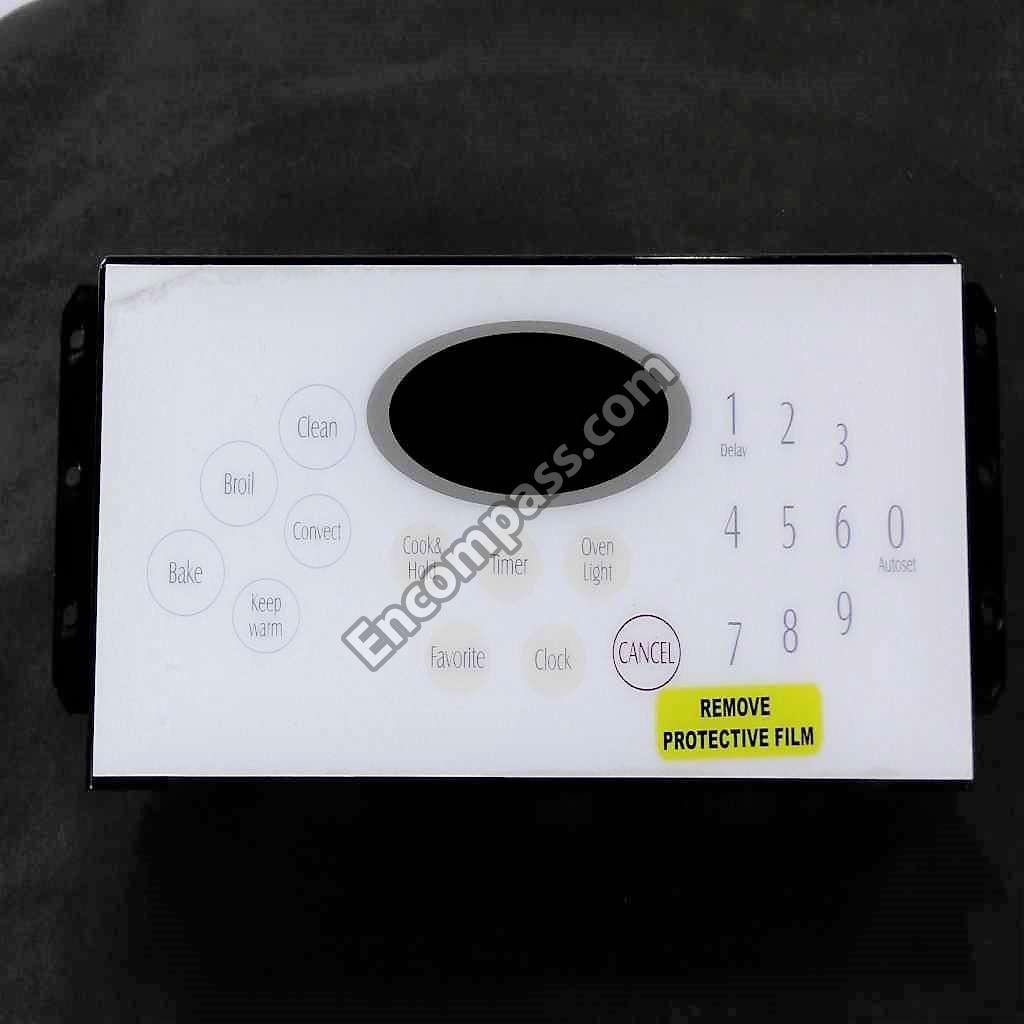

Model Image
Manufacturer

Whirlpool

Model Number

MERH865RAB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2602D363-09 2602D363-09 BACKGUARD
2602D363-81 2602D363-81 BACKGUARD
2602D363-88 2602D363-88 BACKGUARD
3601F380-51 3601F380-51 BAFFLE INS
WPW10245259 WPW10245259 BLOCK-TERM
WPW10211368 WPW10211368 BOTTM-OVEN
4011F497-51 4011F497-51 BOTTOM, BURNER BOX
WP3801F844-51 WP3801F844-51 BRACKET, CONTROL
3801P858-45 3801P858-45 BRKT-MNTG
3801F886-51 3801F886-51 BRKT-MNTG
3801P822-45 3801P822-45 BRKT-SUPRT
3801P857-45 3801P857-45 BRKTMNTG
9762761 9762761 BROCHURE, SAFE TIP
74008707 74008707 BUMPER
WP3196068 WP3196068 CAMERA LENS-LIGHT
W10355051 W10355051 CLEANER, COOKTOP
8019P013-60 8019P013-60 CLIP
WPW10141425 WPW10141425 CONTROL BOARD
WP5702M027-60 WP5702M027-60 CONTROL BOARD
WP5702M025-60 WP5702M025-60 CONTROL W/OVERLAY (BLACK)
W10223043 W10223043 COOKTOP (BISQUE)
W10258713 W10258713 COOKTOP (BLACK)
W10223233 W10223233 COOKTOP (WHITE)
4005F803-51 4005F803-51 COVER
4005F754-51 4005F754-51 COVER- MAI
4005P704-51 4005P704-51 COVER-REAR
4005P712-51 4005P712-51 COVERREAR
4005P703-51 4005P703-51 COVRWIRE
W10792991 W10792991 DOOR DOOR LATCH
WP3608F126-71 WP3608F126-71 DOOR TRIM
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
WPW10276482 WPW10276482 ELMNT-BAKE
WP7406P493-60 WP7406P493-60 ELMNT-BROL
3807F702-70 3807F702-70 END CAP, RIGHT (BLACK)
3807F702-78 3807F702-78 ENDCAP-PNL
3807F703-70 3807F703-70 ENDCAP-PNL
WP74011168 WP74011168 FAN ASSEMBLY, CONVECT
241430 241430 FOIL-ALUM
W11665456 W11665456 FOOT-LEVEL
W11562931 W11562931 GASKT-DOOR
7902P782-60 7902P782-60 GLASS, DOOR (BISQUE)
WPW10160908 WPW10160908 GLASS, DOOR (BLACK) (ORDER ITEM NO.15 WHEN REPLACING DOOR GLASS)
74008681 74008681 GLASS, DOOR (WHITE)
74003645 74003645 GLASS, INNER
WP7701P523-60 WP7701P523-60 HANDLE, DOOR (BISQUE)
74011777 74011777 HANDLE, DOOR (BLK)
WP74011675 WP74011675 HANDLE- DO
5171P927-60 5171P927-60 HARNESS, WIRE (BURNER BOX)
5171P861-60 5171P861-60 HARNESS, WIRE (COOKTOP RIGHT)
5171P928-60 5171P928-60 HARNESS, WIRE (MAIN)
5171P864-60 5171P864-60 HARNS-WIRE
74010546 74010546 HINGE, DOOR
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
8101P506-60 8101P506-60 INSTALLATION INSTRUCTIONS
7002P246-60 7002P246-60 INSULATION
7002P494-60 7002P494-60 INSULATION
7002P492-60 7002P492-60 INSULATION
WPW10208653 WPW10208653 INSULATION
WP7002P362-60 WP7002P362-60 INSULATION, WRAP
7003P145-60 7003P145-60 INSULATOR, CORD
7003P146-60 7003P146-60 INSULATOR, SHIELD
W11197495 W11197495 KNOB
74009187 74009187 KNOB (BLK)
74009189 74009189 KNOB (BSQ)
W10144686 W10144686 KNOB, WARM (1) (BISQUE/CHROME)
7737P390-60 7737P390-60 KNOB, WARM (1) (BLACK/CHROME)
WP74004153 WP74004153 LIGHT- IND
WP74011278 WP74011278 LIGHT- OVE
WP2402W297-19 WP2402W297-19 LINING, DOOR
WP488130 WP488130 NUT
74005230 74005230 NUT, LOCK (8-32)
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
511873 511873 PAINT
4392900 4392900 PAINT
799344 799344 PAINT
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
W10163401 W10163401 PANEL, DRAWER (BISQUE)
WPW10163038 WPW10163038 PANEL, DRAWER (BLACK)
WP2618F172-57 WP2618F172-57 PANEL, SIDE (BISQUE)
WP2618F172-69 WP2618F172-69 PANEL, SIDE (BLACK)
WP2618F172-58 WP2618F172-58 PANEL, SIDE (WHITE)
W10163040 W10163040 PANEL-DRWR
3605F305-19 3605F305-19 PLATE, CONVECTION
WPW10256908 WPW10256908 RACK-OVEN
WP74010551 WP74010551 RECEIVER-
261582 261582 REFINISHING MATERIAL (GREASE)
799832 799832 REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
3804F316-51 3804F316-51 RETAINER
8018P019-60 8018P019-60 ROD, DOOR SLEEVE
7809P043-60 7809P043-60 ROD, DOOR SWITCH
WP74004078 WP74004078 ROLLER- DR
WP3406P034-51 WP3406P034-51 RUNNER, DRAWER
WP74006515 WP74006515 SCREW
WP74009541 WP74009541 SCREW
WP98008544 WP98008544 SCREW
WP3196154 WP3196154 SCREW
WP4159193 WP4159193 SCREW
WP98008545 WP98008545 SCREW
74005401 74005401 SCREW
W11233072 W11233072 SCREW
WP3400882 WP3400882 SCREW
WP3196175 WP3196175 SCREW
W11244557 W11244557 SCREW
74003975 74003975 SCREW (8ABX3/8-BLK)
74008798 74008798 SCREW W/SHOULDER (NO.8)
WP74005231 WP74005231 SHAFT, ROLLER
WP3604F382-88 WP3604F382-88 SHIELD, HEAT VISOR (BISQUE)
WP3604F382-81 WP3604F382-81 SHIELD, HEAT VISOR (WHITE)
WP3604F381-19 WP3604F381-19 SHIELD, VENT
3604F371-51 3604F371-51 SHIELD-HT
3604F382-09 3604F382-09 SHIELD-HT
74008690 74008690 SPACER, SIDE PANEL
74008761 74008761 SPACER, SNAP-IN
WP74005546 WP74005546 SPACER- RU
4392901 4392901 SPRAY
285006 285006 SPRAY
350930 350930 SPRAY
74007134 74007134 SPRING, ELEMENT SUPPORT
8038P037-60 8038P037-60 STOP, DRAWER
3807P680-45 3807P680-45 SUPPORT
3807F703-78 3807F703-78 SUPPORT
3807F703-71 3807F703-71 SUPPORT
3807F702-71 3807F702-71 SUPPORT
W10823696 W10823696 SURFACE ELEMENT
W10823714 W10823714 SURFACE ELEMENT
WP9762851 WP9762851 SURFACE ELEMENT
W10823711 W10823711 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH
7403P985-60 7403P985-60 SWITCH
74008703 74008703 SWITCH, DOOR
W10129627 W10129627 SWITCH, INFINITE (WARMING)
74008715 74008715 SWITCH, LIMITER THERMAL
WP74008940 WP74008940 SWITCH- IN
WP74010226 WP74010226 SWITCH- RO
7403P984-60 7403P984-60 SWITCH- RO
W10208309 W10208309 TAPE (WHITE)
W10208308 W10208308 TAPE, DOUBLE SIDED (WHITE)
WP74009025 WP74009025 TAPE- DBL
WP3608F092-78 WP3608F092-78 TRIM, DOOR BOTTOM (BISQUE)
3608F110-70 3608F110-70 TRIM, DOOR TOP (BLACK)
3608F140-71 3608F140-71 TRIM, DOOR TOP (WHITE)
WP3608F092-71 WP3608F092-71 TRIM-BOTTM
3608F126-78 3608F126-78 TRIM-DOOR
3608F126-70 3608F126-70 TRIM-DOOR
3608F092-70 3608F092-70 TRIM-DOOR
3608F140-78 3608F140-78 TRIM-DOOR
72017 72017 TUCHUP
4392899 4392899 TUCHUP
8113P687-60 8113P687-60 USE & CARE GUIDE
8026P081-60 8026P081-60 VENT, OVEN
8119P442-60 8119P442-60 WIRING DIAGRAM
