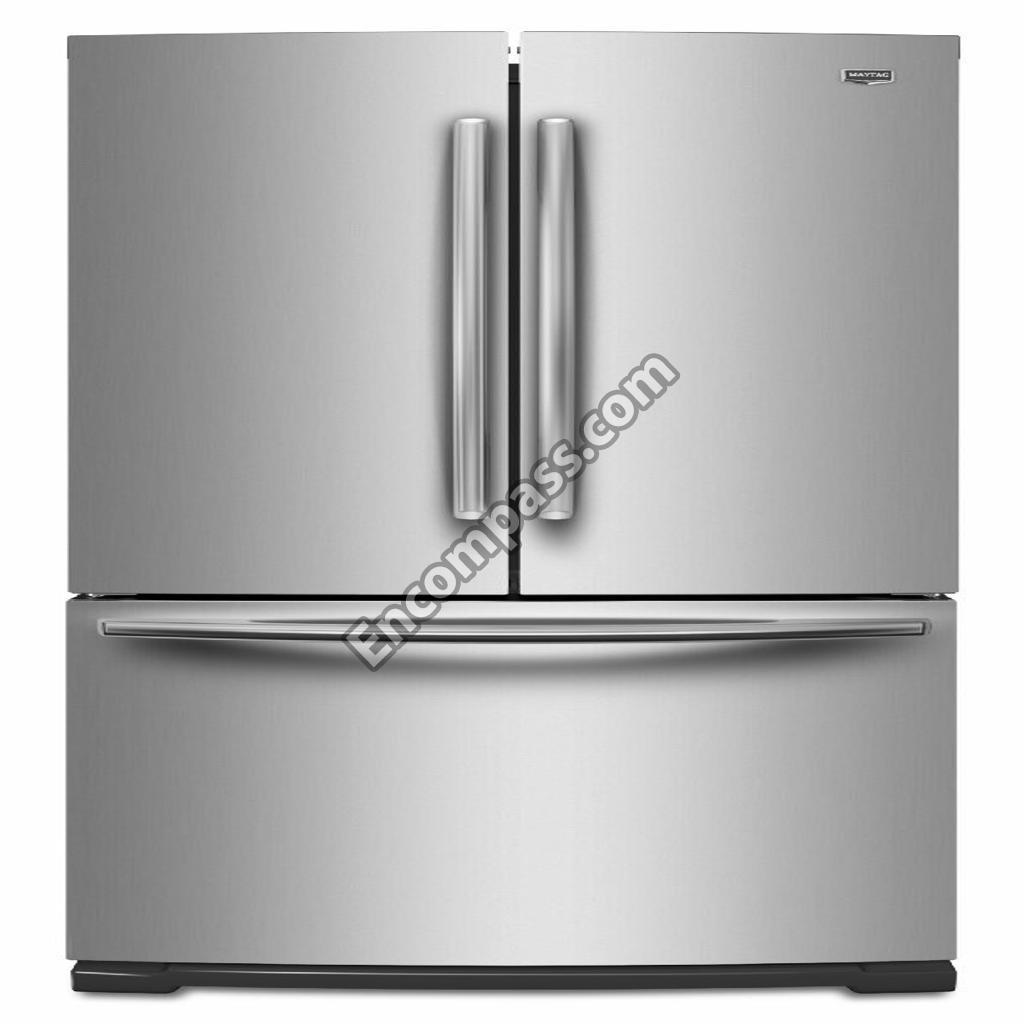

Model Image
Manufacturer

Whirlpool

Model Number

MFB2055YEM00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11508229 W11508229 AIR-TOWER
W11227949 W11227949 AIR-TOWER
WPW10257246 WPW10257246 AXLE
W11594405 W11594405 AXLE
WP2315541 WP2315541 BAFFLE-AIR
W10349514 W10349514 BAFFLE-AIR
WPW10317289 WPW10317289 BASKET-FZR
WPW10555437 WPW10555437 BASKET-FZR
WPW10372916 WPW10372916 BIN CONTROL LEVER
WPW10308869 WPW10308869 BIN-CNTLVR
WPW10139483 WPW10139483 BLADE-FAN
WP2163777 WP2163777 BLADE-FAN
W11745278 W11745278 BRACKET
2254454 2254454 BRACKET EVAPORATOR FAN, REAR
WPW10470155 WPW10470155 CAM-DOOR
WPW10313918 WPW10313918 CAMERA LENS-LIGHT
WPW10662129 WPW10662129 CAPACITOR
549193 549193 CLAMP, POWER CORD
W10683556 W10683556 CLIP
W10296661 W10296661 CLIP
WPW10277361 WPW10277361 COLLAR
WPW10466675 WPW10466675 COMPRESSOR
WPW10342567 WPW10342567 CONDENSER
W10798439 W10798439 CONTAINER, WATER RESERVOIR
W11034366 W11034366 CONTROL BOARD
WPW10435636 WPW10435636 CONTROL HOUSING
WPW10356895 WPW10356895 COVER
WPW10425252 WPW10425252 COVER
W10413160 W10413160 COVER
W10404442 W10404442 COVER
W11133099 W11133099 COVER
W10336009 W10336009 COVER
W10406590 W10406590 COVER
W10465768 W10465768 COVER
W10465764 W10465764 COVER
W10465765 W10465765 COVER
W10465770 W10465770 COVER
W10406928 W10406928 COVER
W10300900 W10300900 COVER, EVAPORATOR
W10313215 W10313215 COVER-BOX
W10360550 W10360550 COVER-FRNT
W10636716 W10636716 COVER-UNIT
WPW10317184 WPW10317184 CRISPER PAN
WPW10370327 WPW10370327 CRISPER PAN
WPW10257451 WPW10257451 DAMPER
LW10413518 LW10413518 DOOR ASSEMBLY BL
LW10413522 LW10413522 DOOR ASSEMBLY BL
LW10413530 LW10413530 DOOR ASSEMBLY BL
LW10413524 LW10413524 DOOR ASSEMBLY MS
LW10413519 LW10413519 DOOR ASSEMBLY MS
LW10413531 LW10413531 DOOR ASSEMBLY MS
LW10393587 LW10393587 DOOR ASSEMBLY WH
LW10353181 LW10353181 DOOR ASSEMBLY WH
LW10353182 LW10353182 DOOR ASSEMBLY WH
WPW10521411 WPW10521411 DOOR HINGE
WPW10521409 WPW10521409 DOOR HINGE
W11573371 W11573371 DOOR HINGE
WPW10624451 WPW10624451 DRAWER SLIDE RAIL
WPW10624450 WPW10624450 DRAWER SLIDE RAIL
W11692845 W11692845 DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
WPW10339257 WPW10339257 ENDCAP-GRL
WPW10353932 WPW10353932 ENDCAP-GRL
W10353930 W10353930 ENDCAP-GRL
W10444179 W10444179 ENERGY LABEL
WPW10321158 WPW10321158 EVAPORATOR
WP2315539 WP2315539 EVAPORATOR MOTOR
W10851579 W10851579 FILLER
WPW10283959 WPW10283959 FILLER
W11252732 W11252732 FILLER
W10311524 W10311524 FILTER-AIR
WP2254360 WP2254360 GASKET
WPW10460580 WPW10460580 GASKET ASSEMBLY
W10460612 W10460612 GASKET ASSEMBLY
W10460610 W10460610 GASKET ASSEMBLY
W10836785 W10836785 GASKET ASSEMBLY
W11625017 W11625017 GASKET ASSEMBLY
W10460611 W10460611 GASKET ASSEMBLY
WPW10513681 WPW10513681 GLASS SHELF
WPW10305243 WPW10305243 GLASS SHELF
WPW10486290 WPW10486290 GLASS SHELF
WP542638 WP542638 GREASE
WPW10330850 WPW10330850 GRILLE
WPW10300127 WPW10300127 GRILLE
WPW10353933 WPW10353933 GRILLE
WPW10353935 WPW10353935 GRILLE
WPW10169124 WPW10169124 GROMMET
WP2264462 WP2264462 GROMMET
W10852725 W10852725 GROMMET
WPW10252285A WPW10252285A HANDLE
WPW10252284A WPW10252284A HANDLE
W10252288A W10252288A HANDLE
WPW10409180 WPW10409180 HANDLE
W10409179 W10409179 HANDLE
W10360538 W10360538 HANDLE
W10390445 W10390445 HARNS-WIRE
W10421350 W10421350 HARNS-WIRE
WPW10436849 WPW10436849 HEATER
W10546298 W10546298 HINGE, TOP (LEFT HAND)
WPW10314204 WPW10314204 HOUSING
WPW10313917 WPW10313917 HOUSING
W11605789 W11605789 HOUSING
2323186 2323186 HOUSING
W10469878 W10469878 HOUSING
876370 876370 INSULATION
876029 876029 INSULATION
WPW10141622 WPW10141622 LEVELER
WPA3073101 WPA3073101 LIGHT BULB
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
WPW10360497 WPW10360497 MODULE
WP2188874 WP2188874 MOTOR-COND
WPW10170766 WPW10170766 NAMEPLATE
W10850162 W10850162 ORIFICE
799344 799344 PAINT
511873 511873 PAINT
W10890667 W10890667 PAN-DRIP
WPW10397907 WPW10397907 PAN-MEAT
W10300116 W10300116 PLATE
350942 350942 PRIMER
W10346771A W10346771A PRO PRSERV
W11210990 W11210990 RAIL
W11581314 W11581314 RAIL
N_P N_P RAIL, CENTER (NOT SERVICED)
W10204187 W10204187 RETAINER
W11164152 W11164152 ROLLER
WPW10475495 WPW10475495 ROLLER-CAB
WPW10359255 WPW10359255 ROLLER-CAB
WPW10359256 WPW10359256 ROLLER-CAB
WP489128 WP489128 SCREW
WPW10171469 WPW10171469 SCREW
WP489478 WP489478 SCREW
WP488163 WP488163 SCREW
WP489442 WP489442 SCREW
WP489497 WP489497 SCREW
WP489427 WP489427 SCREW
W11501418 W11501418 SCREW
W10854958 W10854958 SCREW
WP681249 WP681249 SCREW
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
W10398840 W10398840 SERVICE & WIRING SHEET
W10371538 W10371538 SHAFT
WPW10476425 WPW10476425 SHELF-CANT
WPW10314195 WPW10314195 SHIELD
WP2183852 WP2183852 SHIM
WPW10397635 WPW10397635 SLIDE
WPW10397636 WPW10397636 SLIDE
W10411411 W10411411 SLIDE
W11590562 W11590562 SLIDE
WPW10191429 WPW10191429 SOCKET
350930 350930 SPRAY
285006 285006 SPRAY
4392901 4392901 SPRAY
WPW10194431 WPW10194431 START-DEV
W10236396 W10236396 STRAP
W10397911 W10397911 SUPPORT
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WPW10383615 WPW10383615 THERMISTOR
W11544568 W11544568 THIMBLE
W11189115 W11189115 THIMBLE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WPW10468555 WPW10468555 TRACK
WPW10468556 WPW10468556 TRACK
WPW10468557 WPW10468557 TRACK
2154109 2154109 TUBE, PROCESS
4392899 4392899 TUCHUP
72017 72017 TUCHUP
72032 72032 TUCHUP
WPW10461914 WPW10461914 UI ASSEMBLY, SPARSH
W10460643 W10460643 USE & CARE GUIDE
WP978025 WP978025 VALVE
W11190084 W11190084 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
978030 978030 VALVE
978029 978029 VALVE
978028 978028 VALVE, ACCESS
EDR2RXD1 EDR2RXD1 WATER FILTER
WPW10424230 WPW10424230 WIRE HARNESS
WPW10283809 WPW10283809 WIRE HARNESS
