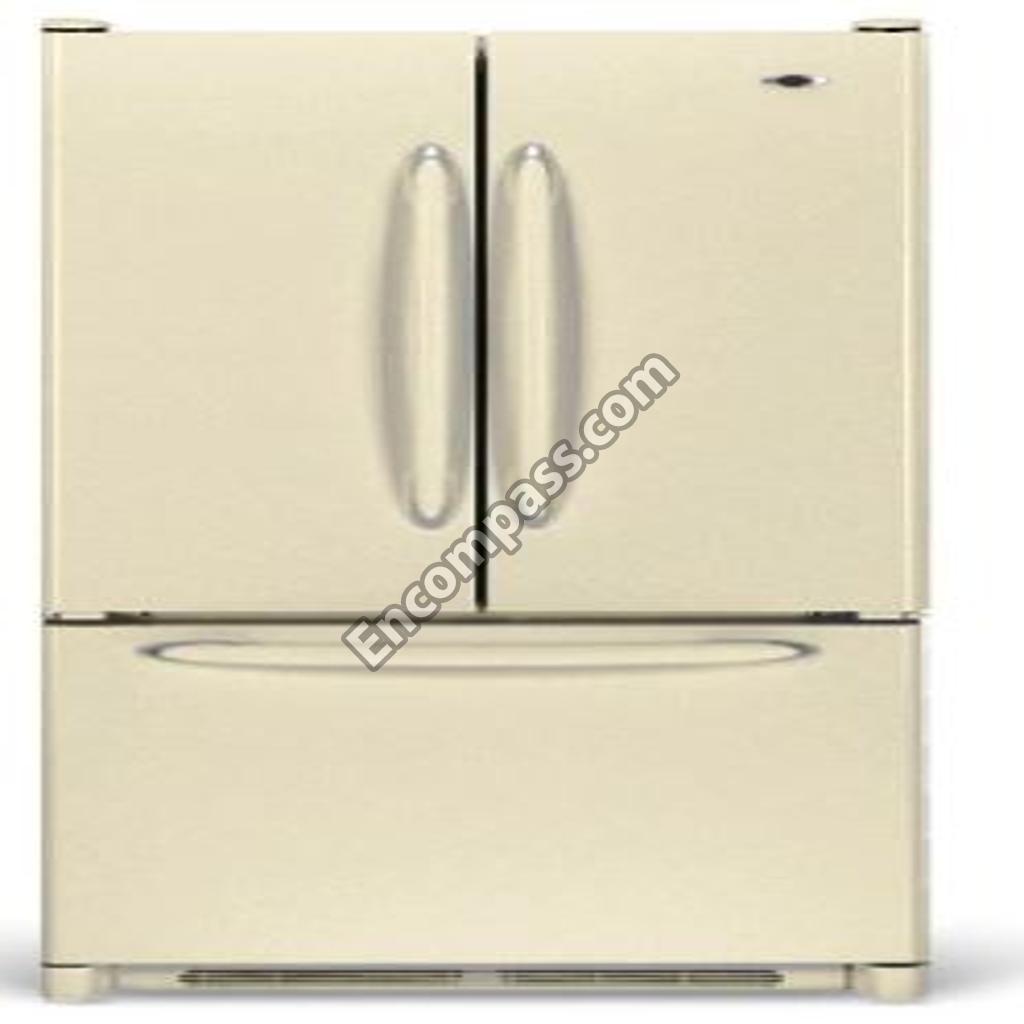

Model Image
Manufacturer

Whirlpool

Model Number

MFD2561HEQ

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
67003721 67003721 ADAPTER C
12002500 12002500 ADAPTER, SIDE (LT)
12225601 12225601 AIR DAM
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
67006434 67006434 AXLE- ROLL
12575101WD 12575101WD BACK, MACH COMP
WP67003795 WP67003795 BAR- TEMP
12457108 12457108 BASEPAN
67004987 67004987 BASKET, FREEZER (UPPER)
WPW10503184 WPW10503184 BASKET-FZR
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
WP12777701 WP12777701 BLOCK- FIL
WP67003405 WP67003405 BLOCK- PIV
67006211 67006211 BOARD, HV CONTROLX
67006612 67006612 BOLT, ADJUSTING (REAR)
67004969 67004969 BOX HV CO
WP12642303WD WP12642303WD BRACE- CRI
WP2256087 WP2256087 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10280608 WPW10280608 BRACKET
WP67004953 WP67004953 BRACKET
12456801V 12456801V BRACKET, FOOT
12906303WD 12906303WD BRACKET, FOOT CABINET
WP12812502WD WP12812502WD BRACKET- D
WP12812501WD WP12812501WD BRACKET- D
67004040 67004040 BUCKET- RE
67004641 67004641 BUCKET- RE
12395501W 12395501W BUSHING D
12028601W 12028601W BUSHING, DOOR BOTTOM RIGHT (WHITE)
WP67004977 WP67004977 BUSHING- D
67002722 67002722 BUSHING- D
67006229A 67006229A BUTTERTRAY
W11395888 W11395888 CAP-FILTER
WP65889-4 WP65889-4 CAPACITOR
67003876 67003876 CARD- HAND
W10833902 W10833902 CLAMP
WP2315522 WP2315522 CLIP
WP67006852 WP67006852 CLIP
WPM0104106 WPM0104106 CLIP
W10819546 W10819546 CLIP
10547002 10547002 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
67004701 67004701 CLIP, WATERLINE
67001067 67001067 CLIP- DRAI
W11673433 W11673433 CLIP- EVAP
67002779 67002779 CLIP- EVAP
WPM0114003 WPM0114003 CLIP- SPEE
WP12627302 WP12627302 CLIP- TOE
67002816 67002816 CLIP- WATE
WP67003638 WP67003638 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 CONDENSER
WPW10196393 WPW10196393 CONTROL
WPW10207861 WPW10207861 CONTROL BOARD
WP67003903 WP67003903 CONTROL- D
W11033771 W11033771 COUPLING
W11519867 W11519867 COVER
W10720642 W10720642 COVER
W10827015 W10827015 COVER
W11284721 W11284721 COVER
W10217483 W10217483 COVER
12684202C 12684202C COVER TOP
67003905 67003905 COVER, FZ LIGHT
12561901C 12561901C COVER, LWR HINGE (BSQ)
67004098 67004098 COVER, WATER VALVE
12587703C 12587703C COVER- COR
WP12568001 WP12568001 COVER- FIL
WP67003924 WP67003924 COVER- FZ
67005421 67005421 COVER- HV
67006101 67006101 COVER- MC
12726003 12726003 COVER- WAT
WP12806701 WP12806701 COVER-BOX
W11727809 W11727809 COVER-EVAP
WP628356 WP628356 CUP-FILL
67001084 67001084 DAM RIGHT
WP67002759 WP67002759 DIVIDER
67004064 67004064 DIVIDER, BASKET (LWR)
67004127 67004127 DIVIDER, BASKET (UPPER)
67002711 67002711 DOOR ASSEMBLY., LT REF. FOAM (BSQ)
W10119655 W10119655 DOOR HANDLE (BISQUE)
WP12566606ED WP12566606ED DOOR HINGE
W10918113 W10918113 DOOR HINGE
WP12566607ED WP12566607ED DOOR HINGE
WP67003637 WP67003637 DOOR-COMP
12658922CQ 12658922CQ DOR-FIP BT
W10709803 W10709803 DOR-FIP BT
13024018QQ 13024018QQ DOR-FIP BT
13024017QQ 13024017QQ DOR-FIP BT
67002725 67002725 DORFIP
WP12722803W WP12722803W DRAWER SLIDE RAIL
WP67003531 WP67003531 DRAWER- PA
WPB2150504 WPB2150504 DRIER
W10874836 W10874836 ENDCAP
12002041 12002041 EVAPORATOR
12002744 12002744 EVAPORATOR MOTOR
WP67006010 WP67006010 EXTR- GLAS
W11177593 W11177593 FEET-LVLNG
67003796 67003796 FIBER- ACO
WP2300868 WP2300868 FITTING
Y61006052 Y61006052 FRAME ASSEMBLY., ELEVATOR SHELF
61005966 61005966 FRAME, SHELF
WP67003854 WP67003854 FRAME- CRI
WPW10289690 WPW10289690 FRONT COVER
WP67005923 WP67005923 FRONT- CRI
W10815413 W10815413 FUNNEL
W10856123 W10856123 GASKET
W11159728 W11159728 GASKET
B5759649 B5759649 GASKET MC
W10830189 W10830189 GASKET, DOOR (WHITE)
67003558 67003558 GASKET, FZ DOOR (WHT)
WPB8381501 WPB8381501 GASKET- DR
67002329 67002329 GASKET- PA
12002497 12002497 GEAR (INCLDS. BOTH)
WP67002761 WP67002761 GLASS, PANTRY
WP67006704 WP67006704 GLASS- CRI
WPW10235370 WPW10235370 GLIDE
WPW10175909 WPW10175909 GRILLE
WPW10534152 WPW10534152 GRILLE-FRT
67005680 67005680 GROMMET (2)
WP61004743 WP61004743 GROMMET- B
67003493 67003493 GROMMET- C
WP67002780 WP67002780 GROMMET- F
M0580205 M0580205 GROMMET- S
W11677725 W11677725 GUIDE
67004407 67004407 HANDLE ASSEMBLY., FRZ. DOOR (BSQ)
67005539 67005539 HANDLE ASY
10508506 10508506 HANDLE, BASKET/SHELF
67003908 67003908 HARNESS, FZ MODULE
67005419 67005419 HARNS-WIRE
67005435 67005435 HARNS-WIRE
67005417 67005417 HARNS-WIRE
12882401 12882401 HARNS-WIRE
WP67004106 WP67004106 HEAD- WATE
WP67002493 WP67002493 HEATER- DE
12465001WD 12465001WD HINGE, BOTTOM E-CT (WHT)
67006379 67006379 HINGE, CENTER (RT-WHT)
W11689473 W11689473 HINGE- CEN
WP67006524 WP67006524 HOUSING
12656202 12656202 HOUSING, CONTROL
W11702858 W11702858 HOUSING- L
12806601 12806601 HOUSING- L
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
8003RP 8003RP ICEMAKER INSTALL KIT
WP67006531 WP67006531 INLET VALVE
WP67005154 WP67005154 INLET VALVE
67003900 67003900 INSERT- DA
WPA3223101 WPA3223101 INSERT- PL
WP67003904 WP67003904 INSULATION
WP13012402 WP13012402 INSULATION
WPY67005640 WPY67005640 KEYBOARD
WP12782036SP WP12782036SP KIT, HV BOARD CONTROL
12002023 12002023 KIT, WATER TANK
W11498983 W11498983 KNOB
67004644 67004644 LADDER CE
67004645 67004645 LADDER L
W11679940 W11679940 LIGHT BULB
12828147 12828147 MANUAL USE & CARE
12828121 12828121 MANUAL, USE & CARE
12828161 12828161 MANUAL, USE & CARE
67004078 67004078 MODULE LI
WPW10203324 WPW10203324 MODULE, REF CONTROL
67003906 67003906 MODULE- FZ
W11613295 W11613295 MOTOR-COND
2324038 2324038 NAMEPLATE
M0286708 M0286708 NUT- SPEED
WP67004515 WP67004515 PAN- CRISP
WP12579803 WP12579803 PAN- DRAIN
WP67001255 WP67001255 PAN-ICE
WP67006642 WP67006642 PIN
12707303SP 12707303SP PLATE
WP67001668 WP67001668 PLATE- FIL
10712401 10712401 PLUG
WPA3076901 WPA3076901 PLUG, BUTTON
A3080002 A3080002 PLUGHOLE
A4539607 A4539607 POP RIVET
WP67006506 WP67006506 POWER CORD
WPW10326469 WPW10326469 RAIL-CENTR
WPM1205302 WPM1205302 RIVET
WP10450603 WP10450603 ROLLER
WP67005149 WP67005149 ROLLER
WP12580304 WP12580304 ROLLER BRACKET ASSEMBLY
WP67006380 WP67006380 SCREW
W11233072 W11233072 SCREW
WP8281196 WP8281196 SCREW
WP489349 WP489349 SCREW
WPW10348409 WPW10348409 SCREW
WP12992902 WP12992902 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP489474 WP489474 SCREW
71003131 71003131 SCREW
WPW10139210 WPW10139210 SCREW
WP400021-1 WP400021-1 SCREW
WP67004954 WP67004954 SCREW
12992301 12992301 SCREW
W10709795 W10709795 SCREW
WP489069 WP489069 SCREW
WP98165 WP98165 SCREW
681390 681390 SCREW
67005420 67005420 SCREW
67005332 67005332 SCREW
W10856125 W10856125 SCREW
67006491 67006491 SCREW
W11311945 W11311945 SCREW
67006425 67006425 SCREW (3)
M0221523 M0221523 SCREW SHL
M0260242 M0260242 SCREW TF
12991101 12991101 SCREW, HANDLE (BLACK)
M0238636 M0238636 SCREWSM
WP67003417 WP67003417 SEAL- FRON
WPM0500703 WPM0500703 SEAL- O RI
WP67002513 WP67002513 SEAL- REAR
WP854334 WP854334 SEAL-STRIP
W11028221 W11028221 SHAFT
61004747 61004747 SHELF, ELEVATOR
61002848 61002848 SHELF, SPILLPROOF
12579702 12579702 SHIM, TOP HINGE
67001090 67001090 SHROUD, CONDENSER FAN
67002777 67002777 SHROUD- EV
12002683 12002683 SLIDE
WP67005864 WP67005864 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
67005418 67005418 SPACER HV
W10613606 W10613606 START-DEV
67006304 67006304 STOP DOOR
67003781 67003781 STOP-DOOR
WP12576801 WP12576801 STRAP, BALE
WP12227305WD WP12227305WD SUPPORT
WP12603701 WP12603701 SUPPORT- C
16025629 16025629 SVC MAN, BTM MT
12831101 12831101 SWEEP- DUA
W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
WP12575501 WP12575501 SWITCH- LI
67005642 67005642 TAG ENERG
16026365 16026365 TECH SHT, BTM MT
16026957 16026957 TECH SHT, BTM MT
12002355 12002355 THERMISTOR KIT
WP67003426 WP67003426 THERMOSTAT
67002390 67002390 TOE GRILLE
WP67001719 WP67001719 TRACK
67004102 67004102 TRACK WAT
67215-2 67215-2 TRAY EGG
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
WPW10231345 WPW10231345 TRIM-SHELF
67001656 67001656 TRIVET- BO
WPB5705307 WPB5705307 TUBE
WP12532603Q WP12532603Q TUBE- DISC
67001066 67001066 TUBE- DRAI
EDR4RXD1 EDR4RXD1 WATER FILTER
W11176463 W11176463 WATER TUBE
WPD7813010 WPD7813010 WIRE HARNESS
15003912 15003912 WIRING INFORMATION
15003687 15003687 WIRING INFORMATION
