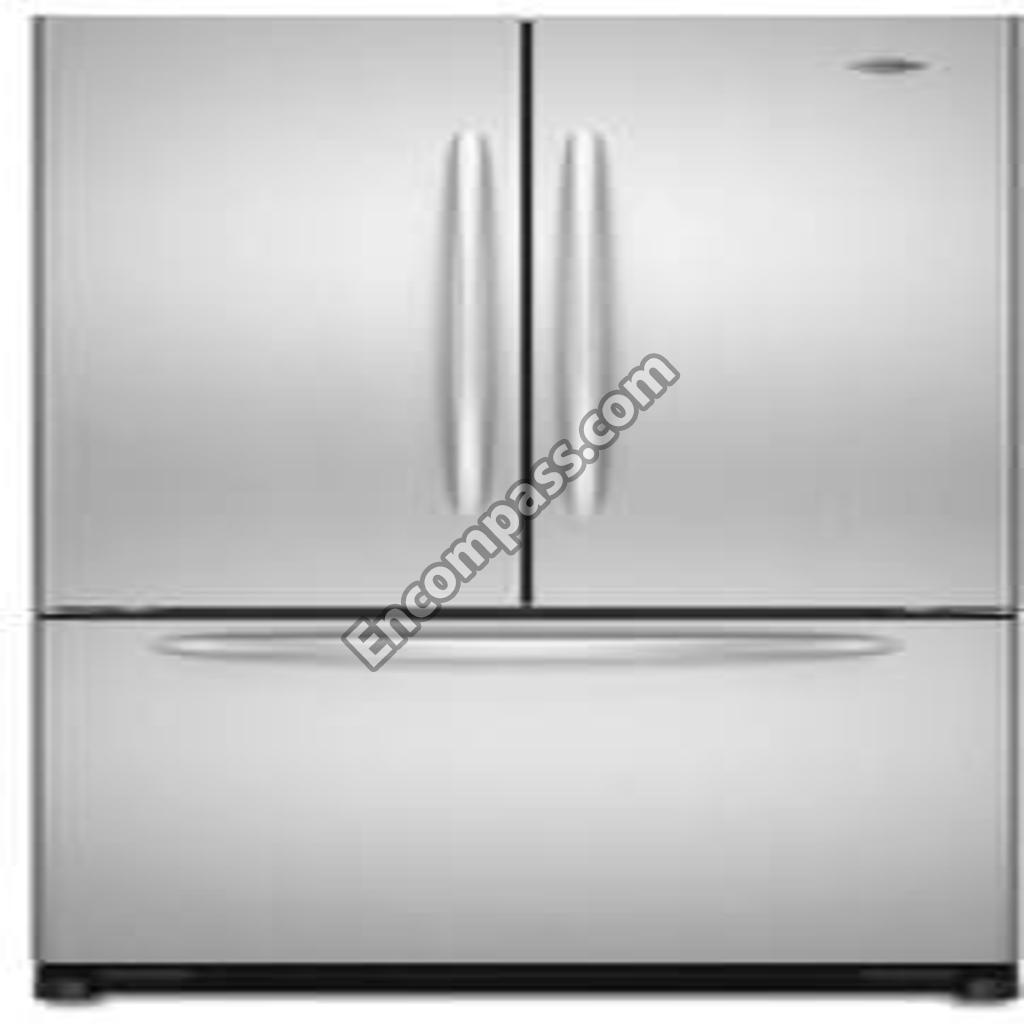

Model Image
Manufacturer

Whirlpool

Model Number

MFD2562VEM3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP627843 WP627843 ARM-EJECTR
W11285509 W11285509 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
67006434 67006434 AXLE, ROLLER (2)
606755 606755 BAG
WP67003795 WP67003795 BAR- TEMP
W10150039 W10150039 BASKET-FZR
WPW10348246 WPW10348246 BASKET-FZR
WP627985 WP627985 BIMETL-DEF
WP12825803 WP12825803 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
WP12777701 WP12777701 BLOCK- FIL
WP67003405 WP67003405 BLOCK- PIV
W10257665 W10257665 BOX
WP12642303WD WP12642303WD BRACE- CRI
WP2256087 WP2256087 BRACKET
WPW10284684 WPW10284684 BRACKET
WPW10284685 WPW10284685 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10330991 WPW10330991 BRACKET
WPW10330993 WPW10330993 BRACKET
67004748 67004748 BUCKET, REF DR (MED)
67004749 67004749 BUCKET, REF DR GAL
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10833902 W10833902 CLAMP
10526701 10526701 CLAMP, WIRE
31462A 31462A CLEANER, STNLS STEEL MAGIC
WP2315522 WP2315522 CLIP
W10819546 W10819546 CLIP
W11661170 W11661170 CLIP
13058002 13058002 CLIP, EVAP. MOTOR
10623002 10623002 CLIP, EVAPORATOR
67002816 67002816 CLIP, WATERLINE
10547003 10547003 CLIP- DRIE
W11673433 W11673433 CLIP- EVAP
WPM0114003 WPM0114003 CLIP- SPEE
WP12028505AP WP12028505AP CLOSER
W10233960 W10233960 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10196393 WPW10196393 CONTROL
WPW10317076 WPW10317076 CONTROL BOARD
WPW10319823 WPW10319823 CONTROL BOARD
W10827015 W10827015 COVER
W11519867 W11519867 COVER
W11284721 W11284721 COVER
WPW10191117 WPW10191117 COVER
WPW10337648 WPW10337648 COVER
W10720642 W10720642 COVER
WP12568001 WP12568001 COVER- FIL
WP67003924 WP67003924 COVER- FZ
12726003 12726003 COVER- WAT
WPW10211855 WPW10211855 COVER-BACK
WP12806701 WP12806701 COVER-BOX
W11727809 W11727809 COVER-EVAP
W10296541 W10296541 COVER-WIRE
W10122561 W10122561 CUP, WATER FILL
12225602 12225602 DAM (LEFT SIDE)
12225702 12225702 DAM (RIGHT SIDE)
W10157765 W10157765 DEFLECTOR
WP67002759 WP67002759 DIVIDER
W10847995 W10847995 DIVIDER
W10171558 W10171558 DIVIDER
W10241046 W10241046 DIVIDER
W11592375 W11592375 DOOR HINGE
W10917988 W10917988 DOOR HINGE
W11592374 W11592374 DOOR HINGE
WP67003637 WP67003637 DOOR-COMP
12978052SQ 12978052SQ DOR-FIP SS
12978051SQ 12978051SQ DOR-FIP SS
WP12722803AP WP12722803AP DRAWER SLIDE RAIL
WP67003531 WP67003531 DRAWER- PA
WPW10143759 WPW10143759 DRIER-UV
W10874836 W10874836 ENDCAP
W11024089 W11024089 EVAPORATOR MOTOR
WP67006010 WP67006010 EXTR- GLAS
WP12587703AP WP12587703AP FILLER
WP2300868 WP2300868 FITTING
WP67003854 WP67003854 FRAME- CRI
12977828SQ 12977828SQ FREEZER DOOR (STAINLESS STEEL)
WPW10289690 WPW10289690 FRONT COVER
W10815413 W10815413 FUNNEL
12918001 12918001 FUNNEL, FILL TUBE
WPW10130483 WPW10130483 GASKET
W10856123 W10856123 GASKET
W11159728 W11159728 GASKET
W11250029 W11250029 GASKET
W10443320 W10443320 GASKET, DOOR (APOLLO GREY)
W10830162 W10830162 GASKET, DOOR (GREY)
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
67006429 67006429 GASKET-HV BOX
WPW10474716 WPW10474716 GEAR
WPW10474715 WPW10474715 GEAR
12002497 12002497 GEAR
WPW10208663 WPW10208663 GLASS SHELF
WP67006704 WP67006704 GLASS- CRI
WPW10235370 WPW10235370 GLIDE
WP67001054 WP67001054 GLIDE LT
WP67001053 WP67001053 GLIDE RT
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534155 WPW10534155 GRILLE
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W11690160 W11690160 GROMMET
W11677725 W11677725 GUIDE
W11448709 W11448709 GUIDE, FILL TUBE
WPW10138763 WPW10138763 HANDLE
W10149389 W10149389 HANDLE
WPW10291144 WPW10291144 HANDLE, DOOR (STAINLESS STEEL)
W11224411 W11224411 HARNESS, UNIT (INCLUDES POWER CORD)
W10911102 W10911102 HARNS-WIRE
W11346623 W11346623 HEAD-FILTR
W10825088 W10825088 HEATER
W11416469 W11416469 HOUSING
WPW10277025 WPW10277025 HOUSING
12656202 12656202 HOUSING
12806601 12806601 HOUSING, LIGHT
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
W11714300 W11714300 INSULATION
WP13012402 WP13012402 INSULATION
W11706807 W11706807 INSULATION
876370 876370 INSULATION
876029 876029 INSULATION
12820505 12820505 INSULATION
12002041 12002041 KIT, EVAP REPLACEMENT
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
W11498983 W11498983 KNOB
W10251971 W10251971 LADDER
W10273463 W10273463 LADDER
WPW10141622 WPW10141622 LEVELER
W11679940 W11679940 LIGHT BULB
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
67004078 67004078 MODULE, LIGHT
WPW10190929 WPW10190929 MOLD-ICE
W11613295 W11613295 MOTOR-COND
W10348259 W10348259 MOUNT-GEAR (LEFT HAND)
W10348260 W10348260 MOUNT-GEAR (RIGHT HAND)
WPW10170766 WPW10170766 NAMEPLATE
W10316108 W10316108 OVERLAY
W10175446 W10175446 OWNERS MANUAL
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
WP67004515 WP67004515 PAN- CRISP
WPW10655368 WPW10655368 PAN-DRIP
WPW10171529 WPW10171529 PAN-ICE
W11727651 W11727651 PLATE
WP67006113 WP67006113 PLATE
12707303SP 12707303SP PLATE
WP67001668 WP67001668 PLATE- FIL
WPA3076901 WPA3076901 PLUG, BUTTON
350942 350942 PRIMER
67004585 67004585 RACK, CAN
W11489994 W11489994 RAIL
W11489993 W11489993 RAIL
WPW10326469 WPW10326469 RAIL-CENTR
W11229977 W11229977 RESERVOIR
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
WP489464 WP489464 SCREW
WP67006415 WP67006415 SCREW
W10709795 W10709795 SCREW
W11233072 W11233072 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
W11311945 W11311945 SCREW
WP400021-1 WP400021-1 SCREW
WP489474 WP489474 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
WP98165 WP98165 SCREW
W10829281 W10829281 SCREW
8533917 8533917 SCREW
12992301 12992301 SCREW
WP681249 WP681249 SCREW
489136 489136 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
67006901 67006901 SCREW, HANDLE
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
W11028221 W11028221 SHAFT
W11173556 W11173556 SHAFT
W10205737 W10205737 SHELF, STAT (2)
W11469652 W11469652 SHIELD
12999502 12999502 SHIM-HINGE
12999501 12999501 SHIM-HINGE
W11556315 W11556315 SHROUD
WPW10167023 WPW10167023 SHROUD
WP67005864 WP67005864 SLIDE
W11658402 W11658402 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
350930 350930 SPRAY
WPW10194431 WPW10194431 START-DEV
W11703060 W11703060 STOP-DOOR
WP13062602 WP13062602 SUPPORT
WP12227305WD WP12227305WD SUPPORT
12831101 12831101 SWEEP, DUAL TUBE
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
WP12575501 WP12575501 SWITCH- LI
W10187813 W10187813 TAG, ENERGY
W11238399 W11238399 TAPE
W10279334 W10279334 TECH SHEET
833938 833938 TERMINAL
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
WPW10231345 WPW10231345 TRIM-SHELF
WPW10233569 WPW10233569 TUBE
W10619951 W10619951 TUBE-DRAIN
72017 72017 TUCHUP
72032 72032 TUCHUP
WP12544124 WP12544124 VALVE
WP978025 WP978025 VALVE
978030 978030 VALVE
978029 978029 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
978028 978028 VALVE, ACCESS (1/2``)
EDR4RXD1 EDR4RXD1 WATER FILTER
W11120581 W11120581 WATER TUBE
W11176463 W11176463 WATER TUBE
WPD7813010 WPD7813010 WIRE HARNESS
WPW10224292 WPW10224292 WIRE HARNESS
