Model Image
Manufacturer

Whirlpool

Model Number

MFI2067AEW4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10184223 W10184223 ADAPTER, BIN (CENTER)
W10187469 W10187469 ADAPTER, BIN (OUTER)
WPW10121269 WPW10121269 AIR-BAFFLE
WP627843 WP627843 ARM-EJECTR
WPW10175514 WPW10175514 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
W10555984 W10555984 ASSEMBLY, AIR GRILLE
67006434 67006434 AXLE, ROLLER (2)
606755 606755 BAG
67003794 67003794 BAR, TEMP CONTROL
WP627985 WP627985 BIMETL-DEF
67006981 67006981 BIN, LOWER
WP67006310 WP67006310 BIN, SHELF (GALLON)
W10184227 W10184227 BIN, UPPER
WPW10324088 WPW10324088 BIN-ICE
WP67006337 WP67006337 BLADE- FAN
WP12825803 WP12825803 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
67006294 67006294 BOARD, L.V.
WP67006390 WP67006390 BOX- HV CO
WP12227304WD WP12227304WD BRACE- CRI
WPW10330994 WPW10330994 BRACKET
WPW10330995 WPW10330995 BRACKET
13042306 13042306 BRACKET
13042305 13042305 BRACKET
67006325 67006325 BRACKET, FILTER BASE
67007111 67007111 BRACKET, SOLENOID
67006324 67006324 BRACKET, WATER TANK & VALVE
W10235358 W10235358 BRACKET/GLIDE (ASSEMBLY)
WP67006313 WP67006313 BUCKET- CH
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11266639 W11266639 CHILLER
WP13005701B WP13005701B CHUTE EXT
WP13005701W WP13005701W CHUTE EXT
W10833902 W10833902 CLAMP
M0108106 M0108106 CLAMP
31462A 31462A CLEANER, STNLS STEEL MAGIC
W11712696 W11712696 CLIP
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
10623002 10623002 CLIP, EVAPORATOR
W10165970 W10165970 CLIP, FAN MOTOR
10547003 10547003 CLIP- DRIE
W11673433 W11673433 CLIP- EVAP
WP67003638 WP67003638 CLOSER
WP67003639 WP67003639 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WPW10346415 WPW10346415 CONDENSER
WPW10127427 WPW10127427 CONTROL

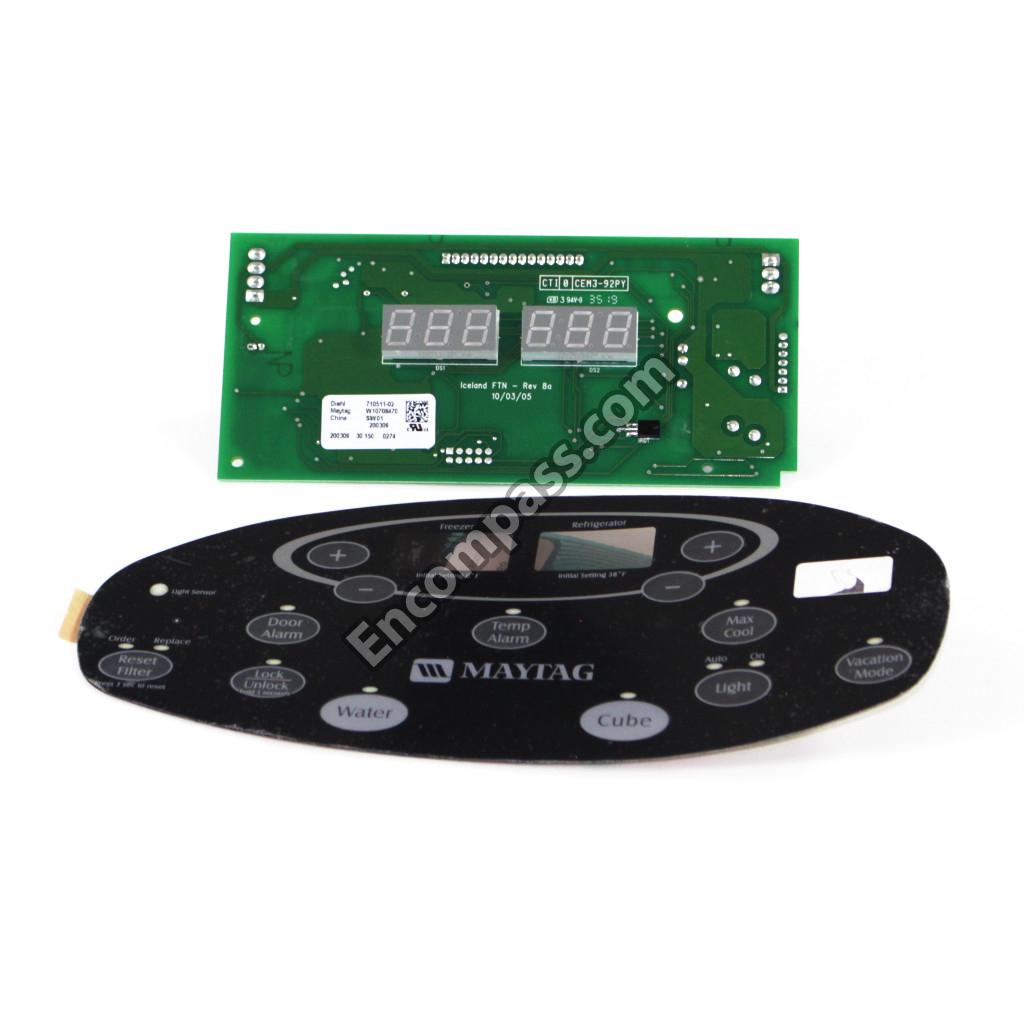

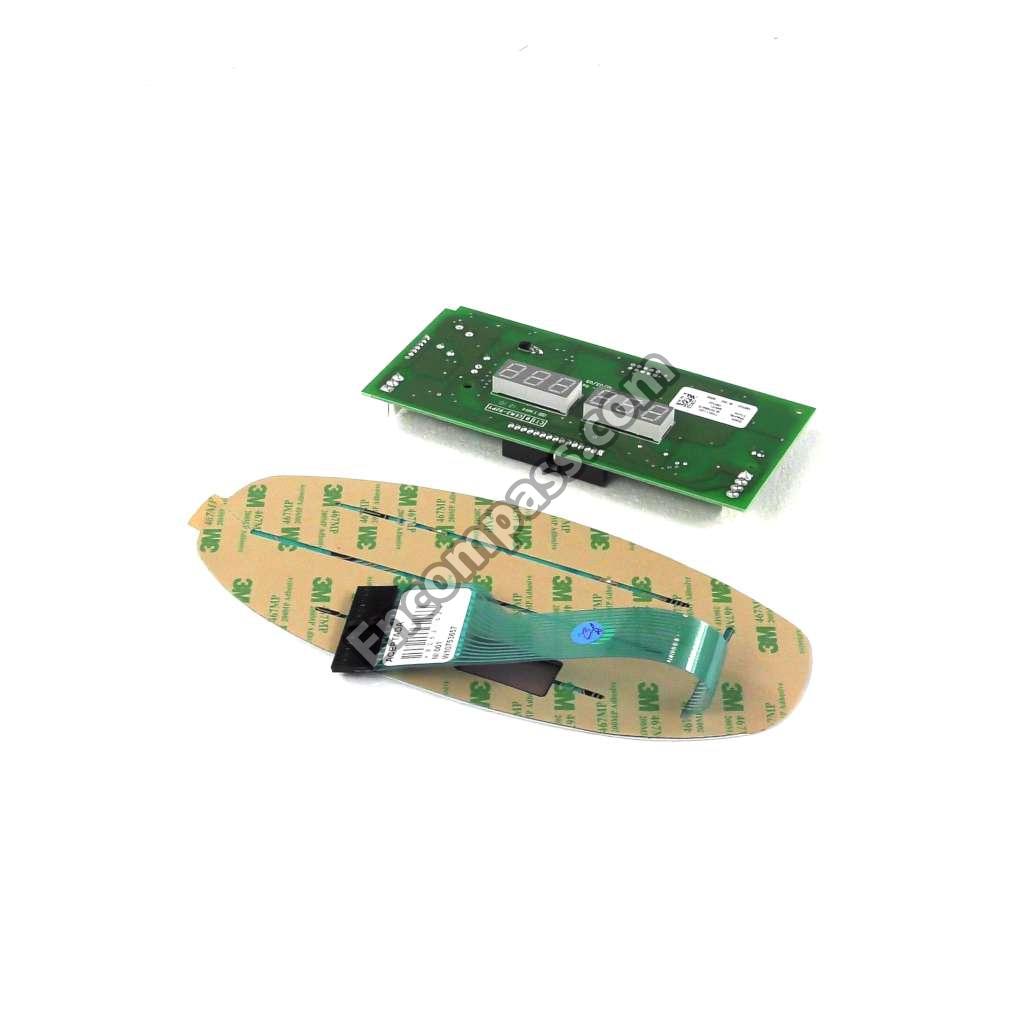

W10772349 W10772349 CONTROL BOARD
W11221359 W11221359 CONTROL BOARD
W10775847 W10775847 CONTROL BOARD
WPW10310240 WPW10310240 CONTROL BOARD
W11033771 W11033771 COUPLING
WP67006288 WP67006288 COVER
W10827015 W10827015 COVER
WPW10337634 WPW10337634 COVER
W10337646 W10337646 COVER
WP67005956 WP67005956 COVER
W10118194 W10118194 COVER
W10118193 W10118193 COVER
12987301 12987301 COVER
12587703C 12587703C COVER, CORNER (2) (BISQUE)
12587703W 12587703W COVER, CORNER (2) (WHITE)
67003485 67003485 COVER, CORNER (BLK)
67006318 67006318 COVER, LIGHT
67005958 67005958 COVER, RIGHT HINGE (WHITE)
W10337647 W10337647 COVER, TOP HINGE (LEFT) (BLACK)
67005957 67005957 COVER, TOP HINGE (RIGHT) (BISQUE)
67006329 67006329 COVER, WATER TANK (LOWER)
12960101 12960101 COVER, WATER TANK (UPPER)
12981401B 12981401B COVER- FIL
12981401W 12981401W COVER- FIL
WP67003924 WP67003924 COVER- FZ
12921801 12921801 COVER- LIG
WPW10270394 WPW10270394 COVER-BACK
12935801 12935801 COVER-EVAP
WP67006331 WP67006331 COVER-FILT
13033601 13033601 COVER-WIRE
12961602 12961602 COVER-WIRE
W10122561 W10122561 CUP, WATER FILL
12963002SP 12963002SP DAM (LEFT SIDE)
12963102SP 12963102SP DAM (RIGHT SIDE)
WP67006311 WP67006311 DISPENSER-
W10187440 W10187440 DIVIDER, ICE BOX
W11592375 W11592375 DOOR HINGE
W11592374 W11592374 DOOR HINGE
W10160123 W10160123 DOOR, RIGHT (BLACK)
W10160132 W10160132 DOOR, RIGHT (WHITE)
WP67006312 WP67006312 DOOR- CHIL
WP67003637 WP67003637 DOOR-COMP
W10173929 W10173929 DOR-FIP BL
W10173928 W10173928 DOR-FIP BL
13107853QQ 13107853QQ DOR-FIP BQ
W10174149 W10174149 DOR-FIP BQ
12977811SQ 12977811SQ DOR-FIP SS
12978022SQ 12978022SQ DOR-FIP SS
12978021SQ 12978021SQ DOR-FIP SS
12977863WQ 12977863WQ DOR-FIP WH
13107848WQ 13107848WQ DOR-FIP WH
W10174150 W10174150 DORFIP BQ
WPW10151713 WPW10151713 DRAWER SLIDE RAIL
WP12722813W WP12722813W DRAWER SLIDE RAIL
WPW10143759 WPW10143759 DRIER-UV
WP12656018 WP12656018 ENDCAP
WP12656105 WP12656105 ENDCAP
12002730 12002730 EVAPORATOR
WPW10121440 WPW10121440 EXTENSION
WP67006010 WP67006010 EXTR- GLAS
12957903Q 12957903Q FACADE, DISPENSER (BISQUE)
12957903W 12957903W FACADE, DISPENSER (WHITE)
12691605 12691605 FOIL, LIGHT
WP67006185 WP67006185 FRAME
WPW10121444 WPW10121444 FRONT COVER
W10815413 W10815413 FUNNEL
WP67006341 WP67006341 GASKET
WPW10436253 WPW10436253 GASKET ASSEMBLY
WPW10443321 WPW10443321 GASKET ASSEMBLY
W11396037 W11396037 GASKET ASSEMBLY
W11378944 W11378944 GASKET ASSEMBLY
B5759649 B5759649 GASKET MC
67006429 67006429 GASKET, HV CONTROL
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
W11451451 W11451451 GASKET- FO
12002497 12002497 GEAR
WP67006655 WP67006655 GLASS SHELF
WP12463912 WP12463912 GLASS SHELF
W11125512 W11125512 GLASS SHELF
WPW10235368 WPW10235368 GLIDE
WPW10235370 WPW10235370 GLIDE
WP542638 WP542638 GREASE
WP12999301B WP12999301B GRILLE
W11176847 W11176847 GRILLE
12999301Q 12999301Q GRILLE
WPW10534152 WPW10534152 GRILLE-FRT
WPW10534153 WPW10534153 GRILLE-FRT
WPW10534154 WPW10534154 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10151687 W10151687 GROMMET
12996601 12996601 GROMMET
W11676465 W11676465 GROMMET- F
W10215640 W10215640 GUIDE, ENERGY

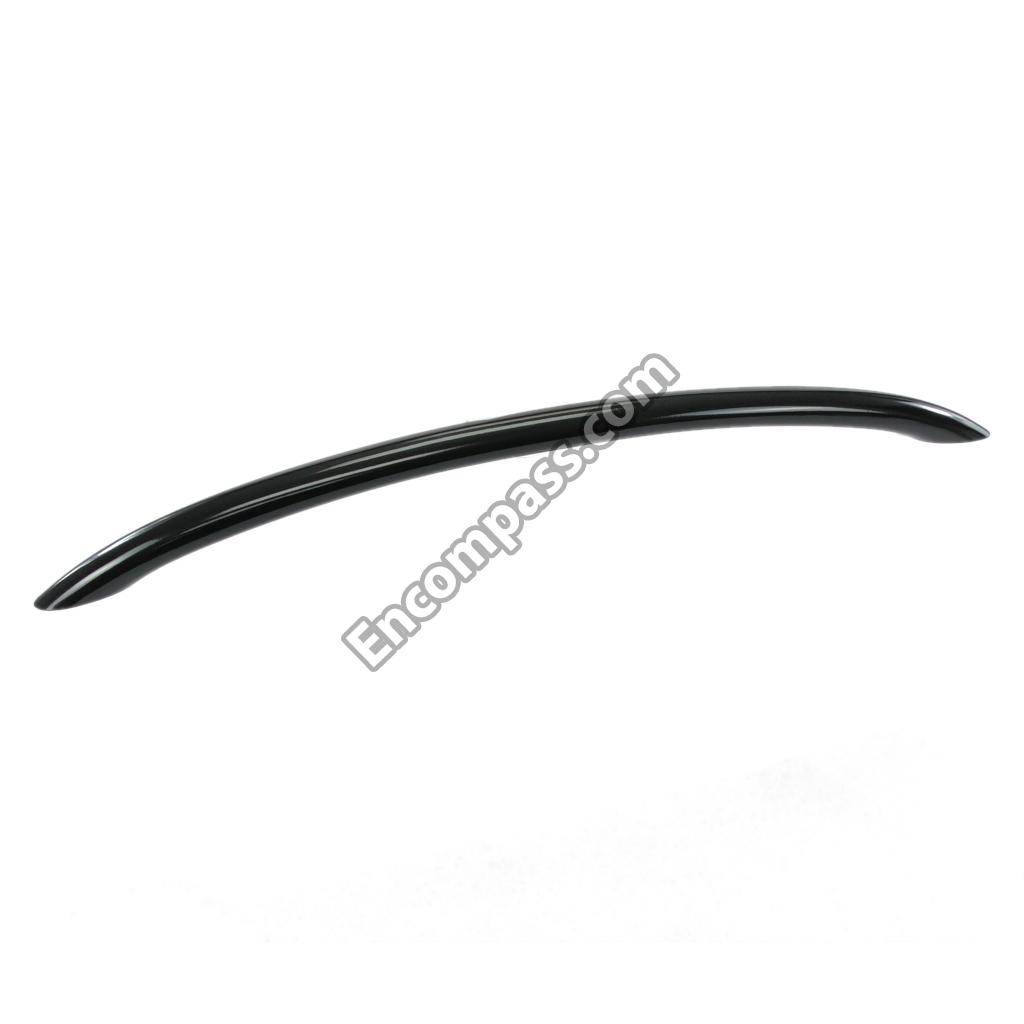

WPW10138763 WPW10138763 HANDLE
WP13004701B WP13004701B HANDLE
W11690159 W11690159 HANDLE
67007105 67007105 HANDLE (BLACK)
13004701W 13004701W HANDLE (WHITE)
67007106 67007106 HANDLE, DOOR (BISQUE)
67006982 67006982 HANDLE, DOOR (BISQUE)
67007107 67007107 HANDLE, DOOR (WHITE)
W10850438 W10850438 HARNS-WIRE
W10123395 W10123395 HARNS-WIRE
WP12729123 WP12729123 HEATER
W10918113 W10918113 HINGE- CEN
W10918164 W10918164 HINGE-DOOR
13000002WD 13000002WD HINGE-DOOR
W11702858 W11702858 HOUSING
12656202 12656202 HOUSING
12806601 12806601 HOUSING, LIGHT
WP2195914 WP2195914 HOUSING-IM
WPW10190981 WPW10190981 ICEMAKER
WP63052-2 WP63052-2 IMPELLER
WPW10121434 WPW10121434 INSERT
W10121282 W10121282 INSERT
W11676504 W11676504 INSERT
W11706807 W11706807 INSULATION
876370 876370 INSULATION
876029 876029 INSULATION
12820505 12820505 INSULATION
W11498983 W11498983 KNOB
67006358 67006358 LADDER, CENTER
67006354 67006354 LADDER, SIDE
67007115 67007115 LADDER, SIDE
WPW10141622 WPW10141622 LEVELER
67006428 67006428 LID, HV CONTROL
W11679940 W11679940 LIGHT BULB
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
67006328 67006328 MODULE, LIGHT
WP67006423 WP67006423 MODULE- FR
WPW10190929 WPW10190929 MOLD-ICE
WPW10317991 WPW10317991 MOTOR
WPW10162697 WPW10162697 MOTOR
W11613295 W11613295 MOTOR-COND
WPW10170766 WPW10170766 NAMEPLATE
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
WP67002659 WP67002659 PAN- CRISP
WPW10655368 WPW10655368 PAN-DRIP
W11490183 W11490183 PAN-UTILTY
W11727651 W11727651 PLATE
WP67006113 WP67006113 PLATE
350942 350942 PRIMER
WP12956202 WP12956202 RESERVOIR
W10204187 W10204187 RETAINER
W10826790 W10826790 RETAINER, GLIDE (LEFT HAND)
W10826791 W10826791 RETAINER, GLIDE (RIGHT HAND)
67006295 67006295 RING, TARGET
WP67005149 WP67005149 ROLLER
WPW10515763 WPW10515763 ROLLER-CAB
WPW10515762 WPW10515762 ROLLER-CAB
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
12991101 12991101 SCREW
WP489474 WP489474 SCREW
WP98165 WP98165 SCREW
WP67006415 WP67006415 SCREW
W10709795 W10709795 SCREW
W11686675 W11686675 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
W10829281 W10829281 SCREW
8533917 8533917 SCREW
12992301 12992301 SCREW
W10854958 W10854958 SCREW
WP681249 WP681249 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
67006901 67006901 SCREW, HANDLE
WPW10287601 WPW10287601 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
W11028221 W11028221 SHAFT
W10142628 W10142628 SHIELD
12999502 12999502 SHIM-HINGE
12999501 12999501 SHIM-HINGE
W11556315 W11556315 SHROUD
W10121281 W10121281 SHROUD
W11700329 W11700329 SHROUD- EV
W11658403 W11658403 SLIDE
WP67005864 WP67005864 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
67006344 67006344 SOLENOID
350930 350930 SPRAY
67006348 67006348 SPRING, SOLENOID
WPW10197428 WPW10197428 START-DEV
12968202W 12968202W STOP- DOOR
12968202Q 12968202Q STOP- DOOR
W11708403 W11708403 STOP-DOOR
12999301W 12999301W SUMP- DISP
WP12227305WD WP12227305WD SUPPORT
W11445850 W11445850 SWITCH
WP2313326 WP2313326 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10238849 W10238849 TECH SHEET
833938 833938 TERMINAL
12002355 12002355 THERMISTOR
WP67006387 WP67006387 THERMOSTAT
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
WPW10231485 WPW10231485 TRIM-SHELF
WPW10217747 WPW10217747 TUBE
W10619951 W10619951 TUBE-DRAIN
4392899 4392899 TUCHUP
72017 72017 TUCHUP
72032 72032 TUCHUP
W10175444 W10175444 USE & CARE GUIDE
WP978025 WP978025 VALVE
978030 978030 VALVE
978029 978029 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
978028 978028 VALVE, ACCESS (1/2``)
67006322 67006322 VALVE, WATER INLET
67006346 67006346 WASHER
EDR4RXD1 EDR4RXD1 WATER FILTER
W11415785 W11415785 WATER TUBE
12962106 12962106 WATERLINE-
67006970 67006970 WATERLINE-CABINET W/NUT
WPW10123444K WPW10123444K WHEEL
W11666013 W11666013 WIRE HARNESS
67006347 67006347 YOKE, SOLENOID
