Model Image
Manufacturer

Whirlpool

Model Number

MFI2570FEZ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
WPW10312691 WPW10312691 AIR-BAFFLE
WPW10378254 WPW10378254 ARM-SHUT
W10555984 W10555984 ASSEMBLY, AIR GRILLE
67006434 67006434 AXLE, ROLLER (2)
WP67003795 WP67003795 BAR- TEMP
W11218042 W11218042 BASKET-FZR
WPW10224961 WPW10224961 BIN CONTROL LEVER
WPW10212139 WPW10212139 BIN CONTROL LEVER
WPW10323808 WPW10323808 BIN CONTROL LEVER
WPW10293682 WPW10293682 BIN-FREEZR
WP67006337 WP67006337 BLADE- FAN
WP12825803 WP12825803 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
WP12642303WD WP12642303WD BRACE- CRI
WPW10284683 WPW10284683 BRACKET
WPW10284682 WPW10284682 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
WPW10334463 WPW10334463 BRACKET
67006325 67006325 BRACKET, FILTER BASE
W10174827 W10174827 BRACKET, ICE DOOR
W10346971 W10346971 BRACKET, SOLENOID
N_P N_P CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10350564 WPW10350564 CAPACITOR
W11456069 W11456069 CLAMP
W11673433 W11673433 CLIP
W11092534 W11092534 CLIP
W11712696 W11712696 CLIP
WPM0104106 WPM0104106 CLIP
12996601 12996601 CLIP, BUSHING
W10815863 W10815863 CLIP, CONDENSER
W10281329 W10281329 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
W10165970 W10165970 CLIP, FAN MOTOR
W10174818 W10174818 CLIP, MOTOR COUPLING
WP12028505AP WP12028505AP CLOSER
WP67003639 WP67003639 CLOSER
WP67003638 WP67003638 CLOSER
W10233960 W10233960 COMPRESSOR
WPW10346415 WPW10346415 CONDENSER
WPW10334458 WPW10334458 CONNECTOR

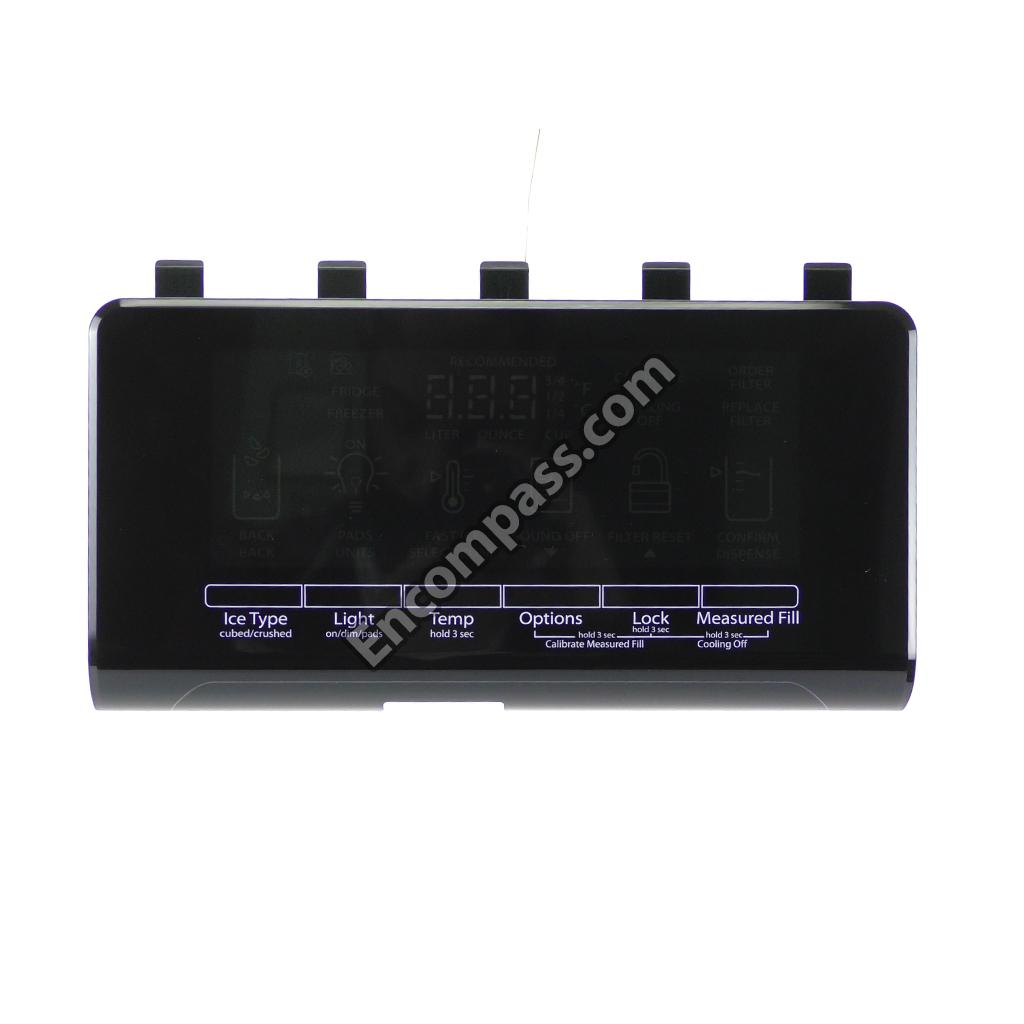

WPW10196393 WPW10196393 CONTROL
W10899550 W10899550 CONTROL BOARD
WPW10356039 WPW10356039 CONTROL BOARD
W11035752 W11035752 CONTROL BOARD
W10827015 W10827015 COVER
WPW10309869 WPW10309869 COVER
WPW10191117 WPW10191117 COVER
WP67005956 WP67005956 COVER
WPW10337648 WPW10337648 COVER
WPW10337634 WPW10337634 COVER
12961602 12961602 COVER, CONTROL BOX
67003485 67003485 COVER, CORNER (BLK)
12587703W 12587703W COVER, CORNER (WHITE)
W10308421 W10308421 COVER, EVAPORATOR
W10191141 W10191141 COVER, FILL TUBE (APOLLO GREY)
12981401B 12981401B COVER, FILL TUBE (BLACK)
12981401W 12981401W COVER, FILL TUBE (WHITE)
W10460383 W10460383 COVER, FRONT
67006318 67006318 COVER, LIGHT
67005958 67005958 COVER, RIGHT HINGE (WHITE)
W10337647 W10337647 COVER, TOP HINGE LEFT HAND (BLACK)
12960101 12960101 COVER, UPPER WATER TANK
67006329 67006329 COVER, WATER TANK (LOWER)
WP67003924 WP67003924 COVER- FZ
WPW10270394 WPW10270394 COVER-BACK
WP67006331 WP67006331 COVER-FILT
12963002SP 12963002SP DAM (LEFT HAND)
12963102SP 12963102SP DAM (RIGHT HAND)
WPW10309864 WPW10309864 DIVIDER
W10146439 W10146439 DIVIDER, UPPER BASKET
W10862409 W10862409 DOOR ASSEMBLY
W10862407 W10862407 DOOR ASSEMBLY
W10862408 W10862408 DOOR ASSEMBLY
W10855082 W10855082 DOOR ASSEMBLY
W10862410 W10862410 DOOR ASSEMBLY
W10862412 W10862412 DOOR ASSEMBLY
W10855083 W10855083 DOOR ASSEMBLY
W10862411 W10862411 DOOR ASSEMBLY
W10862413 W10862413 DOOR ASSEMBLY
W10917988 W10917988 DOOR HINGE
W10918164 W10918164 DOOR HINGE
W10918113 W10918113 DOOR HINGE
W11592374 W11592374 DOOR HINGE
W11592375 W11592375 DOOR HINGE
WPW10317279 WPW10317279 DOOR-CHUTE
WP12722815AP WP12722815AP DRAWER SLIDE RAIL
WP12722815W WP12722815W DRAWER SLIDE RAIL
WP67003531 WP67003531 DRAWER- PA
WPW10143759 WPW10143759 DRIER-UV
W10118193 W10118193 ENCLOSURE, WATER VALVE CONNECTOR
W10874836 W10874836 ENDCAP
W10857672 W10857672 ENERGY GUIDE
W11536253 W11536253 EVAPORATOR
W11529245 W11529245 EVAPORATOR MOTOR
W11334745 W11334745 EVAPORATOR MOTOR
WPW10351019 WPW10351019 EXTENSION
WP12587703AP WP12587703AP FILLER
EDR4RXD1 EDR4RXD1 FILTER
WPW10329866 WPW10329866 FRAME
W11206718 W11206718 FRONT-PAN
W10815413 W10815413 FUNNEL
WP67006341 WP67006341 GASKET
W11451451 W11451451 GASKET
W10856123 W10856123 GASKET
W11250029 W11250029 GASKET
WPW10714545 WPW10714545 GASKET ASSEMBLY
WPW10436253 WPW10436253 GASKET ASSEMBLY
WPW10443321 WPW10443321 GASKET ASSEMBLY
W11378944 W11378944 GASKET ASSEMBLY
W11396037 W11396037 GASKET ASSEMBLY
67006429 67006429 GASKET, CONTROL BOX
W10830055 W10830055 GASKET, DOOR (GREY)
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
WPW10474715 WPW10474715 GEAR
WPW10474716 WPW10474716 GEAR
12002497 12002497 GEAR
W11033333 W11033333 GLASS SHELF
W11402525 W11402525 GLASS SHELF
WP67006704 WP67006704 GLASS- CRI
WPW10235370 WPW10235370 GLIDE
WP542638 WP542638 GREASE
W11176847 W11176847 GRILLE
WPW10534155 WPW10534155 GRILLE
WPW10534153 WPW10534153 GRILLE-FRT
WPW10534154 WPW10534154 GRILLE-FRT
W11678963 W11678963 GROMMET
WPW10137529 WPW10137529 GROMMET
W10852725 W10852725 GROMMET
W10151687 W10151687 GROMMET, FAN MOTOR
W11676465 W11676465 GROMMET- F
WPW10435760 WPW10435760 GUIDE-ICE
W11102443 W11102443 HANDLE
W10879677 W10879677 HANDLE
WP12729123 WP12729123 HEATER
13000002WD 13000002WD HINGE, CENTER RIGHT HAND (WHITE)
W11434460 W11434460 HOUSING
WPW10468891 WPW10468891 HOUSING
12656202 12656202 HOUSING, CONTROL
W10443023 W10443023 HOUSING, LIGHT
W11185686 W11185686 ICE-CONTNR
W10882923 W10882923 ICEMAKER
WP63052-2 WP63052-2 IMPELLER
WPW10312696 WPW10312696 INLET VALVE
W10121282 W10121282 INLET, BLOWER
W11676504 W11676504 INSERT
W11498983 W11498983 KNOB
W10273464 W10273464 LADDER, CENTER
W10251966 W10251966 LADDER, SIDE (LEFT HAND)
W10251965 W10251965 LADDER, SIDE (RIGHT HAND)
WPW10141622 WPW10141622 LEVELER
W10118194 W10118194 LID, ENCLOSURE
W10296541 W10296541 LID, HV CONTROL BOX
W11290115 W11290115 LIGHT
W11216993 W11216993 LIGHT BULB
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11671282 W11671282 MOTOR
WPW10205979 WPW10205979 MOTOR
W11613295 W11613295 MOTOR-COND
W10348259 W10348259 MOUNT, GEAR (LEFT HAND)
W10348260 W10348260 MOUNT, GEAR (RIGHT HAND)
12722815B 12722815B MULLION, DOOR (BLACK)
WPW10612926 WPW10612926 NAMEPLATE
WPW10368730 WPW10368730 PAD
W10368729 W10368729 PAD ASSEMBLY - WATER & ICE (BLACK)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67004515 WP67004515 PAN- CRISP
WPW10655368 WPW10655368 PAN-DRIP
W11727651 W11727651 PLATE
W11489994 W11489994 RAIL
W11489993 W11489993 RAIL
WPW10326469 WPW10326469 RAIL-CENTR
W11346622 W11346622 RESERVOIR
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
WP67006415 WP67006415 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
W11311945 W11311945 SCREW
WPW10661886 WPW10661886 SCREW
WP98165 WP98165 SCREW
WP489474 WP489474 SCREW
W10854958 W10854958 SCREW
W11686675 W11686675 SCREW
WP489349 WP489349 SCREW
W11573362 W11573362 SCREW
WP8281196 WP8281196 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
W10309863 W10309863 SCROLL, BLOWER
WPW10287601 WPW10287601 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
WPW10353552 WPW10353552 SEPARATOR
W11173556 W11173556 SHAFT
W11028221 W11028221 SHAFT
W11197490 W11197490 SHELF-CANT
W11469652 W11469652 SHIELD
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD
W11700329 W11700329 SHROUD- EV
WP67005864 WP67005864 SLIDE
W11658402 W11658402 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
WPW10309866 WPW10309866 SOLENOID
W11378860 W11378860 SPACER
W11227371 W11227371 SPIGOT
W11092533 W11092533 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
W11703060 W11703060 STOP-DOOR
W11708403 W11708403 STOP-DOOR
W10236396 W10236396 STRAP, COMPRESSOR
WPW10346124 WPW10346124 SUPPORT
WP12227305WD WP12227305WD SUPPORT
WP13062602 WP13062602 SUPPORT
W11445850 W11445850 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10826081 W10826081 TECH SHEET (ENGLISH)
W10826085 W10826085 TECH SHEET (FRENCH)
W10316760 W10316760 THERMISTOR
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WP67001719 WP67001719 TRACK
W11045971 W11045971 TRAY, DISPENSER (BLACK)
W11045970 W11045970 TRAY, DISPENSER (WHITE)
W10267861 W10267861 TRAY, DISPENSER SLIDE (BLACK)
W10267860 W10267860 TRAY, DISPENSER SLIDE (WHITE)
WPW10267863 WPW10267863 TRAY-DRIP
W11192301 W11192301 TRAY-DRIP
W11547653 W11547653 TRAY-DRIP
W10313178 W10313178 TRIM-SHELF
W11210956 W11210956 TRIM-SHELF
W10795418 W10795418 TUBE, DISCHARGE
W10619951 W10619951 TUBE-DRAIN
W10857667 W10857667 USE AND CARE GUIDE
WP978025 WP978025 VALVE
978028 978028 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978026 978026 VALVE, ACCESS
W11045976 W11045976 WALL, DISPENSER FALSE (BLACK)
W11045978 W11045978 WALL, DISPENSER FALSE (NICKEL)
W11045975 W11045975 WALL, DISPENSER FALSE (WHITE)
WPW10511930 WPW10511930 WATER TUBE
WPW10444033 WPW10444033 WATER TUBE
W11415785 W11415785 WATER TUBE
WPW10123444K WPW10123444K WHEEL
W11029433 W11029433 WIRE HARNESS
W11666013 W11666013 WIRE HARNESS
