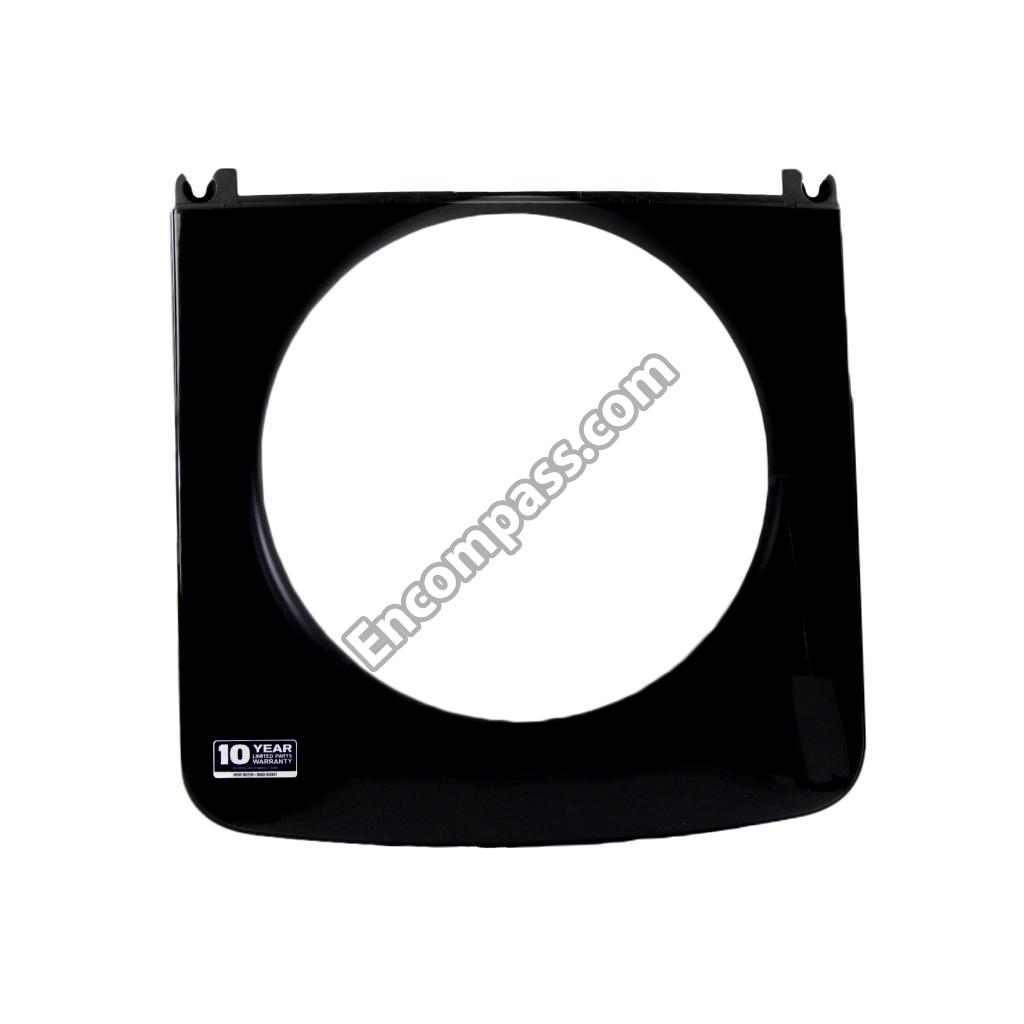

Model Image
Manufacturer

Whirlpool

Model Number

MFW7020RU0

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W10869845 W10869845 ACCESSORY OTHER, KIT, STACK
W10135699 W10135699 ACCESSORY PARTS, AFFRESH WASHER CLEANER
8212656RP 8212656RP ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212546RP 8212546RP ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
W11379000 W11379000 ACCESSORY PARTS, INLET HOSES, 4.5 FT (COLD WATER - ONE BRAIDED HOSES W/ ONE STRAIGHT END AND ONE 90 DEGREE END)
W11378999 W11378999 ACCESSORY PARTS, INLET HOSES, 4.5 FT (HOT WATER - ONE BRAIDED HOSES W/ ONE STRAIGHT END AND ONE 90 DEGREE END)
8212545RP 8212545RP ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED HOSE AND ONE BLUE HOSE W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212641RP 8212641RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212638RP 8212638RP ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAIDED HOSES W/ ONE STRAIGHT END AND ONE 90 DEGREE END AND 4 RUBBER WASHERS)
8212526 8212526 ACCESSORY PARTS, WASHER, DRIP TRAY
W10501250 W10501250 ACCESSORY, AFFRESH 6 COUNT WASHER CLEANER
DRNEXT4 DRNEXT4 ACCESSORY, DRAIN HOSE EXTENSION KIT
XHPC155MBK XHPC155MBK ACCESSORY, VOLCANO BLACK 15.5IN PEDESTAL
W11739821 W11739821 BAFFLE
W11460395 W11460395 BAFFLE
W11316629 W11316629 BOLT
W10467484 W10467484 BRACE, TOP
W10839743 W10839743 BRACKET
W11314674 W11314674 BRACKET
W11316769 W11316769 BRACKET
W11314678 W11314678 BRACKET
W10299097 W10299097 BRACKET, HINGE
W11353016 W11353016 BRACKET, REAR
W11310051 W11310051 BUMPER
W11353000 W11353000 CABINET (BLACK)
W11316610 W11316610 CAP
WPW10208398 WPW10208398 CAP
W11458348 W11458348 CHANNEL
WP371502 WP371502 CLAMP
W11314649 W11314649 CLAMP
W11266654 W11266654 CLAMP
W11316666 W11316666 CLAMP
W11316607 W11316607 CLAMP
WP616099 WP616099 CLAMP
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP
W10239910 W10239910 CLAMP, HOSE
W10273034 W10273034 CLAMP, VENT HOSE
W11316608 W11316608 CLIP
W11739824 W11739824 CONSOLE
W11747034 W11747034 CONTROL BOARD
W11481720 W11481720 COUNTERWGT
W11316052 W11316052 COUNTERWGT
W11314776 W11314776 COVER
W11316375 W11316375 COVER
W11316601 W11316601 DISPENSER
W11316603 W11316603 DIVIDER
W11733849 W11733849 DOOR LATCH
W11316777 W11316777 DOOR-GLASS
W11316776 W11316776 DOOR-INNER
W11316913 W11316913 DOOR-OUTER
W11524103 W11524103 DRAWER
W11685930 W11685930 ENERGY GUIDE
W11316273 W11316273 FAN
W11458347 W11458347 FILTER
W11689659 W11689659 FILTER
W11675697 W11675697 FOOT
W11316663 W11316663 GROMMET
W10626041 W10626041 HANDLE, DOOR (BLACK)
W11667935 W11667935 HANDLE, DRAWER (BLACK)
W11314664 W11314664 HEATER
WPW10208415 WPW10208415 HINGE
W11316274 W11316274 HOSE
W11316662 W11316662 HOSE
W11316605 W11316605 HOSE
W11316056 W11316056 HOSE
W11549455 W11549455 HOSE
W11316604 W11316604 HOSE
W11316599 W11316599 HOSE
W11316257 W11316257 HOSE
W11551765 W11551765 HOSE
W11456953 W11456953 HOSE
8212487RP 8212487RP INLET HOSES, 5 FT. (TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
W11670388 W11670388 JUMPER, HARNESS HMI (BOARD TO BOARD)
W11315707 W11315707 LIGHT
WPW10612925 WPW10612925 NAMEPLATE
W11316251 W11316251 NOZZLE
W11646252 W11646252 OWNERS MANUAL
W10868014 W10868014 PAINT, TOUCH-UP (1/2OZ. BLACK LAVA/ VOLCANO BLACK)
W11315708 W11315708 PANEL
W11633291 W11633291 PANEL
W11316664 W11316664 PIN
W11316669 W11316669 PLUG
W11316254 W11316254 POWER CORD
W11316770 W11316770 PROTECTOR
W11678279 W11678279 QUICK START GUIDE
WPW10280024 WPW10280024 RETAINER
W10245452 W10245452 RETAINER, SPRING
W11314361 W11314361 ROTOR
W11230114 W11230114 SCREW
W11314651 W11314651 SCREW
W11557803 W11557803 SCREW
W11314661 W11314661 SCREW
WP8534022 WP8534022 SCREW
W10846509 W10846509 SCREW
W10306501 W10306501 SCREW
W11318750 W11318750 SCREW
WP8540282 WP8540282 SCREW
W11661566 W11661566 SCREW
W11573574 W11573574 SCREW
W11568617 W11568617 SCREW
W10208380 W10208380 SCREW AND BUSHING ASSEMBLY
W11316613 W11316613 SEAL
W11316766 W11316766 SHOCK-ABSR
W11314394 W11314394 SPRING
W11670135 W11670135 STATOR, MOTOR (INCLUDES MOTOR HARNESS)
W11316914 W11316914 STRIKE
W11318830 W11318830 TANK
W11678968 W11678968 TANK
WPW10339879 WPW10339879 TIE-WIRE
W11328714 W11328714 TOP
W11378552 W11378552 TUB-OUTER
W11688995 W11688995 VALVE
W11688994 W11688994 VALVE
W11557921 W11557921 VENTCOUPLI
W11384425 W11384425 WASHER DOOR BELLOW
W11316246 W11316246 WATER LEVEL SWITCH
W11458345 W11458345 WATER PUMP
W11739822 W11739822 WIRE HARNESS
