Model Image
Manufacturer

Whirlpool

Model Number

MFW9600SQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8181731 WP8181731 AIRTRAP
WP8182233 WP8182233 BAFFLE
W10121657 W10121657 BALL
WPW10250573 WPW10250573 BASKET
WPW10388414 WPW10388414 BELT
8182171 8182171 BEZEL
W10289554A W10289554A BOLT
8182607 8182607 BRACE
8183008 8183008 BRACE
WPW10003040 WPW10003040 BRACE
8182224 8182224 BRACE, FRONT TOP
WP8181763 WP8181763 BRACKET
W10250558 W10250558 BRACKET, HEATER SUPPORT
8182609 8182609 CABINET
WP8181726 WP8181726 CAM
8182123 8182123 CAP
8183027 8183027 CAP
8181640 8181640 CHANNEL, WATER
WP285655 WP285655 CLAMP
WP696392 WP696392 CLAMP
WP8540092 WP8540092 CLAMP
WP489503 WP489503 CLAMP
W10902779 W10902779 CLAMP
WP8182210 WP8182210 CLAMP
WP3367052 WP3367052 CLAMP
8181650 8181650 CLAMP
8540010 8540010 CLAMP
W10128586 W10128586 CLAMP, SUPPORT
WP8182779 WP8182779 CLIP
8182702 8182702 CLIP
8182701 8182701 CLIP
WP8181724 WP8181724 CONNECTION, LEVER
WP8181738 WP8181738 CONNECTOR

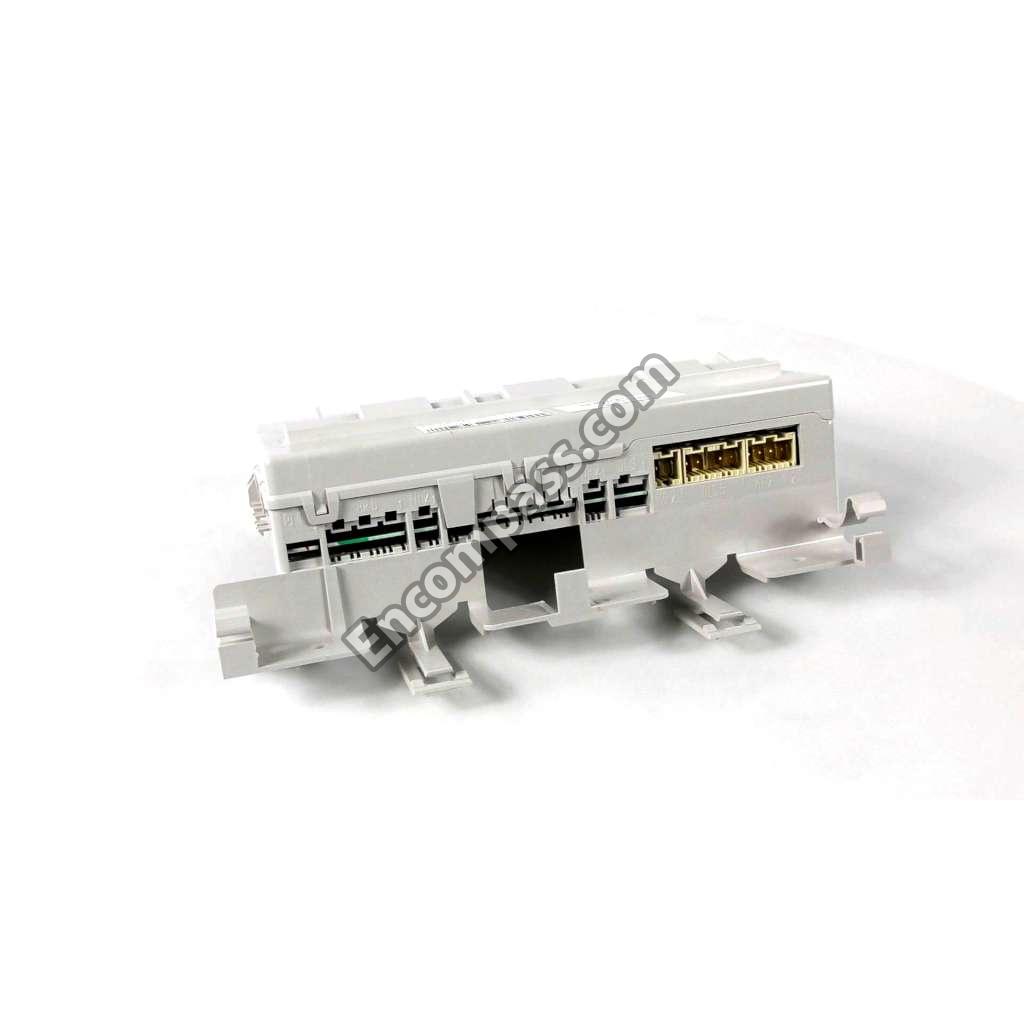

W10756692 W10756692 CONTROL BOARD
WPW10137701 WPW10137701 CONTROL BOARD
W10008870 W10008870 COUNTERWEIGHT, REAR
WPW10008880 WPW10008880 COUNTERWGT
WP8540268 WP8540268 COVER
8182595 8182595 COVER
8182596 8182596 COVER
8183030 8183030 COVER
8182153 8182153 CUSHION
8182173 8182173 CUSHION
WP8181722 WP8181722 DISPENSER
280198 280198 DISPENSER
8182665 8182665 DISPENSER
8183095 8183095 DOOR FRAME ASSEMBLY
WP8182634 WP8182634 DOOR LATCH
W10163308 W10163308 DOOR, BACK SUPPORT
WPW10135912 WPW10135912 DOOR-GLASS
WP8181720 WP8181720 DRAWER
WP8182793 WP8182793 DRIVE MOTOR
8182599 8182599 ENDCAP
8182600 8182600 ENDCAP
WP8181636 WP8181636 FEET-LVLNG
WPW10367632 WPW10367632 FILTER
WPW10110225 WPW10110225 FLOWMETER
WPW10526202 WPW10526202 GROMMET
W11116978 W11116978 GROMMET
W10338326 W10338326 GROMMET, DAMPER (REAR)
8182591 8182591 HANDLE
8183057 8183057 HANDLE, DRAWER (INCLUDES ITEM 18)
8183022 8183022 HARNS-WIRE
WPW10426377 WPW10426377 HEATER
WP8181843 WP8181843 HINGE, DOOR
WPW10003250 WPW10003250 HOSE
WPW10467168 WPW10467168 HOSE
WP8181794 WP8181794 HOSE
WP8181743 WP8181743 HOSE
WP8181710 WP8181710 HOSE
WPW10005300 WPW10005300 HOSE
WPW10004260 WPW10004260 HOSE
WP8181737 WP8181737 HOSE
285863 285863 HOSE
8181708 8181708 HOSE
WP89503 WP89503 HOSE-FILL
8541503 8541503 KIT, STACK ASSEMBLY
W10163301 W10163301 KNOB, CONTROL
8182658 8182658 LAUNDRY GUIDE
WP8181725 WP8181725 LEVER
8183059 8183059 MEDALLION
WP8181712 WP8181712 NOZZLE
280194 280194 NOZZLE
WP8182512 WP8182512 NUT
WPW10283361 WPW10283361 NUT
WP2004333 WP2004333 NUT
280196 280196 O-RING
8183083 8183083 OVERLAY
799344 799344 PAINT
8181635 8181635 PAN
8181643 8181643 PANEL
8182605 8182605 PANEL
8182698 8182698 PANEL
8183082 8183082 PANEL-CNTL
WP8183009 WP8183009 POWER CORD
WP8182650 WP8182650 PULLEY
8182180 8182180 PUSHBUTTON
8182601 8182601 PUSHBUTTON
8182602 8182602 PUSHBUTTON
8182604 8182604 PUSHBUTTON
8183084 8183084 PUSHBUTTON
WP8181721 WP8181721 RETAINER
WPW10280024 WPW10280024 RETAINER
8182109 8182109 RETAINER
8182209 8182209 RETAINER, DRAIN HOSE
WPW10250553 WPW10250553 RING-O
WPY706189 WPY706189 SCREW
WP3400805 WP3400805 SCREW
WP8540282 WP8540282 SCREW
WP8181660 WP8181660 SCREW
WP8540725 WP8540725 SCREW
WP488729 WP488729 SCREW
W10193105 W10193105 SCREW
8182201 8182201 SCREW
8181785 8181785 SCREW
W11230114 W11230114 SCREW
W10128585 W10128585 SCREW
W10182109 W10182109 SCREW-KIT
WP8181736 WP8181736 SEAL
WP8181747 WP8181747 SEAL
WPW10467289 WPW10467289 SENSOR
WP8181730 WP8181730 SEPARATOR
W10822553 W10822553 SHOCK-ABSR
350930 350930 SPRAY
350938 350938 SPRAY
W10135004 W10135004 SPRING
8181727 8181727 SPRING, LEVER
8182635 8182635 STRAIN RELIEF
WP8181651 WP8181651 STRIKE
WPW10085220 WPW10085220 SWITCH
WPW10665207 WPW10665207 SWITCH-DIS
8182208 8182208 TECH SHEET
8181799 8181799 TOP
8182592 8182592 TRIM
8182593 8182593 TRIM
8182594 8182594 TRIM
W10772607 W10772607 TUB-OUTER
W10772613 W10772613 TUB-OUTER
W10772617 W10772617 TUB-OUTER
72017 72017 TUCHUP
8182969 8182969 USE & CARE GUIDE
WP8182150 WP8182150 USER INTERFACE
WP8182862 WP8182862 VALVE
8181744 8181744 VENT-PIPE
WP8182119 WP8182119 WASHER DOOR BELLOW
WPW10514214 WPW10514214 WATER LEVEL SWITCH
280187 280187 WATER PUMP
WPW10137867 WPW10137867 WIRE HARNESS
WP8182212 WP8182212 WIRE HARNESS
