Manufacturer

Whirlpool

Model Number

MGC5430BDW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10841140 W10841140 ADHESIVE
74007772 74007772 BOTTOM, BURNER BOX
W10176503 W10176503 BOX-BURNER
3801F877-51 3801F877-51 BRACKET
3801F848-51 3801F848-51 BRACKET, ORIFICE HOLDER (2)
WP3801F935-51 WP3801F935-51 BRKT-MNTG
74007795 74007795 BRKTMNTG
W10919249 W10919249 BUMPER
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
8007P003-60 8007P003-60 BUSHING S
WP74007422 WP74007422 CAP, BURNER (SMR-GRY)
WP74007752 WP74007752 CAP-BURNER
WP7509P103-60 WP7509P103-60 CNVRSN-KIT
74007689 74007689 CORD, POWER
WP74007790 WP74007790 GRATE (GRY)
WP74007705 WP74007705 GROMMET
W10173479 W10173479 HARNESS, COOKTOP
WP74007691 WP74007691 HOLDER- OR
WP74007692 WP74007692 HOLDER- OR
WP7527P006-60 WP7527P006-60 HOLDER-ORF
WP8523793 WP8523793 IGNTR-SURF
WP74011276 WP74011276 KNOB- BURN
74009417 74009417 MANIFOLD P
8111P475-60 8111P475-60 MANUAL, USE & CARE
8215557 8215557 MODULE, SPARK (4+0)
W11170853 W11170853 REGULATOR-
WP400021-1 WP400021-1 SCREW
7118P018-60 7118P018-60 SCREW
WP4159193 WP4159193 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP7101P062-60 WP7101P062-60 SCREW
W10709795 W10709795 SCREW
WP74001380 WP74001380 SEAL

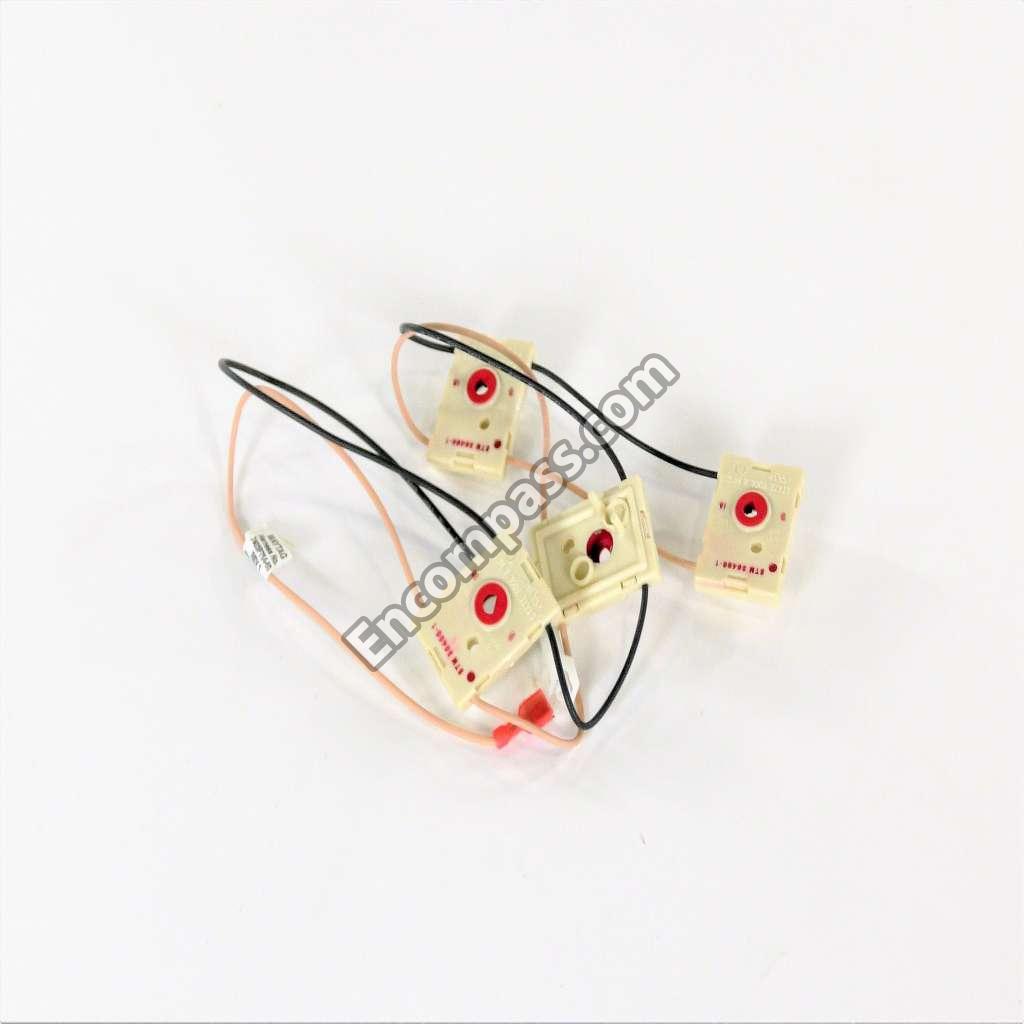

WP74007696 WP74007696 SWITCH
12400021 12400021 TAPE BURNER BOX SEAL 107``
74007782 74007782 TOP, MAIN (WHT)
7506P374-60 7506P374-60 TUBING-GAS
7506P375-60 7506P375-60 TUBING-GAS
74007565 74007565 USE & CARE MANUAL
15003163 15003163 WIRING INFORMATION
