Manufacturer

Whirlpool

Model Number

MGC5536BDS22

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10176504 W10176504 BOXBURNER
3801F877-51 3801F877-51 BRACKET
3801F876-51 3801F876-51 BRACKET
3801F925-51 3801F925-51 BRKT-STAND
WPW10406797 WPW10406797 BURNR-HEAD
8007P003-60 8007P003-60 BUSHING S
W10218226 W10218226 CAP, BURNER (BLACK)
WP74007752 WP74007752 CAP-BURNER
WP7509P103-60 WP7509P103-60 CNVRSN-KIT
2001U178-09 2001U178-09 COOKTOP (BLACK)
2001U256-50 2001U256-50 COOKTOP (STAINLESS)
2001U178-81 2001U178-81 COOKTOP (WHITE)
3188867 3188867 CORD, POWER
7518P397-60 7518P397-60 GRATE, BURNER (BLACK)
74011808 74011808 GRATE, BURNER (GREY)
7518P403-60 7518P403-60 GRATE, CENTER (BLACK)
74011811 74011811 GRATE, CENTER (GREY)
WP74007705 WP74007705 GROMMET
W10173479 W10173479 HARNS-WIRE
WP74007691 WP74007691 HOLDER- OR
WP7527P028-60 WP7527P028-60 HOLDER-ORF
WP7527P026-60 WP7527P026-60 HOLDER-ORF
8101P338-60 8101P338-60 INSTALLATION INSTRUCTIONS

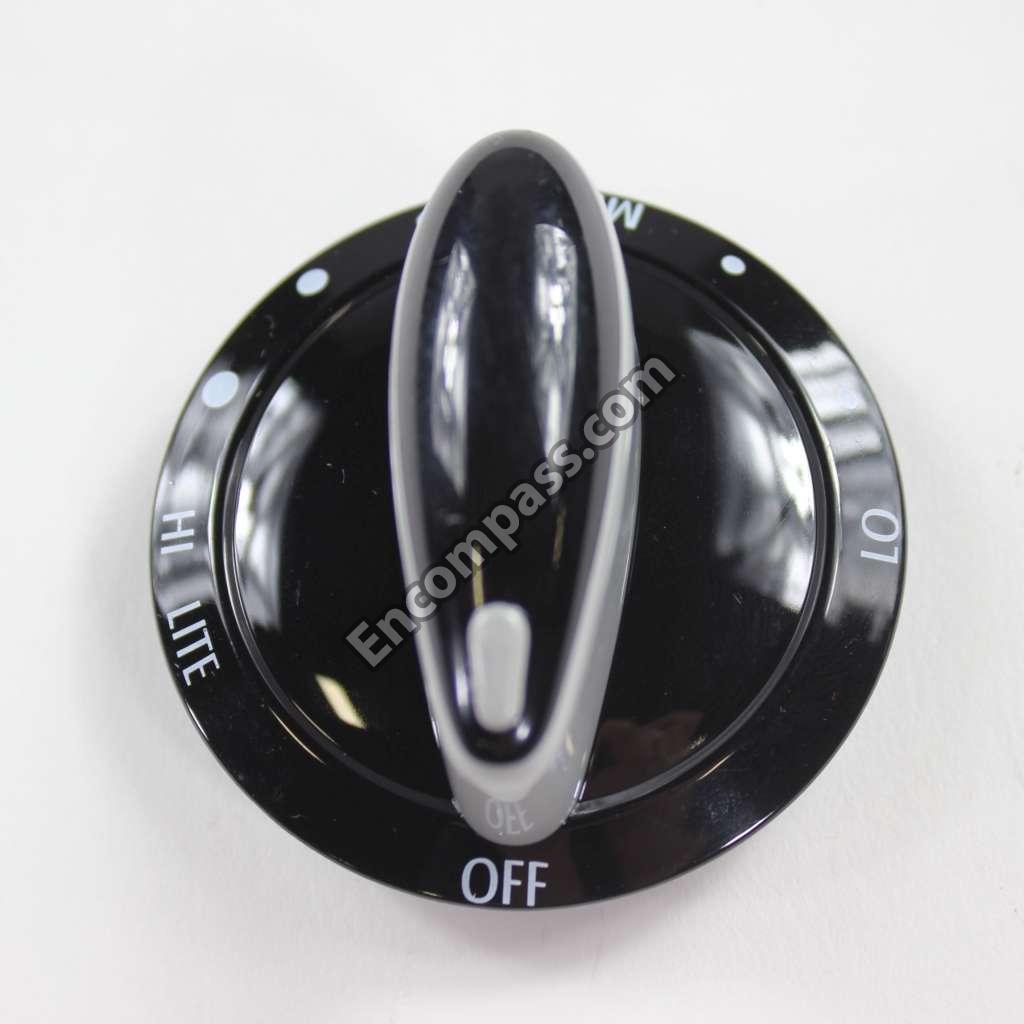

WP74011287 WP74011287 KNOB- BURN
WP74011276 WP74011276 KNOB- BURN
7513P517-60 7513P517-60 PIPE, MANIFOLD (INCLUDES VALVES)
WP7431P066-60 WP7431P066-60 RANGE SPARK MODULE
W11087445 W11087445 REGULATOR
9762761 9762761 SAFE COOKING TIPS (ENGLISH)
W10065852 W10065852 SAFE COOKING TIPS (FRENCH)
WP7101P062-60 WP7101P062-60 SCREW
WP71001171 WP71001171 SCREW
WP90767 WP90767 SCREW
WP3368921 WP3368921 SCREW-TORX
WP74001380 WP74001380 SEAL
8270P107-60 8270P107-60 SEAL, FOAM
7506P343-60 7506P343-60 TUBING-GAS
7506P344-60 7506P344-60 TUBING-GAS
7506P345-60 7506P345-60 TUBING-GAS
7506P346-60 7506P346-60 TUBING-GAS
7506P347-60 7506P347-60 TUBING-GAS
8112P338-60 8112P338-60 USE & CARE GUIDE

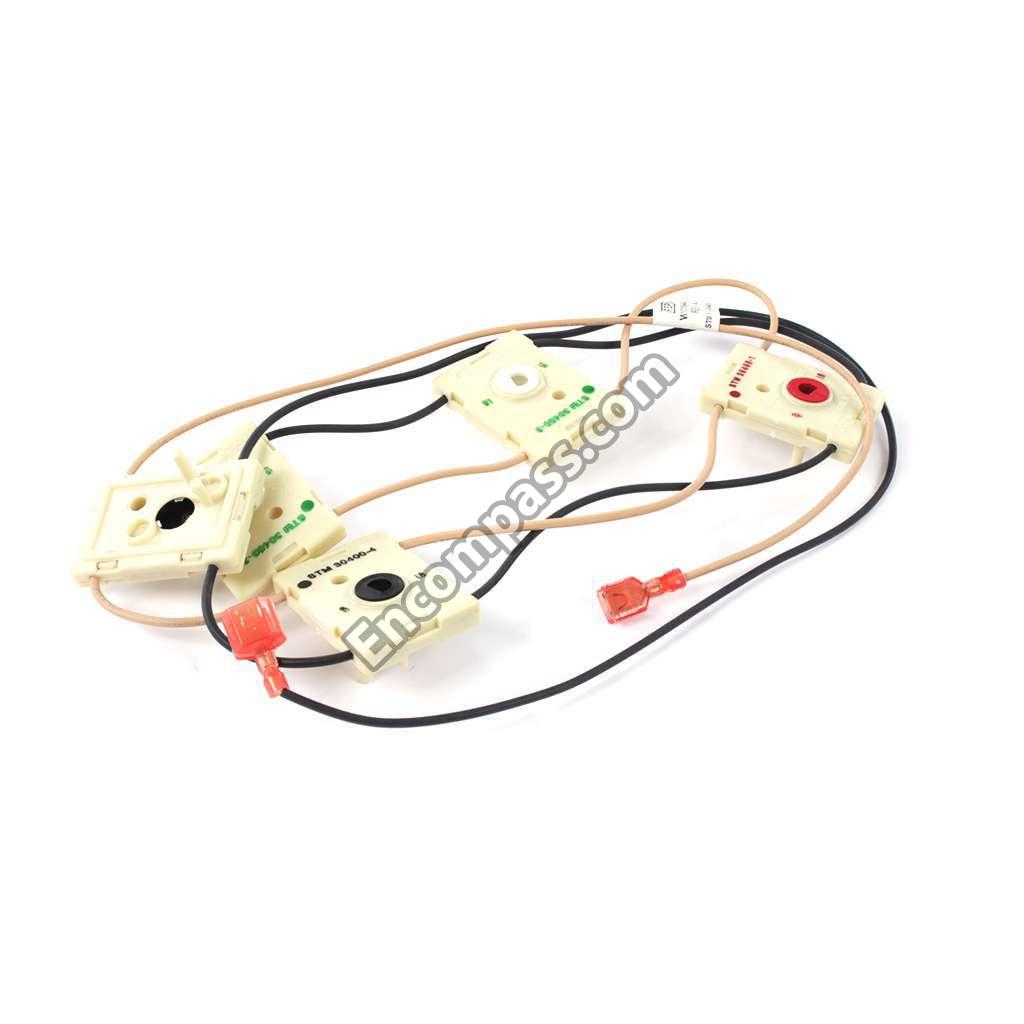

WPW10184468 WPW10184468 WIRE HARNESS
8019P103-60 8019P103-60 WIRE TIE
W10177769 W10177769 WIRE, JUMPER (ORANGE)
W10177768 W10177768 WIRE, JUMPER (WHITE)
W10204418 W10204418 WIRING DIAGRAM (ENGLISH)
W10205174 W10205174 WIRING DIAGRAM (FRENCH)
