Model Image
Manufacturer

Whirlpool

Model Number

MGC6536BDW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP3424F031-81 WP3424F031-81 BOWL-DRIP
WP3424F030-81 WP3424F030-81 BOWL-DRIP
4011F454-51 4011F454-51 BOX-BURNER
3801F802-51 3801F802-51 BRACKET
74009251 74009251 BRACKET- O
74007795 74007795 BRKTMNTG
W10919249 W10919249 BUMPER
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
550707 550707 BUSHING - STRAIN RELIEF
WP74007422 WP74007422 CAP, BURNER (SMR-GRY)
WP74007752 WP74007752 CAP-BURNER
WP7509P103-60 WP7509P103-60 CNVRSN-KIT
5705M242-81 5705M242-81 COOKTOP
74007817 74007817 CORD, POWER
74008045 74008045 GRATE CTR
74008043 74008043 GRATE GRY
WP8008P071-60 WP8008P071-60 GROMMET
8008P039-60 8008P039-60 GROMMET G
74007980 74007980 GROMMET- G
W10173479 W10173479 HARNESS, COOKTOP
74007812 74007812 HARNS-WIRE
WP74007691 WP74007691 HOLDER- OR
WP7527P028-60 WP7527P028-60 HOLDER-ORF
WP7527P026-60 WP7527P026-60 HOLDER-ORF
WP7527P023-60 WP7527P023-60 HOLDER-ORF
WP8523793 WP8523793 IGNTR-SURF

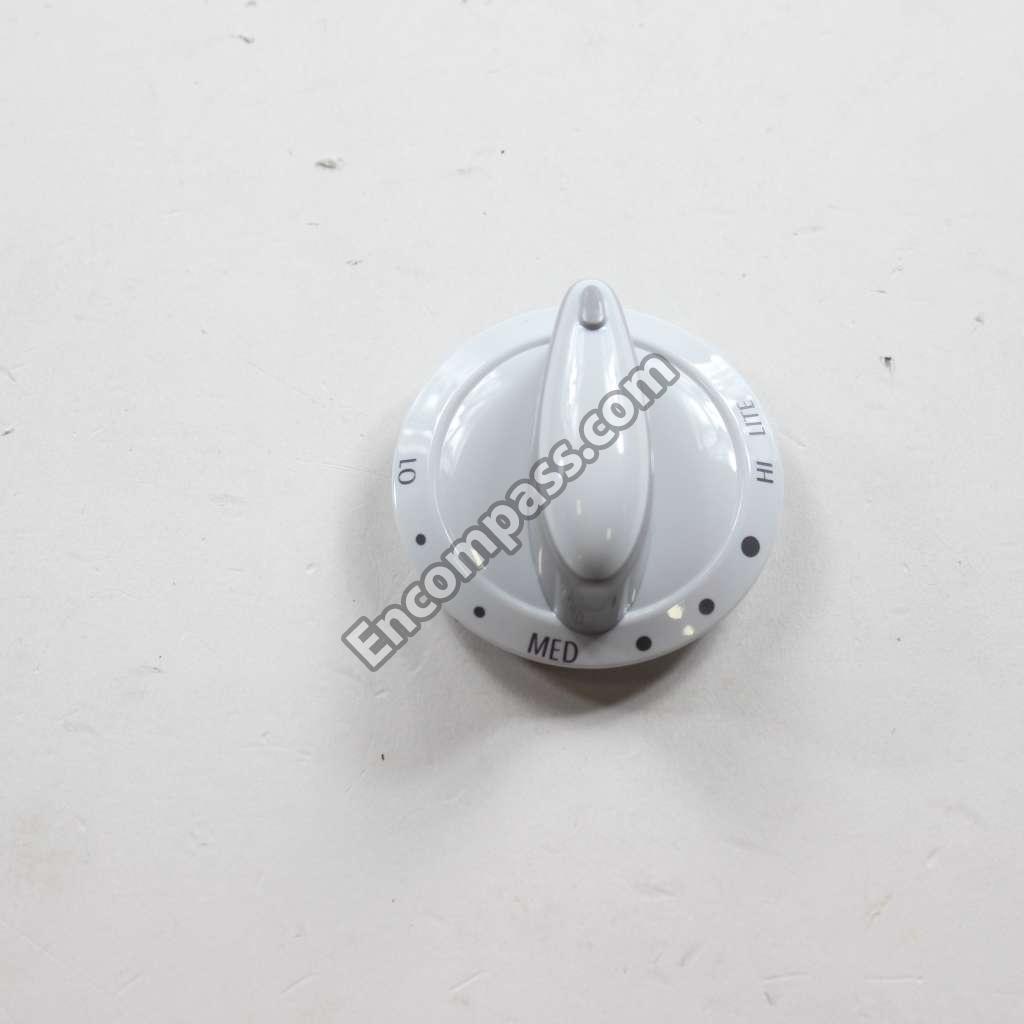

WP74011276 WP74011276 KNOB- BURN
74008056 74008056 MANUAL, USE & CARE
8111P476-60 8111P476-60 MANUAL, USE & CARE
8215557 8215557 MODULE, SPARK (4+0)
74009420 74009420 PIPMNFLD
74007702 74007702 PIPMNFLD
W11087445 W11087445 REGULATOR-
74007983 74007983 RING- RETA
WP400021-1 WP400021-1 SCREW
WP90767 WP90767 SCREW
74009252 74009252 SCREW HEX
WP74001380 WP74001380 SEAL
12400041 12400041 SEAL- TAPE
WP74008212 WP74008212 SEAL-SWTCH
12001594 12001594 SPARK MODU
74008050 74008050 SWITCH ASY
74008049 74008049 TUBE BURN
7506P374-60 7506P374-60 TUBING-GAS
7506P375-60 7506P375-60 TUBING-GAS
74007982 74007982 WASHER
15003190 15003190 WIRING INFORMATION
