Model Image
Manufacturer

Whirlpool

Model Number

MGDB835DC4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10322470A W10322470A ACCESSORY PARTS, DRY RACK
W10704365 W10704365 ACCESSORY PARTS, KIT, 4-WAY VENT
4392067 4392067 ACCESSORY PARTS, KIT, DRYER REPAIR
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
346764A 346764A ACCESSORY PARTS, KIT, HOLD DOWN
W10626460 W10626460 ASSEMBLY, DRUM
W10767074 W10767074 BAFFLE, DRUM HIGH
W10767090 W10767090 BAFFLE, DRUM LOW
3389871 3389871 BASE, BURNER
W10613683 W10613683 BASE, CABINET
W11162091 W11162091 BELT
W10669023 W10669023 BEZEL, DOOR CATCH (CHROME SHADOW)
W10722502 W10722502 BRACE, CAB AND SEAL ASSEMBLY
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
W10837240 W10837240 BRACKET
W11282908 W11282908 BRACKET
W10181903 W10181903 BRACKET, BURNER
694538 694538 BRACKET, COIL
3978776 3978776 BRACKET, GAS PIPE
W10596959 W10596959 BRACKET, HINGE
W10578053 W10578053 BRACKET, MOTOR MOUNTING
W10622391 W10622391 BRACKET, REAR PANEL UPPER
W11135007 W11135007 BULKHEAD
W10651902 W10651902 BULKHEAD BRACKET, REAR PANEL
W10861007 W10861007 BULKHEAD, FRONT
WP693140 WP693140 BURNER
W11233069 W11233069 BURNER-GAS
W11429587 W11429587 CATCH
WPW10121316 WPW10121316 CLAMP
WP8312709 WP8312709 CLIP
279834 279834 COIL-VALVE
WPW10344699 WPW10344699 COLLAR
WPW10336486 WPW10336486 CONNECTOR

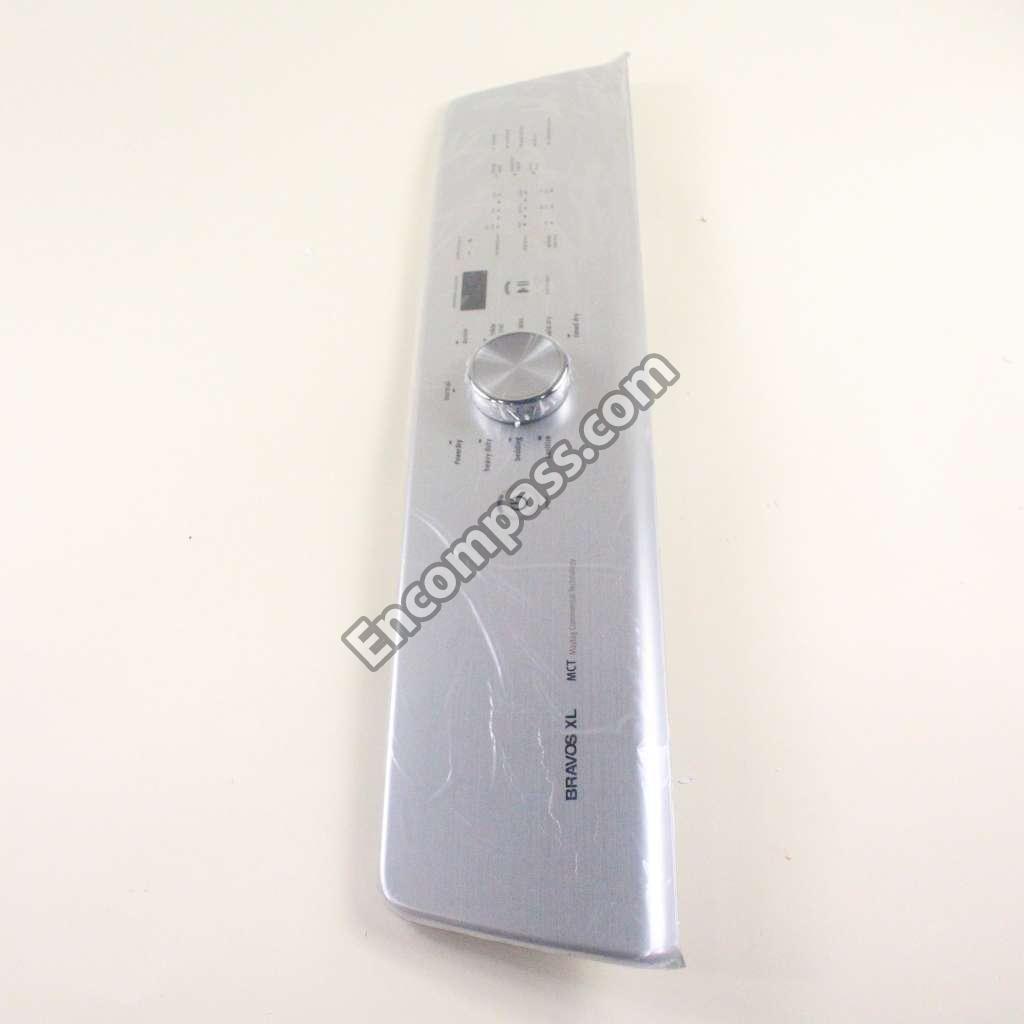

W10682013 W10682013 CONSOLE ASSEMBLY (COMPLETE) (CHROME SHADOW)
W11133021 W11133021 CONTROL BOARD
W10819767 W10819767 COVER
W10669024 W10669024 COVER, DOOR CATCH (CHROME SHADOW)
WP8573713 WP8573713 CUTOFF-TML
W11162064 W11162064 DOOR
W11129460 W11129460 DOOR
W10850024 W10850024 DOOR, HINGE (LOWER)
W10850044 W10850044 DOOR, HINGE (UPPER)
W11126010 W11126010 DRIVE MOTOR
W11129538 W11129538 DUCT-AIR
W11165163 W11165163 ELECTRODE
49621 49621 FEET-LVLNG
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WP8573824 WP8573824 FUNNEL
W10909685 W10909685 FUSE-THRML
WPW10118347 WPW10118347 GAS VALVE
W10608813 W10608813 GRILLE, OUTLET
W10631413 W10631413 HINGE COVER, BOTTOM (CHROME SHADOW)
W10631412 W10631412 HINGE COVER, TOP (CHROME SHADOW)
W10819173 W10819173 HOSE-FILL
W11246350 W11246350 HOUSING
W11242876 W11242876 HOUSNG-OUT
279311 279311 IGNITOR
W10725269 W10725269 INSTALLATION INSTRUCTIONS
W11581317 W11581317 KIT, LP GAS DRYER CONVERSION
W10853910 W10853910 KNOB
WPW10629046 WPW10629046 LIGHT BULB
WP694424 WP694424 LIMITER
W10868982 W10868982 LINT DUCT ASSEMBLY
WPW10612925 WPW10612925 NAMEPLATE
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
W11213336 W11213336 NUT
WP15418 WP15418 ORIFCE-GAS
W11158457 W11158457 OVERLAY
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
W10446202 W10446202 PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10875891 W10875891 PANEL
W10824895 W10824895 PANEL, REAR
W10622402 W10622402 PANEL, REAR CONSOLE
W10681831 W10681831 PANEL, SIDE (CHROME SHADOW (WITH CUTOUT))
W10681830 W10681830 PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
W10295523 W10295523 PIPE PLUG
W10608817 W10608817 PIPE, EXHAUST
WPW10111888 WPW10111888 PLATE
W10391496 W10391496 PLUG, FRONT PANEL (CHROME SHADOW)
W10596965 W10596965 PLUG, HINGE (CHROME SHADOW)
W11628810 W11628810 POWER CORD
PT220L PT220L POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD
PT400L PT400L POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD
PT600L PT600L POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD
279640 279640 PULLEY-IDR
W11568637 W11568637 PULLEY-MTR
WP3391912 WP3391912 RANGE THERMOSTAT
WP694423 WP694423 REGULATOR
WPW10512946 WPW10512946 RING
W10859086 W10859086 SCREEN
WPW10366705 WPW10366705 SCREW
WP488627 WP488627 SCREW
W10850046 W10850046 SCREW
WP90767 WP90767 SCREW
W10850756 W10850756 SCREW
W10853898 W10853898 SCREW
W10891954 W10891954 SCREW
WP308685 WP308685 SCREW
WP3387230 WP3387230 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
WP3400805 WP3400805 SCREW
WP681414 WP681414 SCREW
W11568617 W11568617 SCREW
WP3389420 WP3389420 SCREW
WP693995 WP693995 SCREW
W10636208 W10636208 SCREW
6-920119 6-920119 SCREW
WP9740849 WP9740849 SCREW
W10916641 W10916641 SCREW
WP9740848 WP9740848 SCREW
279393 279393 SCREW KIT, TERMINAL BLOCK
694421 694421 SCREW, COIL
W11189144 W11189144 SEAL
WP3387242 WP3387242 SEAL
W11721376 W11721376 SEAL
W10763835 W10763835 SEAL, DOOR
W10868675 W10868675 SEAL, LINT DUCT
WP338906 WP338906 SENSOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W10632347 W10632347 SPACER BRACKET, LOWER
W11123146 W11123146 SPEAKER
WP694422 WP694422 SPRING
WPW10446781 WPW10446781 SPRING
W11163826 W11163826 STRIKE
WPW10314173 WPW10314173 SUPPORT
W11662087 W11662087 SWITCH
W11036551 W11036551 SWITCH-DOR
W10777449 W10777449 TECH SHEET
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
WP8577274 WP8577274 THERMISTOR
W11744013 W11744013 THERMISTOR
W10491983 W10491983 TIP-TINES
W11051477 W11051477 TOP
W10680141 W10680141 USE AND CARE GUIDE
WP16123 WP16123 WASHER
W11236646 W11236646 WASHER
WP697772 WP697772 WHEEL
W11161899 W11161899 WIRE
W10849059 W10849059 WIRE HARNESS
W10777444 W10777444 WIRING HARNESS
