Model Image
Manufacturer

Whirlpool

Model Number

MGDX500BW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
346764A 346764A ACCESSORY PARTS KIT, HOLD DOWN
3406839 3406839 ACCESSORY PARTS, DRY RACK
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
W10899578 W10899578 ASSEMBLY, DRUM (COMPLETE)
WPW10492808 WPW10492808 BADGE
WP692490 WP692490 BAFFLE-DRM
WP3403636 WP3403636 BAFFLE-DRM
WP348780 WP348780 BASE
693986 693986 BASE, BURNER
WPW10198086 WPW10198086 BELT
3400500 3400500 BOLT
279980 279980 BOX
WP694298 WP694298 BRACKET
W11684613 W11684613 BRACKET
W10236073 W10236073 BRACKET
W11398682 W11398682 BRACKET, BULKHEAD CHUTE
694538 694538 BRACKET, COIL
3977373 3977373 BRACKET, DRUM LIGHT
W11035878 W11035878 BRNG&SEAL
W10828905 W10828905 BULKHEAD
WP693140 WP693140 BURNER
W10823508 W10823508 BURNER-GAS
W10224934 W10224934 CABINET
W11226088 W11226088 CAMERA LENS
WPW10529197 WPW10529197 CATCH
W11429587 W11429587 CATCH
W11117429 W11117429 CHUTE
WP3404162 WP3404162 CLAMP
WPW10121316 WPW10121316 CLAMP
341029 341029 CLAMP, PIPE
WP90296 WP90296 CLIP
279771 279771 CLIP
279220 279220 CLIP
W10854425 W10854425 CLIP
WP688805 WP688805 CLIP
WP8536939 WP8536939 CLIP
WP8312709 WP8312709 CLIP
279834 279834 COIL-VALVE
WPW10476828 WPW10476828 CONTROL BOARD
WPW10557259 WPW10557259 CONTROL PANEL
49572A 49572A CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
W11736322 W11736322 COVER
W10662472 W10662472 COVER
W11173656 W11173656 COVER
W10594772 W10594772 DIAGRAM, WIRING
W10861227 W10861227 DOOR
WPW10463967 WPW10463967 DOOR
279827 279827 DRIVE MOTOR
W11025920 W11025920 FEET-LVLNG
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED,
WP8066049 WP8066049 FUNNEL
WP3392519 WP3392519 FUSE-THRML
WP8318277 WP8318277 GAS VALVE
W11109500 W11109500 HANDLE
W10565805 W10565805 HARNS-WIRE
WPW10362431 WPW10362431 HINGE
WP8066217 WP8066217 HINGE
WP8577230 WP8577230 HOUSING
279311 279311 IGNITOR
W10562360 W10562360 INSTALLATION INSTRUCTIONS
4392065 4392065 KIT, DRYER REPAIR
279769 279769 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
W11050897 W11050897 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WPW10558463 WPW10558463 KNOB
WPW10562155 WPW10562155 KNOB
WPW10565871 WPW10565871 KNOB
WP22002263 WP22002263 LIGHT BULB
WP694424 WP694424 LIMITER
WP8066092 WP8066092 LOCK
WP98234 WP98234 NUT
W11213336 W11213336 NUT
W11229607 W11229607 NUT
WP234868 WP234868 ORIFCE-GAS
WP229742 WP229742 ORIFCE-GAS
WP234826 WP234826 ORIFCE-GAS
W10636378 W10636378 PAD
799344 799344 PAINT, BULK (1 QT.) (WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
72017 72017 PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10248059 W10248059 PANEL
280043 280043 PANEL-REAR
WPW10416486 WPW10416486 PANEL-REAR
W10295523 W10295523 PIPE PLUG
W10811916 W10811916 PLUG
WP3404413 WP3404413 PLUG
W11684591 W11684591 PLUG
8066086 8066086 PLUG, DRUM HOLE
W11222083 W11222083 POWER CORD
WP691362 WP691362 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
WP8318268 WP8318268 RANGE THERMOSTAT
WP694423 WP694423 REGULATOR
WPW10563095 WPW10563095 RELAY-PTS
WPW10627711 WPW10627711 RELAY-PTS
WPW10512946 WPW10512946 RING
279441 279441 RING, BEARING
W11603116 W11603116 SCREEN
WPW10366705 WPW10366705 SCREW
W10853898 W10853898 SCREW
WP489463 WP489463 SCREW
WP488729 WP488729 SCREW
WP488627 WP488627 SCREW
WP3395530 WP3395530 SCREW
WP681414 WP681414 SCREW
WP3390631 WP3390631 SCREW
WP90767 WP90767 SCREW
W11693756 W11693756 SCREW
WP693995 WP693995 SCREW
694421 694421 SCREW, COIL
W10612022 W10612022 SEAL
WP339956 WP339956 SEAL
W11415783 W11415783 SEAL
W10588162 W10588162 SEAL
W10316619 W10316619 SEAL
W10861521 W10861521 SEAL-DOOR
WPW10157932 WPW10157932 SEAL-FOAM
W10816105 W10816105 SENSOR
WP338906 WP338906 SENSOR
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT
W11233063 W11233063 SHIELD
W11222979 W11222979 SOCKET
W10123956 W10123956 SOUND ABSR
WP694422 WP694422 SPRING
W11429589 W11429589 STRIKE
WPW10314173 WPW10314173 SUPPORT
W10563094 W10563094 SWITCH
W10562713 W10562713 SWITCH
WP3406107 WP3406107 SWITCH-DOR

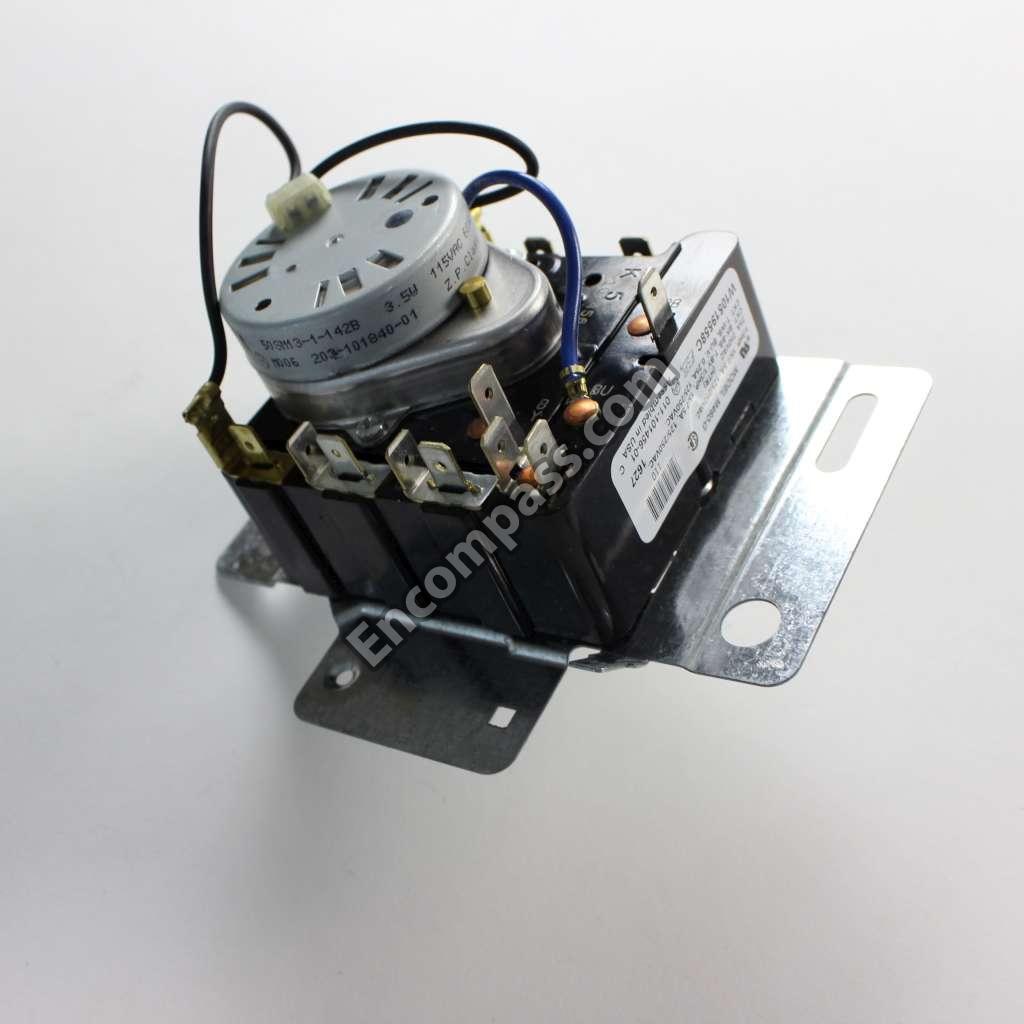

WPW10519558 WPW10519558 TIMER
W10513432 W10513432 TOP
W10594781 W10594781 USE AND CARE GUIDE
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL
