Whirlpool

Model Number

MGR5730BDB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
1555258K 1555258K 3/8`` NUT & FERRULE
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
74009884 74009884 BACK, MAIN
3601F307-45 3601F307-45 BAFFLE, BROIL
3601F353-45 3601F353-45 BAFFLE, DOOR
74006424 74006424 BEZEL KNO
WP74003782 WP74003782 BEZEL- KNO
7401P037-60 7401P037-60 BLOCK TER
WP5504M003-19 WP5504M003-19 BOTTOM, OVEN ASSEMBLY.
WP7725P021-60 WP7725P021-60 BOWL, DRIP (DBL-BLK)
74002632 74002632 BOX BURNE
74002633 74002633 BOX, BURNER (LT)
4006D187-45 4006D187-45 BOX-VENT
WP3801F656-51 WP3801F656-51 BRACKET
74003489 74003489 BRACKET C
74003490 74003490 BRACKET C
74003627 74003627 BRACKET, CLOCK
WP3412D021-09 WP3412D021-09 BURNER
7505P293-60 7505P293-60 BURNER, BROIL
74003960 74003960 BURNER- BA
WP3412D024-09 WP3412D024-09 BURNR-HEAD
74004827 74004827 CLIP TOP

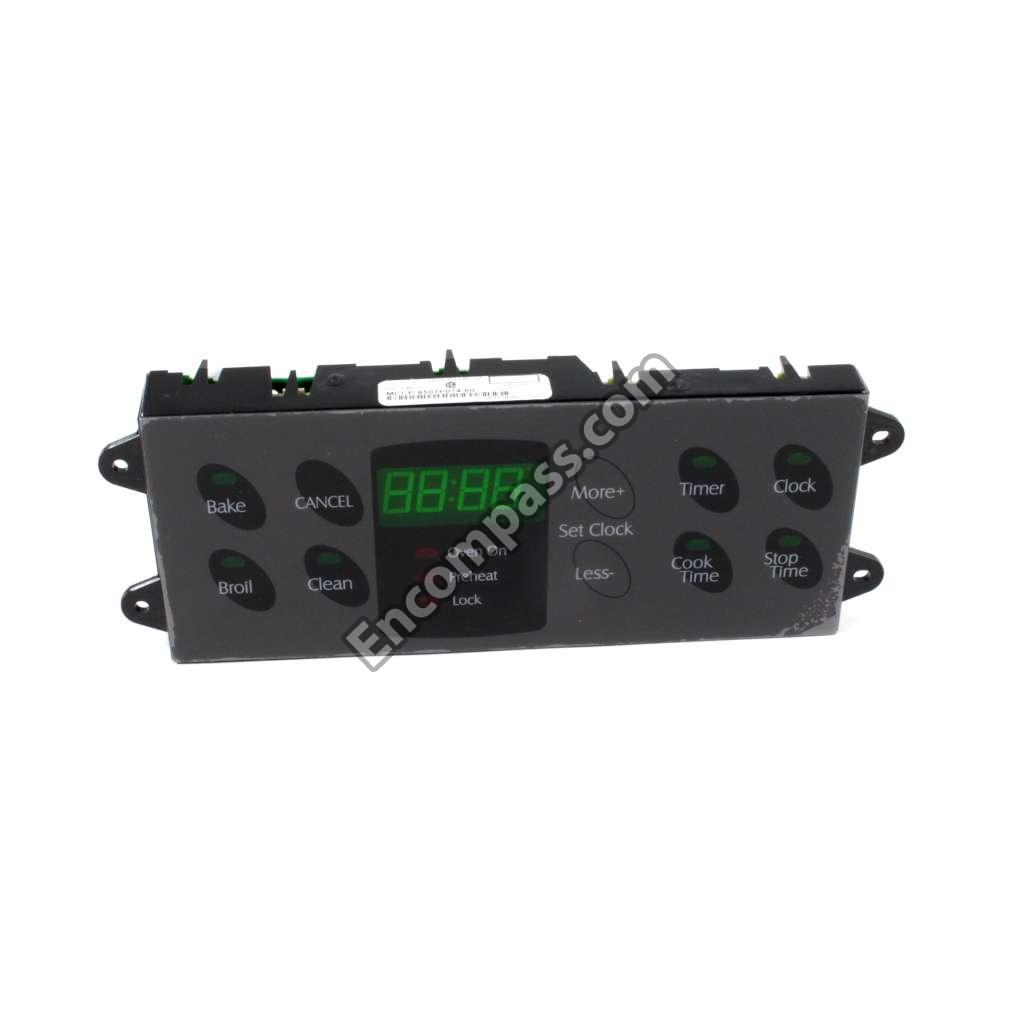

WP5701M382-60 WP5701M382-60 CONTROL BOARD
12400044 12400044 CORD, POWER
4005F421-45 4005F421-45 COVER IGN
74003389 74003389 COVER, BULB
74009654 74009654 COVER, MAIN BACK (WIRE)
74005465 74005465 COVER, VALVE/REGULATOR
12001942 12001942 DOOR LATCH
74008337 74008337 DRAWER, STORAGE
74003498 74003498 END CAP P
74003606 74003606 END CAP, CONTROL PNL (LT-BLK)
74003605 74003605 END CAP, CONTROL PNL (RT-BLK)
74003497 74003497 END CAP, PANEL (RT-BLK)
74006376 74006376 EXTENSION
74004551 74004551 EXTENSION, CONTROL PANEL
4022W007-19 4022W007-19 EXTENSION, FLUE BOX
WP5787M052-60 WP5787M052-60 FITTING
WP5787M053-60 WP5787M053-60 FITTING ASSEMBLY., ORIFICE (LT)
74006421 74006421 FITTING B
W11665456 W11665456 FOOT-LEVEL
7706P309-60 7706P309-60 FRAME, DOOR (BLK)
WPW10162384 WPW10162384 GASKT-DOOR
74006287 74006287 GLASS, OUTER DOOR (BLK)
74003320 74003320 GLASS-DOOR
74003779 74003779 GRATE (BLK)
8008P010-60 8008P010-60 GROMMET
8008P021-60 8008P021-60 GROMMET S
74007136 74007136 GUIDE, COOKING (TRILINGUAL)
74006286 74006286 HANDLE, DOOR (BLK)
74004945 74004945 HARNESS C
W10173419 W10173419 HARNESS, SPARK
WP74011140 WP74011140 HINGE- OVE
74004963 74004963 HOUSING C
74003388 74003388 HOUSING, BULB
WP74004410 WP74004410 IGNITER
74007498 74007498 IGNITER, OVEN
74004053 74004053 IGNITER- T
WP3413F018-19 WP3413F018-19 INSERT
WP74010942 WP74010942 INSULATION
WP74009201 WP74009201 INSULATION
7002P078-60 7002P078-60 INSULATION
74001842 74001842 INSULATION
74001084 74001084 INSULATION
74003503 74003503 INSULATION, OVEN
74005689 74005689 KNOB VALV
WP74003781 WP74003781 KNOB- VALV
WP8009P031-60 WP8009P031-60 LEVER-LOCK
8009 8009 LIGHT BULB
WP2402W271-19 WP2402W271-19 LINER-DOOR
2404F030-51 2404F030-51 LINING DR
16010161 16010161 MANUAL, SRVC ELEC/GAS RANGE
74005913 74005913 MANUAL, USE & CARE
8215557 8215557 MODULE, SPARK (4+0)
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE PURCHASE DOOR LATCH KIT FOR SWITCH
WP488130 WP488130 NUT
7103P130-60 7103P130-60 NUT
74005230 74005230 NUT
WP74003643 WP74003643 NUT, SNAP (SQUARE-BLK)
WP74001574 WP74001574 NUT- SNAP
WP7103P114-60 WP7103P114-60 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING
74001219 74001219 ORIFICE
74004465 74004465 PAN, BAKE BURNER
WP3401F075-19 WP3401F075-19 PAN, BROIL
2416F059-70 2416F059-70 PANEL, DRAWER (BLK)
74006426 74006426 PANEL, MANIFOLD (BLK)
74003283 74003283 PANEL, SIDE (BLK)
74006425 74006425 PANELBKGD
4020F001-80 4020F001-80 PEDESTAL
74005772 74005772 PEDESTAL, SIDE
74006422 74006422 PIPE MANI
74004307 74004307 PLATE BRO
WPW10282492 WPW10282492 RACK-OVEN
WP74006429 WP74006429 REGULATOR-
74003391 74003391 RETAINER
3804F245-51 3804F245-51 RETAINER, BOTTOM
74006342 74006342 RETAINER, DOOR LATCH INSULATION
74001844 74001844 RETAINER, GLASS
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNER, DRAWER (2)
WPW10068250 WPW10068250 SCREW
W10491986 W10491986 SCREW
WP8273096 WP8273096 SCREW
74009538 74009538 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WPY706189 WPY706189 SCREW
WP59002061 WP59002061 SCREW
WP98008545 WP98008545 SCREW
WP74003976 WP74003976 SCREW
W11693756 W11693756 SCREW
WP4159193 WP4159193 SCREW
W10856125 W10856125 SCREW
W11233072 W11233072 SCREW
WP71003275 WP71003275 SCREW
74002432 74002432 SCREW 1 3
74008798 74008798 SCREW W/SHOULDER (NO.8)
7101P330-60 7101P330-60 SCREW, SWITCH
WP854334 WP854334 SEAL-STRIP
12001655 12001655 SENSOR
WP74005231 WP74005231 SHAFT, STORAGE DRAWER ROLLER
3604F165-51 3604F165-51 SHIELD FL
74002447 74002447 SHIELD SI
3604F205-51 3604F205-51 SHIELD, DRAWER
8036P003-60 8036P003-60 SHIELD, SIGHT
4318047 4318047 SHIELD, VENT DEFLECTOR
3604F327-51 3604F327-51 SHIELD, WARMING DRAWER
WP74003387 WP74003387 SOCKT-LITE
W10857933 W10857933 SPACER
8010P085-60 8010P085-60 SPACER RU
8010P048-60 8010P048-60 SPACER, MAIN TOP
8010P088-60 8010P088-60 SPACER, MAIN TOP (RT)
8010P087-60 8010P087-60 SPACER- MA
74003385 74003385 STRAP INS
3807F480-45 3807F480-45 SUPPORT, BAKE BNR
74004499 74004499 SUPPORT, SPARK MODULE
74007129 74007129 SUPPORT, VALVE REGULATOR
74003383 74003383 SWITCH DO
WP74008718 WP74008718 SWITCH, ROCKER (BLK)
WP7403P279-60 WP7403P279-60 SWITCH- IG
WP74007095 WP74007095 SWITCH- IG
8270P090-60 8270P090-60 TAPE, FOIL (3`` WIDE)
74003660 74003660 TAPE, FOIL (8.75`` X 1``)
71003047 71003047 TOP, MAIN (BLK)
12001292 12001292 TRIM KIT-
74007370 74007370 TRIM, VENT (BLK)
74006430 74006430 TUBING- BR
WP74006428 WP74006428 TUBING- RE
WP74003924 WP74003924 VALVE, BURNER
12002316 12002316 VALVE, TOP BURNER
74004409 74004409 VALVE, TOP BURNER
WP74006427 WP74006427 VALVE- OVE
WP74001521 WP74001521 WASHER 1
12001323 12001323 WIRE TERMI
15002242 15002242 WIRING INFORMATION
