Model Image
Manufacturer

Whirlpool

Model Number

MGR6875ADW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
3826W052-45 3826W052-45 ASSEMBLY.
3601F339-45 3601F339-45 BAFFL-BRNR
3601F358-45 3601F358-45 BAFFL-BRNR
3601F373-51 3601F373-51 BAFFLE
3601F354-45 3601F354-45 BAFFLE
3601F308-19 3601F308-19 BAFFLE
74009502 74009502 BAFFLE, OVEN DOOR
74009962 74009962 BASE, GEMINI
WPW10245259 WPW10245259 BLOCK-TERM
74009330 74009330 BOOKLET, COOKING MADE SIMPLE
2205F051-19 2205F051-19 BOTTOM, LOWER OVEN
2205F055-19 2205F055-19 BOTTOM, OVEN (UPPER)
W10283722 W10283722 BOX, BURNER (LT)
W10283688 W10283688 BOX, BURNER (RT)
WP3801F656-51 WP3801F656-51 BRACKET
3801F691-51 3801F691-51 BRACKET
3801F851-51 3801F851-51 BRACKET
74010106 74010106 BRACKET M
74007377 74007377 BRACKET V
3801F832-45 3801F832-45 BRACKET, HANDLE (LEFT)
3801F831-45 3801F831-45 BRACKET, HANDLE (RIGHT)
74003384 74003384 BRACKET, MAIN TOP
3801F681-45 3801F681-45 BRACKET, ORIFICE FITTING
74001632 74001632 BRACKET, SWITCH ACTUATOR
3801F706-51 3801F706-51 BRACKET- R
3801F705-51 3801F705-51 BRACKET- R
3801F886-51 3801F886-51 BRKT-MNTG
WP74009925 WP74009925 BULB- HALO
W10919249 W10919249 BUMPER
74001631 74001631 BUMPER- RO
7505P323-60 7505P323-60 BURNER, BROIL
74010094 74010094 BURNER- BA
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406283 WPW10406283 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WP74007422 WP74007422 CAP, BURNER (SMR-GRY)
WP74007420 WP74007420 CAP-BURNER
WP74007752 WP74007752 CAP-BURNER
WP74007421 WP74007421 CAP-BURNER

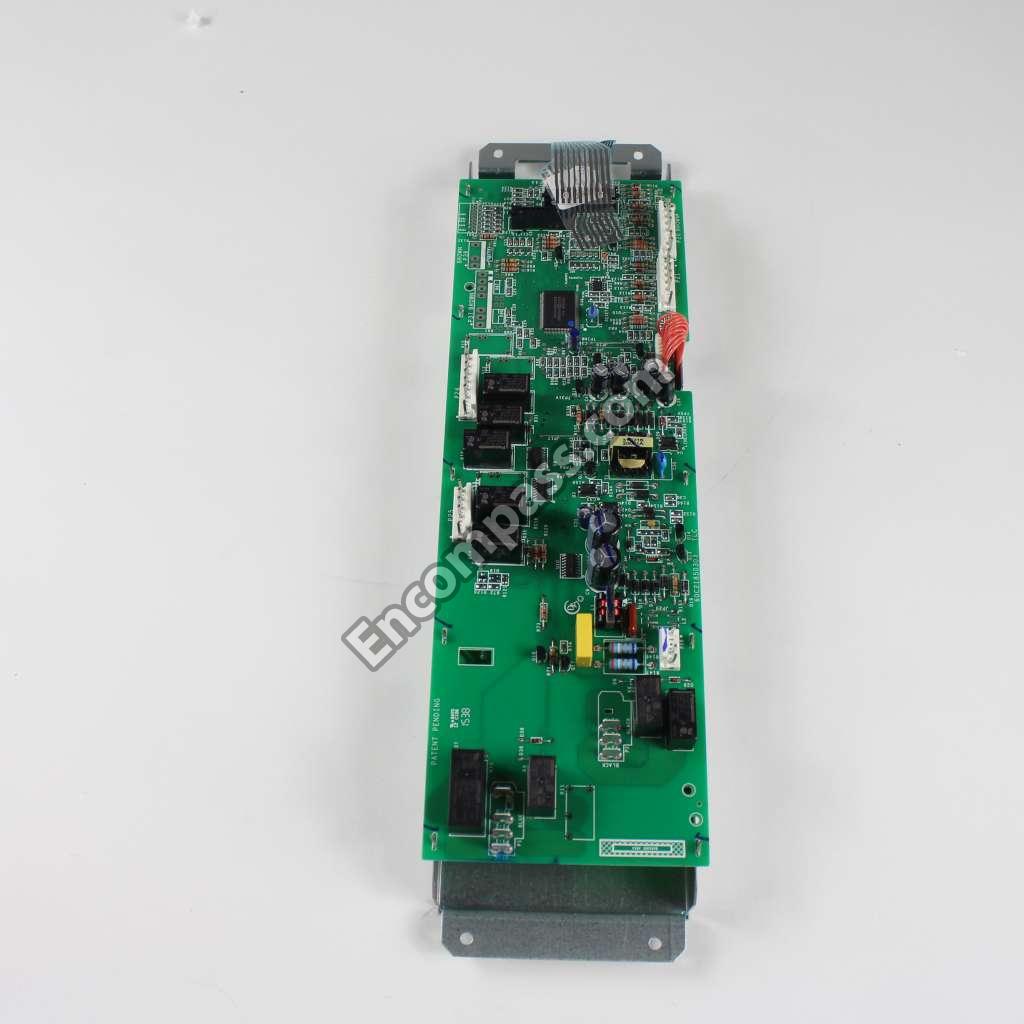

WP5701M800-60 WP5701M800-60 CONTROL/SWITCH ASSEMBLY (WHT)
74007373 74007373 CORD, POWER
4005F743-51 4005F743-51 COVER
4005F736-45 4005F736-45 COVER
4005F421-45 4005F421-45 COVER IGN
4005F695-45 4005F695-45 COVER- BOT
4005F741-51 4005F741-51 COVER- CON
W10210727 W10210727 COVER-REAR
4002F341-51 4002F341-51 COVER-REAR
WP3608F141-71 WP3608F141-71 DOOR TRIM
74007374 74007374 EXTENSION
3826W042-45 3826W042-45 EXTENSION
WPW10206589 WPW10206589 FAN-CONVCT
74009910 74009910 FITTING B
4022W055-45 4022W055-45 FLUE
W11665456 W11665456 FOOT-LEVEL
74004567 74004567 FRAME, GLASS
74003644 74003644 FRAME, GLASS
WP7201P091-60 WP7201P091-60 GASKT-DOOR
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS, DOOR
WP74004571 WP74004571 GLASS, OVEN DOOR
12002396 12002396 GLASS-DOOR
74003645 74003645 GLASS-DOOR
74004566 74004566 GLASS-DOOR
WP8016P015-60 WP8016P015-60 GLIDE-DRWR
7518P288-60 7518P288-60 GRATE (GRY)
WP74005934 WP74005934 GROMMET
74007368 74007368 GROMMET
WP74009970 WP74009970 HALOGEN LAMP ASSEMBLY.
WP74011768 WP74011768 HANDLE- DO
74010059 74010059 HARNESS, SENSOR
W10202387 W10202387 HARNESS, SPARK
5175P365-60 5175P365-60 HARNESS- D
74010123 74010123 HARNESS- M
74009965 74009965 HARNESS- S
74007830 74007830 HINGE ASSEMBLY. UPPER DOOR
WP74011141 WP74011141 HINGE- OVE
WP74007961 WP74007961 HOLDER- OR
WP7527P028-60 WP7527P028-60 HOLDER-ORF
WP7527P023-60 WP7527P023-60 HOLDER-ORF
WP7527P021-60 WP7527P021-60 HOLDER-ORF
4005F805-51 4005F805-51 HOUSING, CONTROL PANEL

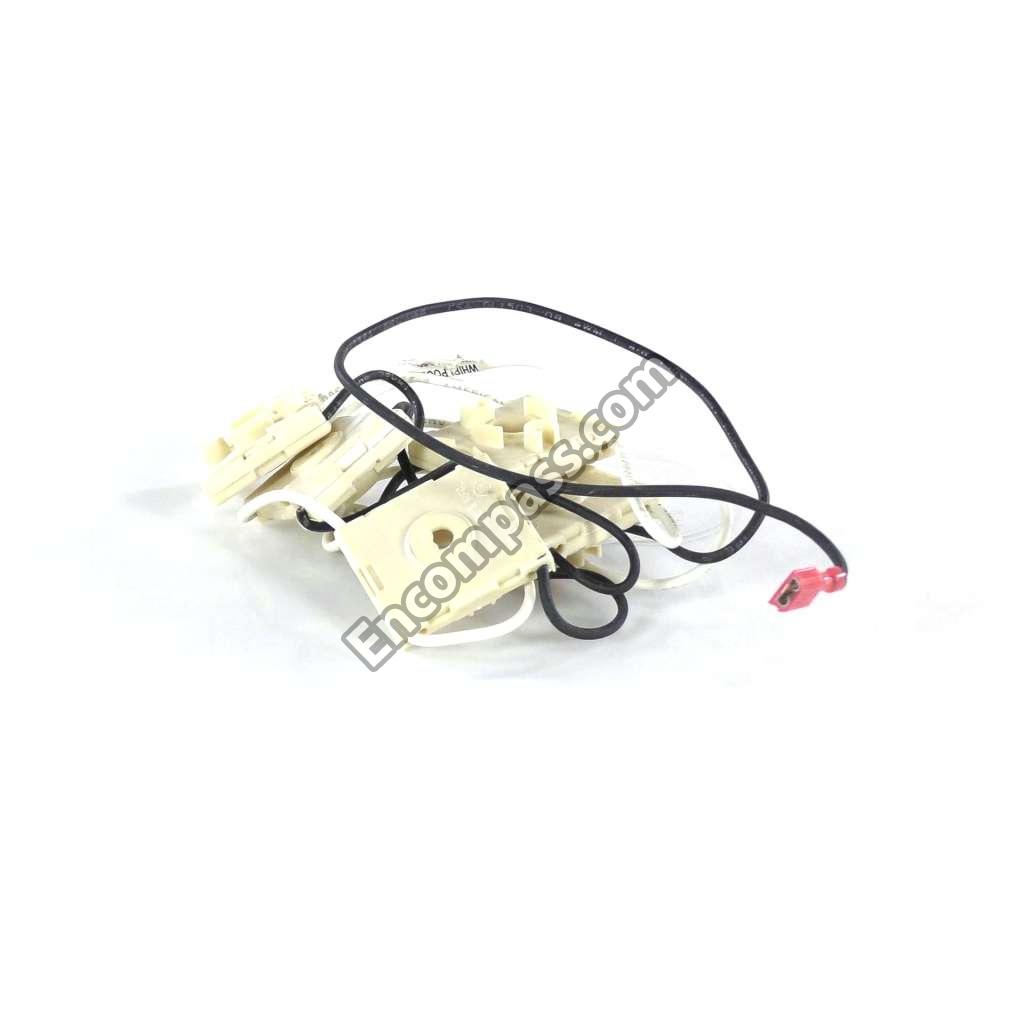

12002791 12002791 IGNITER SWITCH W/SHIELD ASY
WP74007966 WP74007966 IGNITOR- B
W11596211 W11596211 IGNTR-OVEN
WP8523793 WP8523793 IGNTR-SURF
WP3413F018-19 WP3413F018-19 INSERT
74010090 74010090 INSULATION
74010091 74010091 INSULATION
74007440 74007440 INSULATION
7002P246-60 7002P246-60 INSULATION
74007899 74007899 INSULATION, BURNER BOX
74004569 74004569 INSULATION, DOOR (8.5 X 21.5)
74010089 74010089 INSULATION, OVEN WRAP (LWR)
74001872 74001872 INSULATOR
12002455 12002455 KIT DOOR
12002469 12002469 KIT- NATUR
12002270 12002270 KIT- VALVE

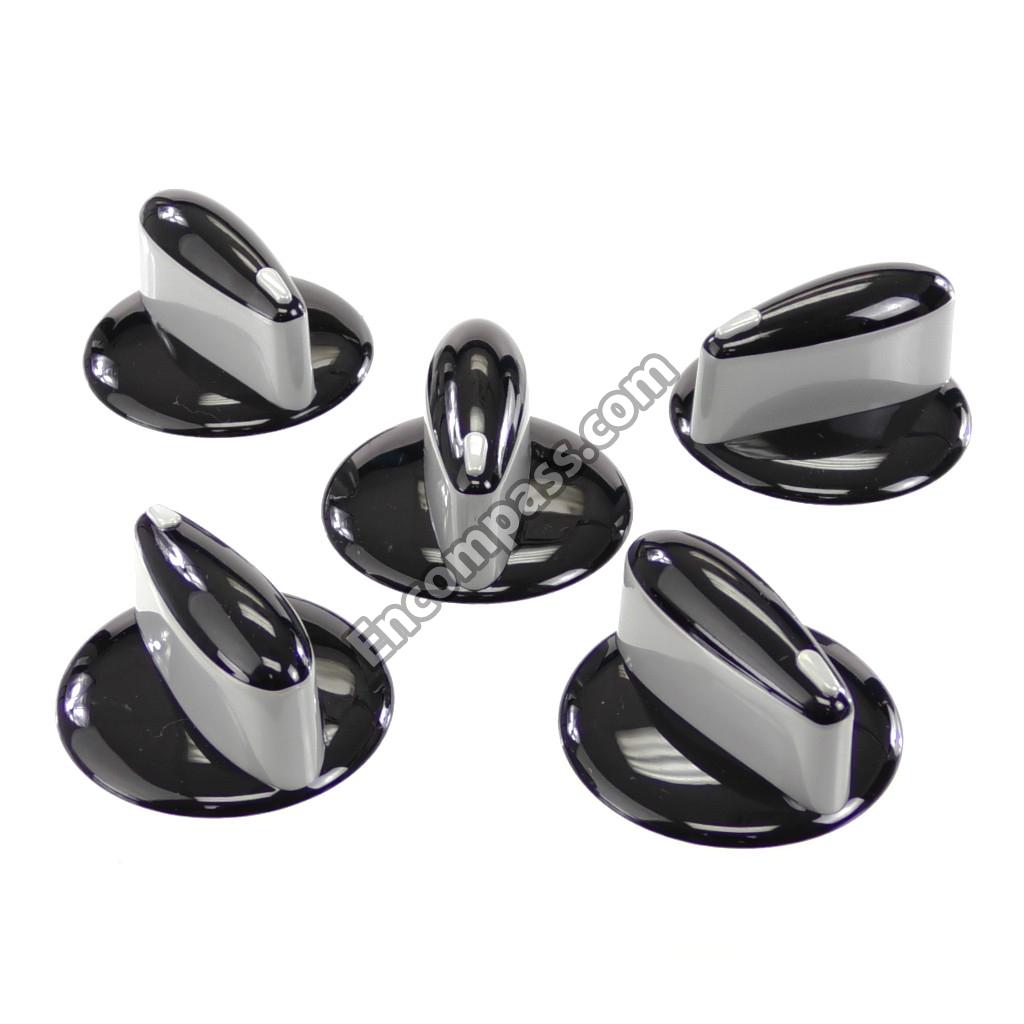

W10920307 W10920307 KNOB
WP2402W312-19 WP2402W312-19 LINER-DOOR
WP2402W267-19 WP2402W267-19 LINING, DOOR
74004564 74004564 LINING, OVEN DOOR
74007369 74007369 LOCK PURS
74007429 74007429 LOCK- DOOR
8113P579-60 8113P579-60 MANUAL, USE & CARE
8113P444-60 8113P444-60 MANUAL, USE & CARE
74010082 74010082 MINI-MANUAL (GAS)
74009098 74009098 MODULE- SP
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
74007451 74007451 NUT- ORIFI
WP74001574 WP74001574 NUT- SNAP
WP7103P114-60 WP7103P114-60 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING
WP74010612 WP74010612 ORIFICE/FITTING, BROIL
W10172248 W10172248 PAN, BAKE (UPR)
WP3401F075-19 WP3401F075-19 PAN, BROIL
74010114 74010114 PANEL CON
74003236 74003236 PANEL, SIDE (WHT)
7513P529-60 7513P529-60 PIPE-MNFLD
7513D535-60 7513D535-60 PIPE-MNFLD
3605F338-19 3605F338-19 PLATE
3807F647-45 3807F647-45 PLATE-BROL
74005218 74005218 RACK, TELESCOPING ASSEMBLY
WPW10273816 WPW10273816 RACK-OVEN
WPW10282492 WPW10282492 RACK-OVEN
74007387 74007387 REGULATOR
74005498 74005498 RETAINER
74007443 74007443 RETAINER
74003650 74003650 RETAINER
74004592 74004592 RETAINER
74003562 74003562 ROD, DOOR LIGHT SWITCH
WP400021-1 WP400021-1 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP74003976 WP74003976 SCREW
WPY706189 WPY706189 SCREW
WP98008544 WP98008544 SCREW
WP4159193 WP4159193 SCREW
WP3387230 WP3387230 SCREW
W11111008 W11111008 SCREW
7101P287-60 7101P287-60 SCREW
7101P345-60 7101P345-60 SCREW
W11233072 W11233072 SCREW
74008798 74008798 SCREW
74003975 74003975 SCREW
WP74006515 WP74006515 SCREW
74007582 74007582 SCREW WHT
7101P330-60 7101P330-60 SCREW, SWITCH
74007428 74007428 SEAL- FRON
WP74008212 WP74008212 SEAL-SWTCH
12001655 12001655 SENSOR
WP74011433 WP74011433 SENSOR- OV
74010084 74010084 SHIELD SI
3401F091-45 3401F091-45 SHIELD-HT
W10857933 W10857933 SPACER
WP74005546 WP74005546 SPACER- RU
3823F015-51 3823F015-51 SPACER- SI
74001629 74001629 SPRING- DO
WP3807F708-71 WP3807F708-71 SUPPORT
74005500 74005500 SUPPORT O
74007500 74007500 SUPPORT O
3807F734-71 3807F734-71 SUPPORT, BACKGUARD (WHT-LT)
3807F733-71 3807F733-71 SUPPORT, BACKGUARD (WHT-RT)
3807F643-45 3807F643-45 SUPPORT- O
74004536 74004536 SWITCH
WP7450P108-60 WP7450P108-60 SWTCH-LITE
WP74009014 WP74009014 TAPE- DBL
16027364 16027364 TECH SHT, RPL 16023456 ELRAN
74010117 74010117 TOP, MAIN 5 BURNER (WHT)
3604F398-81 3604F398-81 TRIM, VENT (WHT)
WP3608F116-71 WP3608F116-71 TRIM-DOOR
WP3608F117-71 WP3608F117-71 TRIM-DOOR
3608F119-71 3608F119-71 TRIM-DOOR
3608F118-71 3608F118-71 TRIM-DOOR
3608F121-37 3608F121-37 TRIM-VENT
74010096 74010096 TUBING MA
74010095 74010095 TUBING UP
7507P395-60 7507P395-60 TUBING, BAKE (INCL. ORIFICE) (LOWER OVEN)
WP74009247 WP74009247 TUBING, BAKE BURNER (LWR)
WP74009246 WP74009246 TUBING, BAKE BURNER (UPR)
74008013 74008013 TUBING- BA
74010098 74010098 TUBING- RE
74009242 74009242 TUBING- TO
7506P417-60 7506P417-60 TUBING- TO
7506P429-60 7506P429-60 TUBING- UP
WP7506P378-60 WP7506P378-60 TUBING-GAS
74011291 74011291 TUBING-GAS
WP74011293 WP74011293 TUBING/ORIFICE, BURNER (UPR)
74007408 74007408 VALVE, BAKE & BROIL
7502P565-60 7502P565-60 VALVE, SHUT OFF (INCL. SCREW)
WP74011290 WP74011290 VALVE- BAK
12002268 12002268 VALVE-BRNR
12002269 12002269 VALVE-BRNR
15003762 15003762 WIRING INFORMATION
15003574 15003574 WIRING INFORMATION
