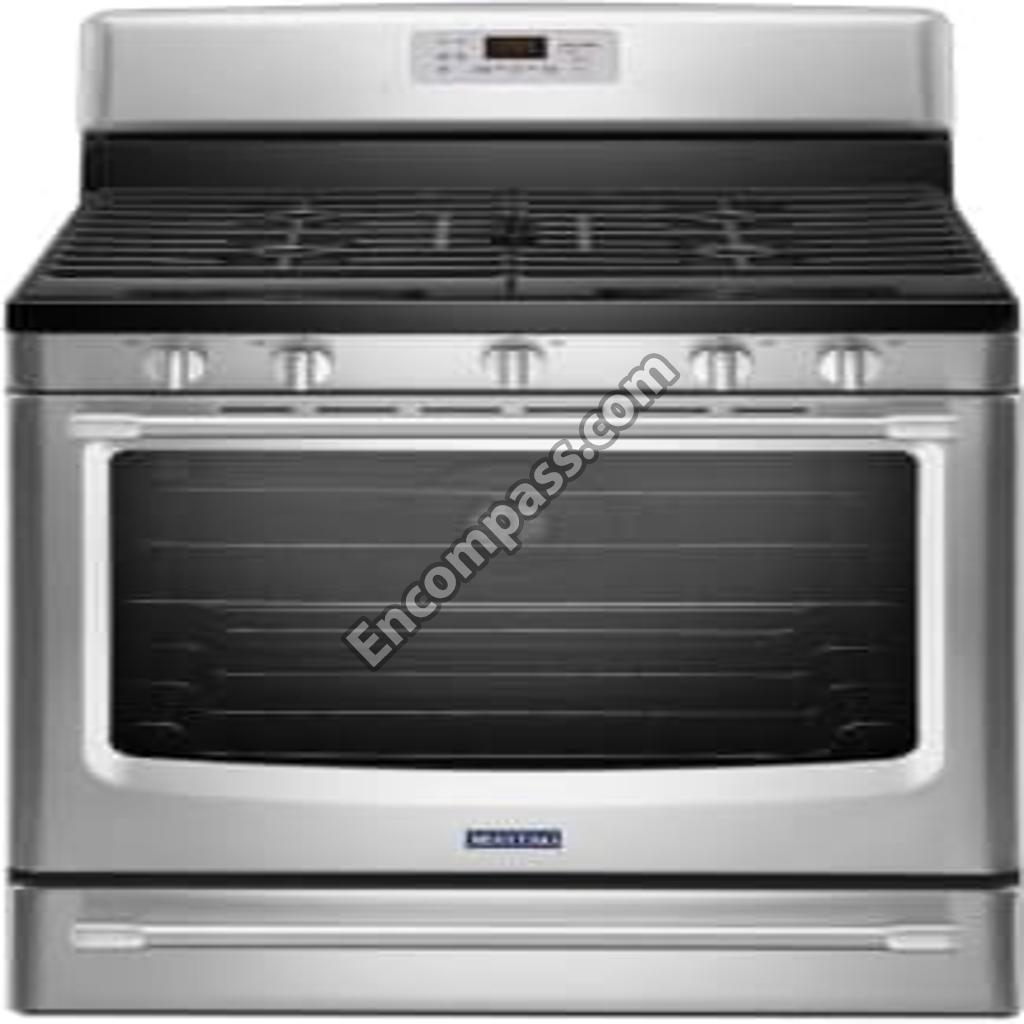

Model Image
Manufacturer

Whirlpool

Model Number

MGR8700DS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10750011 W10750011 ACCESSORIES, CLEANER, OVEN (AQUALIFT TECH)
241430 241430 ACCESSORY PARTS, ALUMINUM FOIL
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11447673 W11447673 ANCHOR-TIP
W10416099 W10416099 BACK, MAIN
W10323077 W10323077 BAFFL-BRNR
3601P336-45 3601P336-45 BAFFLE, BROIL BURNER

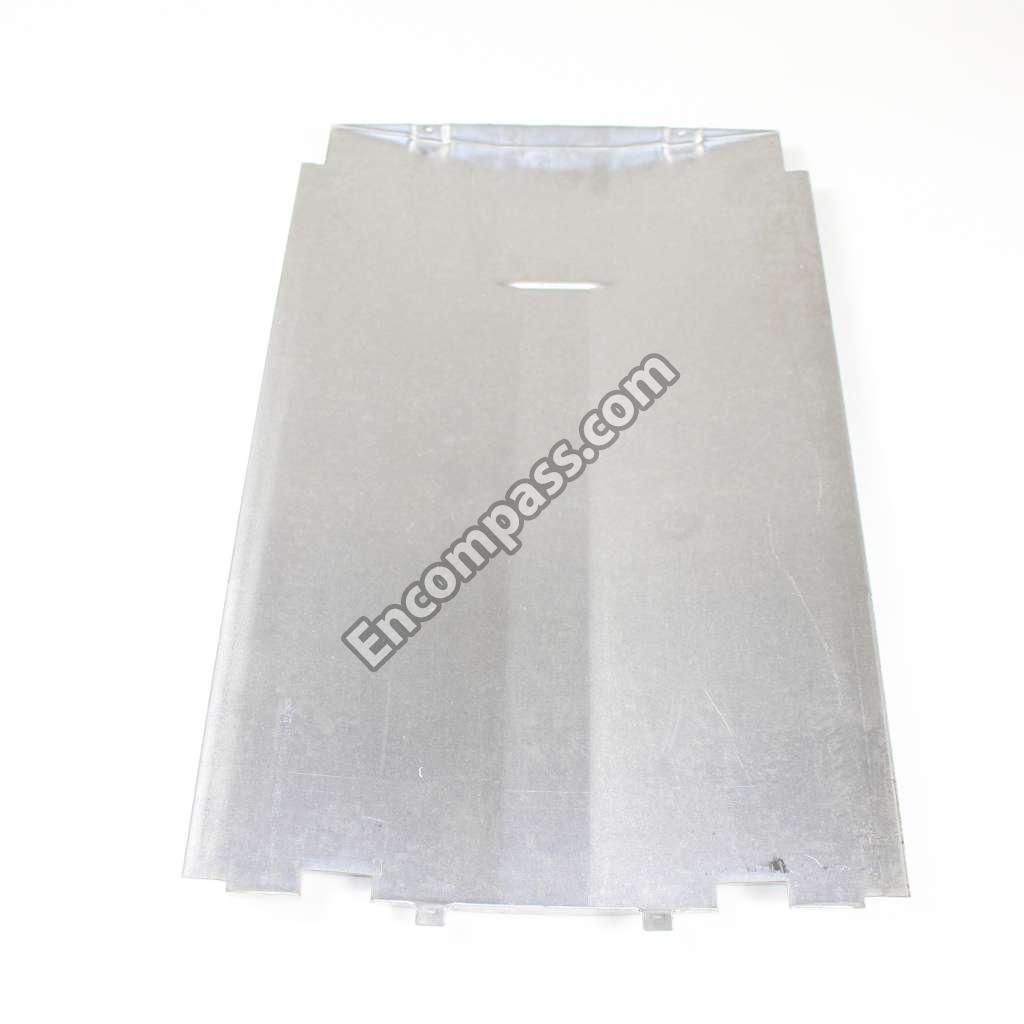

3601P356-45 3601P356-45 BAFFLE, BURNER
WPW10211368 WPW10211368 BOTTM-OVEN
W10435470 W10435470 BRACE
WPW10318026 WPW10318026 BRKT-MNTG
W10224921 W10224921 BRKT-MNTG
W10516123 W10516123 BRKT-MNTG
W10516463 W10516463 BRKT-MNTG
W11230932 W11230932 BRKT-MNTG
W10949105 W10949105 BRKT-MNTG
W10294852 W10294852 BRKT-MNTG
W10294853 W10294853 BRKT-MNTG
W10273002 W10273002 BRKT-SUPRT
W10035900 W10035900 BRKT-SUPRT
W10534174 W10534174 BRKT-SUPRT
W10530070 W10530070 BRKT-SUPRT
W11116956 W11116956 BRKT-SUPRT

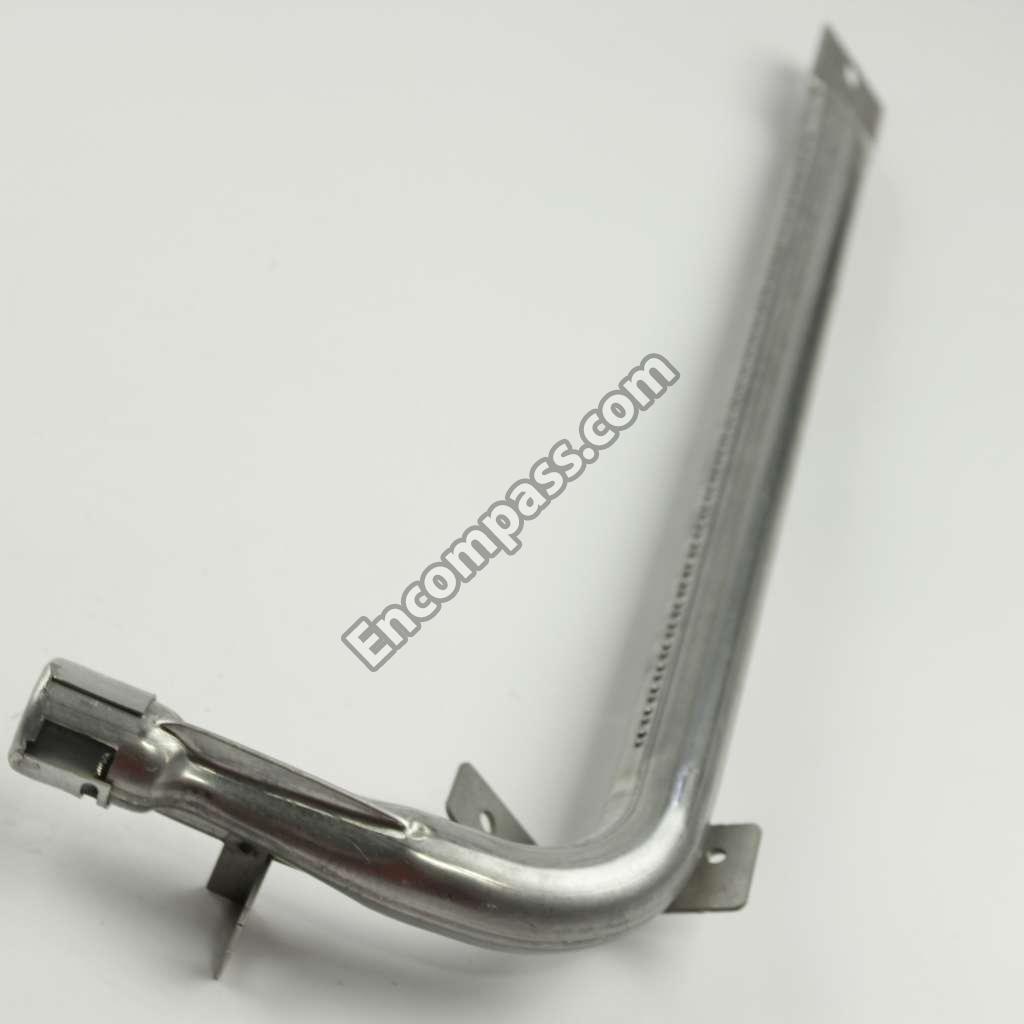

W11676566 W11676566 BURNR-BRLR
WPW10515453 WPW10515453 BURNR-HEAD
WPW10515454 WPW10515454 BURNR-HEAD
WPW10515455 WPW10515455 BURNR-HEAD
W10764654 W10764654 BURNR-OVEN

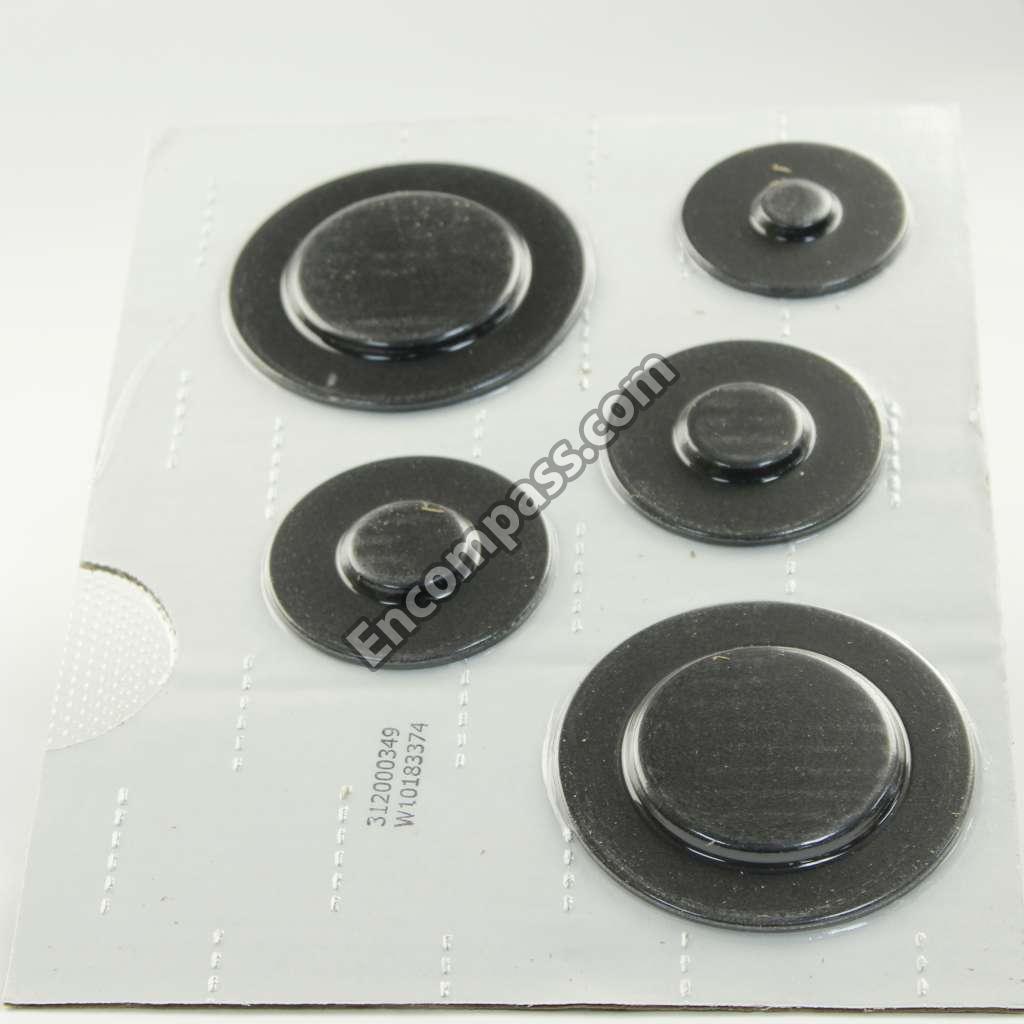

WPW10183374 WPW10183374 CAP-BURNER
W10137382 W10137382 CLIP
W10334923 W10334923 CLIP
3196896 3196896 CLIP, WIRE

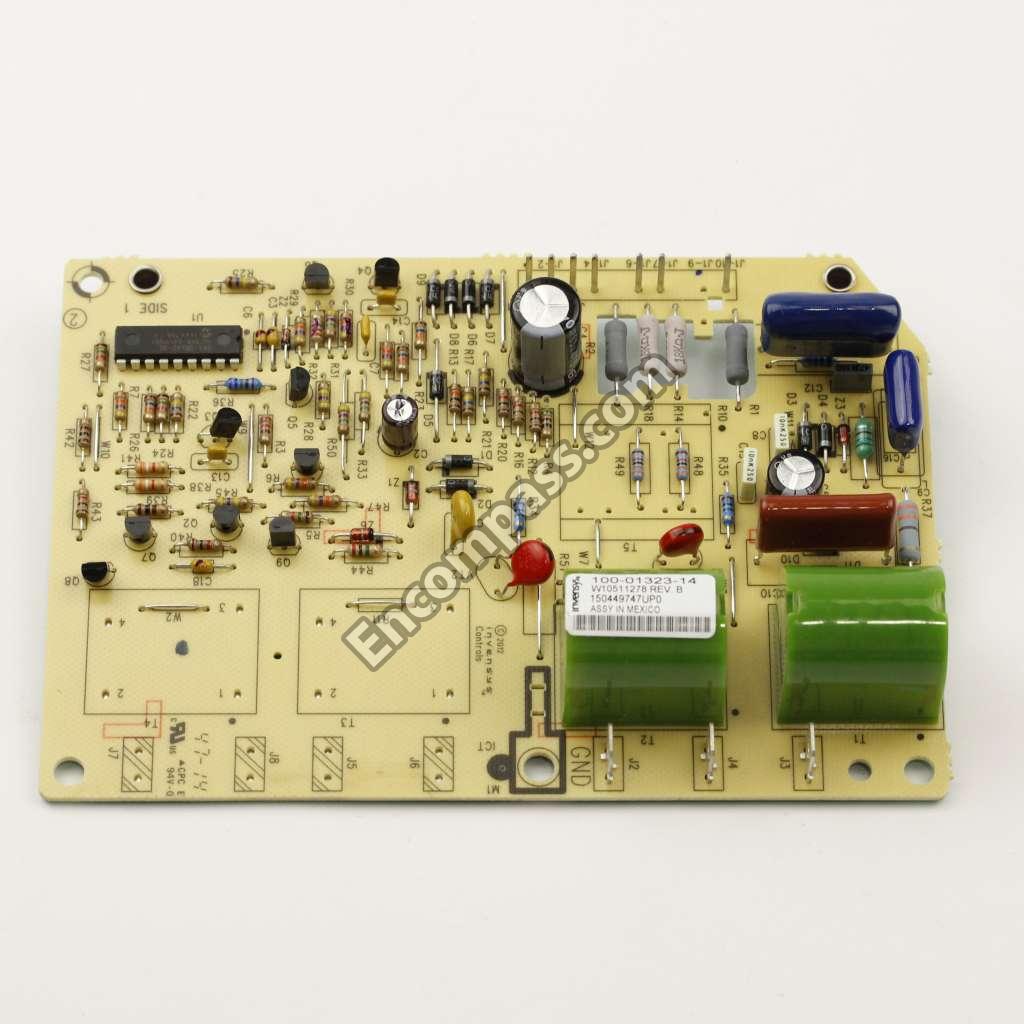

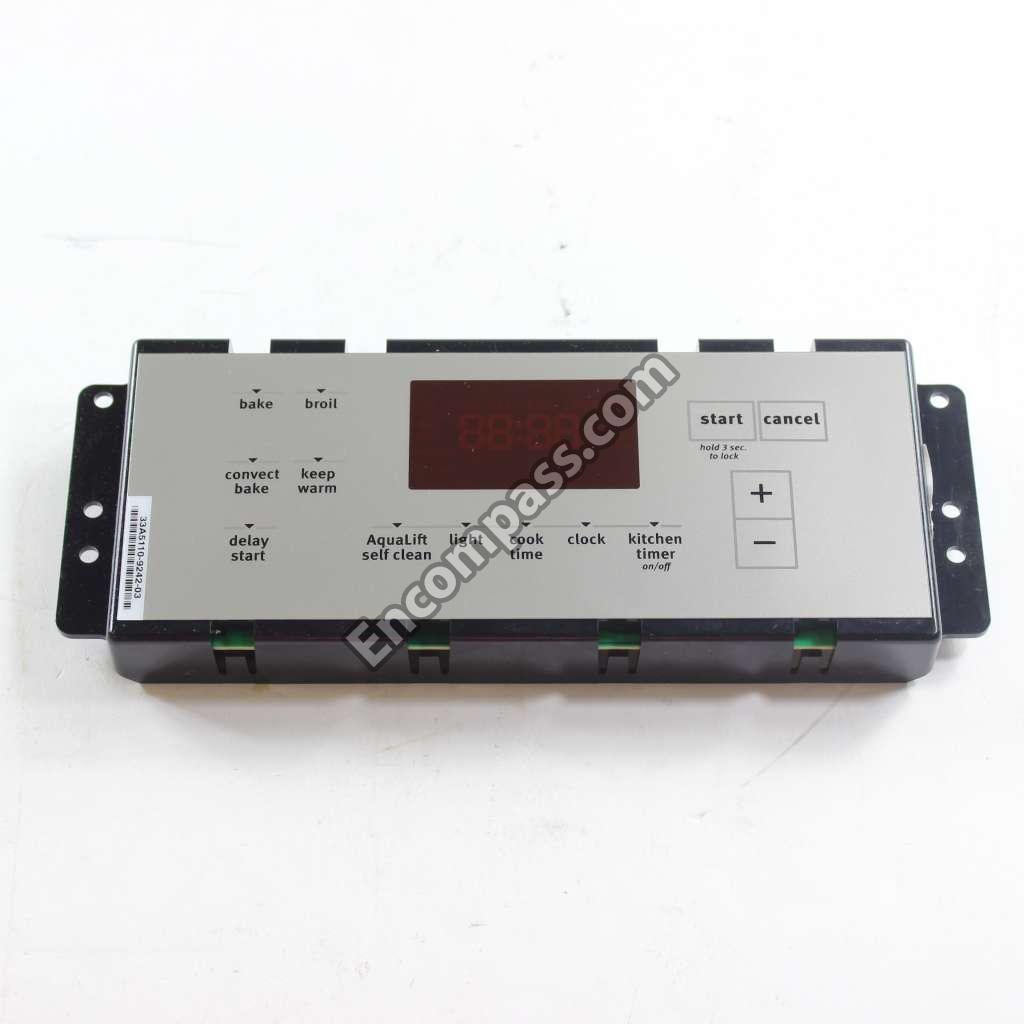

W10837276 W10837276 CONTROL BOARD
WPW10655868 WPW10655868 CONTROL BOARD
WPW10655867 WPW10655867 CONTROL BOARD

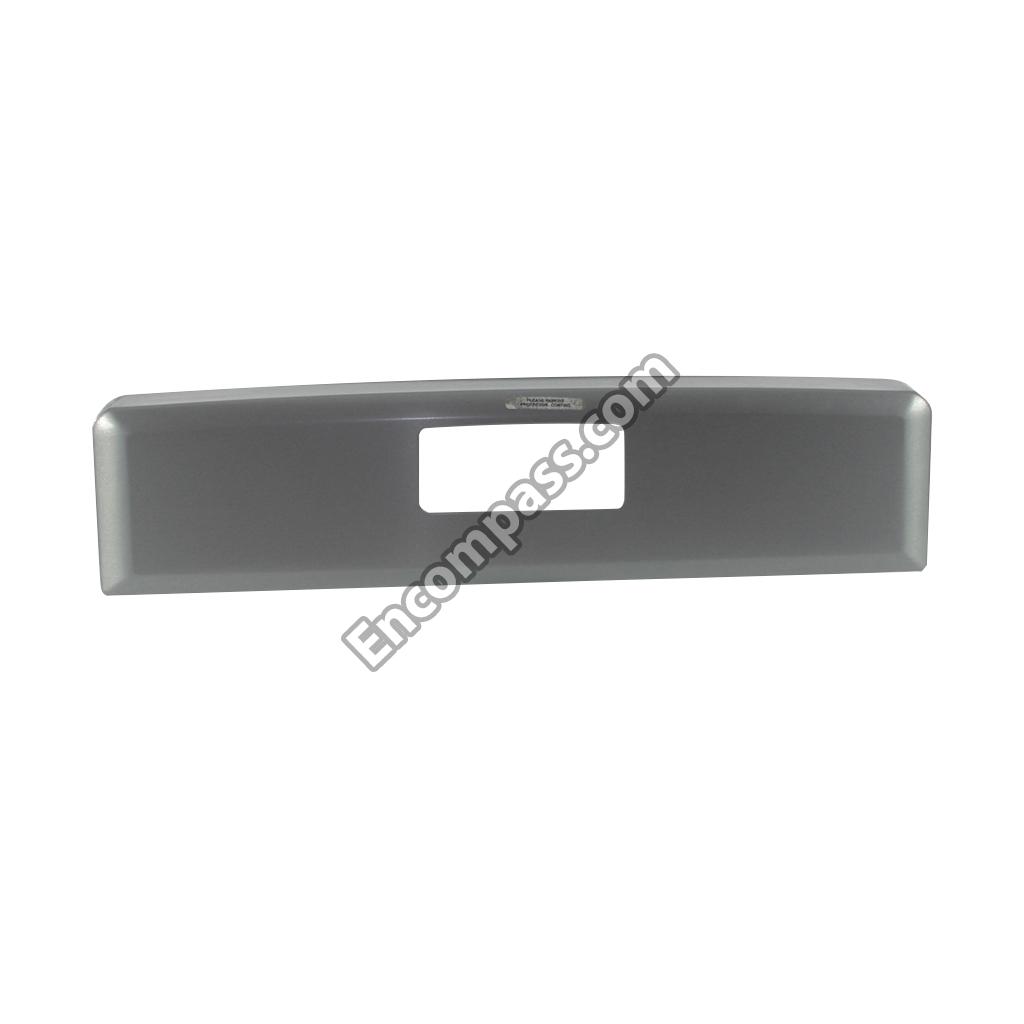

WPW10655864 WPW10655864 CONTROL PANEL
WPW10655861 WPW10655861 CONTROL PANEL
W10457321 W10457321 COOKTOP
W10457322 W10457322 COOKTOP
WPW10346154 WPW10346154 COVER
W10158780 W10158780 COVER-REAR
W10198745 W10198745 COVER-REAR
W10184251 W10184251 COVERREAR
WPW10665831 WPW10665831 DOOR HANDLE

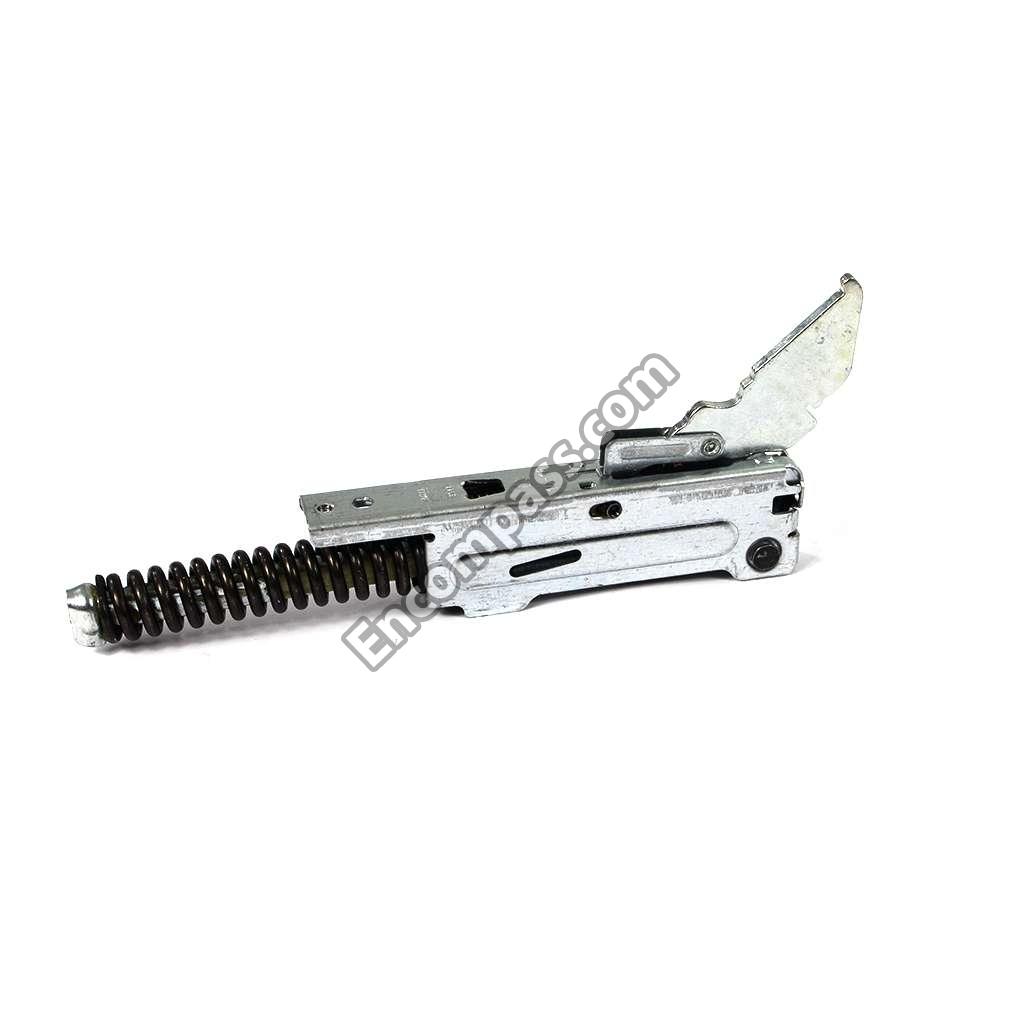

WPW10388635 WPW10388635 DOOR HINGE
WPW10330075 WPW10330075 DOOR TRIM
W10813962 W10813962 DRAWR-UTIL
W11219665 W11219665 ENDCAP-PNL
W11219370 W11219370 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
WPW10389555 WPW10389555 FAN-CONVCT
W10583216 W10583216 FITTING, BROIL BURNER
W11243157 W11243157 FLUE-OVEN
W10314347 W10314347 FLUE-OVEN
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
W11562931 W11562931 GASKT-DOOR

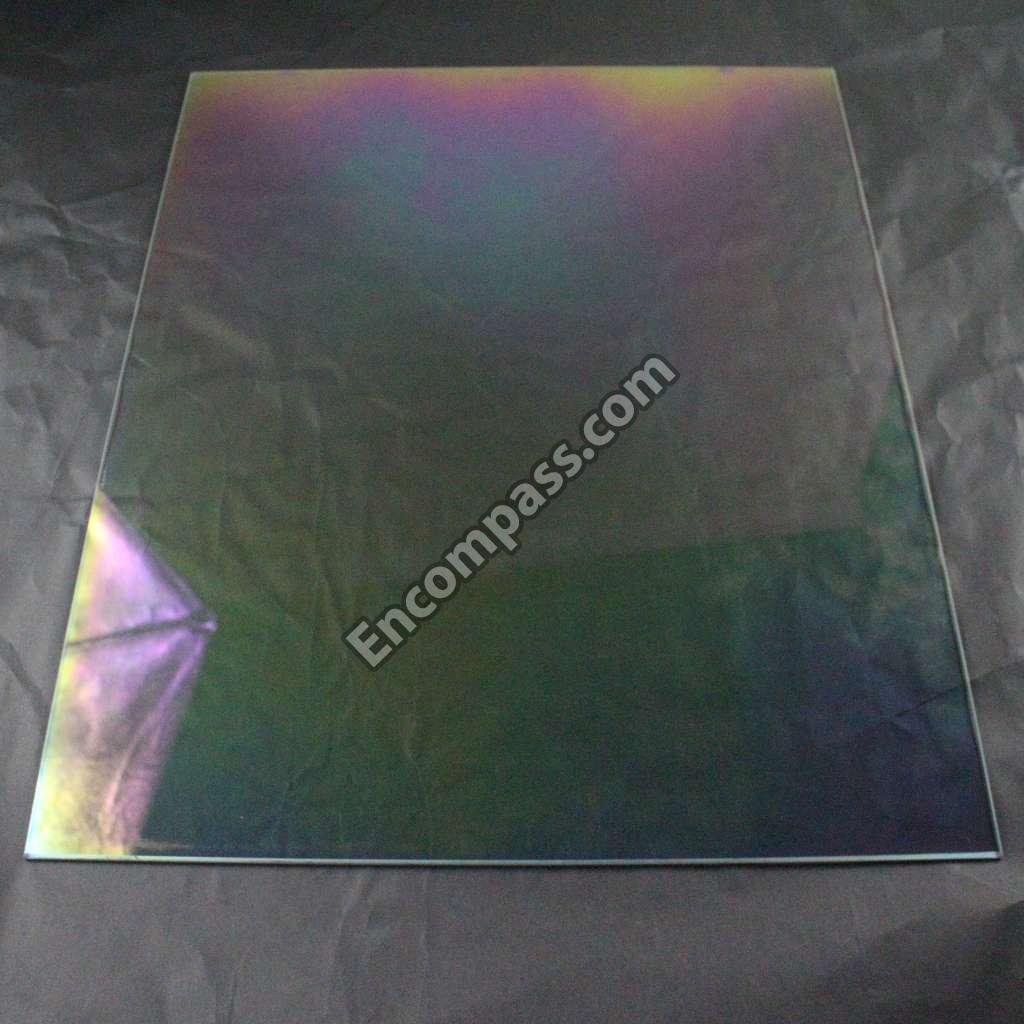

WPW10615599 WPW10615599 GLASS DOOR
WPW10300487 WPW10300487 GLASS DOOR
W11381652 W11381652 GRATE-BRNR
W10400066 W10400066 GUIDE, QUICK START (ENGLISH)

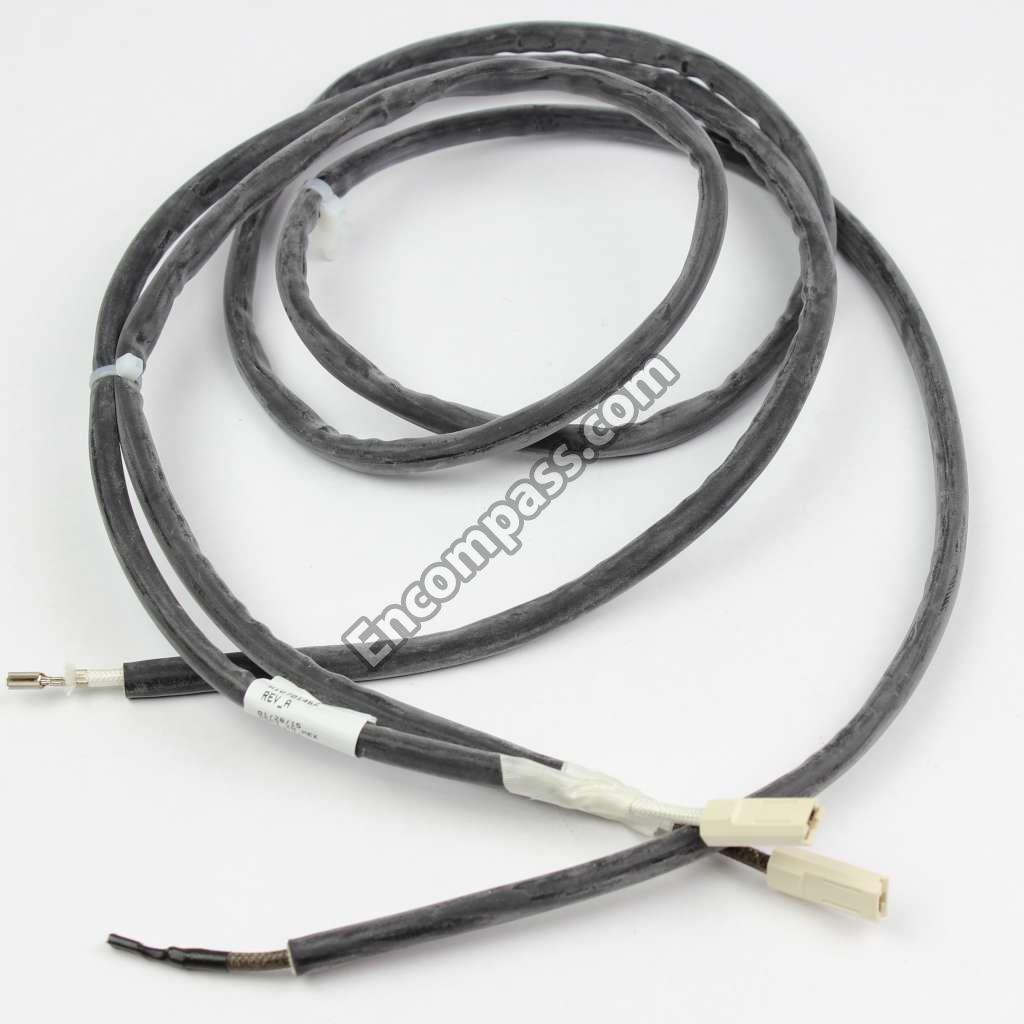

W10519952 W10519952 HARNS-WIRE
W10519934 W10519934 HARNS-WIRE
W10519920 W10519920 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
W10665829 W10665829 HNDLE-DOOR
W10665830 W10665830 HNDLE-DOOR

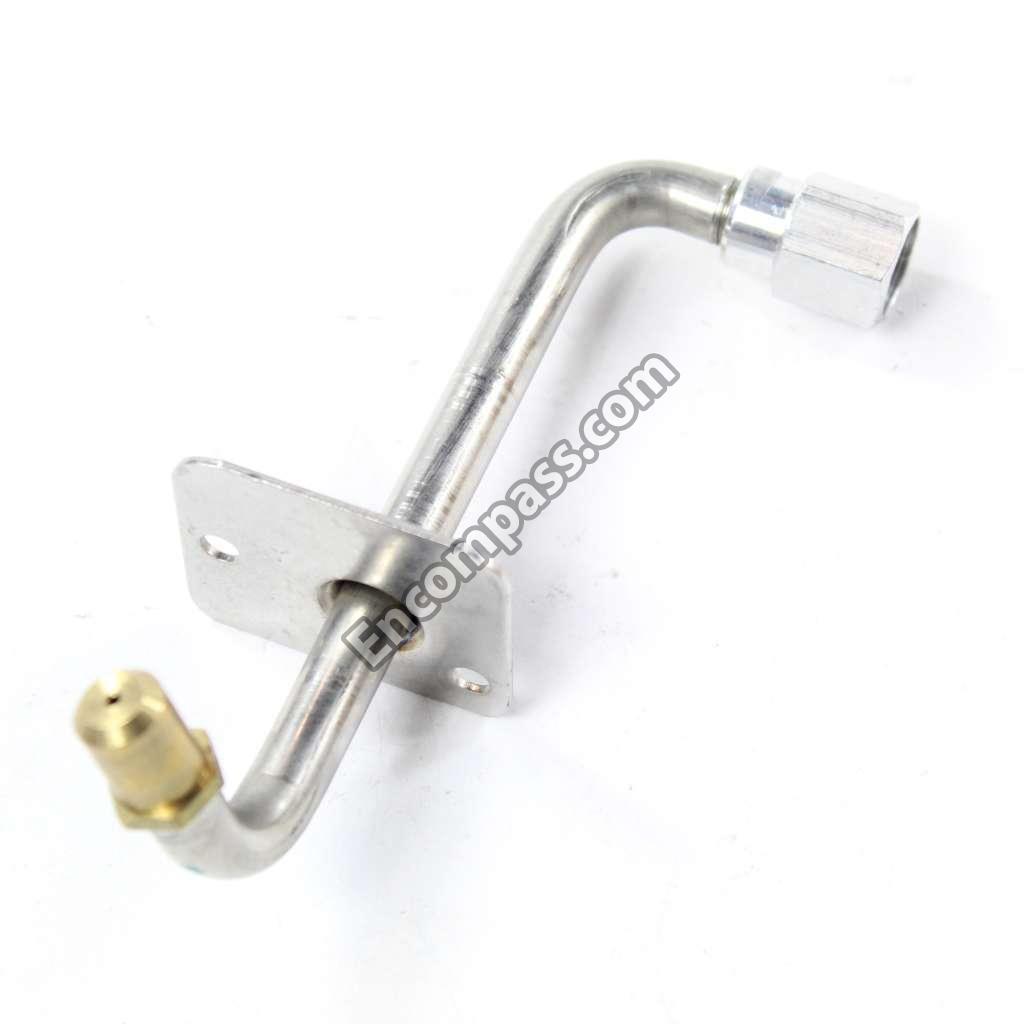

W11700294 W11700294 HOLDER-ORF
W10474170 W10474170 HOLDER-ORF
W11234417 W11234417 HOLDER-ORF
W10473935 W10473935 HOLDER-ORF
W11700304 W11700304 HOLDER-ORF

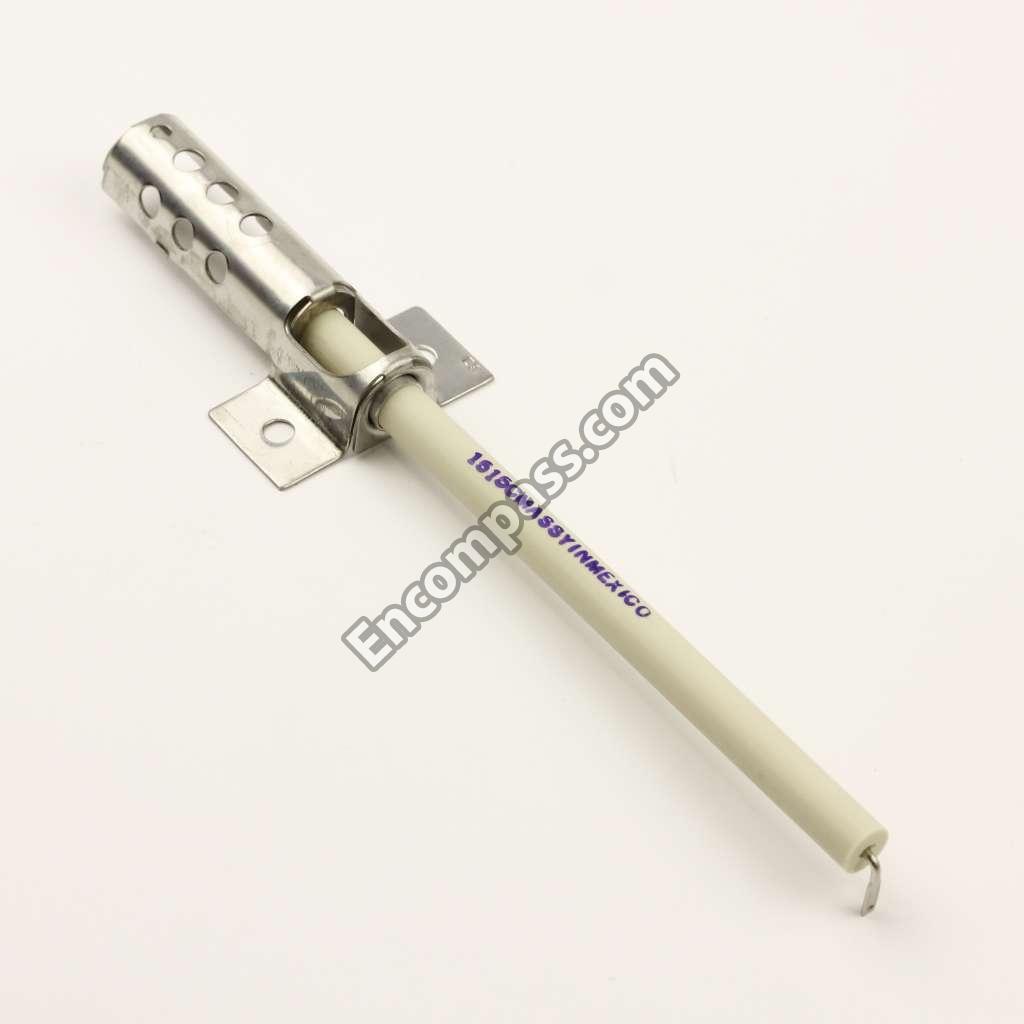

WPW10333842 WPW10333842 IGNTR-OVEN

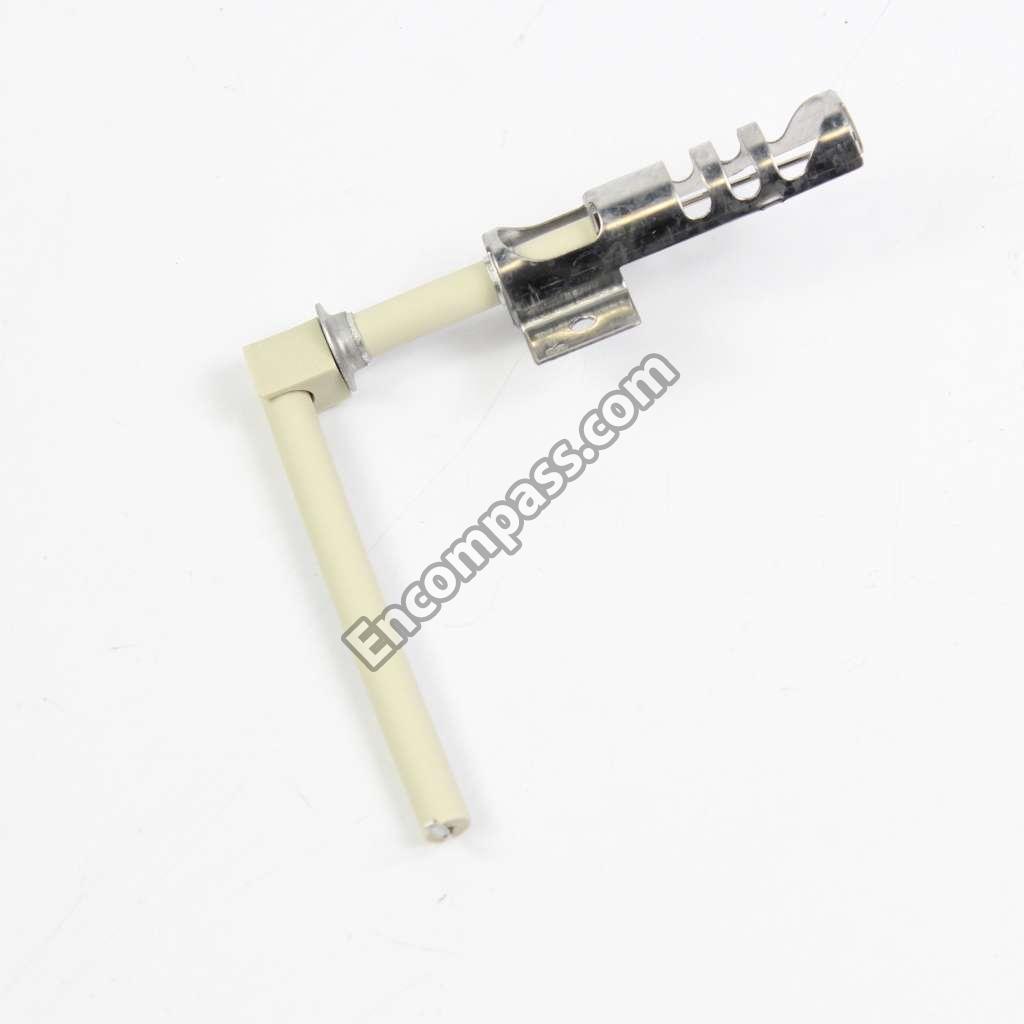

WPW10324262 WPW10324262 IGNTR-OVEN
WPW10515459 WPW10515459 IGNTR-SURF
W10553363 W10553363 INSTRUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
W11688362 W11688362 INSULATION
W11688566 W11688566 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP

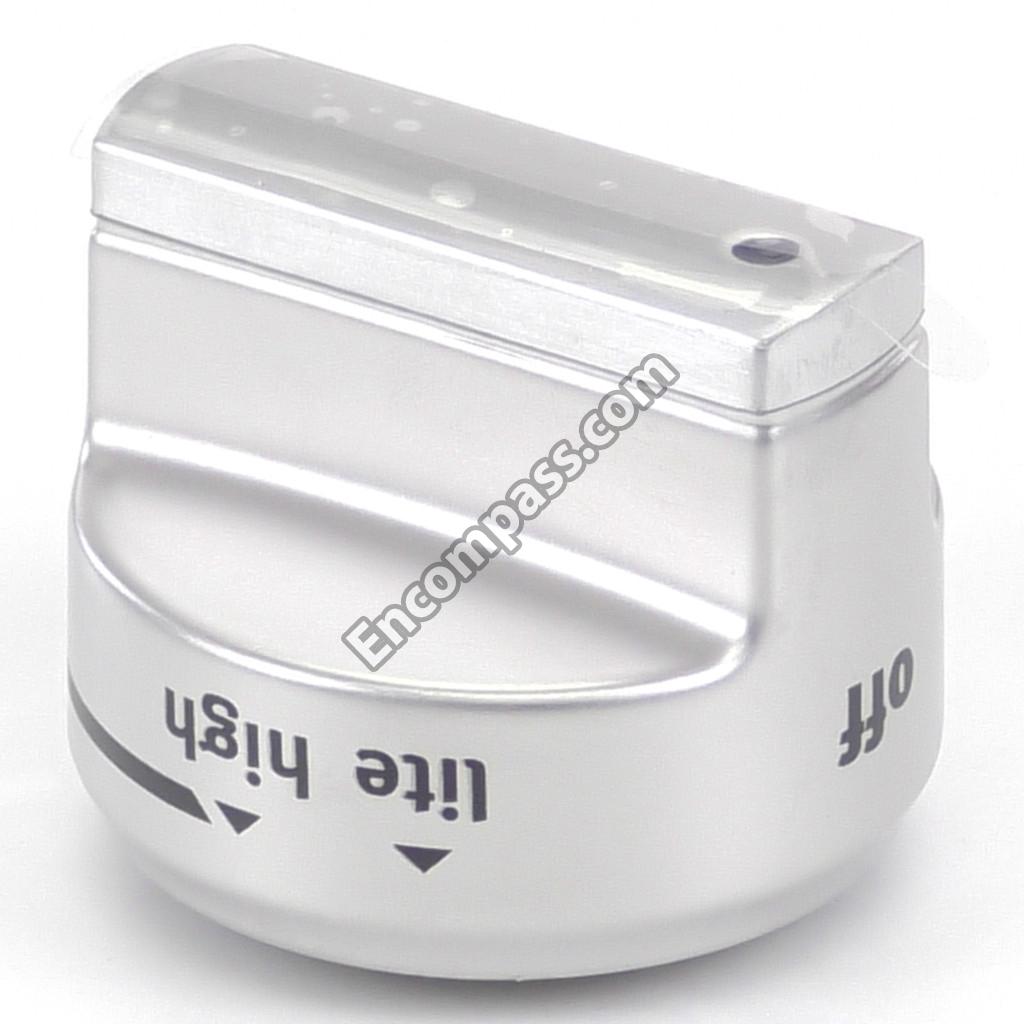

WPW10650400 WPW10650400 KNOB
8009 8009 LIGHT BULB
WPW10297318 WPW10297318 LINER-DOOR
WPW10413870 WPW10413870 MANIFOLD
W10911300 W10911300 NAMEPLATE
WPW10170507 WPW10170507 ORIFICE
W10853607 W10853607 ORIFICE
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11379356 W11379356 PAN, BAKE

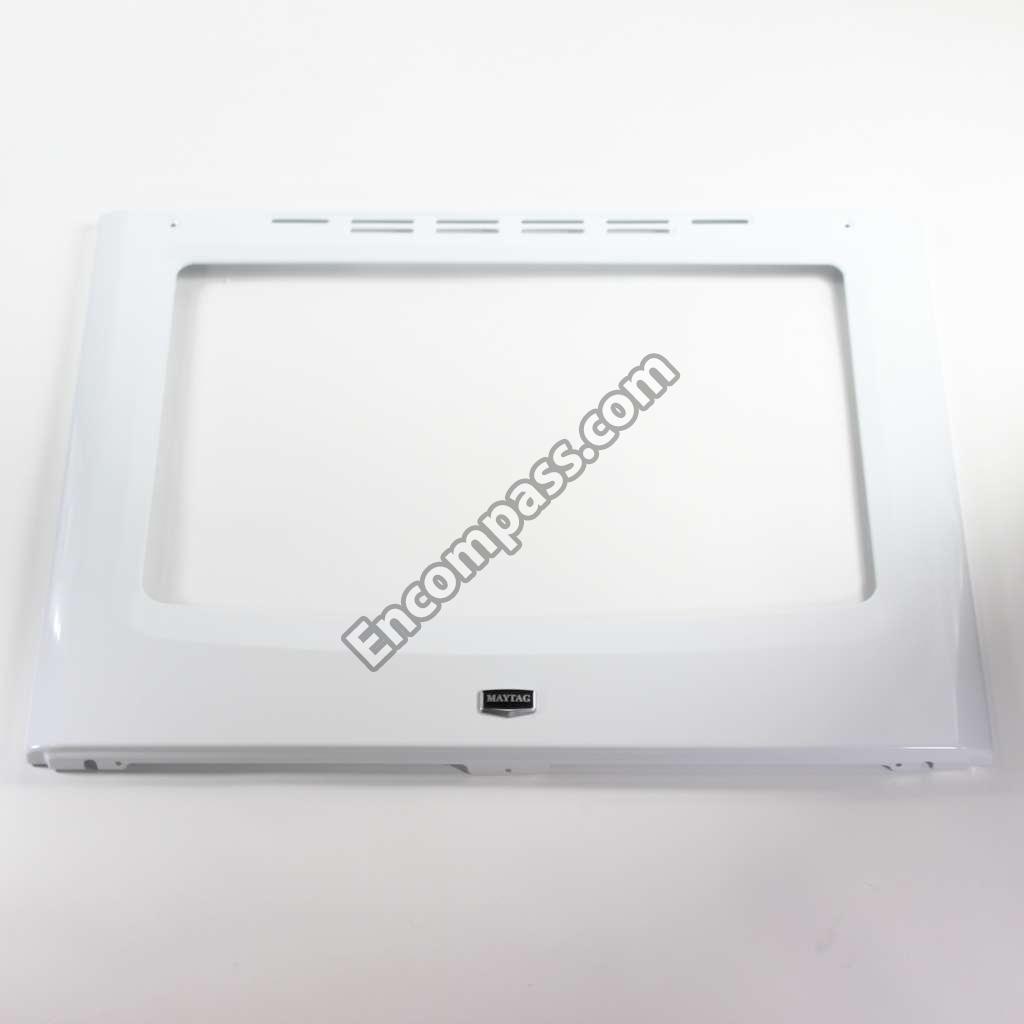

WPW10655838 WPW10655838 PANEL-DOOR
WPW10655831 WPW10655831 PANEL-DOOR
WPW10655834 WPW10655834 PANEL-DOOR
W10432481 W10432481 PANEL-DRWR
W10667936 W10667936 PANEL-DRWR
W10667937 W10667937 PANEL-DRWR
WPW10162245 WPW10162245 PANEL-SIDE
WPW10575396 WPW10575396 PANEL-SIDE
W10655858 W10655858 PANL-CNTRL
W10655889 W10655889 PANL-MNFLD
W10655890 W10655890 PANL-MNFLD
W10655891 W10655891 PANL-MNFLD
WP9757891 WP9757891 POWER CORD

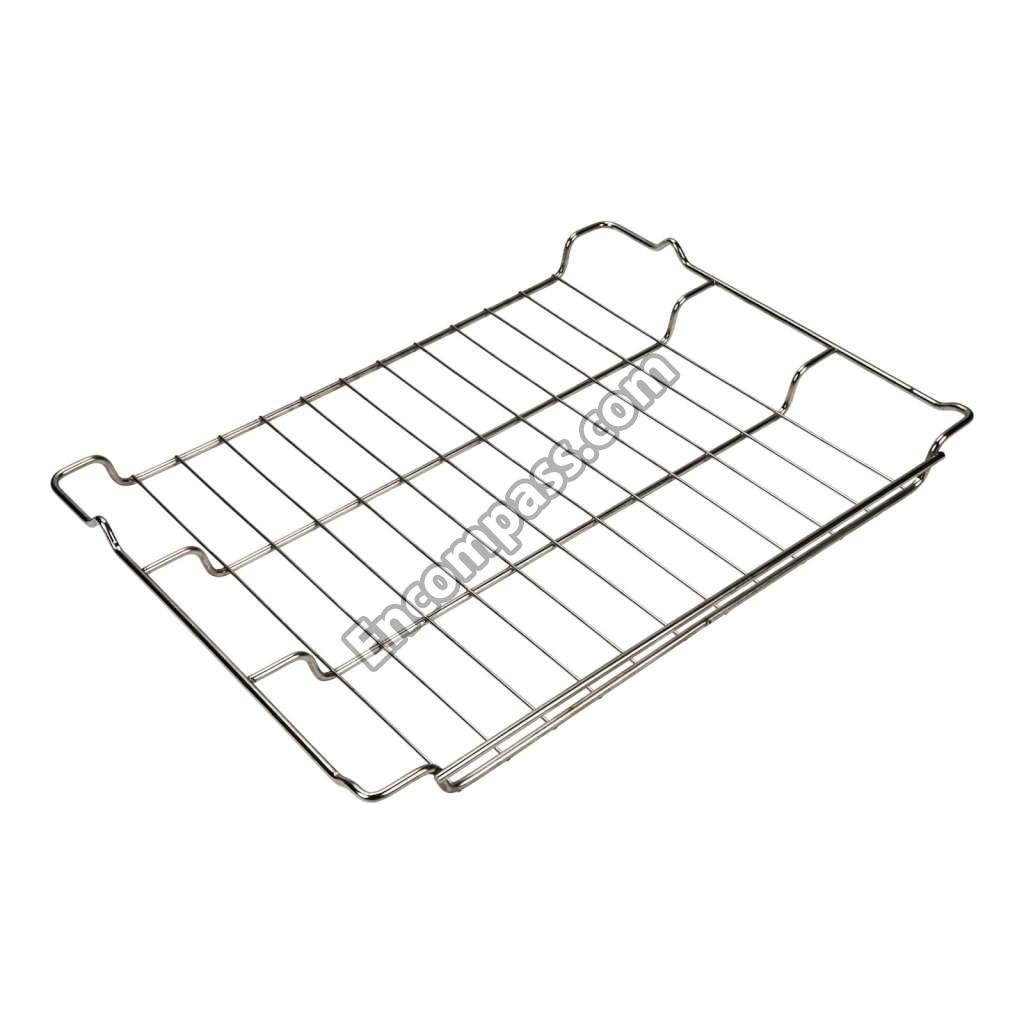

WPW10289145 WPW10289145 RACK-OVEN

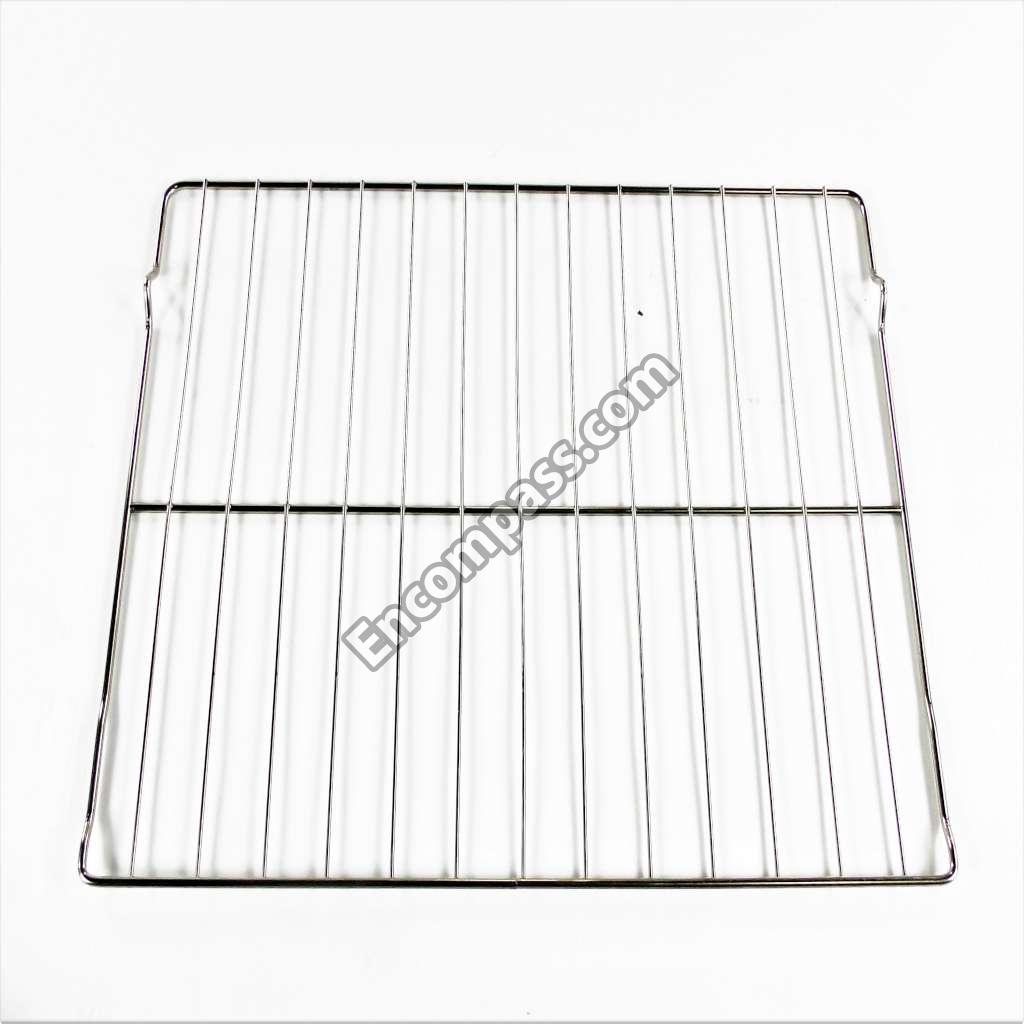

WPW10531060 WPW10531060 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE

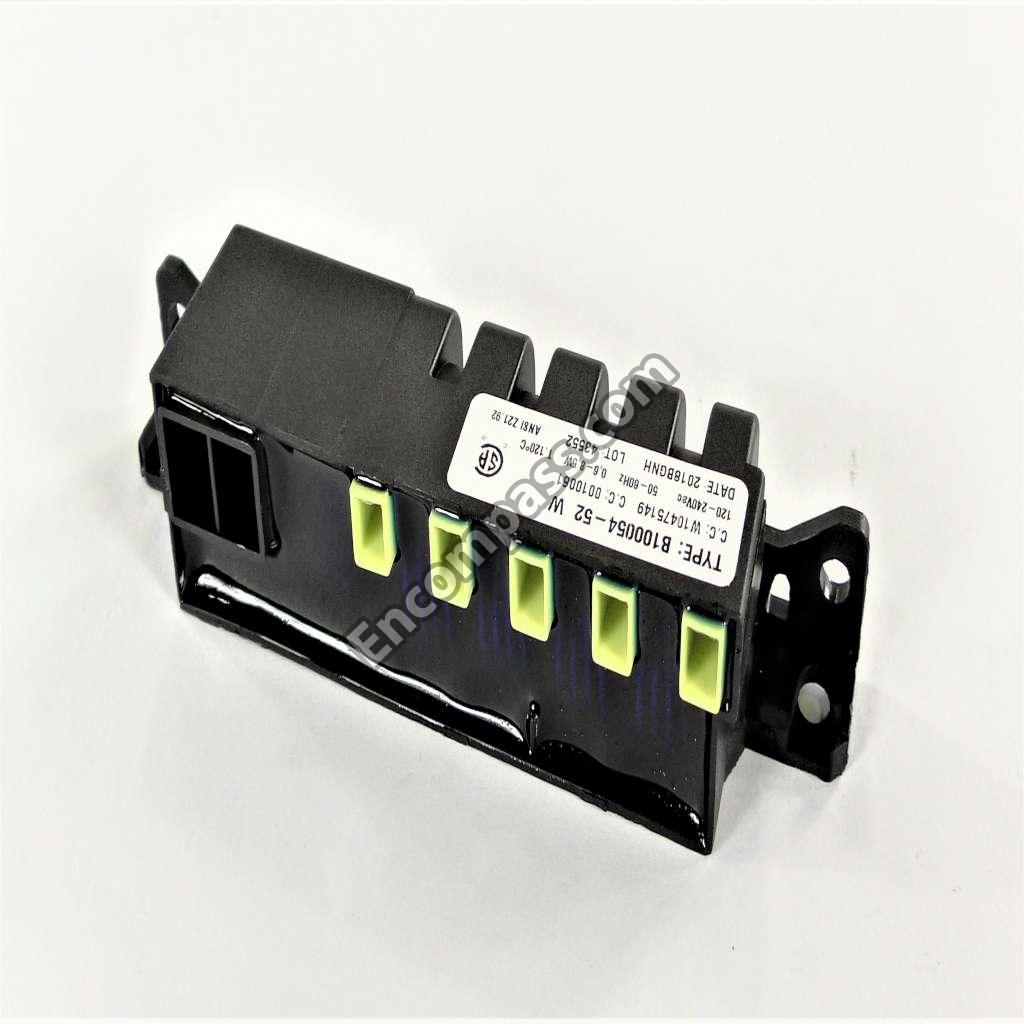

WPW10475149 WPW10475149 RANGE SPARK MODULE
WPW10511278 WPW10511278 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))

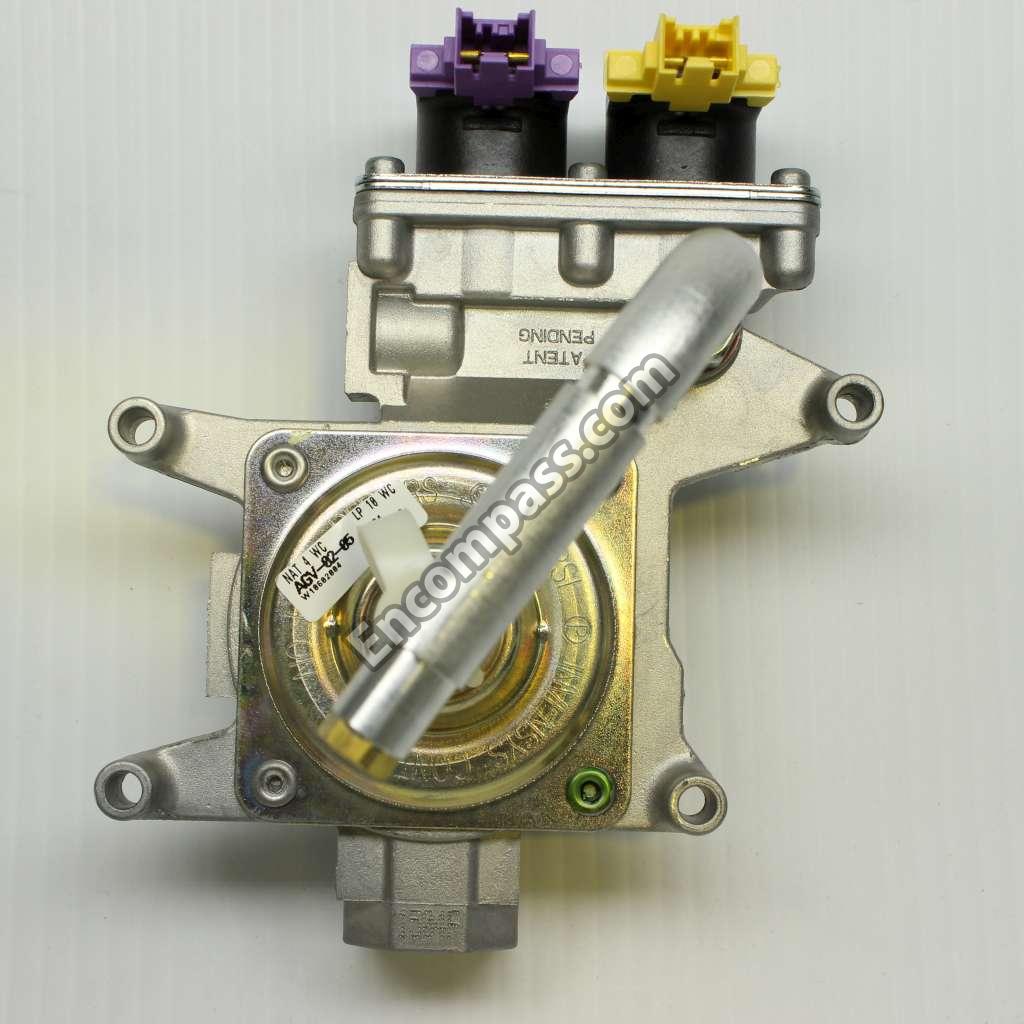

WPW10602004 WPW10602004 REGULATOR
W10273192 W10273192 ROD-DOOR

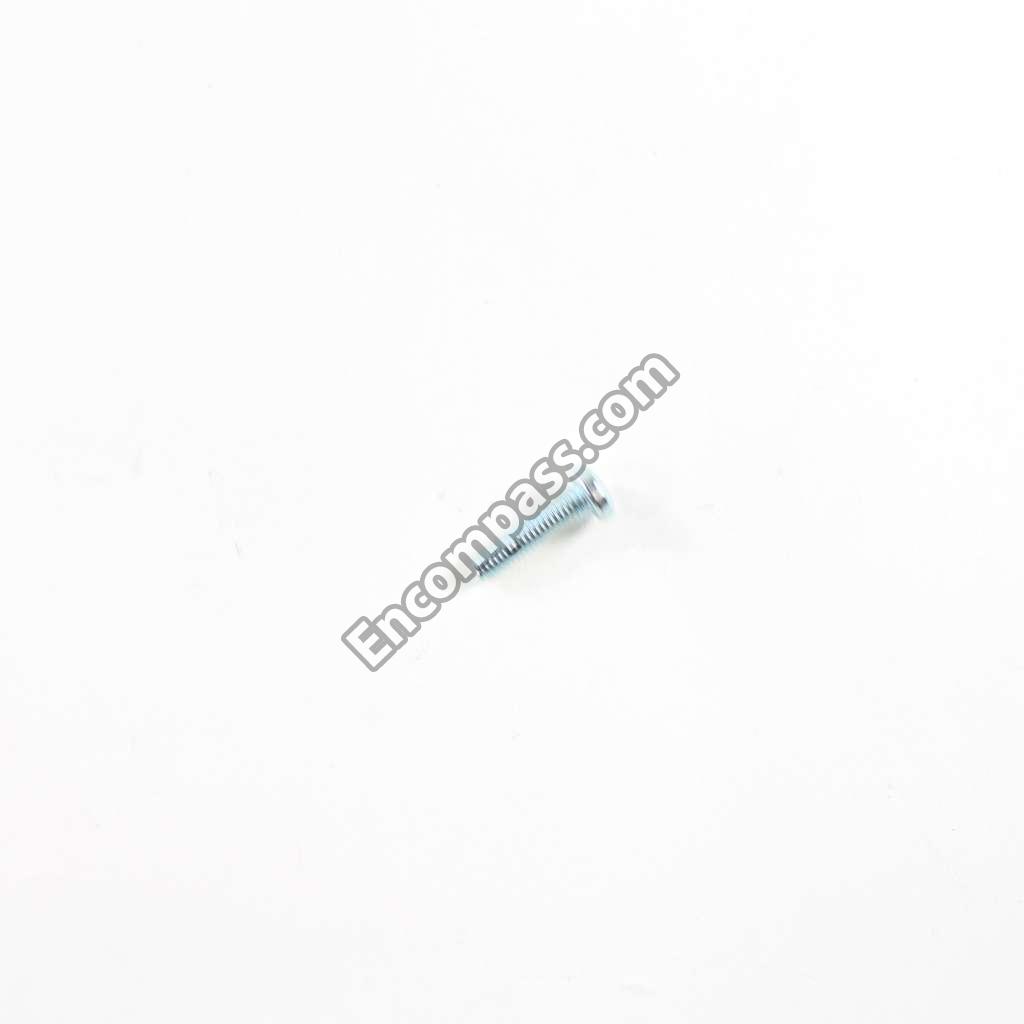

WP3196175 WP3196175 SCREW
WPW10317886 WPW10317886 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
W11169708 W11169708 SCREW
W10777162 W10777162 SCREW
WP4159193 WP4159193 SCREW
WP8273062 WP8273062 SCREW
WPW10067840 WPW10067840 SCREW
W11233072 W11233072 SCREW
W10295997 W10295997 SCREW
WP3368921 WP3368921 SCREW-TORX
WPW10181986 WPW10181986 SENSOR
WPW10273195 WPW10273195 SHIELD-HT
W10192841 W10192841 SHIELD-HT
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER

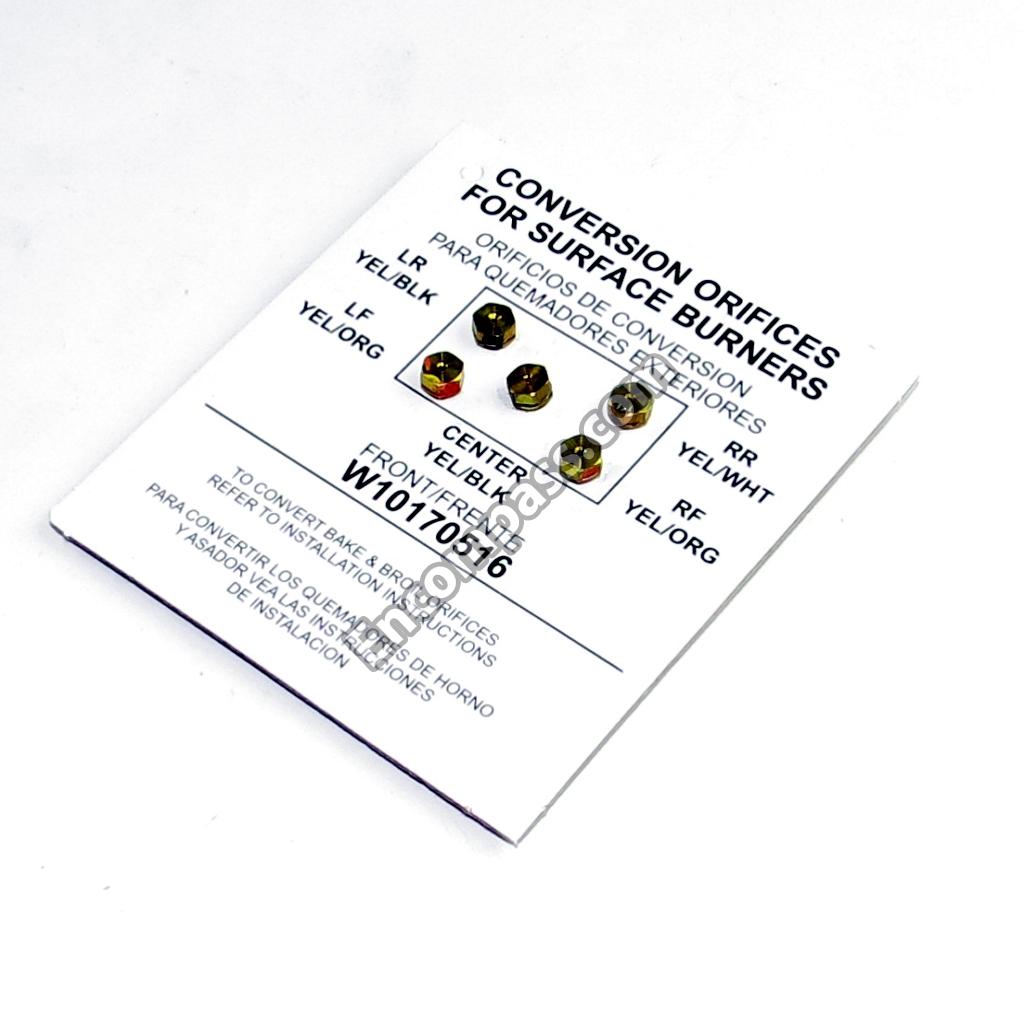

WPW10170516 WPW10170516 SPUD-ORFCE
WPW10170506 WPW10170506 SPUD-ORFCE
WPW10347414 WPW10347414 SPUD-ORFCE
WPW10170508 WPW10170508 SPUD-ORFCE
WP9757262 WP9757262 SWTCH-LITE
W10538795 W10538795 TECH SHEET (ENGLISH)
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10339814 W10339814 TRIM-DOOR

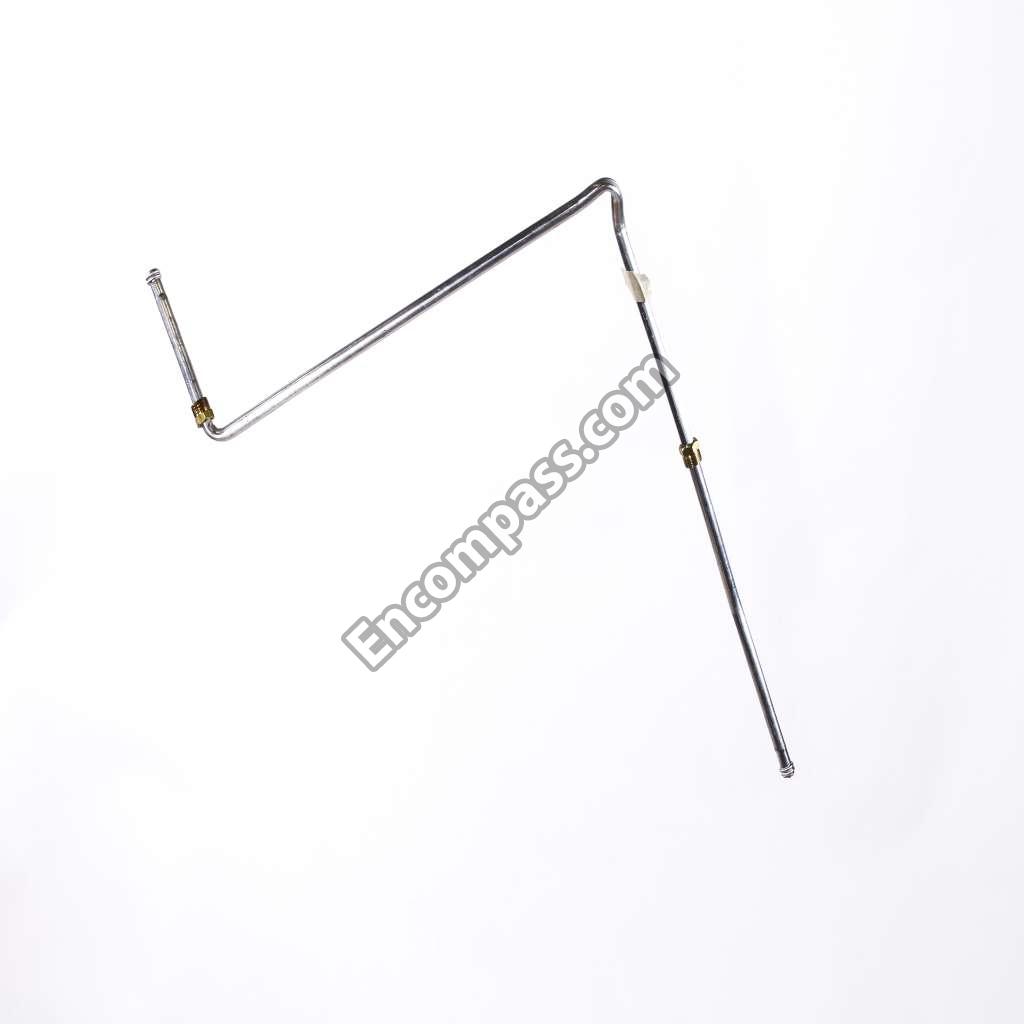

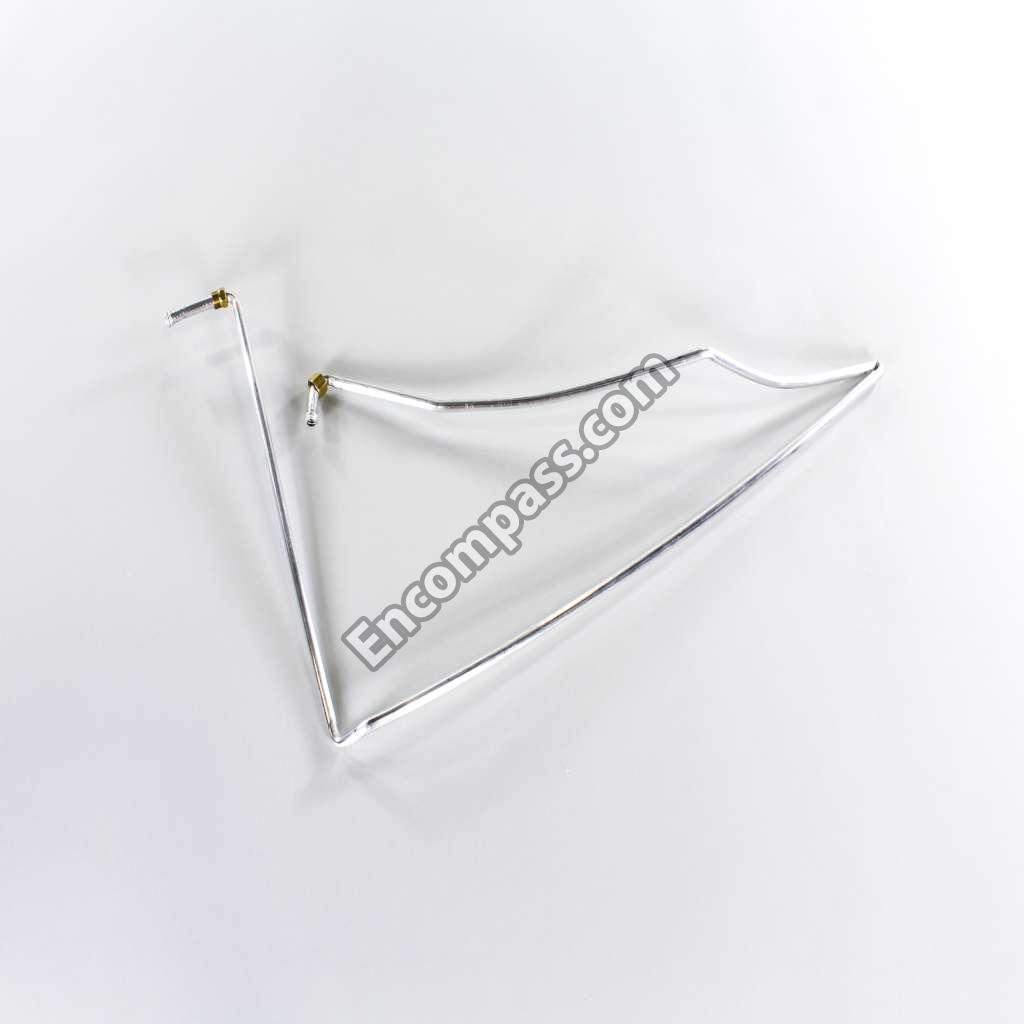

W10306050 W10306050 TUBING-GAS
W10510125 W10510125 TUBING-GAS
W10667178 W10667178 USE AND CARE GUIDE

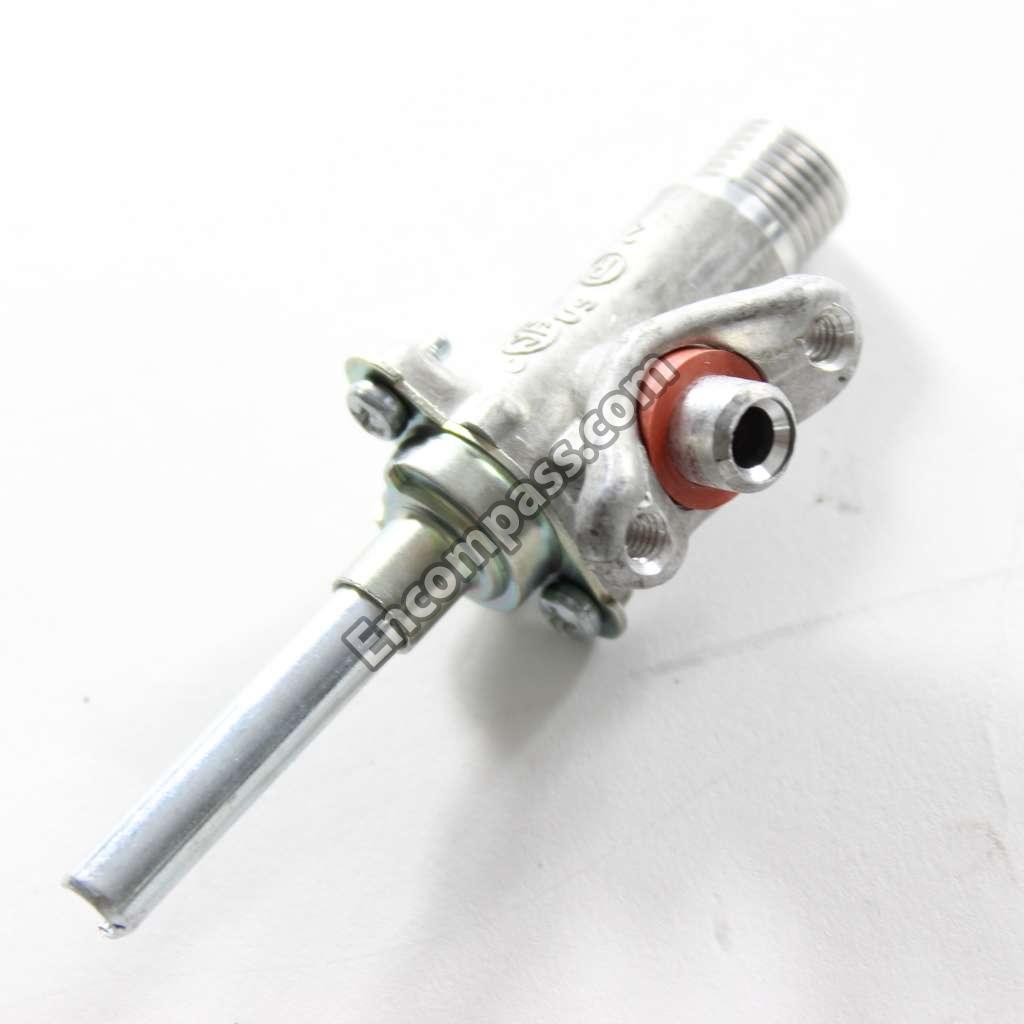

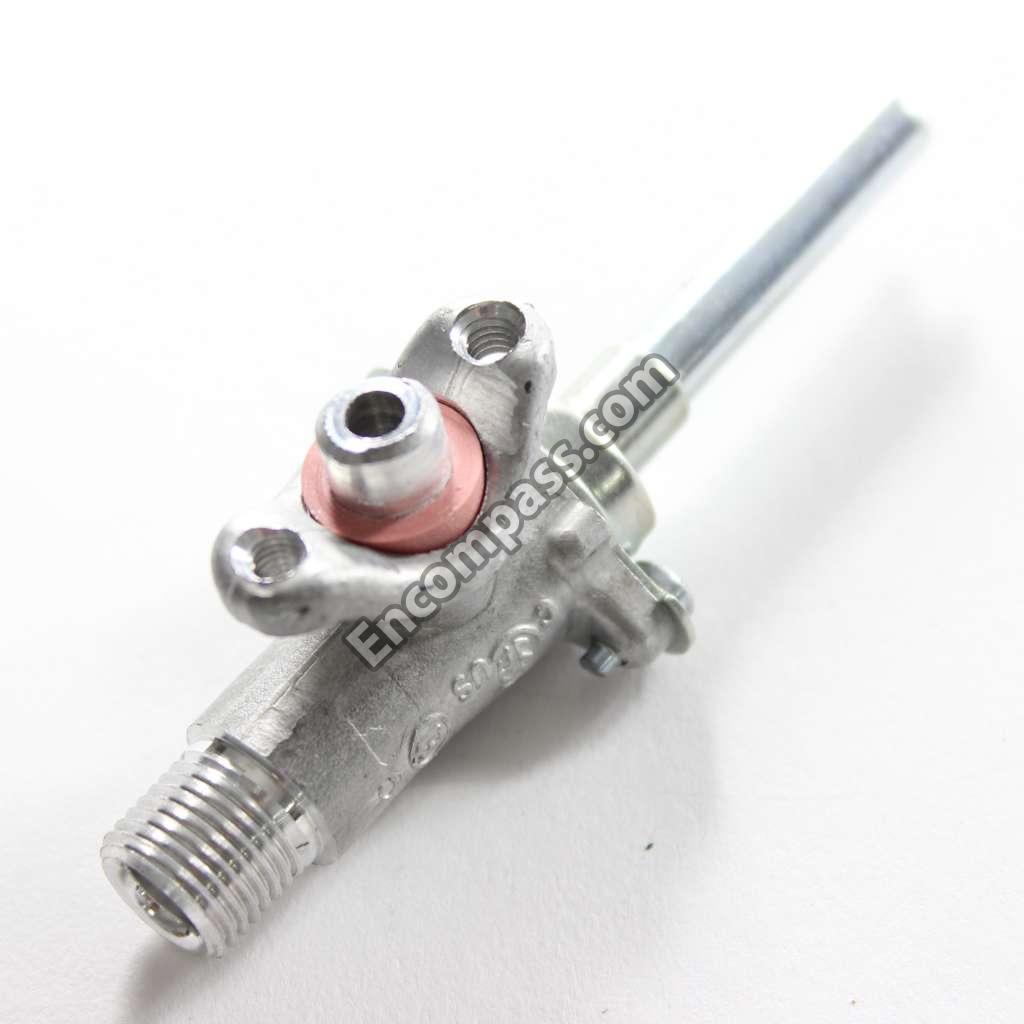

WPW10247744 WPW10247744 VALVE-BRNR

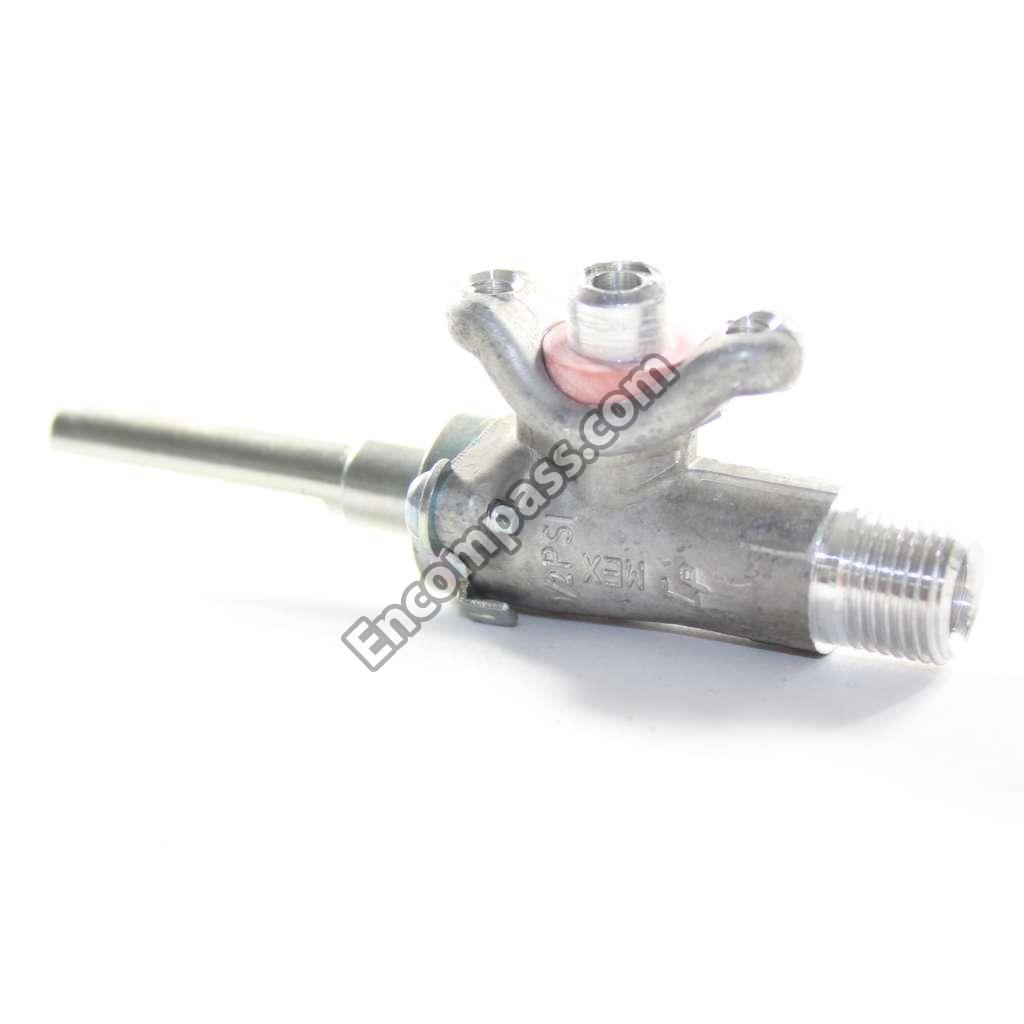

WPW10279614 WPW10279614 VALVE-BRNR
WPW10279615 WPW10279615 VALVE-BRNR

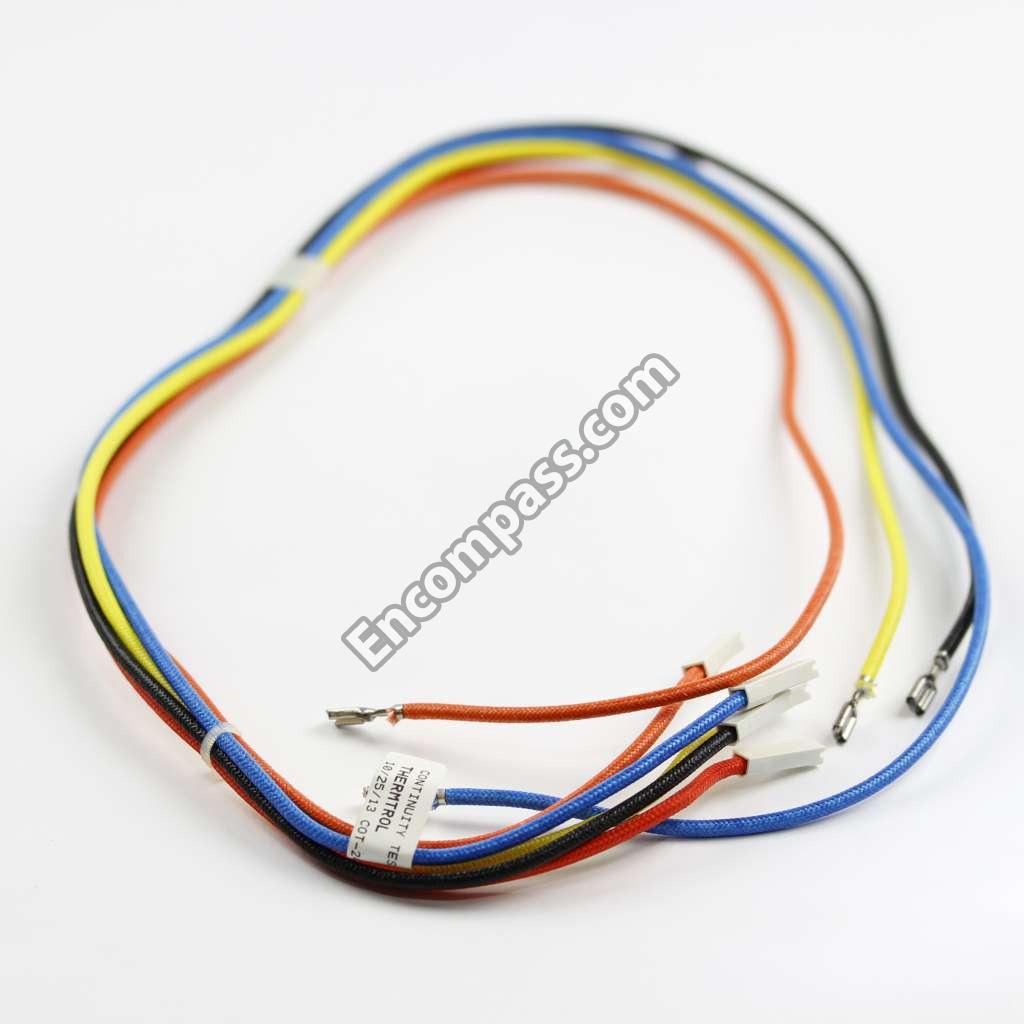

WPW10413868 WPW10413868 WIRE HARNESS
WPW10701462 WPW10701462 WIRE HARNESS
