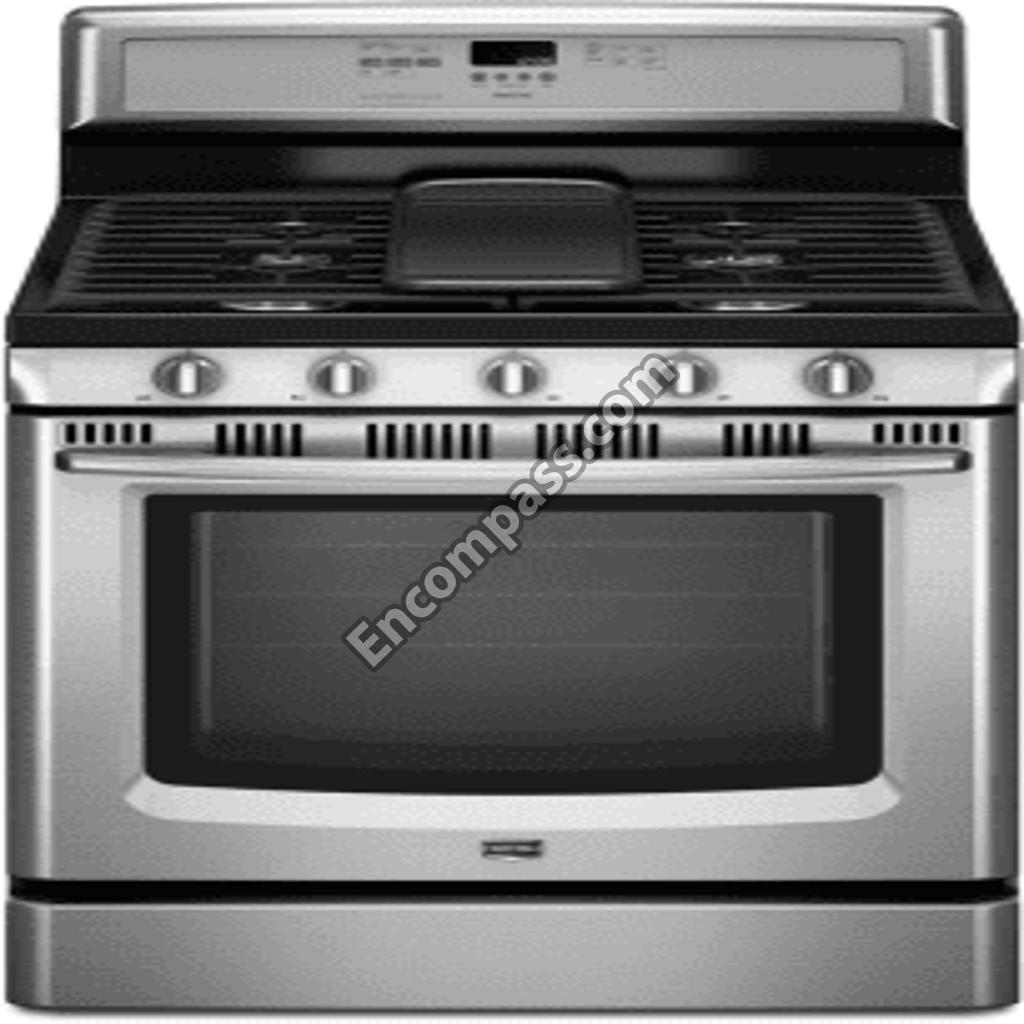

Model Image
Manufacturer

Whirlpool

Model Number

MGR8875WS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
3601P336-45 3601P336-45 BAFFL-BRNR
3601P356-45 3601P356-45 BAFFL-BRNR
3601F380-51 3601F380-51 BAFFLE INS
WPW10211368 WPW10211368 BOTTM-OVEN
3401F082-45 3401F082-45 BOX-BURNER
WP3801F656-51 WP3801F656-51 BRACKET
3801F886-51 3801F886-51 BRKT-MNTG
W10173314 W10173314 BRKT-MNTG
3801P918-51 3801P918-51 BRKT-SUPRT
3801P822-45 3801P822-45 BRKT-SUPRT
3801P798-51 3801P798-51 BRKT-SUPRT
7505P331-60 7505P331-60 BURNER, BAKE
WPW10333445 WPW10333445 BURNR-BASE
W10160904 W10160904 BURNR-BRLR
WPW10406283 WPW10406283 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WPW10336094 WPW10336094 BURNR-TOP
WPW10171140 WPW10171140 CAP-BURNER
WPW10183373 WPW10183373 CAP-BURNER
WPW10183375 WPW10183375 CAP-BURNER
W10171137 W10171137 CAP-BURNER
WP8273564 WP8273564 CLIP
8019P026-60 8019P026-60 CLIP
74008835 74008835 CLIP, RETAINER
W10271868 W10271868 CNVRSN-KIT
WPW10097270 WPW10097270 CONSOLE (WHITE)
WPW10157252 WPW10157252 CONTROL BOARD
WPW10097310 WPW10097310 CONTROL PANEL
WPW10097280 WPW10097280 CONTROL PANEL
W10289584 W10289584 COOKTOP
W10289583 W10289583 COOKTOP
WP7402P109-60 WP7402P109-60 CORD, POWER
4005F421-45 4005F421-45 COVER IGN
W10243045 W10243045 COVER-BLCK
4005P704-51 4005P704-51 COVER-REAR
W10243047 W10243047 COVER-REAR
W10243038 W10243038 COVER-REAR
W10205618 W10205618 COVER-REAR
W10792991 W10792991 DOOR DOOR LATCH
WPW10171748 WPW10171748 DOOR HANDLE
WPW10171747 WPW10171747 DOOR HANDLE
WPW10161708 WPW10161708 DOOR HANDLE
8038P037-60 8038P037-60 DRAWER, STOP
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
W10163970 W10163970 ENDCAP-PNL
W10163968 W10163968 ENDCAP-PNL
W10163967 W10163967 ENDCAP-PNL
W10163969 W10163969 ENDCAP-PNL
WP7427P104-60 WP7427P104-60 FAN-BLWR
241430 241430 FOIL-ALUM
W11665456 W11665456 FOOT-LEVEL
N_P N_P FRAME, FRONT (NOT SERVICED)
W10306689 W10306689 GASKET, DOOR
W11562931 W11562931 GASKT-DOOR
WPW10181725 WPW10181725 GLASS DOOR
74003645 74003645 GLASS, INNER
W10225517 W10225517 GRATE-KIT
W10225516 W10225516 GRATE-KIT
W10169819 W10169819 GRIDDLE
WP74010753 WP74010753 HARNESS- S
W10237924 W10237924 HARNS-WIRE
W10237603 W10237603 HARNS-WIRE
WP3604F382-81 WP3604F382-81 HEAT SHIELD, VISOR (WHITE)
74010546 74010546 HINGE, DOOR
W10169901 W10169901 HOLDER-ORF
W10169902 W10169902 HOLDER-ORF
W10169903 W10169903 HOLDER-ORF
W10169907 W10169907 HOLDER-ORF
W10169909 W10169909 HOLDER-ORF
74007498 74007498 IGNITER, OVEN
WP7432P136-60 WP7432P136-60 IGNTR-OVEN
WPW10216419 WPW10216419 IGNTR-SURF
W10258096 W10258096 INSTALLATION INSTRUCTIONS
W11161816 W11161816 INSULATION
7002P246-60 7002P246-60 INSULATION
7002P482-60 7002P482-60 INSULATION
7002P480-60 7002P480-60 INSULATION
WPW10208653 WPW10208653 INSULATION
W10243056 W10243056 INSULATION
WP5789A598-60 WP5789A598-60 KIT, LP CONVERT OVEN (18`` X 25 )
12002421 12002421 KIT, SUPPLY TUBE AND SCREW
WPW10200192 WPW10200192 KNOB
WPW10111302 WPW10111302 KNOB
WPW10200193 WPW10200193 KNOB
8009 8009 LIGHT BULB
WP2402W297-19 WP2402W297-19 LINER, DOOR
W10172590 W10172590 LINERDOOR
74009098 74009098 MODULE, SPARK
WP3400029 WP3400029 NUT
74005230 74005230 NUT, LOCK (8-32)
7103P030-60 7103P030-60 NUT- WING
74008834 74008834 ORIFICE
W10853607 W10853607 ORIFICE
W10239464 W10239464 OWNERS MANUAL
511873 511873 PAINT
4392900 4392900 PAINT
799344 799344 PAINT
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
WPW10214541 WPW10214541 PANEL, OUTER DOOR (BLACK)
WPW10097300 WPW10097300 PANEL, OUTER DOOR (STAINLESS)
WP2618F172-69 WP2618F172-69 PANEL, SIDE (BLACK)
WP2618F172-58 WP2618F172-58 PANEL, SIDE (WHITE)
W10172596 W10172596 PANEL-DRWR
W10172599 W10172599 PANEL-DRWR
W10172597 W10172597 PANEL-DRWR
W10211381 W10211381 PANL-MNFLD
W10211395 W10211395 PANL-MNFLD
W10211380 W10211380 PANL-MNFLD
7513P499-60 7513P499-60 PIPE-MNFLD
3605P146-51 3605P146-51 PLATE
3605F305-19 3605F305-19 PLATE, CONVECTION
WPW10256908 WPW10256908 RACK-OVEN
WP3406P034-51 WP3406P034-51 RAIL, DRAWER
WP74010551 WP74010551 RECEIVER-
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
12002604 12002604 REGULATOR
3804F316-51 3804F316-51 RETAINER
3804F300-51 3804F300-51 RETAINER
WPW10272883 WPW10272883 ROLLER
W11233072 W11233072 SCREW
WPW10241367 WPW10241367 SCREW
WP8273062 WP8273062 SCREW
WP74009857 WP74009857 SCREW
WP3196154 WP3196154 SCREW
WP4159193 WP4159193 SCREW
WP3196175 WP3196175 SCREW
WP98008545 WP98008545 SCREW
W11169708 W11169708 SCREW
W11684507 W11684507 SCREW
W11244557 W11244557 SCREW
W10217535 W10217535 SCREW
74008798 74008798 SCREW W/SHOULDER (NO.8)
WP3368921 WP3368921 SCREW-TORX
WPW10131827 WPW10131827 SENSOR
WP74005231 WP74005231 SHAFT, STORAGE DRAWER ROLLER
WP3604F381-19 WP3604F381-19 SHIELD, VENT
3604P409-51 3604P409-51 SHIELD-HT
3604F382-09 3604F382-09 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W11190816 W11190816 SPACER
74008690 74008690 SPACER, SIDE PANEL
74008761 74008761 SPACER, SNAP-IN
4392901 4392901 SPRAY
285006 285006 SPRAY
350930 350930 SPRAY
WPW10170508 WPW10170508 SPUD-ORFCE
WPW10170506 WPW10170506 SPUD-ORFCE
WPW10170509 WPW10170509 SPUD-ORFCE
W10251991 W10251991 SPUD-ORFCE
4820F015-59 4820F015-59 STRAP
3807P680-45 3807P680-45 SUPPORT
W10225529 W10225529 SWTCH-MEMB
W10207498 W10207498 SWTCH-MEMB
W10207499 W10207499 SWTCH-MEMB
WP74004224 WP74004224 TAPE
W10239476 W10239476 TECH SHEET (ENGLISH)
W10239477 W10239477 TECH SHEET (FRENCH)
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
74008830 74008830 TUBING, BROIL
W10247148 W10247148 TUBING-GAS
72032 72032 TUCHUP
72017 72017 TUCHUP
4392899 4392899 TUCHUP
WP7502P500-60 WP7502P500-60 VALVE (LEFT REAR)
74010751 74010751 VALVE (RF)
WP7502P499-60 WP7502P499-60 VALVE-BRNR
W10269504 W10269504 VALVE-BRNR
8026P080-60 8026P080-60 VENT, OVEN
