Model Image
Manufacturer

Whirlpool

Model Number

MH1141XMQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8185115 8185115 AIR GUIDE (LEFT)
8185098 8185098 AIR GUIDE (RIGHT)
8205580 8205580 AIR GUIDE, COOLING
8205581 8205581 AIR GUIDE, MICROWAVE MAGNETRON
8204996 8204996 AIR GUIDE, SEALING PLATE
8205563 8205563 BASE PLATE
8205855 8205855 BLOCK
8183821 8183821 BRACKET, CONTROL
8205559 8205559 BRACKET, RIGHT
8206334 8206334 BRKT-MOUNT
4393739 4393739 CAMERA LENS
8184091 8184091 CAPACITOR
W10850446 W10850446 CAPACTR-MG
8185033 8185033 CATCH
8205582 8205582 CHASSIS (INCLUDES 29)
8205035 8205035 COMPLETE DOOR (WHITE)
8185237 8185237 CONTROL BOARD
8184987 8184987 COOK GUIDE LABEL
W10708076 W10708076 CORD, POWER
8169448 8169448 COVER (4)
8185255 8185255 COVER, INLET
8185118 8185118 COVER, LIGHT
8185090 8185090 COVER, MOTOR
4393756 4393756 COVER, TERMINAL
W10843943 W10843943 DAMPER
8185099 8185099 DEFLECTOR, COOLING AIR
W11256462 W11256462 DIODE
8185239 8185239 DOOR/MW
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
8169320 8169320 E-RING

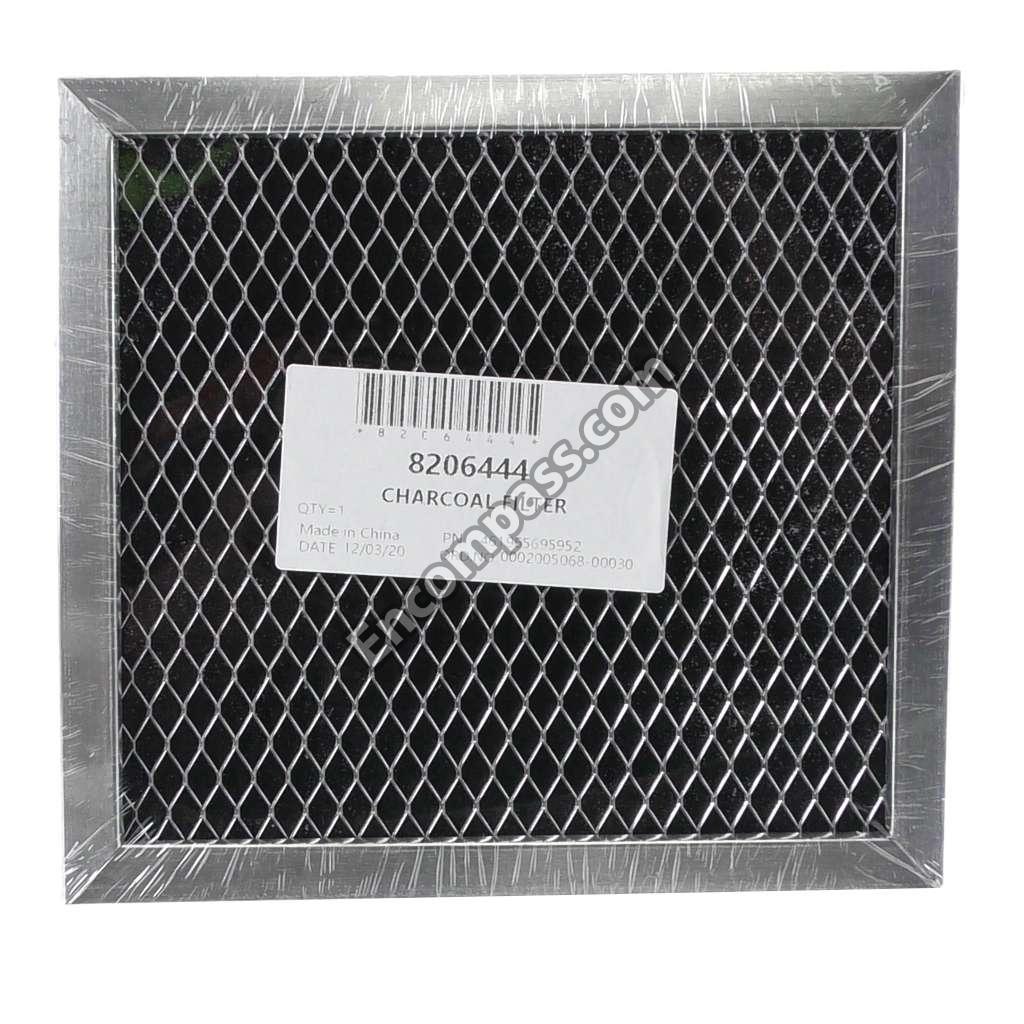

8206444A 8206444A FILTER
6802A 6802A FILTR-GRSE
8185122 8185122 FOIL
W11707984 W11707984 FUSE
8169564 8169564 GLASS, LAMP
8183851 8183851 GRILL-VENT
8183948 8183948 GRILL-VENT
8205945 8205945 GUIDE-AIR
4393782 4393782 HANDLE, DOOR (BLACK)
4393777 4393777 HANDLE, DOOR (WHITE)
8185102 8185102 HOLDER, CAPACITOR
W10117908 W10117908 HOLDER, FUSE
8169539 8169539 HOLDER, LAMP
8205932 8205932 HOUSNG-LMP
8184732 8184732 INSTALLATION INSTRUCTIONS
8205947 8205947 INSTALLATION, HARDWARE
8205572 8205572 INTERLOCK
4393913 4393913 LATCH, DOOR
8169319 8169319 LATCH, PIVOT
8205583 8205583 LEFT BLOCK, MICROWAVE MAGNETRON
8206232A 8206232A LIGHT BULB
W10844213 W10844213 MICROWAVE MAGNETRON
8205584 8205584 MIDDLE BLOCK, MICROWAVE MAGNETRON
100000 100000 MISCELLANEOUS
W10117942 W10117942 MOTOR, FAN
W10642989 W10642989 MOTOR, TURNTABLE
WP8206174 WP8206174 MOUNT-CBNT
W10841143 W10841143 NAILS/BUSHINGS
8185243 8185243 PANEL, CONTROL (BLACK)
8185242 8185242 PANEL, CONTROL (WHITE)
8184307 8184307 PLATE, BOTTOM
8183824 8183824 PLATE, CAM
WP8169704 WP8169704 PLATE, GRILL MISCELLANEOUS (SCREW, TOP MOUNTNG)
8205830 8205830 PLATE, HINGE
8205560 8205560 RECTIFIER, H.V.
4393688 4393688 REFLECTOR, LAMP
8205152 8205152 RESISTOR
8205585 8205585 RIGHT BLOCK, MICROWAVE MAGNETRON
W11252182 W11252182 RING-TURN
8169318 8169318 ROD
WP8181660 WP8181660 SCREW
4393838 4393838 SCREW
4393839 4393839 SCREW
4393836 4393836 SCREW
8169478 8169478 SCREW
4393346 4393346 SCREW
W10841091 W10841091 SCREW
8169474 8169474 SCREW
W11380570 W11380570 SCREW
WP4393834 WP4393834 SCREW
8169479 8169479 SCREW
8205355 8205355 SHIELD
W10117846 W10117846 SOCKET, MOTOR WIRE
8169374 8169374 SPRING
8169438 8169438 SPRING, INTERLOCK
W10269458 W10269458 SWITCH, MICRO SZM-V16-FC-62
W10211974 W10211974 SWITCH, MICRO V15T16-CP200
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
8205578 8205578 TCO, BRACKET ASSEMBLY
8205129 8205129 TECH SHEET
8184731 8184731 TEMPLATE
4393945 4393945 THERMOSTAT
8183698 8183698 THERMOSTAT
8183703 8183703 THERMOSTAT
4393799 4393799 TURNTABLE
8185378 8185378 USE & CARE GUIDE
8183743 8183743 WALL TEMPLATE
4393861 4393861 WHEEL, PLASTIC
8206544 8206544 WRAPER-CAB
8206543 8206543 WRAPER-CAB
