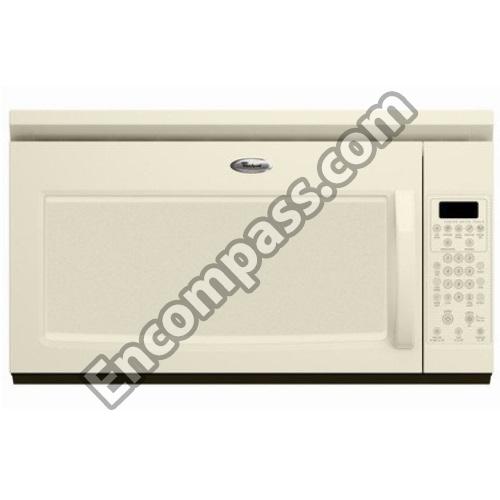

Model Image
Manufacturer

Whirlpool

Model Number

MH2175XST1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10157207 W10157207 ADAPTER
W10247762 W10247762 AIR GUIDE
W10596040 W10596040 ASSEMBLY, MOUNTING NUT
W10163420 W10163420 BASE
W10163423 W10163423 BASE
W10532063 W10532063 BRACKET, CAPACITOR
W10156814 W10156814 BRKT-CNTRL
W10156815 W10156815 BRKT-MOUNT
W11405832 W11405832 CAPACITOR, HOOD MOTOR
W10850446 W10850446 CAPACTR-MG
WPW10163418 WPW10163418 CASE, OUTER (BLACK)
8206397 8206397 COMPLETE DOOR (BISCUIT)

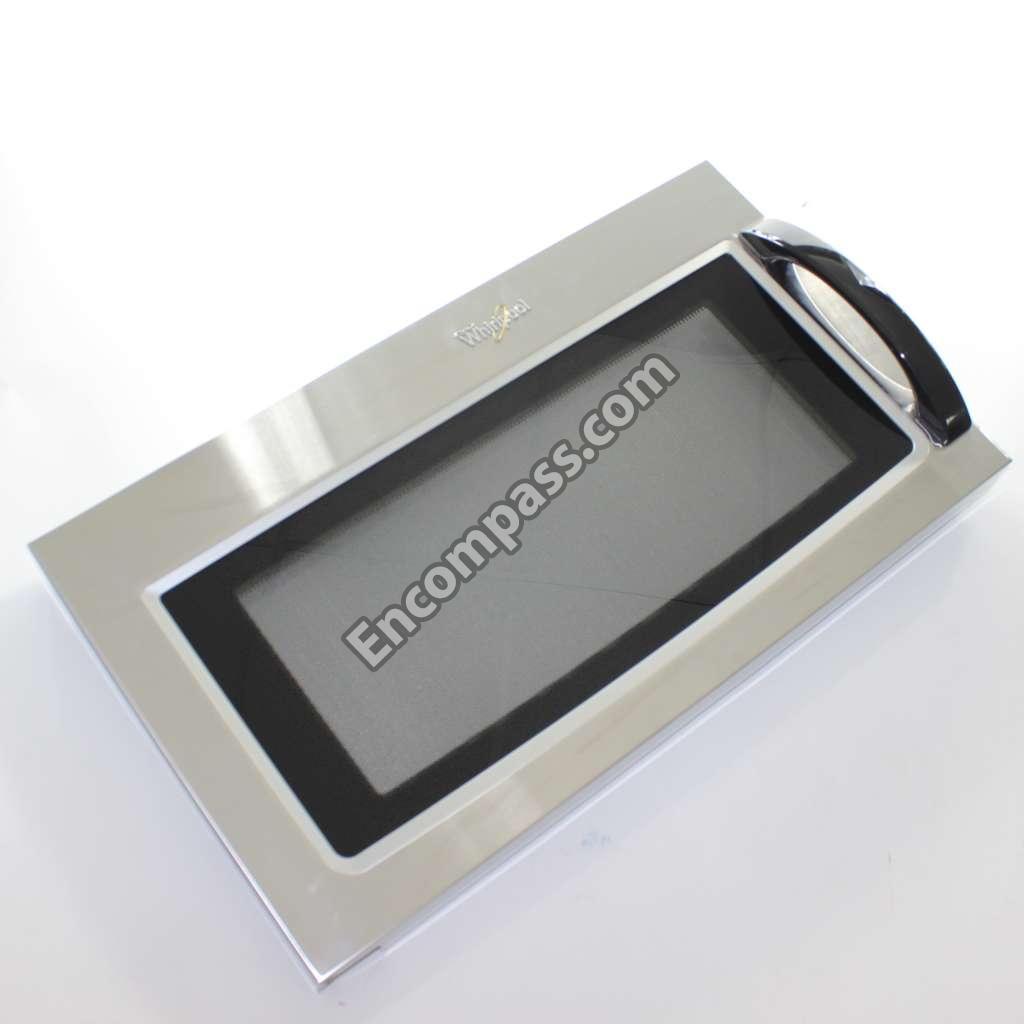

8206396 8206396 COMPLETE DOOR (STAINLESS STEEL)

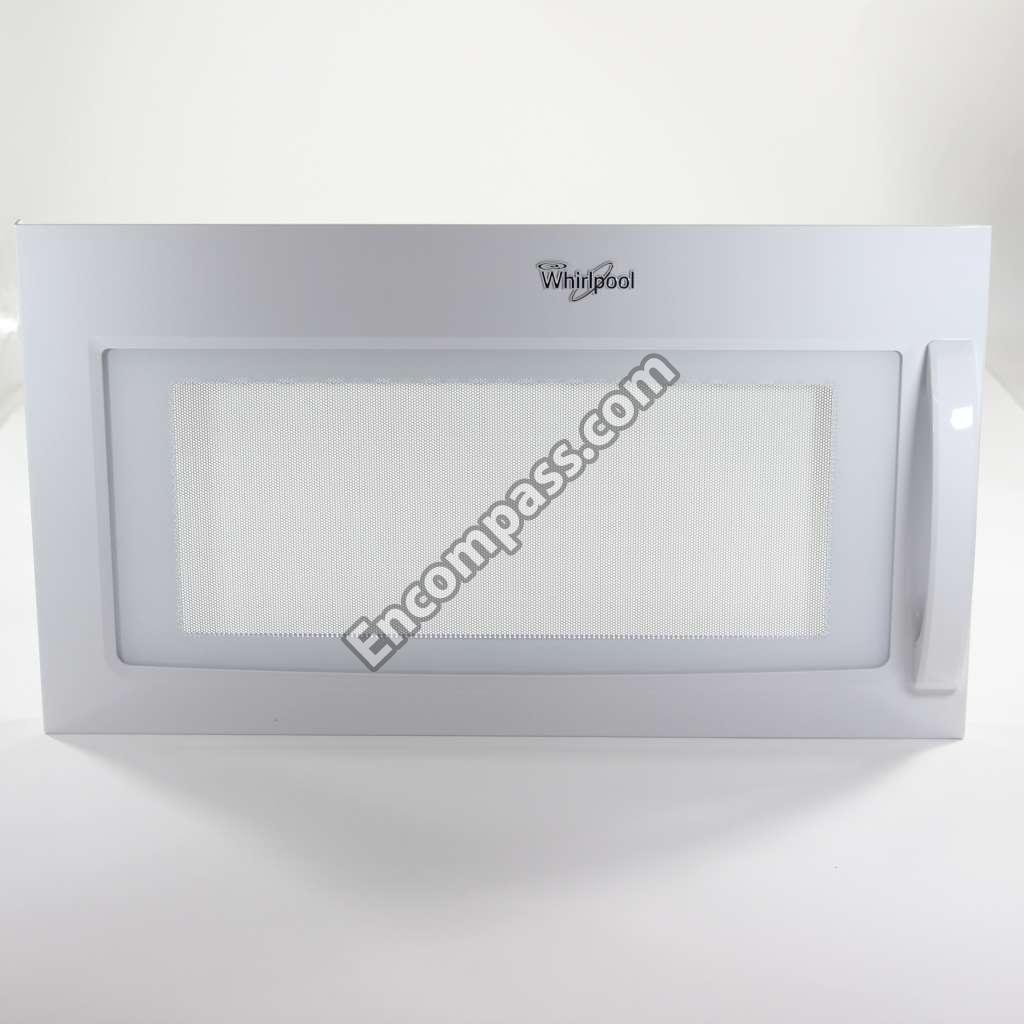

8206394 8206394 COMPLETE DOOR (WHITE)
8205888 8205888 COOK GUIDE LABEL
W10708076 W10708076 CORD, POWER
8206629 8206629 COVER, INLET AIR CAVITY GUIDE
8206389 8206389 COVER, INLET INCLUDES NAILS AND BUSHINGS
8206382 8206382 COVER, LAMP
W10163421 W10163421 COVER-SIDE
W10163433 W10163433 COVERSIDE
W10110598 W10110598 COVR-TERML
W10843943 W10843943 DAMPER
8206340 8206340 DEFLECTOR, AIR
W11256462 W11256462 DIODE
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
W10138799 W10138799 DUCTAIR
8206624 8206624 FILTER
8206230A 8206230A FILTER

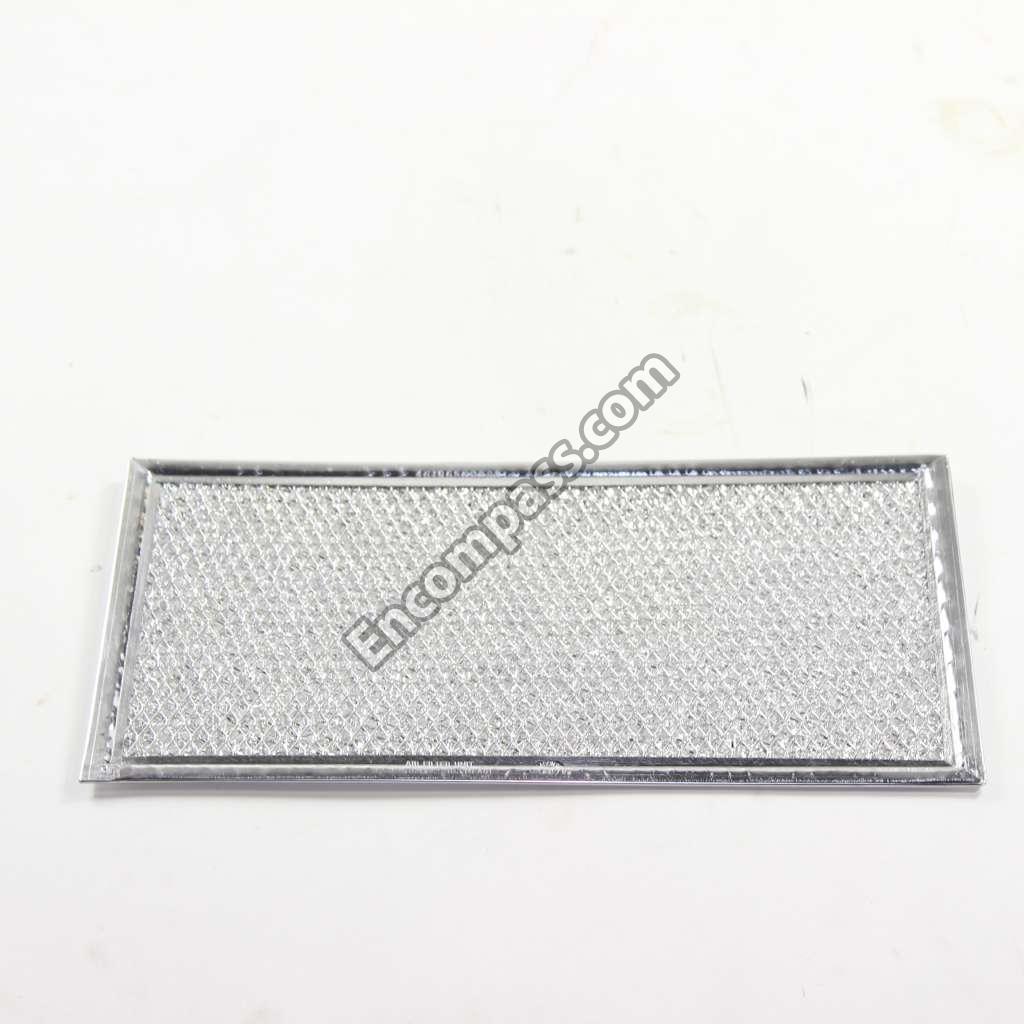

8206229A 8206229A FILTER, GREASE
W11707984 W11707984 FUSE-THRML
8206376 8206376 GLASS, LAMP
W10139642 W10139642 GRILLE, VENT (BISQUIT)
W10259625 W10259625 GRILLE, VENT (BLACK,UNIVERSAL SILVER, STAINLESS)
W10269471 W10269471 GRILLE, VENT (WHITE)
W10158781 W10158781 GUIDE-AIR
8206415 8206415 H.V. WIRE ASSEMBLY
W10163434 W10163434 HARNS-WIRE
W10163435 W10163435 HARNS-WIRE
W10539842 W10539842 HARNS-WIRE
W10163438 W10163438 HARNS-WIRE
W10470168 W10470168 HARNS-WIRE
W10117908 W10117908 HOLDER, FUSE
8206375 8206375 HOLDER, GLASS
8169539 8169539 HOLDER, LAMP
8206374 8206374 HOLDER, LAMP
8206587 8206587 INSTALL, INSTRUCT.
8205948 8205948 INSTALLATION, HARDWARE
WP8206419 WP8206419 INTERLOCK
WPW10156813 WPW10156813 INTERLOCK
8206232A 8206232A LIGHT BULB
WPW10197772 WPW10197772 MICROCOMPUTER
W10754299 W10754299 MICROWAVE MAGNETRON
100000 100000 MISCELLANEOUS
W10642989 W10642989 MOTOR, TURNTABLE
WPW10416638 WPW10416638 MOTOR-FAN
W10166799 W10166799 PANL-CNTRL
W10166801 W10166801 PANL-CNTRL
W10166802 W10166802 PANL-CNTRL
W10197758 W10197758 PISTON ASSEMBLY
W10164716 W10164716 PLATE
8206386 8206386 PLATE, BOTTOM
W10562613 W10562613 PLATE, CAM
WPW10269225 WPW10269225 PLATE-MTNG
W10315274 W10315274 RACK-MEAL
8206387 8206387 REFLECTOR, LAMP
W11252182 W11252182 RING-TURN
W11319886 W11319886 RIVET-STIR
WP8169704 WP8169704 SCREW
8206618 8206618 SCREW
8206180 8206180 SCREW
W10138802 W10138802 SCREW
8206626 8206626 SENSOR, HUMIDITY
W10117846 W10117846 SOCKET, MOTOR WIRE
W10156812 W10156812 SPRING
8206385 8206385 SUPPORT, WIRE CLIP
W10269458 W10269458 SWITCH, MICRO SZM-V16-FC-62
W10211974 W10211974 SWITCH, MICRO V15T16-CP200
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
W10132042 W10132042 TECH SHEET, SLIM
8205871 8205871 TEMPLATE, UPPER
8206359 8206359 TERMINAL CVR, LAMP
W10163422 W10163422 THERMISTOR
W10269232 W10269232 THERMOSTAT
W10598693 W10598693 THERMOSTAT, MICROWAVE MAGNETRON
WP8206343 WP8206343 TRANSFORMR
4393799 4393799 TURNTABLE
W10110894 W10110894 U & C GUIDE
W10107790 W10107790 WASHER
W10107760 W10107760 WIRE-GROND
W10163417 W10163417 WRAPERCAB
W10163419 W10163419 WRAPERCAB
