Model Image
Manufacturer

Whirlpool

Model Number

MH3184XPS5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8205367 8205367 AIR GUIDE (LEFT)
8205352 8205352 AIR GUIDE (RIGHT)
8205354 8205354 AIR GUIDE, BACK
8205351 8205351 BASE PLATE, AIR GUIDE
8184590 8184590 BLADE-STIR
W10117908 W10117908 BLOCK-FUSE
8206457 8206457 BRACKET, CAPACITOR
W10114256 W10114256 BRKT-SUPPT
8184091 8184091 CAPACITOR, 125 V
W10258597 W10258597 CAPACTRMG
8206567 8206567 CHASSIS
W10233386 W10233386 CNTRLELEC
8205372 8205372 COMPLETE DOOR (BLACK)
8205371 8205371 COMPLETE DOOR (STAINLESS)
8206194 8206194 COMPLETE DOOR (UNIVERSAL SILVER)
8205370 8205370 COMPLETE DOOR (WHITE)
8205810 8205810 COOK GUIDE LABEL
W10708076 W10708076 CORD, POWER
8206452 8206452 COVER, FAN MTR
8184604 8184604 COVER, INLET INCLUDES NAILS AND BUSHINGS
8206453 8206453 COVER, LAMP
8184202 8184202 COVER, TERMINAL
W10253653 W10253653 COVR-TERML
W10843943 W10843943 DAMPER
8205357 8205357 DIFFUSER, HOUSING
W11256462 W11256462 DIODE
W10272107 W10272107 DOOR HANDLE
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
8205368 8205368 DUCT, AIR
W10239608 W10239608 FAN, DC 12 VOLT
8206624 8206624 FILTER
8205146A 8205146A FILTER
W10113040A W10113040A FILTER
W11707984 W11707984 FUSE-THRML
8184141 8184141 GLASS, LAMP
W10450189 W10450189 GRILL-VENT
W10450187 W10450187 GRILL-VENT
W10450172 W10450172 GRILL-VENT
W10258595 W10258595 GUIDEAIR
W10246505 W10246505 HANDLE (BLACK)
W10295692 W10295692 HANDLE, DOOR (WHITE)
W10258106 W10258106 HARNS-WIRE
W10110601 W10110601 HARNS-WIRE
W10114263 W10114263 HARNS-WIRE
W10114264 W10114264 HARNS-WIRE
W10114265 W10114265 HARNS-WIRE
W10256914 W10256914 HARNS-WIRE
W10114360 W10114360 HARNS-WIRE
W10259142 W10259142 HARNS-WIRE
W10258600 W10258600 HARNS-WIRE
W10114361 W10114361 HARNS-WIRE
W10256901 W10256901 HINGEDOOR
W10256902 W10256902 HINGEDOOR
8184889 8184889 HOLDER, GLASS
8205364 8205364 HOUSING, FAN
WPW10210878 WPW10210878 HOUSNG-LMP
8206446 8206446 HUMIDITY, SENSOR
8205948 8205948 INSTALLATION, HARDWARE
8206232A 8206232A LIGHT BULB
WP8533914 WP8533914 LOCKWASHER
W10222507 W10222507 MAGNETRON
100000 100000 MISCELLANEOUS
W10117942 W10117942 MOTOR-FAN
8184581 8184581 MOTOR-STIR
WPW10466420 WPW10466420 MOTOR-TURN
W10841143 W10841143 NAIL
8205021 8205021 P27 TO CN153
8205022 8205022 P4 TO CN151
8205376 8205376 PANEL ASY, CONTROL INCLUDES CAMERA LENS AND MEMBRANE SWITCH (BLACK)
8205375 8205375 PANEL ASY, CONTROL INCLUDES CAMERA LENS AND MEMBRANE SWITCH (STAINLESS)
8205374 8205374 PANEL ASY, CONTROL INCLUDES CAMERA LENS AND MEMBRANE SWITCH (WHITE)
8184922 8184922 PIVOT, DOOR
8205211 8205211 PLATE, CAM
8206455 8206455 PLATE, SIDE
WPW10269225 WPW10269225 PLATE-MTNG
W10244597 W10244597 PLATEGIDE
8205549 8205549 RACK
W10315274 W10315274 RACK-MEAL
8184959 8184959 REFLECTOR, LAMP
W11252182 W11252182 RING-TURN
8185190 8185190 ROD-LOCKING LINK
WP8169704 WP8169704 SCREW
8169475 8169475 SCREW
4393836 4393836 SCREW
4393832 4393832 SCREW
4393838 4393838 SCREW
8169474 8169474 SCREW
8184200 8184200 SCREW
W11380570 W11380570 SCREW
8184199 8184199 SCREW
8169480 8169480 SCREW
8169479 8169479 SCREW
8206460 8206460 SHIELD
8205355 8205355 SHIELD
W10117846 W10117846 SOCKET, MOTOR WIRE
8169438 8169438 SPRING, INTERLOCK
8185189 8185189 SUPPORT, INTERLOCK
W10211972 W10211972 SWITCH
W10269458 W10269458 SWITCH
W10211974 W10211974 SWITCH
W10132021 W10132021 TECH SHEET
8184731 8184731 TEMPLATE, UPPER
8184951 8184951 THERMOSTAT
8183703 8183703 THERMOSTAT
8184582 8184582 THERMOSTAT/BRACKET
WP8206456 WP8206456 TRANSFORMR
4393799 4393799 TURNTABLE
W10170440 W10170440 U & C GUIDE
8184109 8184109 WASHER
W10615910 W10615910 WIRE HARNESS

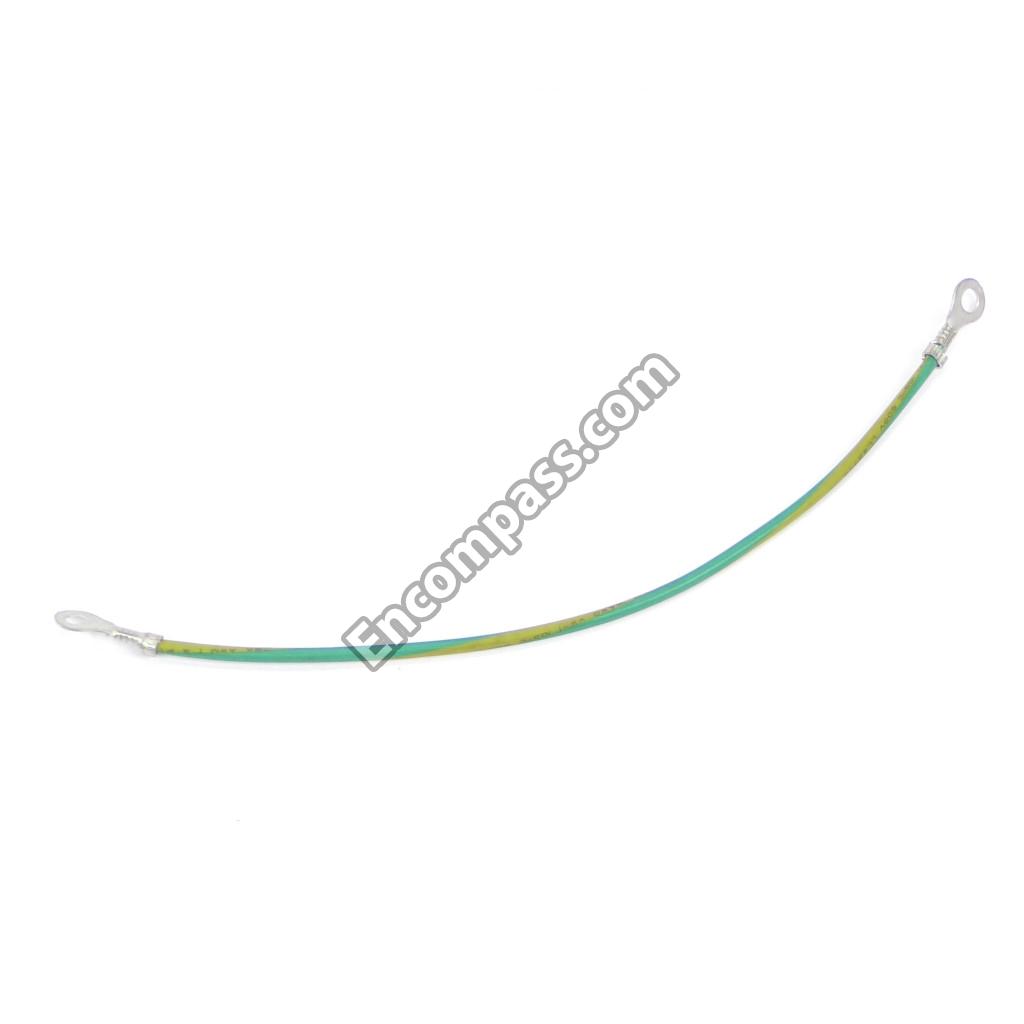

8206185 8206185 WIRE-GRND HUM SNSR
W10258594 W10258594 WRAPERCAB
W10258593 W10258593 WRAPERCAB
