Model Image
Manufacturer

Whirlpool

Model Number

MH6700XX0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
815092 815092 ADAPTER
WP4358030 WP4358030 AIR FILTER (2)
4358025 4358025 AIR GUIDE (SIDE)
4358038 4358038 AIR PATH (FRONT)
LIT4158680 LIT4158680 AUTO SET CHART
LIT4358002 LIT4358002 AUTO SET GUIDE
4358027 4358027 BASE PLATE
4158368 4158368 BASE THERMOSTAT
815100 815100 BLADE, FAN
4358046 4358046 BOTTOM PLATE
4158315 4158315 CABINET BOLT (2)
4358061 4358061 CABLE ASSEMBLY.
4358062 4358062 CAPACITOR BRACKET
815123 815123 CAPACTR-MG

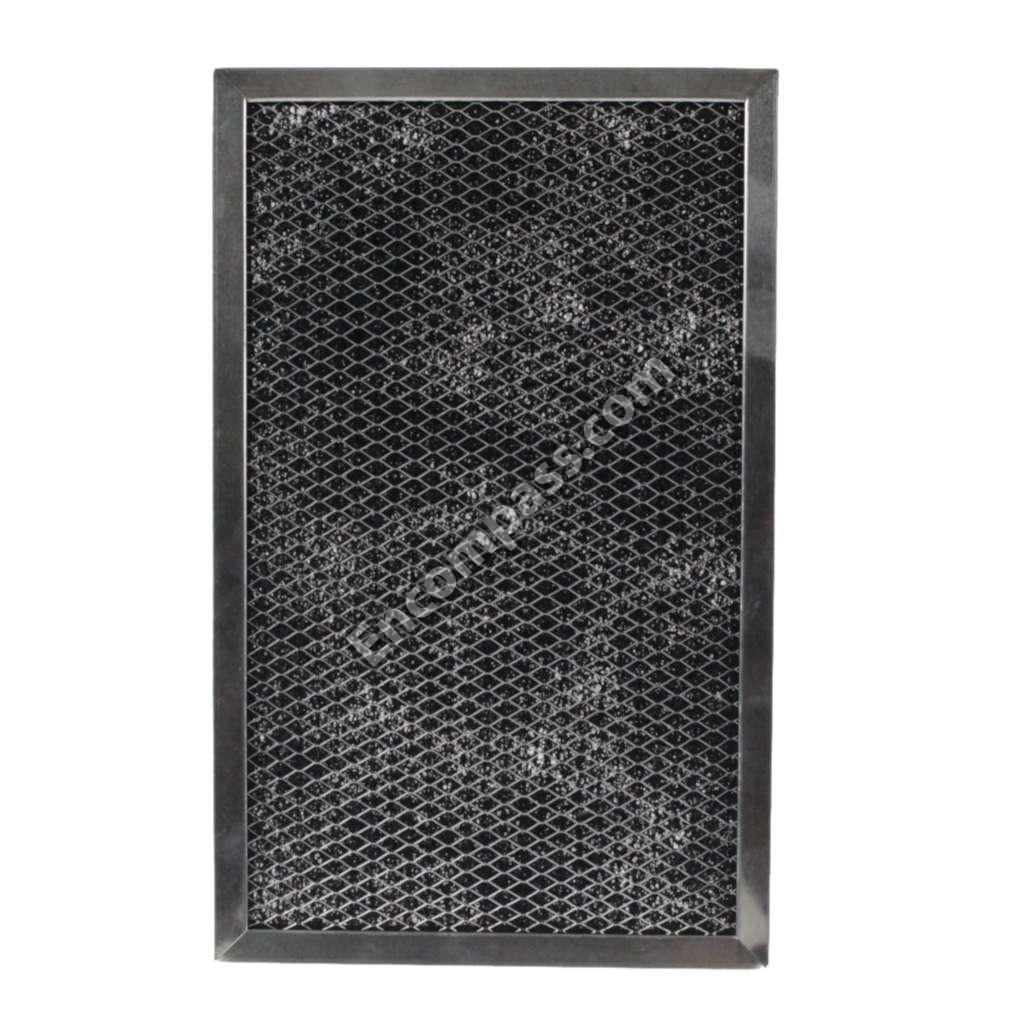

WP4358003 WP4358003 CHARCOAL FILTER ASSY.
8534021 8534021 CLAMP, RECIRC HOSE RETAINER
4358048 4358048 CNTL. HINGE ASSEMBLY. (2)
4158376 4158376 CONDENSER MOTOR
815170 815170 CONTROL BOARD
4358070 4358070 CONTROL PANEL
LIT4158272 LIT4158272 COOKBOOK
4358033 4358033 COOKTOP LAMP GLASS
4358012 4358012 CORD BUSHING
4358031 4358031 COVER, AIR
4358039 4358039 CUSHION
4158864 4158864 CUSHION
4158967 4158967 CUSHION, BRACKET
LIT4158705 LIT4158705 DEFROST GUIDE
4158408 4158408 DIGITRON WINDOW
WP4313101 WP4313101 DIODE
815065 815065 DOOR HANDLE
4358176 4358176 DOOR LATCH BOARD LOWER
4358175 4358175 DOOR LATCH BOARD UPPER
4358036 4358036 DUCT, L.S.
4358029 4358029 DUCT, R.S.
4158319 4158319 EXHAUST DAMPER
4358053 4358053 FAN COVER FRONT
4358052 4358052 FAN MOTOR
WP99401 WP99401 FILLER KIT
4158426 4158426 FRONT BRACKET
W10856869 W10856869 FUSE
WP4358609 WP4358609 FUSE, THERMAL
LIT4158991 LIT4158991 GUIDE, USE & CARE
4358057 4358057 HARNESS
4358066 4358066 HINGE PLATE
4158059 4158059 HOLDER, FUSE
WP4358579 WP4358579 INSERT, HANDLE
4158491 4158491 INSTALLATION HARDWARE
LIT4358000 LIT4358000 INSTRUCTIONS, INSTALLATION
815099 815099 INSULATOR
4358023 4358023 LAMP ASM.
4358790 4358790 LAMP HOLDER
4158405 4158405 LEAD WIRE
4158390 4158390 LEVER, SWITCH
8206232A 8206232A LIGHT BULB
LIT4358168 LIT4358168 LIST, REPAIR PARTS
WP4392007 WP4392007 MAGNATRON
4358174 4358174 MAIN WIRING HARNESS
815182 815182 MICROWAVE DOOR
4358037 4358037 MOTOR BASE
4358014 4358014 MOUNTING PLATE ASSEMBLY.
4158427 4158427 MOUNTING ROD
4158212 4158212 NUT
4358016 4358016 OUTER CASE
100000 100000 OVEN CAVITY (NOT SERVICEABLE)
4358040 4358040 OVEN LAMP COVER
4158487 4158487 PLUG, BUTTON
4358172 4358172 POWER CORD ASSEMBLY.
4358055 4358055 PUSH NUT
4358803 4358803 RACK
WPR9800384 WPR9800384 RACK SUPPORT (4)
8169474 8169474 SCREW
WP3196557 WP3196557 SCREW
8169475 8169475 SCREW
WP4158079 WP4158079 SCREW
WP98008545 WP98008545 SCREW
WP3400094 WP3400094 SCREW
4358063 4358063 SCREW
W11380570 W11380570 SCREW
WP4158323 WP4158323 SCREW
4158347 4158347 SCREW (2)
4176862 4176862 SCREW (2)
3400899 3400899 SCREW (2)
4158186 4158186 SCREW (2)
4158187 4158187 SCREW (2)
4158189 4158189 SCREW (2)
4158353 4158353 SCREW (3)
4158425 4158425 SCREW (3)
WP8169704 WP8169704 SCREW (4)
4358021 4358021 SEAL
4358035 4358035 SEAL, BASE
4358049 4358049 SEAL, CAVITY (BOTTOM)
4358042 4358042 SEAL, DAMPER
4158478 4158478 SEAL, FOAM
4358020 4358020 SEALED PLATE-R.H.
WP482338 WP482338 SEALER, SILASTIC (3OZ.)
4158440 4158440 SMOKE DEFLECTOR KIT
4358051 4358051 SPECIAL SCREW (2)
4358043 4358043 STIRRER FAN ASSEMBLY.
4358044 4358044 STIRRER FAN COVER
4158623 4158623 STIRRER FAN SHAFT
4392027 4392027 SWITCH MICRO PRIMARY
4358071 4358071 SWITCH, MEMBRANE
4358067 4358067 TAPPING SCREW
W10815455 W10815455 TAPPING SCREW
LIT4358152 LIT4358152 TECH SHEET
4158371 4158371 TEMP PROBE
4158474 4158474 THERMOSTAT
WP4158326 WP4158326 TOGGLE WING (4)
4158322 4158322 TOP CABINET NUT (2)
4358001 4358001 TOP CABINET TEMPLATE
4358073 4358073 TRANSFORMER, POWER
832953 832953 TRANSFORMR
4158731 4158731 TRAY, GLASS
4358017 4358017 VENT FAN MOUNTING BRACKET
4358019 4358019 VENT GRILLE
4358024 4358024 VENTILATION MOTOR ASM.
4158328 4158328 WALL TEMPLATE
4158213 4158213 WASHER
WP4158314 WP4158314 WASHER (2)
4158369 4158369 WIRE HOLDER (2)
4158267 4158267 WIRE HOLDER (4)
4358179 4358179 WIRE, GROUND
4358032 4358032 WIRING HARNESS
