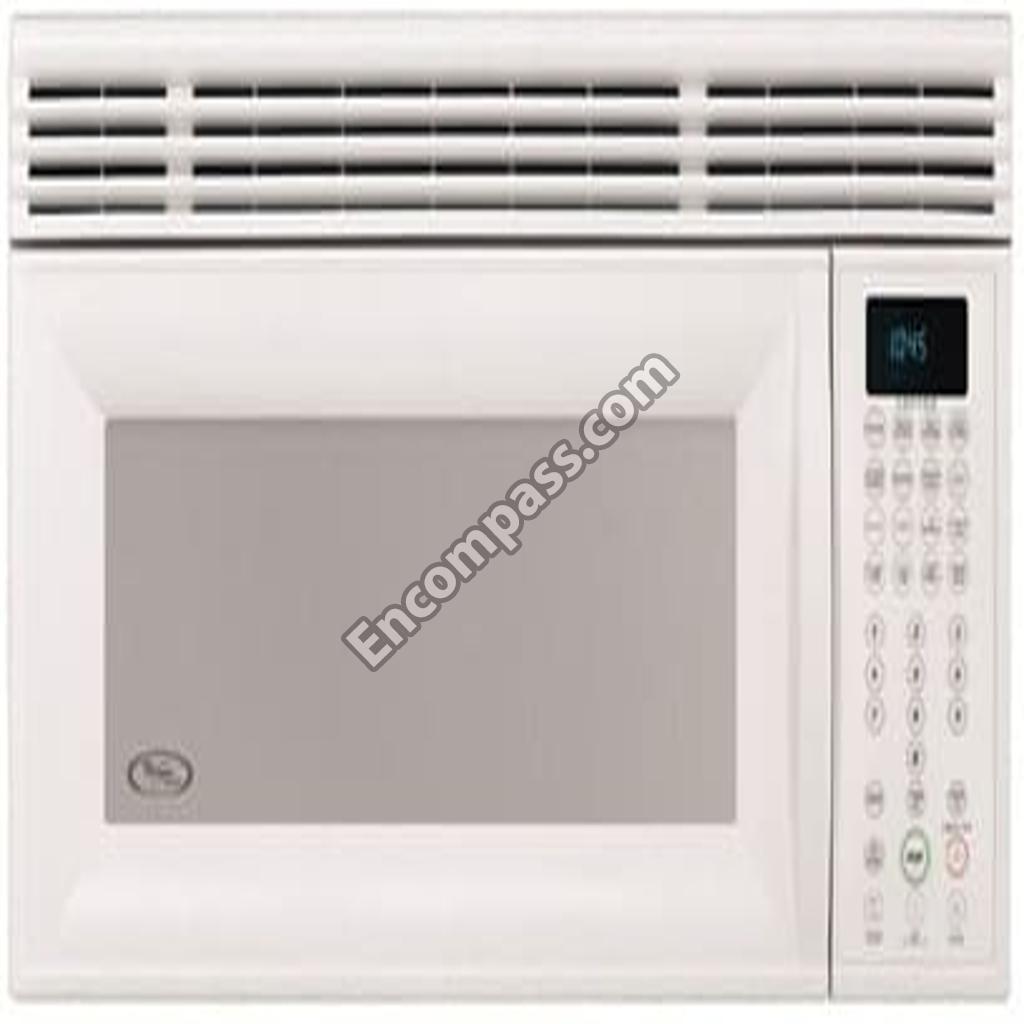

Model Image
Manufacturer

Whirlpool

Model Number

MH8150XJQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8169546 8169546 BODY, DOOR (BISCUIT)
8169490 8169490 BODY, DOOR (BLACK)
8169653 8169653 BODY, DOOR (WHITE)
8183821 8183821 BRACKET, CONTROL
100000 100000 BRACKET, FAN (NOT SERVICED)
8204653 8204653 BRACKET, THERMOSTAT
8206334 8206334 BRKT-MOUNT
8183708 8183708 CAMERA LENS (B/Q/Z MODELS)
8183724 8183724 CAMERA LENS (BISCUIT MODEL)
4393709 4393709 CAPACITOR
W10850446 W10850446 CAPACTR-MG
8169662 8169662 CASE, OUTER (ALMOND)
8169664 8169664 CASE, OUTER (BISCUIT)
8169660 8169660 CASE, OUTER (WHITE)
8185033 8185033 CATCH
8185212 8185212 CHASSIS
W10117062 W10117062 CONNECTOR
8184101 8184101 CORD, POWER
8183823 8183823 COVER, FAN
8184604 8184604 COVER, INLET INCLUDES NAILS AND BUSHINGS
4393756 4393756 COVER, TERMINAL
8184150 8184150 COVER-PLT
8169635 8169635 CUSHION, MTR
W10843943 W10843943 DAMPER
8184638 8184638 DEFLECTOR, AIR
W11256462 W11256462 DIODE
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
8185083 8185083 DUCT, AIR
8169320 8169320 E-RING
8171570 8171570 FILLER KIT (ALMOND)
8171338 8171338 FILLER KIT (BISCUT)
8171337 8171337 FILLER KIT (BLACK)
8171336 8171336 FILLER KIT (WHITE)
4393870 4393870 FILM, BACK
6800 6800 FILTER
6802A 6802A FILTER, GREASE
8169545 8169545 FRAME, INNER
8169354 8169354 FRAME, OUTER (ALMOND)
8185213 8185213 FRAME, OUTER (BISCUIT)
8169353 8169353 FRAME, OUTER (BLACK)

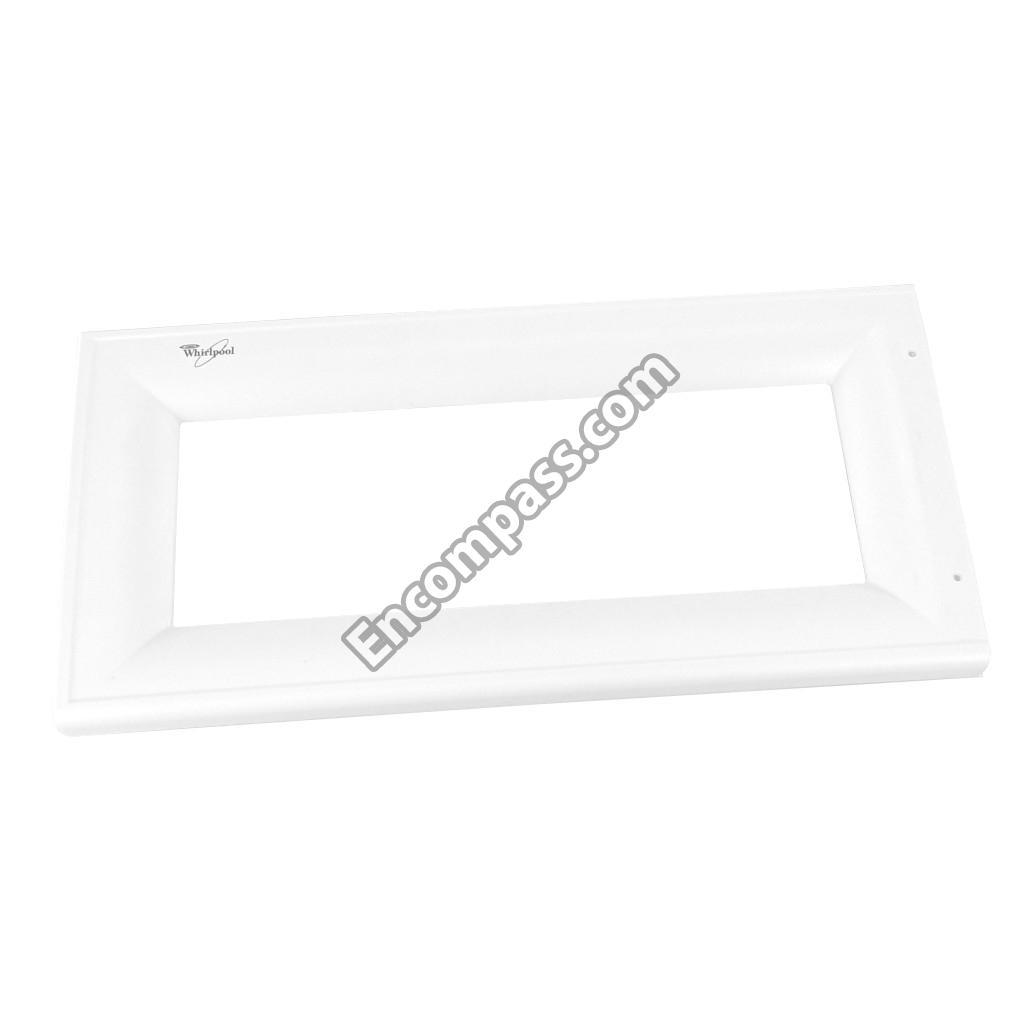

8169481 8169481 FRAME, OUTER (WHITE)
W11707984 W11707984 FUSE
8169564 8169564 GLASS, LAMP
4393725 4393725 GLASS, OUTER INCLUDED WITH 10
8183948 8183948 GRILL-VENT
8183852 8183852 GRILL-VENT
8184243 8184243 GRILLE, VENT (ALMOND)
8183851 8183851 GRILLE, VENT (BLACK)
8205045 8205045 GUIDE, AIR (MICROWAVE MAGNETRON)
4393783 4393783 HANDLE, DOOR (ALMOND)
8169642 8169642 HANDLE, DOOR (BISCUIT)
4393782 4393782 HANDLE, DOOR (BLACK)
4393777 4393777 HANDLE, DOOR (WHITE)
8205947 8205947 HARDWARE, INSTALLATION
8184311 8184311 HOLDER, CAPACITOR
8169705 8169705 HOLDER, CONNECTOR (R)
W10117908 W10117908 HOLDER, FUSE
8169539 8169539 HOLDER, LAMP
W10315274 W10315274 HOOK, RACK (4)
8183946 8183946 HOUSING
8184624 8184624 HOUSING, FAN
8184745 8184745 HOUSING, LAMP
8205932 8205932 HOUSNG-LMP
8205572 8205572 INTERLOCK
4393913 4393913 LATCH, DOOR
8169319 8169319 LATCH, PIVOT
8206232A 8206232A LIGHT BULB
LIT8183715 LIT8183715 LITERATURE PARTS (GUIDE, COOKING (LABEL))
LIT8183731 LIT8183731 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT8184692 LIT8184692 LITERATURE PARTS (TECH SHEET)
LIT8169687 LIT8169687 LITERATURE PARTS (USE & CARE GUIDE)
8183713 8183713 MICROCOMPUTER
8169492 8169492 MICROWAVE DOOR
W10245183 W10245183 MICROWAVE MAGNETRON
815176 815176 MOTOR, FAN
8185211 8185211 MOTOR, FAN
8184581 8184581 MOTOR, STIRRER
W10642989 W10642989 MOTOR, TURNTABLE
WP8206174 WP8206174 MOUNT-CBNT
W10841143 W10841143 NAIL, PLASTIC
8183711 8183711 PANEL, CONTROL (ALMOND)
8183725 8183725 PANEL, CONTROL (BISCUIT)
8185214 8185214 PANEL, CONTROL (BLACK)
8183710 8183710 PANEL, CONTROL (WHITE)
W10197496 W10197496 PLATE
8185209 8185209 PLATE, BOTTOM
8183824 8183824 PLATE, CAM
8169697 8169697 PLATE, DAMPER
WP8169704 WP8169704 PLATE, GRILL MISCELLANEOUS (SCREW, TOP MOUNTNG)
8205830 8205830 PLATE, HINGE
8204658 8204658 PLATE, SIDE (L)
8183813 8183813 RACK
8184582 8184582 RANGE THERMOSTAT
8169618 8169618 REFLECTOR, AIR
4393688 4393688 REFLECTOR, LAMP
W11252182 W11252182 RING-TURN
8169318 8169318 ROD
4393832 4393832 SCREW
WP8181660 WP8181660 SCREW
4393838 4393838 SCREW
4393836 4393836 SCREW
8169475 8169475 SCREW
8169478 8169478 SCREW
8169479 8169479 SCREW
4393346 4393346 SCREW
W10841091 W10841091 SCREW
8169474 8169474 SCREW
W11380570 W11380570 SCREW
WP4393834 WP4393834 SCREW
WP8184485 WP8184485 SHIELD
8204754 8204754 SHIELD
8184109 8184109 SPACER
8169374 8169374 SPRING
8169438 8169438 SPRING, INTERLOCK
8184633 8184633 STIRRER SHAFT/BLADE
8183707 8183707 SWITCH, MEMBRANE (ALMOND)
8183816 8183816 SWITCH, MEMBRANE (BISCUIT)
8183705 8183705 SWITCH, MEMBRANE (BLACK)
8183706 8183706 SWITCH, MEMBRANE (WHITE)
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
8205926 8205926 TEMPLATE
4393945 4393945 THERMOSTAT
8183703 8183703 THERMOSTAT
4393943 4393943 THERMOSTAT OPEN TEMP: 329~ FAHRENHEIT, CLOSE TEMP: -31~ FAHRENHEIT
WPW10136726 WPW10136726 TRANSFORMER, H.V.
4393799 4393799 TURNTABLE
8183743 8183743 WALL TEMPLATE
WP8205604 WP8205604 WHEEL, FAN
WP8183825 WP8183825 WHEEL, FAN
4393861 4393861 WHEEL, PLASTIC
8206547 8206547 WRAPER-CAB
