Model Image
Manufacturer

Whirlpool

Model Number

MHE16XSQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10138800 W10138800 AIR GUIDE
W10138797 W10138797 AIR GUIDE
W10596040 W10596040 ASSEMBLY, MOUNTING NUT
8206383 8206383 BASE PLATE, AIR GUIDE
W10532063 W10532063 BRACKET, CAPACITOR
8206361 8206361 BRACKET, CONTROL
W10156815 W10156815 BRKT-MNTG, FILTER
W11405832 W11405832 CAPACITOR, HOOD MOTOR
W10850446 W10850446 CAPACTR-MG
WPW10163418 WPW10163418 CASE, OUTER (BLACK)
8206337 8206337 CASE, OUTER (WHITE)
8206625 8206625 CHANNEL, AIR
8206344 8206344 CHASSIS
8206358 8206358 CHASSIS ASSEMBLY

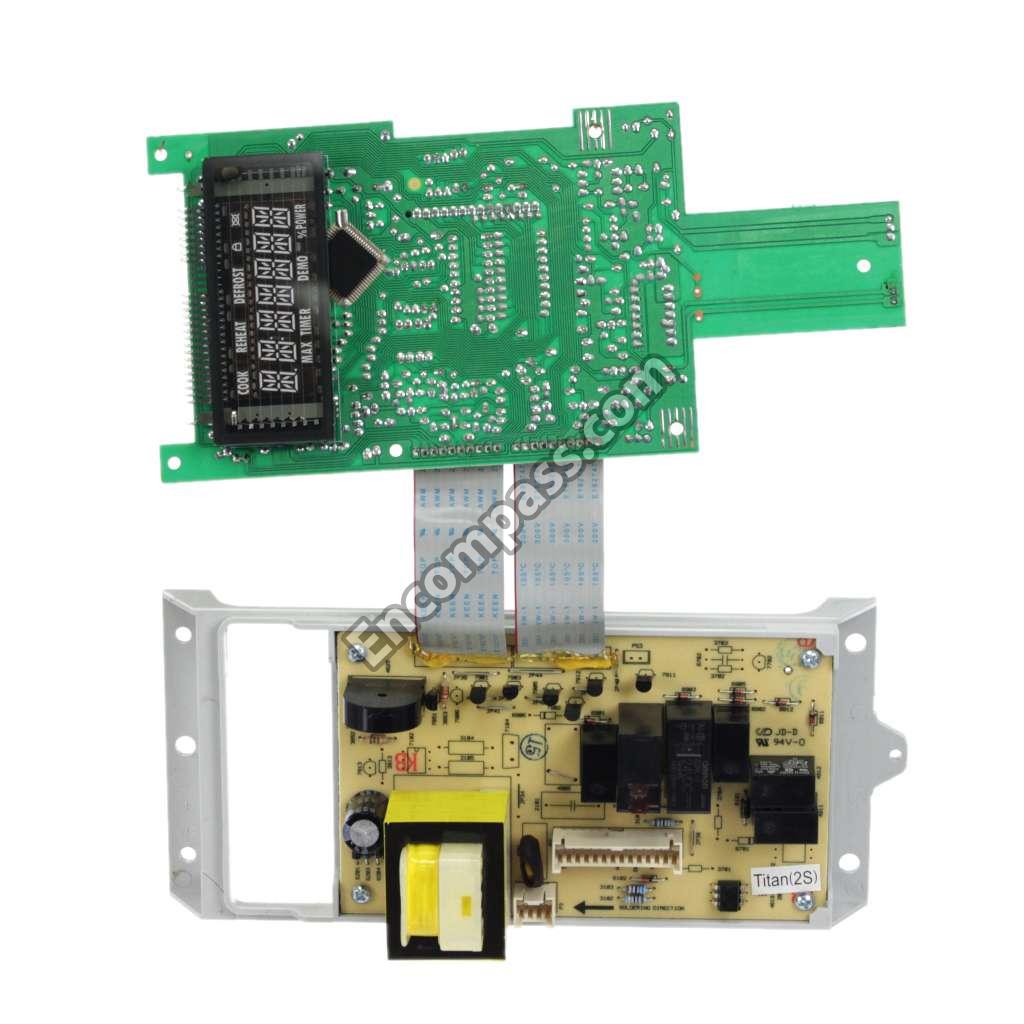

WPW10164891 WPW10164891 CONTROL BOARD
8205868 8205868 COOK GUIDE LABEL
W10708076 W10708076 CORD, POWER
8206389 8206389 COVER, INLET INCLUDES NAILS AND BUSHINGS
8206382 8206382 COVER, LAMP
8206371 8206371 COVER, SIDE INLET
8206354 8206354 COVER, TERMINAL
W10108800 W10108800 COVR-DUCT
W10843943 W10843943 DAMPER
8206340 8206340 DEFLECTOR, AIR
W10138796 W10138796 DIODE, H.V.
W10111341 W10111341 DOOR/MW
W10111342 W10111342 DOOR/MW
W10111346 W10111346 DOOR/MW
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
8206624 8206624 FILTER
8206230A 8206230A FILTER
8206229A 8206229A FILTER, GREASE
W11707984 W11707984 FUSE-THRML
8206376 8206376 GLASS, LAMP
W10111339 W10111339 GRILL-VENT
W10313273 W10313273 GRILLE, VENT (STAINLESS MODEL)
W10315365 W10315365 GRILLE, VENT (WHITE MODEL)
8205635 8205635 GROUND WIRE ASSEMBLY.
8206415 8206415 H.V. WIRE ASSEMBLY
W10445120 W10445120 HANDLE (BLACK/UNIV. SILVER)
W10445116 W10445116 HANDLE (WHITE)
W10107710 W10107710 HARNS-WIRE
W10107730 W10107730 HARNS-WIRE
W10107740 W10107740 HARNS-WIRE
W10107770 W10107770 HARNS-WIRE
W10117908 W10117908 HOLDER, FUSE
8206375 8206375 HOLDER, GLASS
8169539 8169539 HOLDER, LAMP
8206374 8206374 HOLDER, LAMP
8205948 8205948 INSTALLATION, HARDWARE
WPW10156813 WPW10156813 INTERLOCK
WP8206419 WP8206419 INTERLOCK
8206232A 8206232A LIGHT BULB
W10754299 W10754299 MICROWAVE MAGNETRON
100000 100000 MISCELLANEOUS
W10642989 W10642989 MOTOR, TURNTABLE
WPW10416638 WPW10416638 MOTOR-FAN
W10841143 W10841143 NAILS/BUSHINGS (4 OF EACH)
W10111337 W10111337 PANL-CNTRL
W10111336 W10111336 PANL-CNTRL
W10111338 W10111338 PANL-CNTRL
W10197758 W10197758 PISTON ASSEMBLY
8206386 8206386 PLATE, BOTTOM
8183824 8183824 PLATE, CAM
8206336 8206336 PLATE, DAMPER
8206348 8206348 PLATE, SIDE
WPW10269225 WPW10269225 PLATE-MTNG
8206387 8206387 REFLECTOR, LAMP
W11252182 W11252182 RING-TURN
WP8169704 WP8169704 SCREW
8206180 8206180 SCREW
8206181 8206181 SCREW
W10107800 W10107800 SHIELD
W10117846 W10117846 SOCKET, MOTOR WIRE
8169438 8169438 SPRING, INTERLOCK
8206370 8206370 SUPPORT, DIODE
8206385 8206385 SUPPORT, WIRE CLIP
W10269458 W10269458 SWITCH, MICRO SZM-V16-FC-62
W10211974 W10211974 SWITCH, MICRO V15T16-CP200
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
8205869 8205869 TECH SHEET
8184731 8184731 TEMPLATE, UPPER
8206359 8206359 TERMINAL CVR, LAMP
8206421 8206421 THERMISTOR (PCBA)
W10269232 W10269232 THERMOSTAT
W10598693 W10598693 THERMOSTAT, MICROWAVE MAGNETRON
WP8206343 WP8206343 TRANSFORMR
4393799 4393799 TURNTABLE
8205867 8205867 U & C GUIDE
W10107760 W10107760 WIRE-GROND
