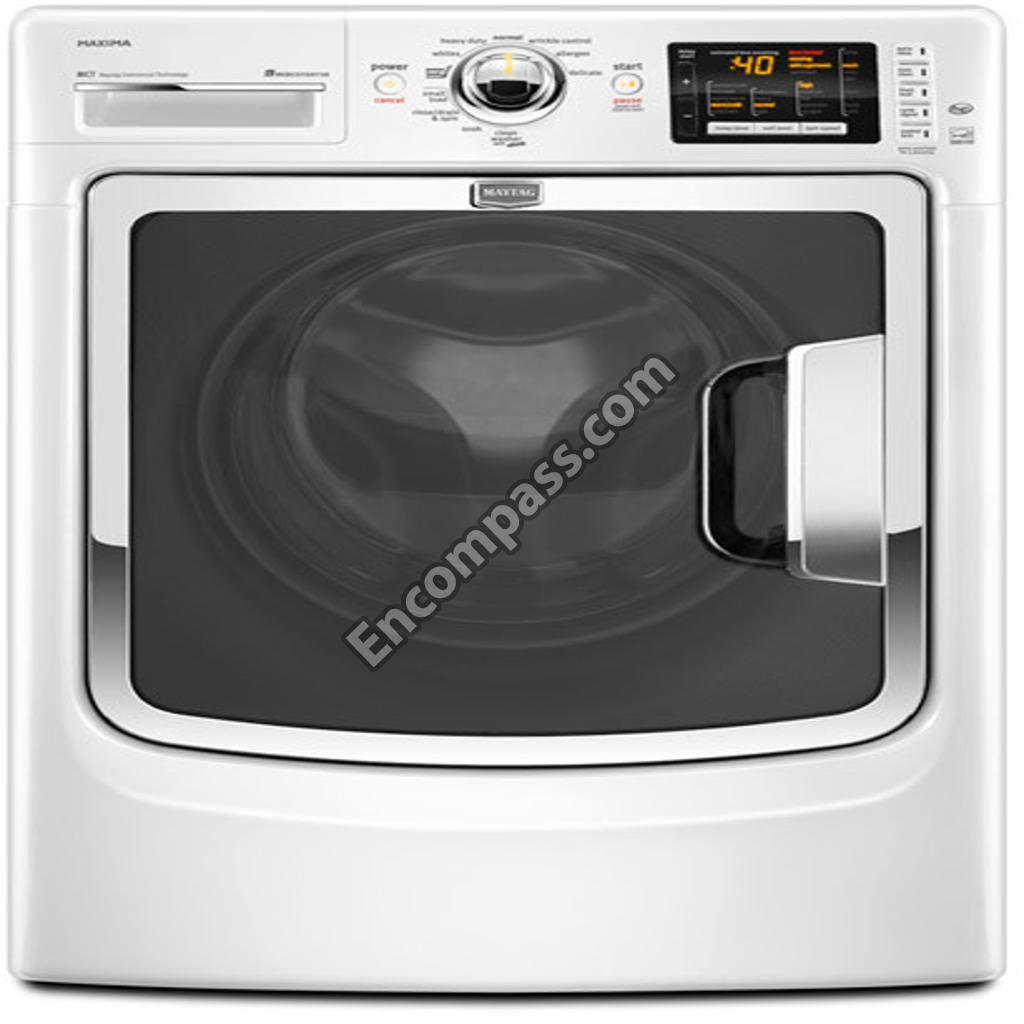

Model Image
Manufacturer

Whirlpool

Model Number

MHW6000XW2

Description

4.3 Cu. Ft. High-efficiency Front-load Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10135699 W10135699 AFFRESH WASHER CLEANER
W10697830 W10697830 BAFFLE
W10763470 W10763470 BOLT
W10839743 W10839743 BRACKET
WPW10467483 WPW10467483 BRACKET
W10237498 W10237498 BRACKET
W10208197 W10208197 BRACKET
W10467484 W10467484 BRACKET
8572266 8572266 BUMPER
W11166595 W11166595 CABINET
W10441106 W10441106 CABINET
W10441108 W10441108 CABINET
WP8183184 WP8183184 CAM
WPW10208398 WPW10208398 CAP
W10338322 W10338322 CAP
1903WH 1903WH CART-LNDRY
WPW10653575 WPW10653575 CHANNEL
WP696392 WP696392 CLAMP
WP8540092 WP8540092 CLAMP
W11218344 W11218344 CLAMP
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP
W11266654 W11266654 CLAMP
371499 371499 CLAMP
W10239910 W10239910 CLAMP
W10273034 W10273034 CLAMP
W10295703 W10295703 CLAMP, GLASS (2)
W10273036 W10273036 CLAMP-HOSE
W10353599 W10353599 CLAMP-HOSE
31682 31682 CLEANER
WPW10181028 WPW10181028 CLIP
W10317566 W10317566 CLIP
W10316388 W10316388 CLIP
W10441646 W10441646 CLIP
W10387860 W10387860 CONSOLE ASSSEMBLY (COSMETALLIC)
W10387862 W10387862 CONSOLE ASSSEMBLY (RED)
W10387857 W10387857 CONSOLE ASSSEMBLY (WHITE)
W10604650 W10604650 CONTROL BOARD
WPW10374126 WPW10374126 CONTROL BOARD
W10427972 W10427972 CONTROL BOARD
W10253014 W10253014 COUNTERWGT
W10237535 W10237535 COUNTERWGT
WP8540268 WP8540268 COVER
W10854051 W10854051 COVER
W10003140 W10003140 COVER
W10304004 W10304004 COVER
W10318155 W10318155 COVER
W10289432 W10289432 DISPENSER
WPW10121596 WPW10121596 DIVIDER
WP8183270 WP8183270 DOOR LATCH
WPW10272401 WPW10272401 DOOR, OUTER ASSEMBLY
WPW10208263 WPW10208263 DOOR-GLASS
W11316776 W11316776 DOOR-INNER
WPW10256686 WPW10256686 DRAWER
W10254489 W10254489 ENERGY GUIDE
WPW10434964 WPW10434964 FAN
WPW10001130 WPW10001130 FEET-LVLNG
WPW10367632 WPW10367632 FILTER
W10241027 W10241027 FILTER
WPW10526202 WPW10526202 GROMMET
W10338326 W10338326 GROMMET
8212452 8212452 GUARD-REAR
W10315748 W10315748 HANDLE
W10316371 W10316371 HANDLE
W10281852 W10281852 HANDLE, DISPENSER DRAWER (ALSO SHOWN ON DISPENSER PARTS PAGE) (WHITE)
W10271989 W10271989 HARNS-WIRE
W10309986 W10309986 HARNS-WIRE
W10309987 W10309987 HARNS-WIRE
WPW10426377 WPW10426377 HEATER
WPW10208415 WPW10208415 HINGE
WPW10467168 WPW10467168 HOSE
WPW10267642 WPW10267642 HOSE
WPW10568614 WPW10568614 HOSE
WPW10239966 WPW10239966 HOSE
W11281268 W11281268 HOSE
W11044559 W11044559 HOSE
285863 285863 HOSE
W10538835 W10538835 HOSE
WP89503 WP89503 HOSE-FILL
8212487RP 8212487RP HOSE-FILL
8212638RP 8212638RP HOSE-FILL
WPW10351811 WPW10351811 HOUSING
W10254447 W10254447 INSTALLATION INSTRUCTIONS
W10869845 W10869845 KIT-STACK
W10514146 W10514146 KNOB
WPW10183517 WPW10183517 LEVER
WP8183183 WP8183183 LEVER
W10732500 W10732500 MEDALLION
WP8181712 WP8181712 NOZZLE
WP8183181 WP8183181 NOZZLE
WP8182512 WP8182512 NUT
WP3359452 WP3359452 NUT
W10254495 W10254495 OWNERS MANUAL
799344 799344 PAINT
W10363227 W10363227 PAINT, TOUCH-UP (1/2OZ.) (RED)
WPW10441119 WPW10441119 PANEL
W10441117 W10441117 PANEL
W11199206 W11199206 PANEL
WPW10441121 WPW10441121 PANEL, FRONT (WHITE)
W11035353 W11035353 POWER CORD
WPW10280024 WPW10280024 RETAINER
W10245452 W10245452 RETAINER
W10273613 W10273613 RETAINER
W10365755 W10365755 ROTOR
WP9740848 WP9740848 SCREW
W11253212 W11253212 SCREW
WPW10253476 WPW10253476 SCREW
WP8534022 WP8534022 SCREW
W11230114 W11230114 SCREW
W11661566 W11661566 SCREW
WP3351614 WP3351614 SCREW
WP489464 WP489464 SCREW
WP8540282 WP8540282 SCREW
8540329 8540329 SCREW
W10208380 W10208380 SCREW
W10261496 W10261496 SCREW
W10305097 W10305097 SCREW
W10306501 W10306501 SCREW
WP8181736 WP8181736 SEAL
WPW10467289 WPW10467289 SENSOR
W10267637 W10267637 SHIELD
W11415987 W11415987 SHOCK-ABSR
W10323182 W10323182 SPACER
350930 350930 SPRAY
350938 350938 SPRAY
W11266649 W11266649 SPRING
W10365754 W10365754 STATOR
WPW10488048 WPW10488048 STRIKE
W10298211 W10298211 STUD
WPW10352973 WPW10352973 SWITCH-DIS
W10254474 W10254474 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
WPW10208373 WPW10208373 TOP
WPW10304145 WPW10304145 TOP
WPW10337799 WPW10337799 TOP (RED)
WPW10260500 WPW10260500 TRAP
8212526 8212526 TRAY
WPW10409997 WPW10409997 TUB-OUTER
72017 72017 TUCHUP
W10318650 W10318650 TUCHUP
WPW10289387 WPW10289387 VALVE
WPW10352818 WPW10352818 VENT-PIPE
W11183219 W11183219 VENT-PIPE
WP16123 WP16123 WASHER
W11106747 W11106747 WASHER DOOR BELLOW
WPW10304342 WPW10304342 WATER LEVEL SWITCH
WPW10321032 WPW10321032 WATER PUMP
WPW10271979 WPW10271979 WIRE HARNESS
WPW10339734 WPW10339734 WIRE HARNESS
