Model Image
Manufacturer

Whirlpool

Model Number

MMW9730AB01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241430 241430 ACCESSORIES, ALUMINUM FOIL (18`` X 25`)
4396923 4396923 ACCESSORIES, BROILER PAN & GRID
W10355010 W10355010 ACCESSORIES, KITCHEN & APPLIANCE CLEANER
W10123240 W10123240 ACCESSORIES, PREMIUM BROILER PAN & ROASTING RACK
W11042467 W11042467 ACCESSORIES, SS CLEANER
WP482338 WP482338 ADHESIVE
W11214480 W11214480 ARM
WPW10128850 WPW10128850 ARM
W10570072 W10570072 ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
W10570077 W10570077 ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
W10282990 W10282990 BACK, CHASSIS
W10288004 W10288004 BADGE (BLACK)
W10359278 W10359278 BAFFLE, CONVECTION
W11238787 W11238787 BASE, CHASSIS
W10616809 W10616809 BASE, VENT EXHAUST
WPW10245259 WPW10245259 BLOCK-TERM
WPW10286217 WPW10286217 BLOWER
W10351257 W10351257 BRACKET, BLOWER (LEFT)
W10283078 W10283078 BRACKET, BLOWER (RIGHT)
W10351258 W10351258 BRACKET, BLOWER DEFLECTOR
W10853628 W10853628 BRKT-GLASS
W10812024 W10812024 BRKT-GLASS
WPW10351278 WPW10351278 BUMPER
WPW10392683 WPW10392683 BUMPER
W11193483 W11193483 CAMERA LENS-LAMP
WPW10412722 WPW10412722 CAMERA LENS-LIGHT
8304588BL 8304588BL CAP, SCREW
W10283030 W10283030 CHASSIS, BACK DUCT
W10351308 W10351308 CHASSIS, BOTTOM DUCT SPACER
W10283031 W10283031 CHASSIS, COVER TOP BACK 30``
W10318158 W10318158 CHASSIS, COVER TOP FRONT 30``
W10509164 W10509164 CHASSIS, DIVIDER BACK
W10283033 W10283033 CHASSIS, SIDE
W10120231 W10120231 CLIP, SPRING
8285593 8285593 CONNECTOR COVER

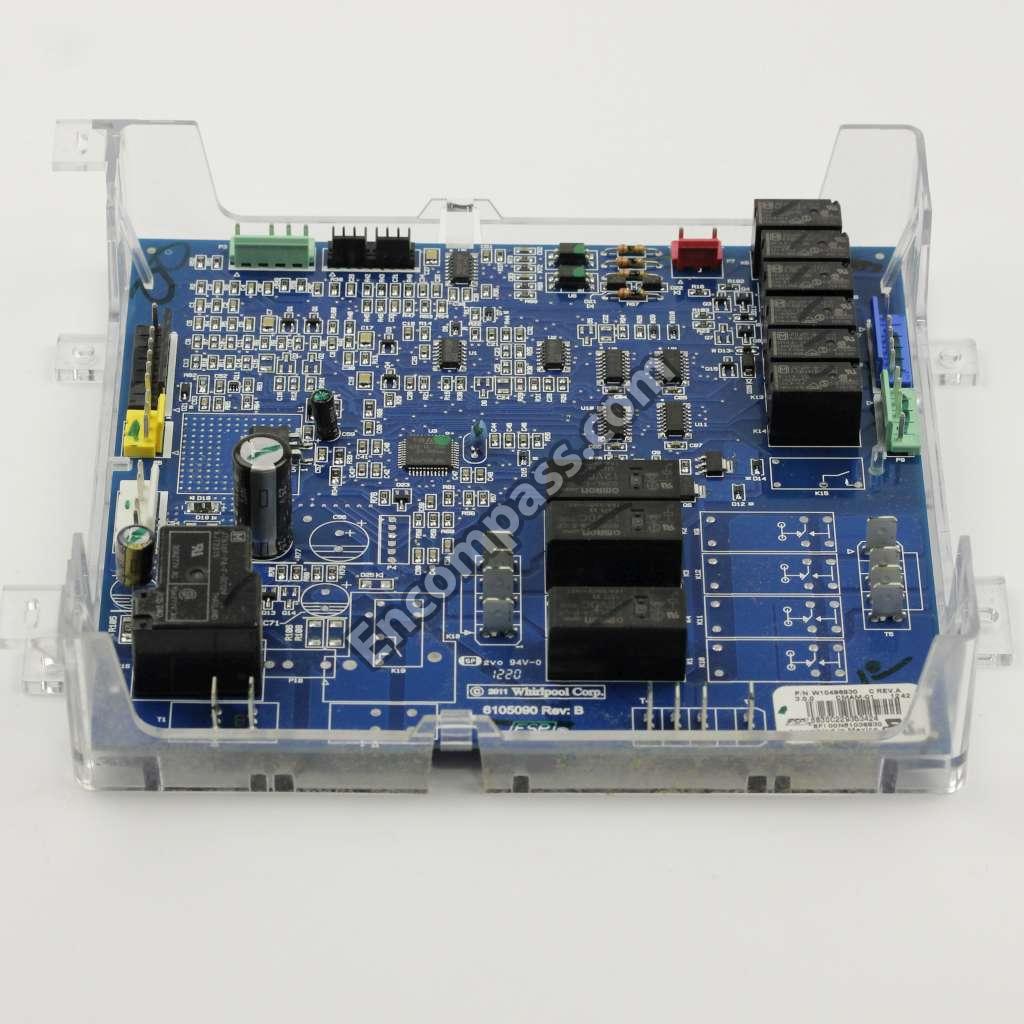

WPW10486188 WPW10486188 CONTROL BOARD
WPW10496830 WPW10496830 CONTROL BOARD
WPW10260060 WPW10260060 CONTROL BOARD
WPW10496841 WPW10496841 CONTROL BOARD

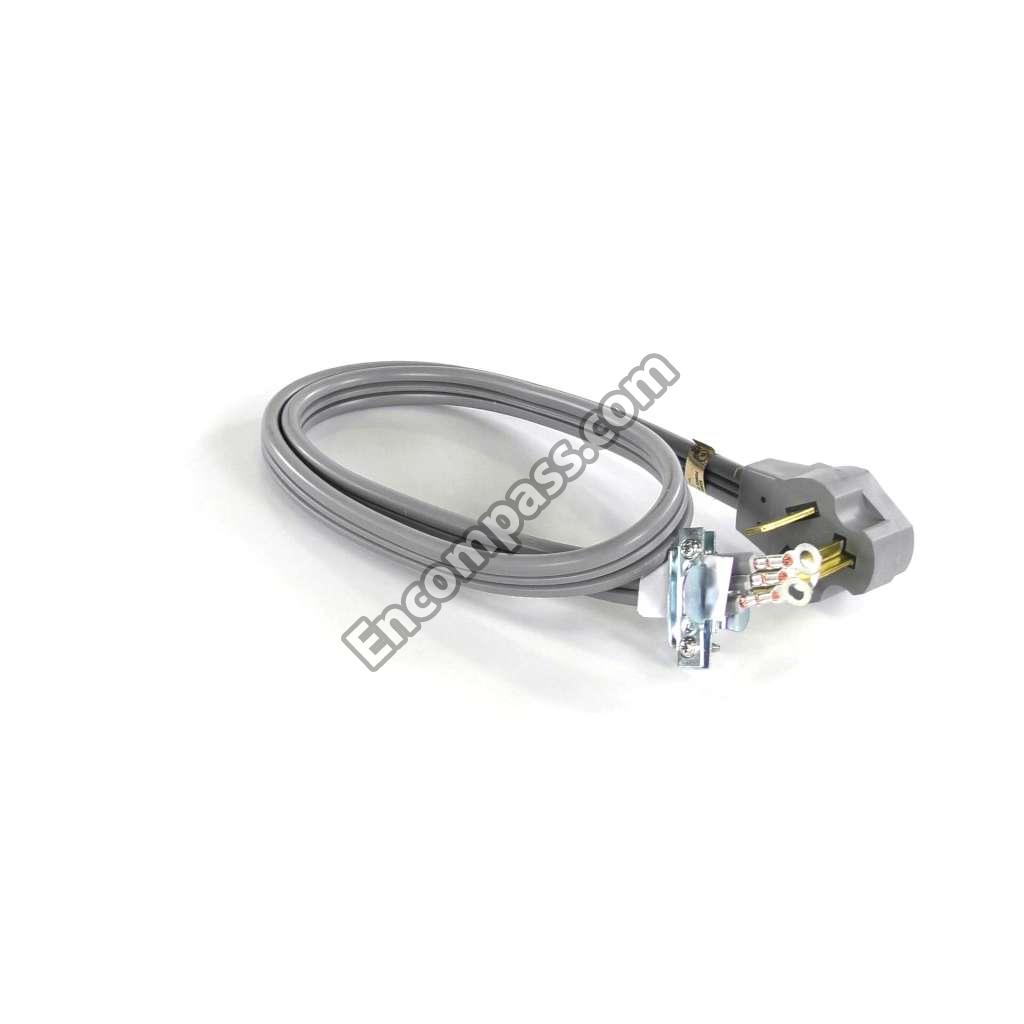

PT220 PT220 CORD, 4` 40 AMP 3 WIRE RANGE

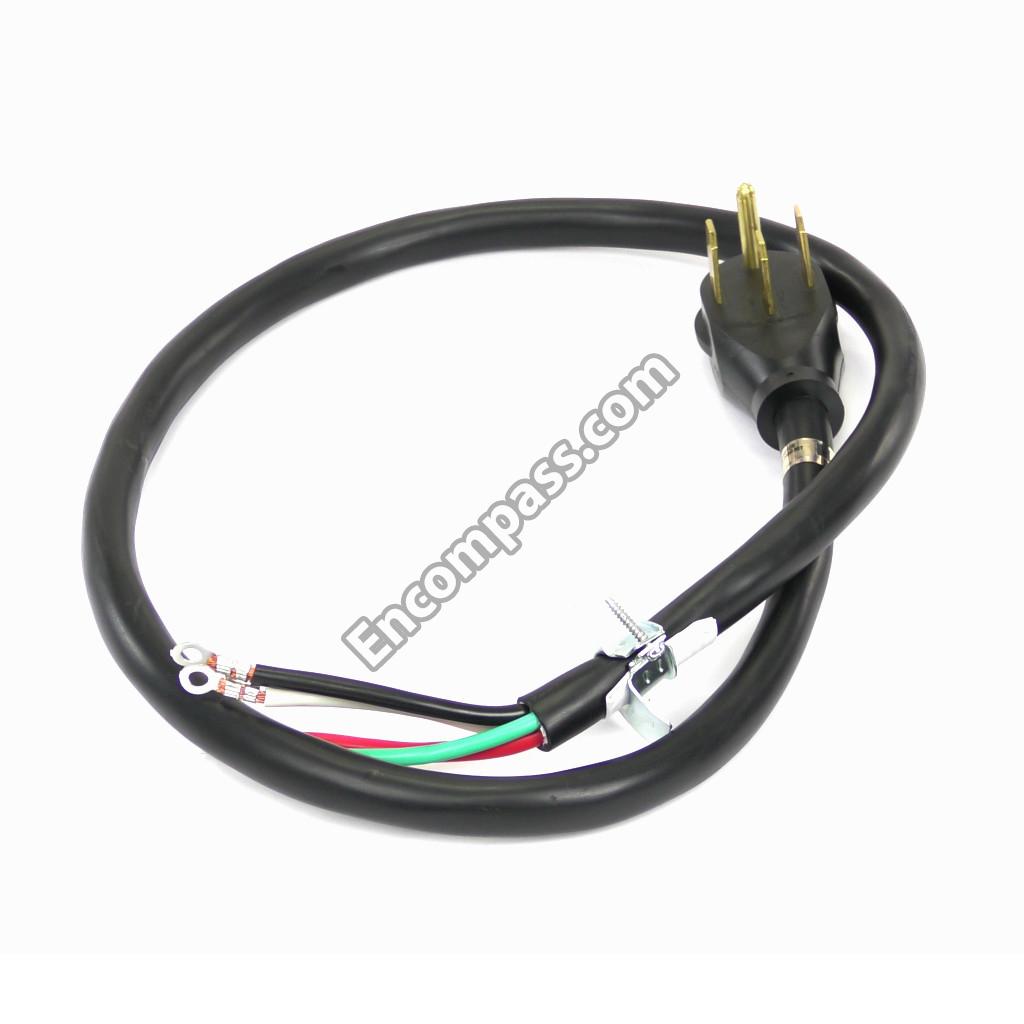

PT400 PT400 CORD, 4` 40 AMP 4 WIRE RANGE
PT500 PT500 CORD, 4` 50 AMP 4 WIRE RANGE
PT600 PT600 CORD, 6` 40 AMP 4 WIRE RANGE
W10616810 W10616810 COVER, VENT EXHAUST
W10915651 W10915651 COVER-PLT
WPW10283008 WPW10283008 COVR-ACESS
W10883049 W10883049 DOOR DOOR LATCH
WPW10161708 WPW10161708 DOOR HANDLE
W10874474 W10874474 DOOR HINGE
W10825778 W10825778 DOOR HINGE
WPW10486210 WPW10486210 DOOR, INNER
W10283000 W10283000 DUCT, CHASSIS BACK
WPW10260248 WPW10260248 ELEMENT
W11545804 W11545804 ELMNT-BAKE
WPW10260252 WPW10260252 ELMNT-BROL
W10758272 W10758272 FAN-CONVCT
W10853613 W10853613 FILTER
W10359769 W10359769 FOAM, HANDLE
WPW10709147 WPW10709147 FRAME-GLAS
WPW10017410 WPW10017410 FUSE
WP4375321 WP4375321 FUSE
W11623080 W11623080 GASKET-OVN
WPW10358168 WPW10358168 GLASS DOOR
W10577927 W10577927 GLASS DOOR
W10577930 W10577930 GLASS DOOR
WPW10618107 WPW10618107 GLASS DOOR
W10577925 W10577925 GLASS DOOR
W10577923 W10577923 GLASS DOOR
W10577922 W10577922 GLASS DOOR
WPW10347596 WPW10347596 GLASS DOOR
W10759525 W10759525 GROMMET
W10284922 W10284922 HANDLE, DOOR (BLACK)
W10269408 W10269408 HANDLE, DOOR (WHITE)
W10851464 W10851464 HANDLE-PAN
W11613828 W11613828 HINGE-RECV
4454949 4454949 HOLDER, FUSE
W10245194 W10245194 HOLDER, FUSE
WPW10490593 WPW10490593 HOUSNG-LMP
W10351241 W10351241 INSTALLATION INSTRUCTIONS
W11684789 W11684789 INSULATION
W11688731 W11688731 INSULATION
W11033422 W11033422 INTERLOCK
WP8205683 WP8205683 INTERLOCK
W10217711 W10217711 INVERTER
WPW10412711 WPW10412711 LIGHT BULB
WPW10734063 WPW10734063 LIGHT-IND
N_P N_P LINER, OVEN (NOT SERVICEABLE)
W10886919 W10886919 LMP-BASLES
W11346197 W11346197 MICROWAVE MAGNETRON
W11344874 W11344874 MOTOR-FAN
W10794022 W10794022 MOTOR-FAN
W10911403 W10911403 MOTOR-TURN
WP7103P027-60 WP7103P027-60 NUT
WPW10116349 WPW10116349 NUT
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350956 350956 PAINT, SPRAY (ALMOND)
4392901 4392901 PAINT, SPRAY (BISCUIT/BISQUE)
285006 285006 PAINT, SPRAY (BLACK)
350938 350938 PAINT, SPRAY (GRAY PRIMER)
350942 350942 PAINT, SPRAY (WHITE PRIMER)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ.) (BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 OZ.)
72017 72017 PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WPW10120480 WPW10120480 PAN-CRISP
W10587374 W10587374 PLATE, BAKING
WPPT520 WPPT520 POWER CORD
W11175831 W11175831 RACK
W10282967 W10282967 RACK, OVEN
W11718046 W11718046 RACK-OVEN
W10360516 W10360516 RAIL, LEFT HAND
W10360518 W10360518 RAIL, RIGHT HAND
W11568584 W11568584 RANGE THERMOSTAT
WP4449751 WP4449751 RANGE THERMOSTAT
423107022541 423107022541 REFLECTOR
W11110134 W11110134 RING-TURN
WPW10120235 WPW10120235 ROD-REL
WP4449809 WP4449809 SCREW
WP7101P246-60 WP7101P246-60 SCREW
WP4449040 WP4449040 SCREW
WP3400832 WP3400832 SCREW
W11684512 W11684512 SCREW
WP4449154 WP4449154 SCREW
461967825971 461967825971 SCREW
461967825321 461967825321 SCREW
W11347848 W11347848 SCREW
W10828565 W10828565 SCREW
WPY706189 WPY706189 SCREW
WP8533988 WP8533988 SCREW
WP3196183 WP3196183 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP12990527 WP12990527 SCREW
WPW10254050 WPW10254050 SCREW
WP4450038 WP4450038 SCREW
WP90767 WP90767 SCREW
W10491987 W10491987 SEAL-FOAM
W11699906 W11699906 SENSOR
W11233913 W11233913 SENSOR
WP74008369 WP74008369 SENSOR- OV
WPW10776938 WPW10776938 SHAFT-TURN
W10283024 W10283024 SIDE, BRACKET
W10318190 W10318190 SIDE, CHASSIS
W10283029 W10283029 SIDE, COMBO LEFT HAND
W10283028 W10283028 SIDE, COMBO RIGHT HAND
WPW10318220 WPW10318220 SPACER
W10363824 W10363824 SPACER, LATERAL
W10347649 W10347649 SPACERS, FRONT
W11700292 W11700292 SPRING
W10475855 W10475855 SPRING, LAMP
W10660052 W10660052 STEAMER
W11226264 W11226264 STRAP, GROUND
W11684510 W11684510 SUPPORT
W10213759 W10213759 SUPPORT, AIR CHANNEL
W10283020 W10283020 SUPPORT, BASE LEFT HAND
W10283021 W10283021 SUPPORT, BASE RIGHT HAND
W10283022 W10283022 SUPPORT, CROSSBAR
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
W10282980 W10282980 TOP, CHASSIS
W11238401 W11238401 TRANSFORMR
W10318198 W10318198 TRAY, HIDDEN BAKE
W10282957 W10282957 TRAY, HIDDEN BAKE CROSSBAR
W10818723 W10818723 TRAY-COOK
W10510106 W10510106 TRIM
W10486208 W10486208 TRIM, SIDE LEFT
W11240525 W11240525 TUBE-VENT
W10354191 W10354191 USE & CARE GUIDE (MICROWAVE)
W10354190 W10354190 USE & CARE GUIDE (OVEN)
W10425199 W10425199 USE & CARE GUIDE (TECH SHEET)
W10283042 W10283042 VENT, COMBO CENTER
461968973241 461968973241 VENT, TOP MICROWAVE
WPW10351279 WPW10351279 VENT-OVEN
WPW10327373 WPW10327373 VENT-OVEN
4448664 4448664 WIRING HARNESS PARTS, CLAMP. CONDUIT
W10190263 W10190263 WIRING HARNESS PARTS, CLIP, DOOR LATCH HARNESS
4450950 4450950 WIRING HARNESS PARTS, CONDUIT, COMBO
W10284927 W10284927 WIRING HARNESS PARTS, HARNESS, COMMUNICATION
W10284933 W10284933 WIRING HARNESS PARTS, HARNESS, DOOR DOOR LATCH
W10409836 W10409836 WIRING HARNESS PARTS, HARNESS, EOL
W10260272 W10260272 WIRING HARNESS PARTS, HARNESS, MAIN
W10286230 W10286230 WIRING HARNESS PARTS, HARNESS, SIGNAL
4450800 4450800 WIRING HARNESS PARTS, SCREW, GROUNDING
