Model Image
Manufacturer

Whirlpool

Model Number

MQC1557AEW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4356622 4356622 ACCESS PANEL
W11663505 W11663505 ADPTR-HOSE
68001166 68001166 BASE COMP
3-81556-001 3-81556-001 BRACE
3-33211-001 3-33211-001 CAP, DRAIN
WPW10662129 WPW10662129 CAPACITOR
488946 488946 CLAMP, TUBING
68001012 68001012 CLIP LOCK
4356703 4356703 CLIP, GASKET
3-24059-024 3-24059-024 CLIP, OBLONG
09100172 09100172 CLIP, TERMINAL COVER
W10309989 W10309989 COMPRESSOR
W10682894 W10682894 CONTRL-BOX
4356587 4356587 COVER-TERM
4356477 4356477 DIVIDER (OPTIONAL)
WPW10143759 WPW10143759 DRIER-UV
68001176 68001176 GASKET KIT (WHT)
Y09100025 Y09100025 GROMMET C
4356657 4356657 HANDLE

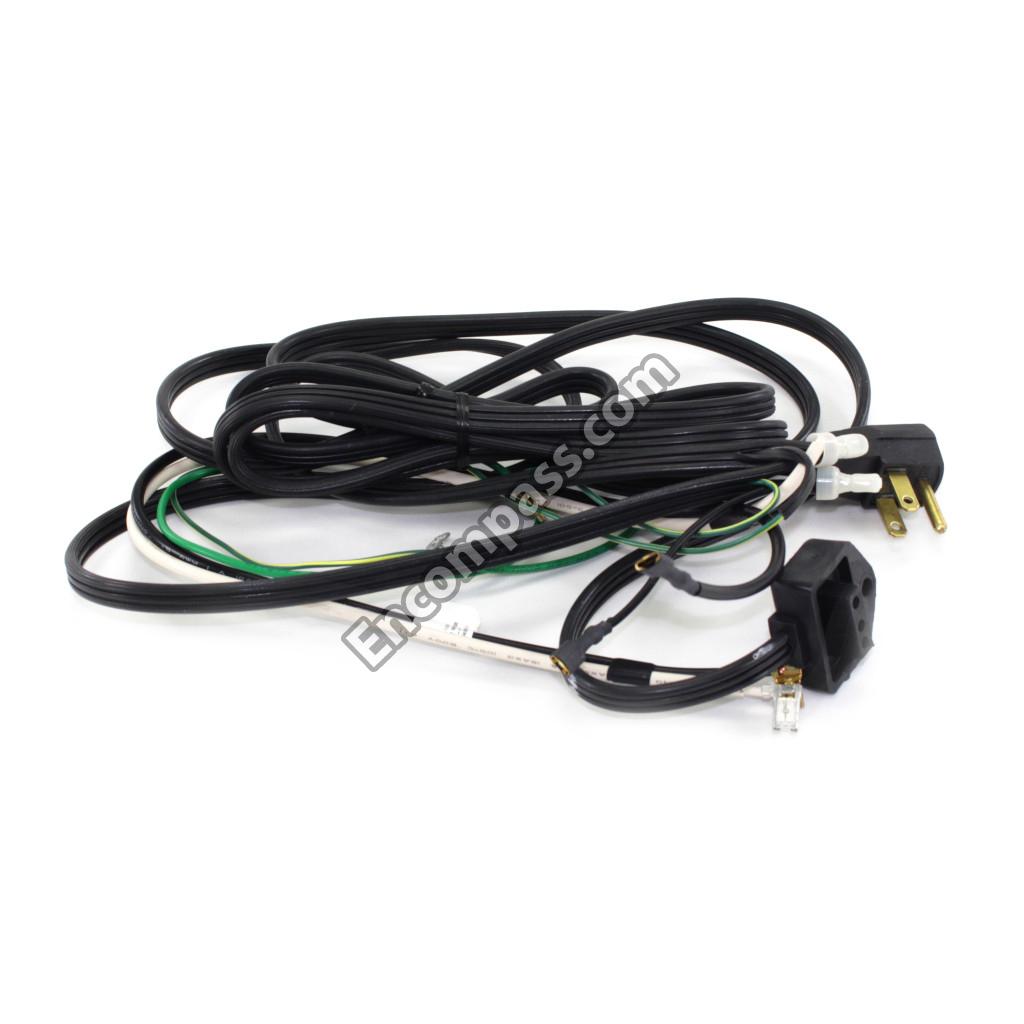

4-35129-002 4-35129-002 HARNESS, MAIN
68001600 68001600 HARNS-WIRE
R0651510 R0651510 HINGE GUIDE
WP4356723 WP4356723 HINGE-DOOR
4356584 4356584 INSERT, CONTROL
WP1-26356 WP1-26356 KEY, LOCK
68001452 68001452 KNOBTHERM
2005042 2005042 LAMP SOCKET
68001580 68001580 LID KIT (WHT)
WPA3073101 WPA3073101 LIGHT BULB
3-25693-001 3-25693-001 LIGHT-DEFL
68001694 68001694 LINER KIT, DOOR
3-35284-001 3-35284-001 LOCK KIT
1-35971-001 1-35971-001 MANUAL, USE & CARE
68001606 68001606 NAMEPLATE
23001266 23001266 NUT M8
4356336 4356336 PIN-HITCH
68001587 68001587 RAIL BASK
WP4356738 WP4356738 RELAY-STRT
68001588 68001588 RIVET
W11233072 W11233072 SCREW
3-24004-049 3-24004-049 SCREW
4356491 4356491 SCREW
2-30045-001 2-30045-001 SHIELD-HT
1-17548-006 1-17548-006 SPACER
Y09100032 Y09100032 SPRING HI
68001040 68001040 SPRING, HINGE (WHITE)
16022022 16022022 SRV MAN CHT FRZ RPL RS1400001
W10917237 W10917237 SWITCH
68001611 68001611 TAG ENERG
WP4-35940-001 WP4-35940-001 THERMOSTAT
Y09100033 Y09100033 TIE BOLT
W11045300 W11045300 TRIM-BRKR
4-35010-004 4-35010-004 TRIM-BRKR
4-35011-004 4-35011-004 TRIM-BRKR
4356322 4356322 WIRE BASKET
15002645 15002645 WIRING INFORMATION
