Model Image
Manufacturer

Whirlpool

Model Number

MT9160XEQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4313113 4313113 ADAPTER, SERVICE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
4313152 4313152 BASE PLATE, LEFT SIDE
4365525 4365525 BASE PLATE, RIGHT SIDE
4174669 4174669 BLADE, FAN
4313618 4313618 BRACKET, CAPACITOR
4313052 4313052 CAPACTR-MG
100000 100000 CAVITY, OVEN (NOT A SERVICEABLE PART)
4313164 4313164 CHOKE COVER (BLACK)
4313699 4313699 CHOKE COVER (WHITE)
WP261869 WP261869 CITRINE WHITE
WP832889 WP832889 CONNECTOR
4313158 4313158 CONTROL PANEL ASSEMBLY (BLACK MODEL)
4313166 4313166 CONTROL PANEL ASSEMBLY (WHITE MODEL)
LIT4365609 LIT4365609 COOKING GUIDE
4365573 4365573 COVER, MOTOR
4313151 4313151 COVER, WAVE GUIDE
4313644 4313644 CUSHION, WIRE
WP4313101 WP4313101 DIODE
4313116 4313116 DOOR LATCH HOOK
4313118 4313118 DOOR LATCH LEVER
4313137 4313137 DOOR LATCH, DOOR (BLACK)
4313653 4313653 DOOR LATCH, DOOR (WHITE)
4313163 4313163 DOOR PANEL
4313686 4313686 DUCT, FAN
4313153 4313153 DUCT, MICROWAVE MAGNETRON
4365606 4365606 FOOT (4)
4313162 4313162 FRAME, DOOR (BLACK MODEL)
4313170 4313170 FRAME, DOOR (WHITE MODEL)
4313051 4313051 FUSE, TEMPERATURE
4313125 4313125 GASKET, TURNTABLE
4313148 4313148 HARNESS, FUSE
4313679 4313679 HARNESS, HV
4313150 4313150 HARNESS, L.V.
4313149 4313149 HARNESS, MAIN
4313104 4313104 HOLDER, FUSE
W10873798 W10873798 LIGHT BULB
4313157 4313157 MICROCOMPUTER
4313187 4313187 MICROWAVE DOOR
4313188 4313188 MICROWAVE DOOR
4313675 4313675 MICROWAVE MAGNETRON
4313145 4313145 MOTOR, FAN
4313676 4313676 MOTOR, TURNTABLE
4313155 4313155 OUTER CABINET (BLACK)
4313165 4313165 OUTER CABINET (WHITE)
261900 261900 PAINT, SPRAY (CITRINE WHITE (6 OZ.))
4357406 4357406 POWER CORD
4313160 4313160 PUSH BUTTON (BLACK)
4313168 4313168 PUSH BUTTON (WHITE)
4313632 4313632 SCREW
4176862 4176862 SCREW
4312922 4312922 SCREW
W11233072 W11233072 SCREW
4357320 4357320 SCREW
4174757 4174757 SCREW, 3 X 8 MM
4313701 4313701 SCREW, 4 X 12 MM
4313661 4313661 SCREW, 4 X 8 MM
4313663 4313663 SCREW, NO.4 X 8 MM
WP482338 WP482338 SEALER, SILASTIC (3OZ.)
4313643 4313643 SHIELD, MICROWAVE MAGNETRON
4313102 4313102 SOCKET, LAMP
WP8205529 WP8205529 SPRING, BUTTON
4174992 4174992 SPRING, DOOR LATCH
4365526 4365526 SUPPORT, TURNTABLE

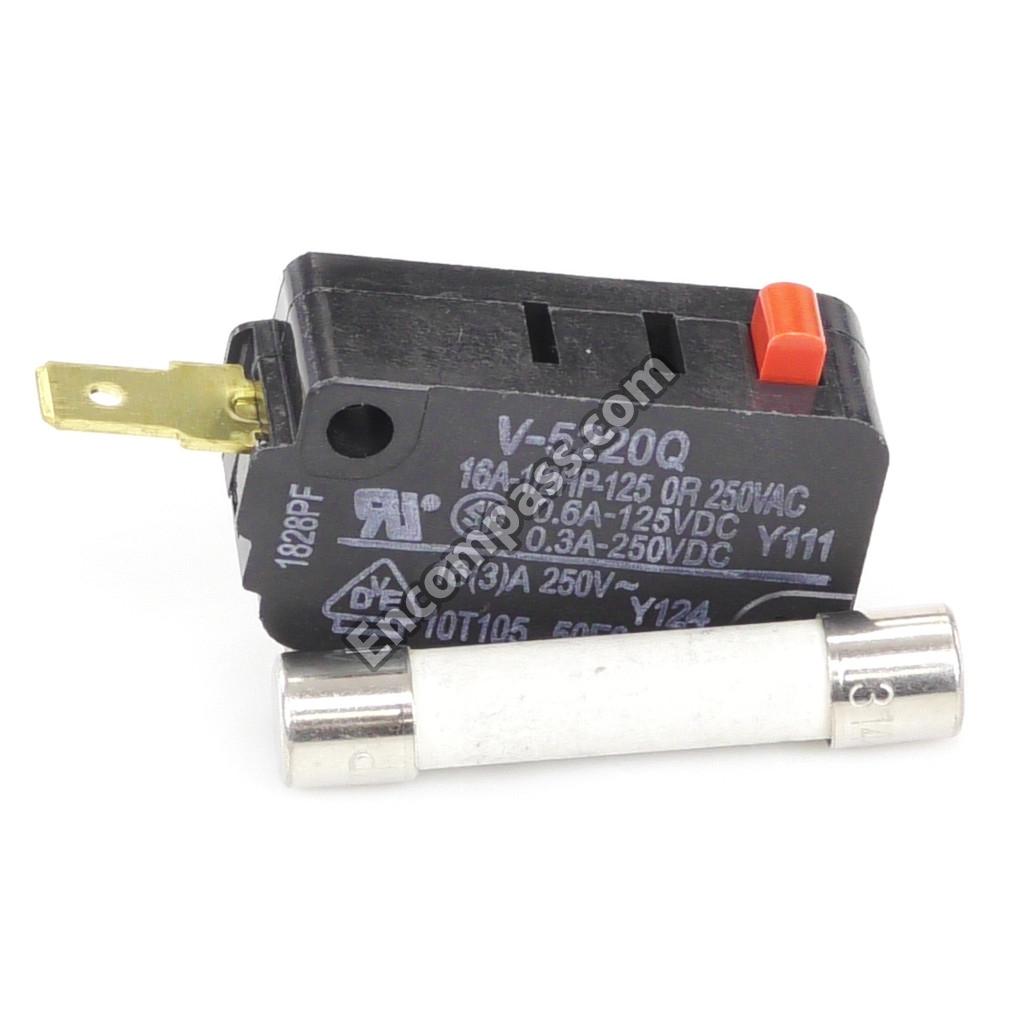

4313105 4313105 SWITCH AND FUSE ASSEMBLY.
4392027 4392027 SWITCH MICRO PRIMARY
LIT4365612 LIT4365612 TECH SHEET
4313613 4313613 THERMOSTAT, MICROWAVE MAGNETRON
4313147 4313147 TRANSFORMER
8183630 8183630 TRAY-COOK
LIT4365611 LIT4365611 USE & CARE GUIDE
4313130 4313130 WINDOW
242828 242828 WIRE (12 GA. 150 C BLACK)
242829 242829 WIRE (12 GA. 150 C RED)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242826 242826 WIRE (14 GA. 150 C WHITE)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242832 242832 WIRE (14 GA. 200 C YELLOW)
