Manufacturer

Whirlpool

Model Number

MVWB850WB0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10205824 W10205824 ABSORBER
W10135699 W10135699 AFFRESH WASHER CLEANER
W10296143 W10296143 BASKET
WPW10119519 WPW10119519 BEARING
WP8563877 WP8563877 BEZEL
WP8563876 WP8563876 BEZEL
WPW10136371 WPW10136371 BEZEL
W10139794 W10139794 BEZEL
W10093807 W10093807 BEZEL
W10093808 W10093808 BEZEL
W10093810 W10093810 BEZEL
W10093806 W10093806 BEZEL
W10093809 W10093809 BEZEL
WP8572019 WP8572019 BEZEL, LID LOCK (WHITE)
N_P N_P BOLT, ROTOR ASSEMBLY NON-SERVICEABLE (SUPPLIED W/ROTOR)
285320 285320 BREAK-SPHN
W10193880 W10193880 CABINET
W10434974 W10434974 CABINET
WPW10193881 WPW10193881 CABINET
W10193869 W10193869 CABINET (BLACK)
WPW10149460 WPW10149460 CAP
W10093813 W10093813 CAP
W10119508 W10119508 CAP
W10119509 W10119509 CAP
W10093814 W10093814 CAP
WP3367052 WP3367052 CLAMP
WP8269146 WP8269146 CLAMP
WP285655 WP285655 CLAMP
WP596669 WP596669 CLAMP
8534021 8534021 CLAMP
W10005430 W10005430 CLAMP
WP90016 WP90016 CLIP
8543784 8543784 CLIP
W10134571 W10134571 CLIP
WPW10160572 WPW10160572 CONNECTOR
WPW10090760 WPW10090760 CONSOLE
W10090755 W10090755 CONSOLE
W10090762 W10090762 CONSOLE
WPW10385606 WPW10385606 CONSOLE (MERCURY SILVER)

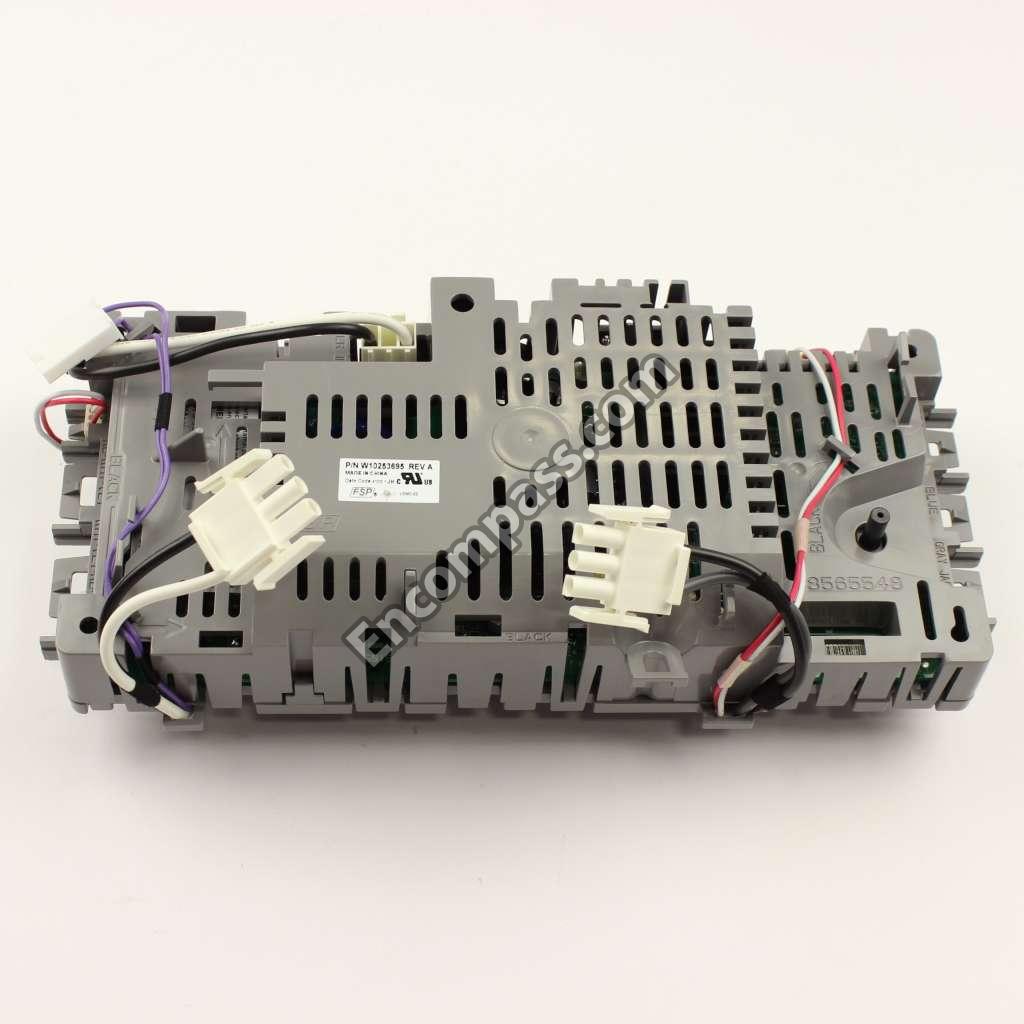

WPW10260184 WPW10260184 CONTROL BOARD
WPW10253695 WPW10253695 CONTROL BOARD
W10051098 W10051098 CORD-POWER
285442 285442 COUPLR-HOS
WP384496 WP384496 COUPLR-HSE
W10184256 W10184256 COVER
8563941 8563941 COVER
W10051124 W10051124 COVER
W11288102 W11288102 COVER
WP8564017 WP8564017 CUP

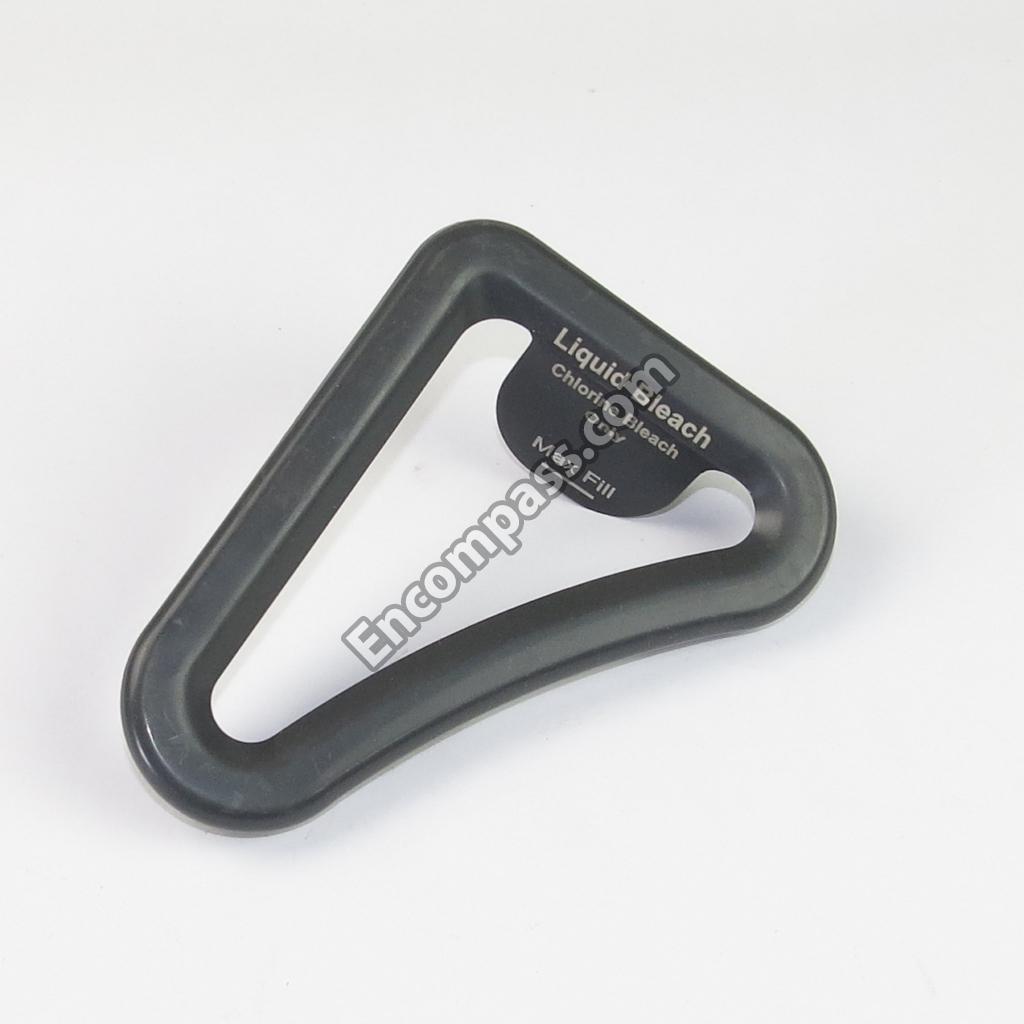

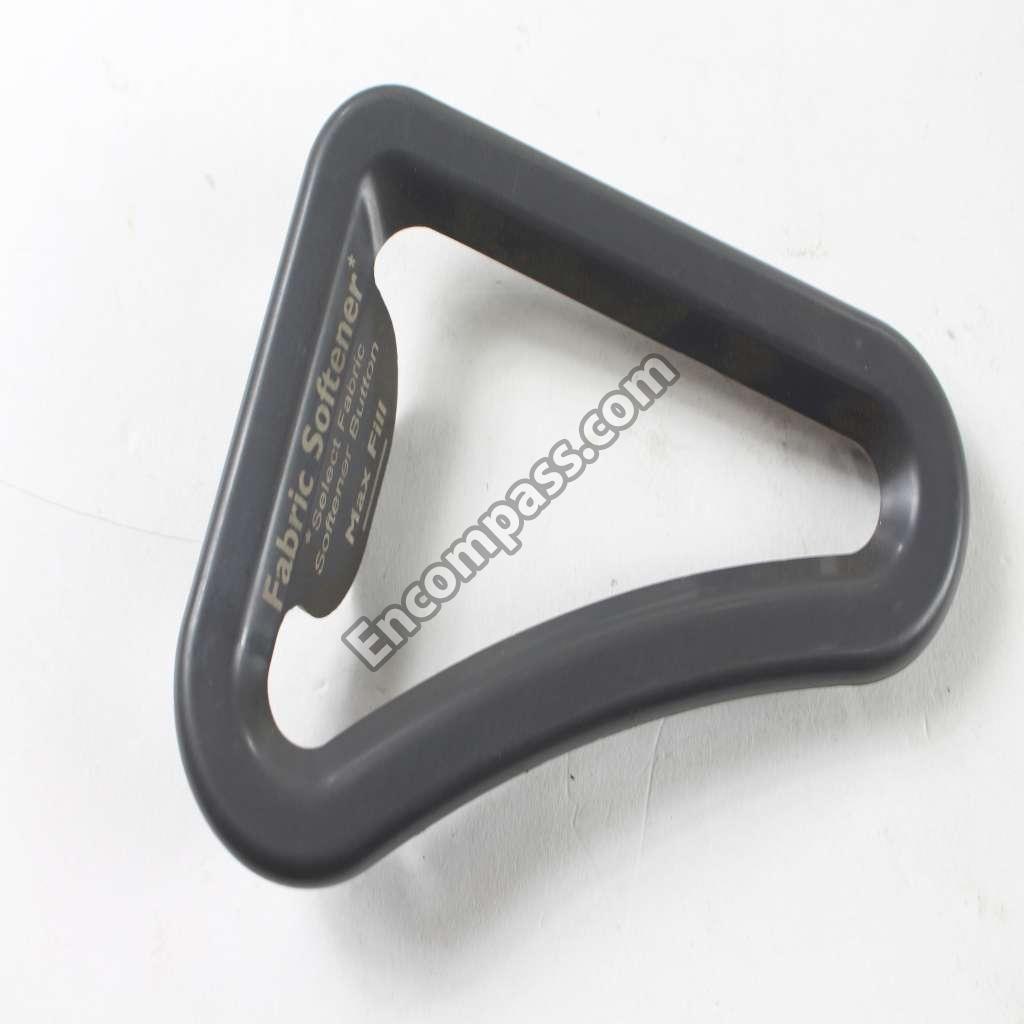

WPW10172154 WPW10172154 DISPENSER
WPW10172146 WPW10172146 DISPENSER
W10170353 W10170353 DISPENSER
W10170964 W10170964 DISPENSER
WPW10619844 WPW10619844 DOOR LATCH
W10092820 W10092820 ENERGY GUIDE
WPW10240448 WPW10240448 FEET-LVLNG
WPW10222008 WPW10222008 FILTER, DUAL PUMP HOOD
W10198634 W10198634 FRAME
W10141693 W10141693 GASKET
W10141695 W10141695 GASKET
280155 280155 GROMMET, PUMP MOUNTING (2)
3407187 3407187 HARNS-WIRE
WPW10325894 WPW10325894 HEATER
WP8564456 WP8564456 HINGE
WPW10141681 WPW10141681 HINGE
WPW10141682 WPW10141682 HINGE
WP8563964 WP8563964 HINGE

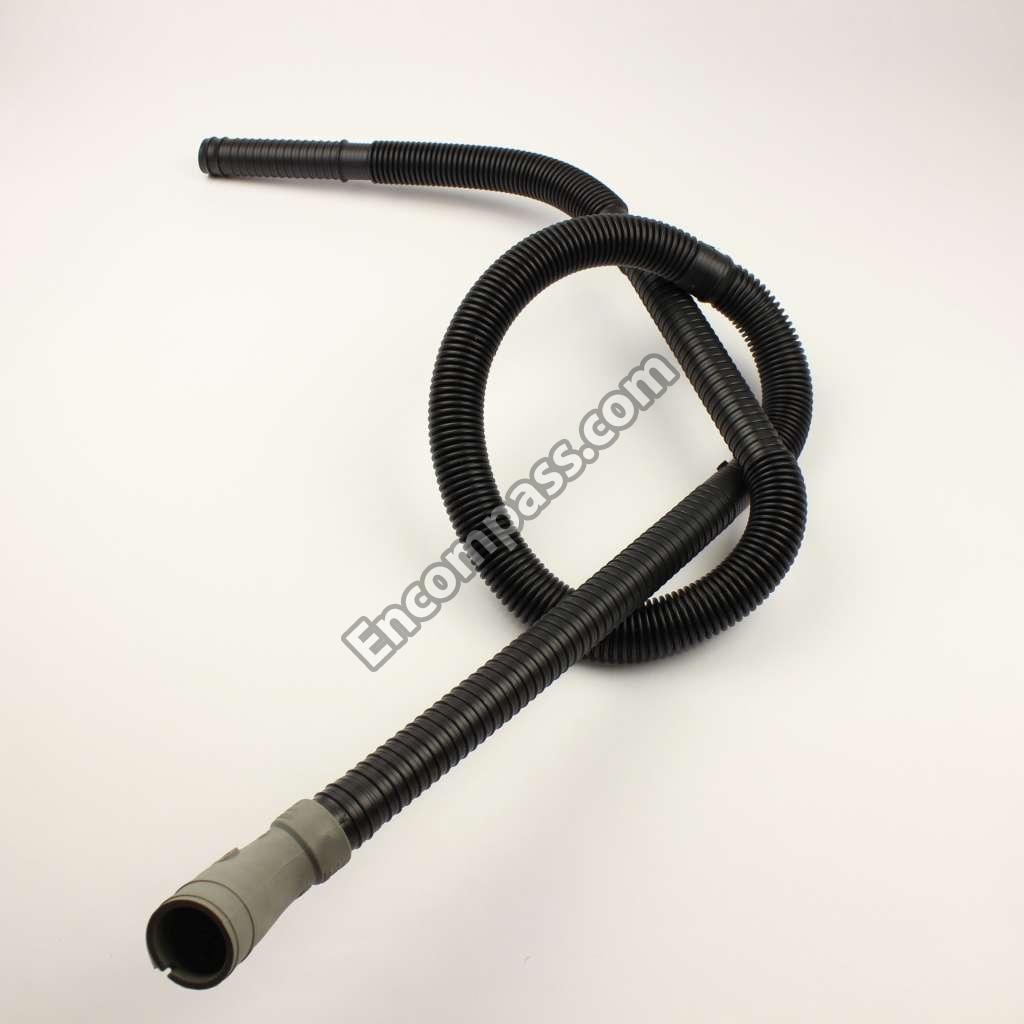

WP8182767 WP8182767 HOSE
WP8182769 WP8182769 HOSE
WP8543774 WP8543774 HOSE
WPW10236686 WPW10236686 HOSE
WP353244 WP353244 HOSE
285448A 285448A HOSE WASHERS (PACKAGE OF 4)
WP89503 WP89503 HOSE-FILL
8212487RP 8212487RP HOSE-FILL
8212545RP 8212545RP HOSE-FILL
8212546RP 8212546RP HOSE-FILL
8212638RP 8212638RP HOSE-FILL
8212641RP 8212641RP HOSE-FILL
W10820039 W10820039 HUB
W10240438 W10240438 INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
W10240439 W10240439 INSTALLATION INSTRUCTIONS (SPANISH)
W10198919 W10198919 KIT
WPW10051126 WPW10051126 KNOB
WPW10119492 WPW10119492 LID
W11430886 W11430886 LID
W10093817 W10093817 LID
W10093818 W10093818 LID
W10042120 W10042120 LOCATOR
WP8563785 WP8563785 LOCK
W10153170 W10153170 MEDALLION
WPW10106990 WPW10106990 NOZZLE
98460 98460 NUT
W10022060 W10022060 NUT
799344 799344 PAINT
WP8566090 WP8566090 PANEL-REAR
W10026652 W10026652 PERFORMANCE SHEET (ENGLISH/FRENCH)
W10178406 W10178406 PERFORMANCE SHEET (SPANISH)
WP8557836 WP8557836 PLATE
WP8576642 WP8576642 RETAINER
280146 280146 ROTOR
285452A 285452A SCREEN
WPW10004910 WPW10004910 SCREW
WPW10109200 WPW10109200 SCREW
WP8533928 WP8533928 SCREW
WP8533953 WP8533953 SCREW
WPW10076270 WPW10076270 SCREW
WP3351614 WP3351614 SCREW
WPW10052600 WPW10052600 SCREW
W10846509 W10846509 SCREW
WP8281136 WP8281136 SCREW
WP693995 WP693995 SCREW
WP681414 WP681414 SCREW
WP488729 WP488729 SCREW
WPW10119828 WPW10119828 SCREW
WP489069 WP489069 SCREW
W11700520 W11700520 SCREW
8565324 8565324 SCREW
8533957 8533957 SCREW
WP4449745 WP4449745 SCREW
W10004990 W10004990 SCREW
W10119266 W10119266 SCREW
WP8534042 WP8534042 SCREW, 1/4-20 X .968 (4)
W10161707 W10161707 SEAL
WP285195 WP285195 SEALER
WPW10178988 WPW10178988 SENSOR
WPW10137698 WPW10137698 SHIELD
8578386 8578386 SHIELD
8578572 8578572 SHIELD
285321 285321 SLEEVE
W11096159 W11096159 SOUND ABSR
8576476 8576476 SPACER
350938 350938 SPRAY
350930 350930 SPRAY
285006 285006 SPRAY
WPW10419333 WPW10419333 STATOR

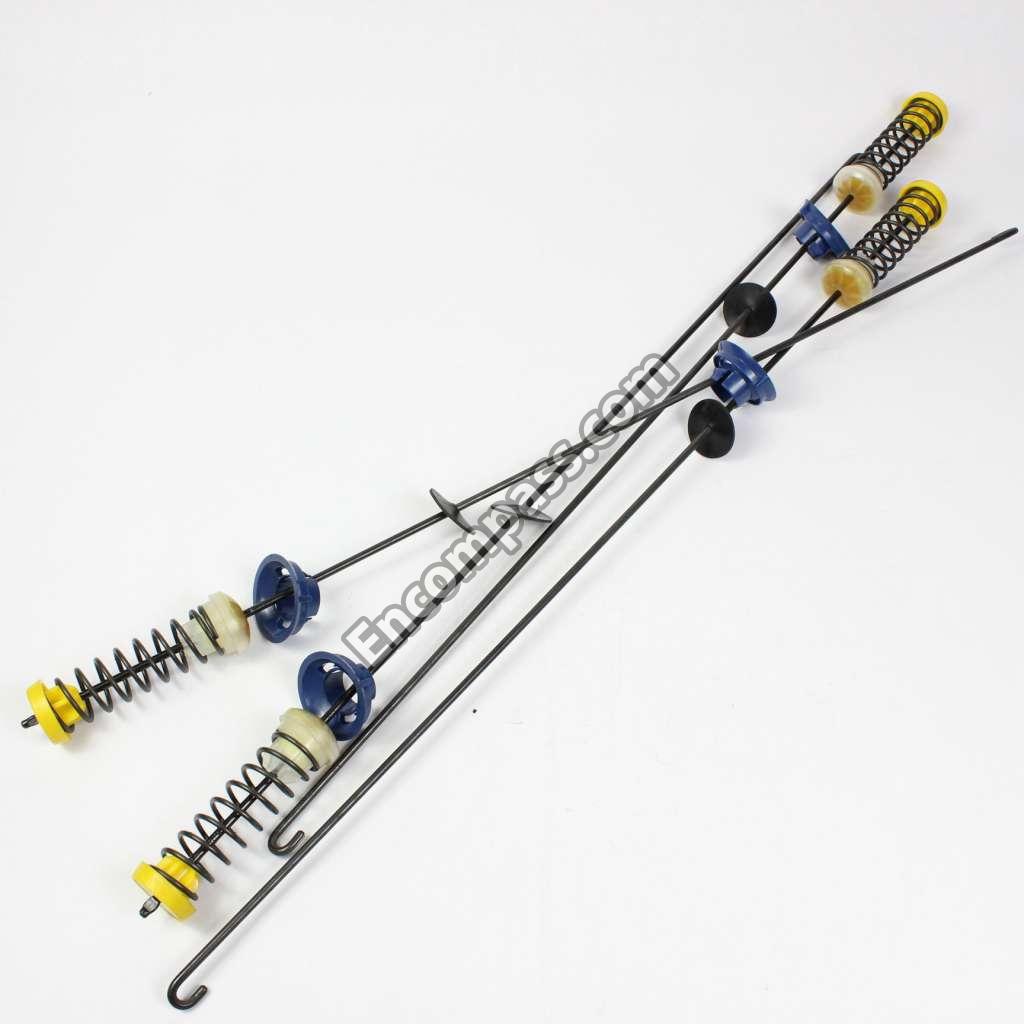

W10247710 W10247710 SUSPENSION ROD KIT
W10093831 W10093831 TECH SHEET IMPROVED WASH
WPW10339879 WPW10339879 TIE-WIRE
WPW10155270 WPW10155270 TIE-WIRE
W10093800 W10093800 TOP
W10141677 W10141677 TOP
W10110834 W10110834 TOP
W10093801 W10093801 TOP
W10110213 W10110213 TRAY
W10110846 W10110846 TRAY
W10110304 W10110304 TRAY
WPW10251271 WPW10251271 TUB RING (INCLUDES ITEM 30)
W10193887 W10193887 TUB-OUTER
280142 280142 TUBE
72017 72017 TUCHUP
W10092822 W10092822 USE & CARE GUIDE (ENGLISH/FRENCH)
W10092823 W10092823 USE & CARE GUIDE (SPANISH)
W10371507 W10371507 VALVE
WPW10076260 WPW10076260 WASHER
WP16123 WP16123 WASHER
WP8577896 WP8577896 WASHER
W11252784 W11252784 WASHPLATE
WPW10233462 WPW10233462 WATER PUMP
W10536347 W10536347 WATER PUMP
367031 367031 WATER SYSTEM PARTS, DRAIN PROTECTOR
3184020 3184020 WIRE
