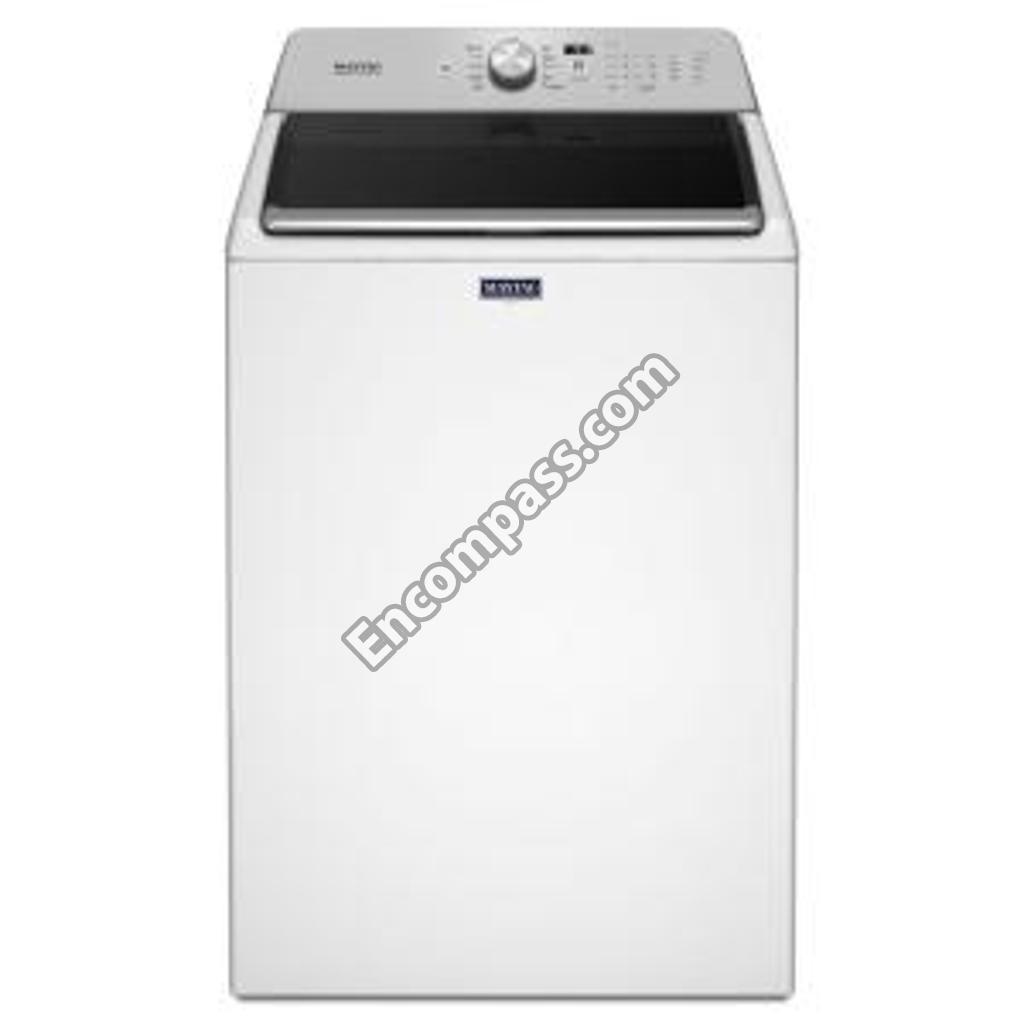

Model Image
Manufacturer

Whirlpool

Model Number

MVWX655DW1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11611669 W11611669 ABSORBER
WP8564458 WP8564458 ABSORBER
W10135699 W10135699 ACCESSORY PARTS, AFFRESH? WASHER CLEANER
285452A 285452A ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2)
285448A 285448A ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4)
8212546RP 8212546RP ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212545RP 8212545RP ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED HOSE AND ONE BLUE HOSE W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212641RP 8212641RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212638RP 8212638RP ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAIDED HOSES W/ ONESTRAIGHT END AND ONE 90 DEGREE END AND 4 RUBBER WASHERS)
W10913953 W10913953 ACTUATOR
3363920A 3363920A ADAPTER

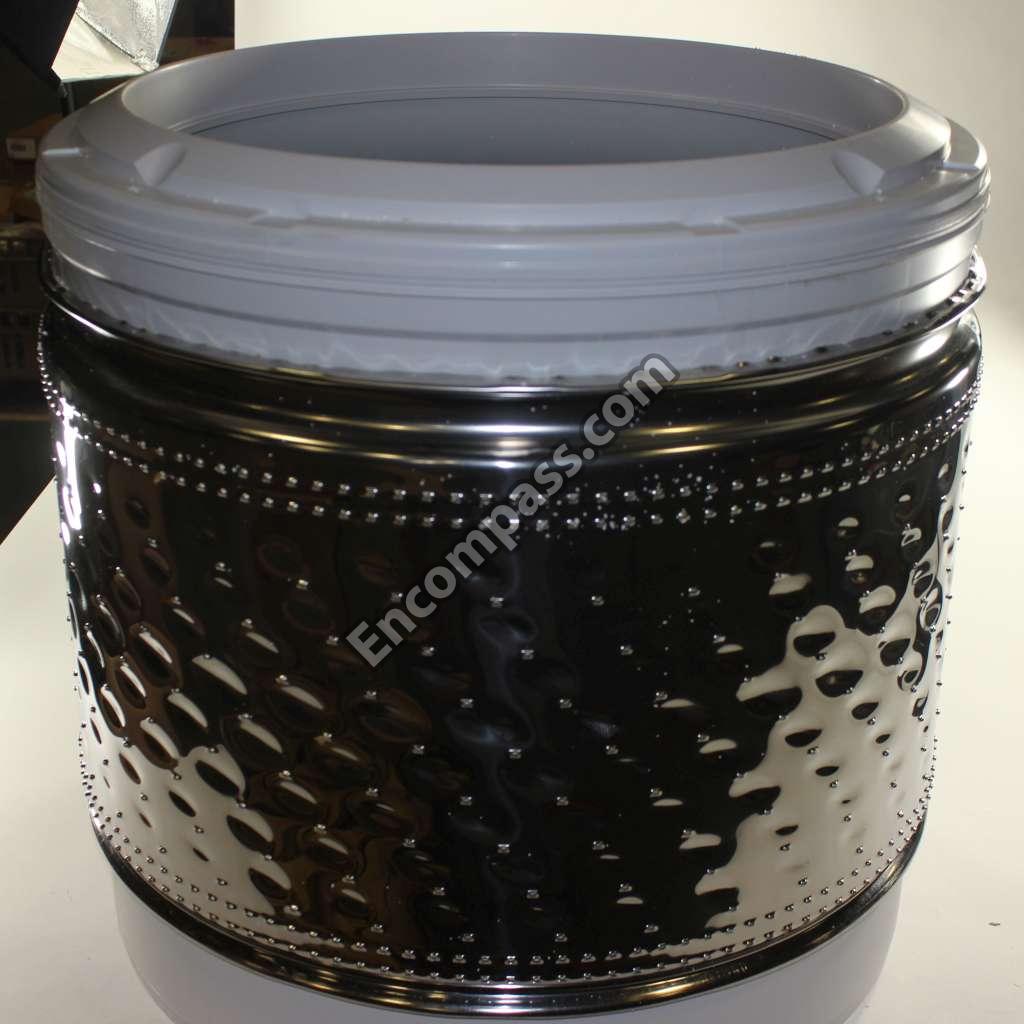

W10752719 W10752719 BASKET
W10293653 W10293653 BEARING, LID HINGE (LEFT HAND)
W10293293 W10293293 BEARING, LID HINGE (RIGHT HAND)
W11239857 W11239857 BELT
W11501416 W11501416 BEZEL
W11712680 W11712680 BRACE
W11695476 W11695476 BRACE
WP9724509 WP9724509 BUMPER
W10676680 W10676680 CABINET (WHITE)
W11050804 W11050804 CAP
W11395618 W11395618 CAPACITOR
WP285655 WP285655 CLAMP
WP356138 WP356138 CLAMP
W10005430 W10005430 CLAMP, CABLE
WP688805 WP688805 CLIP
WP8312709 WP8312709 CLIP
WP90016 WP90016 CLIP

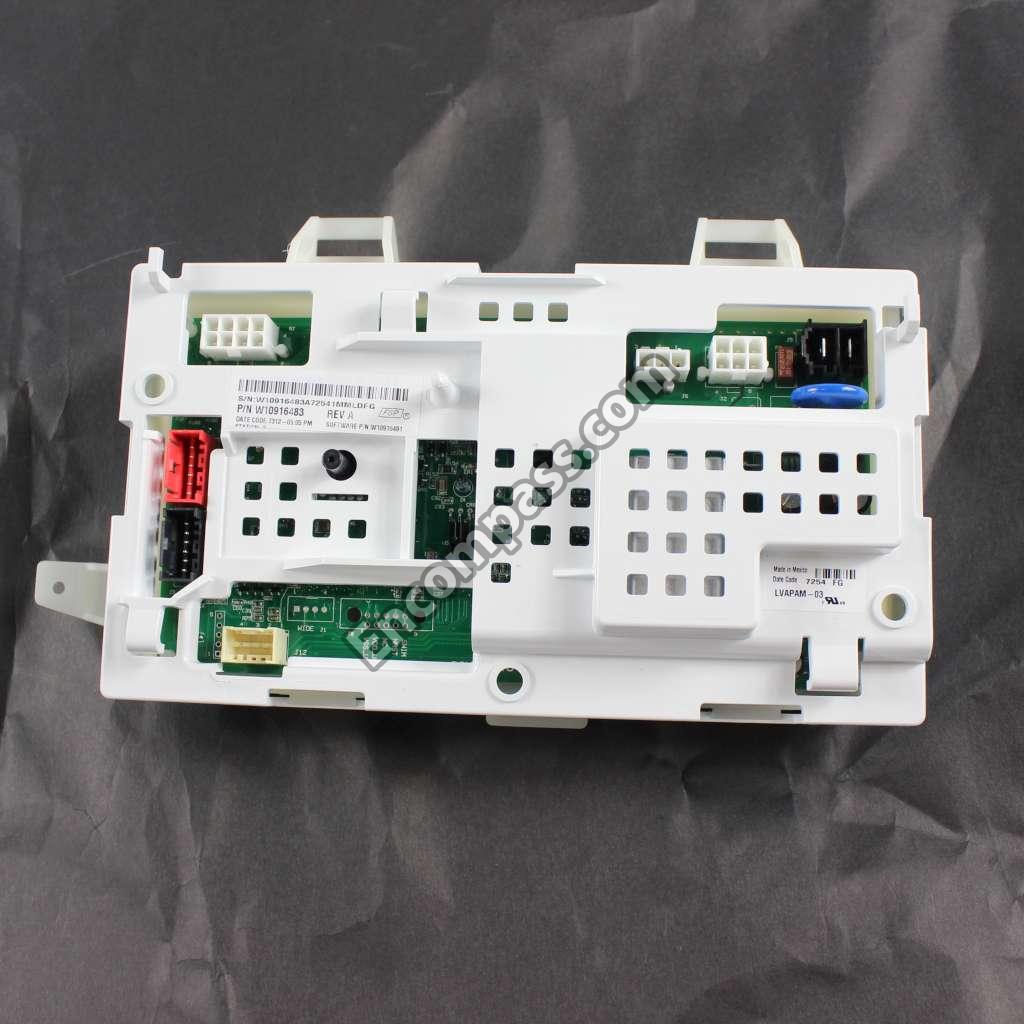

W11116592 W11116592 CONTROL BOARD

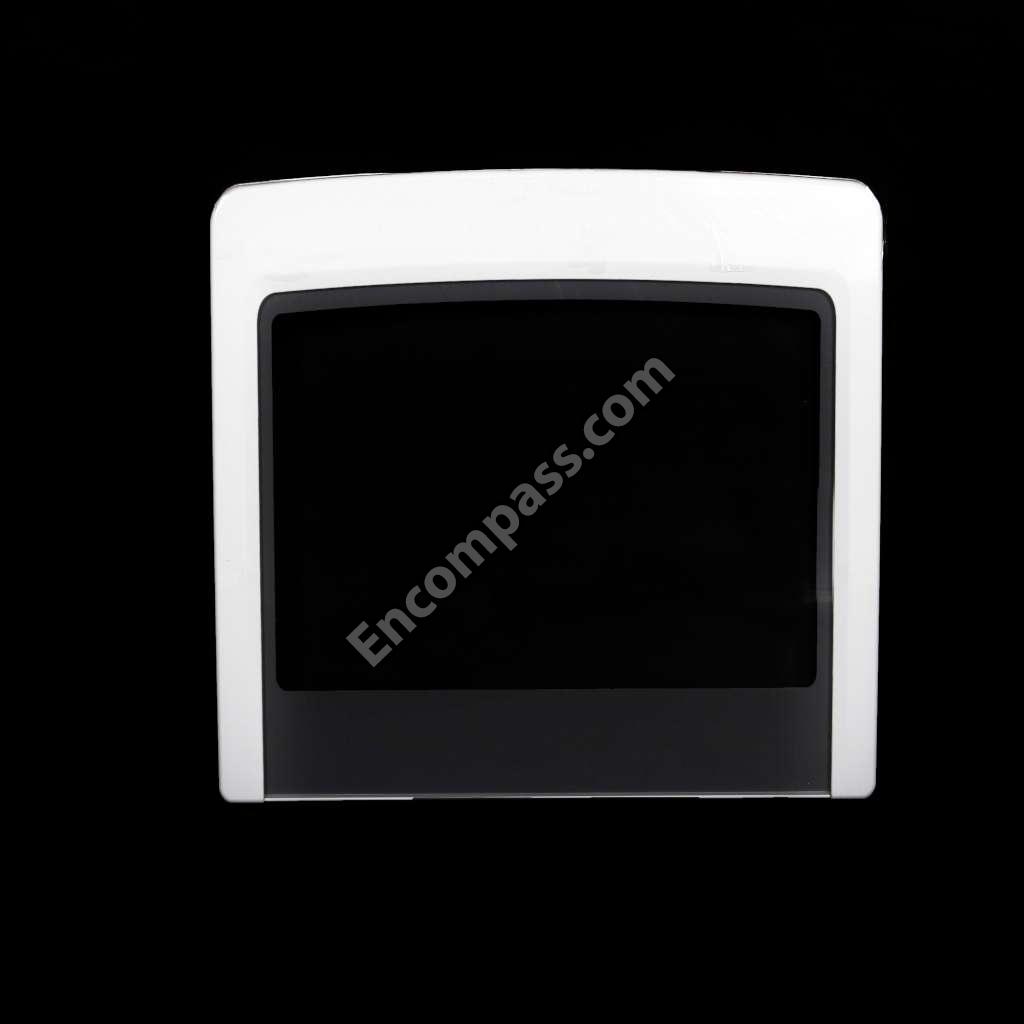

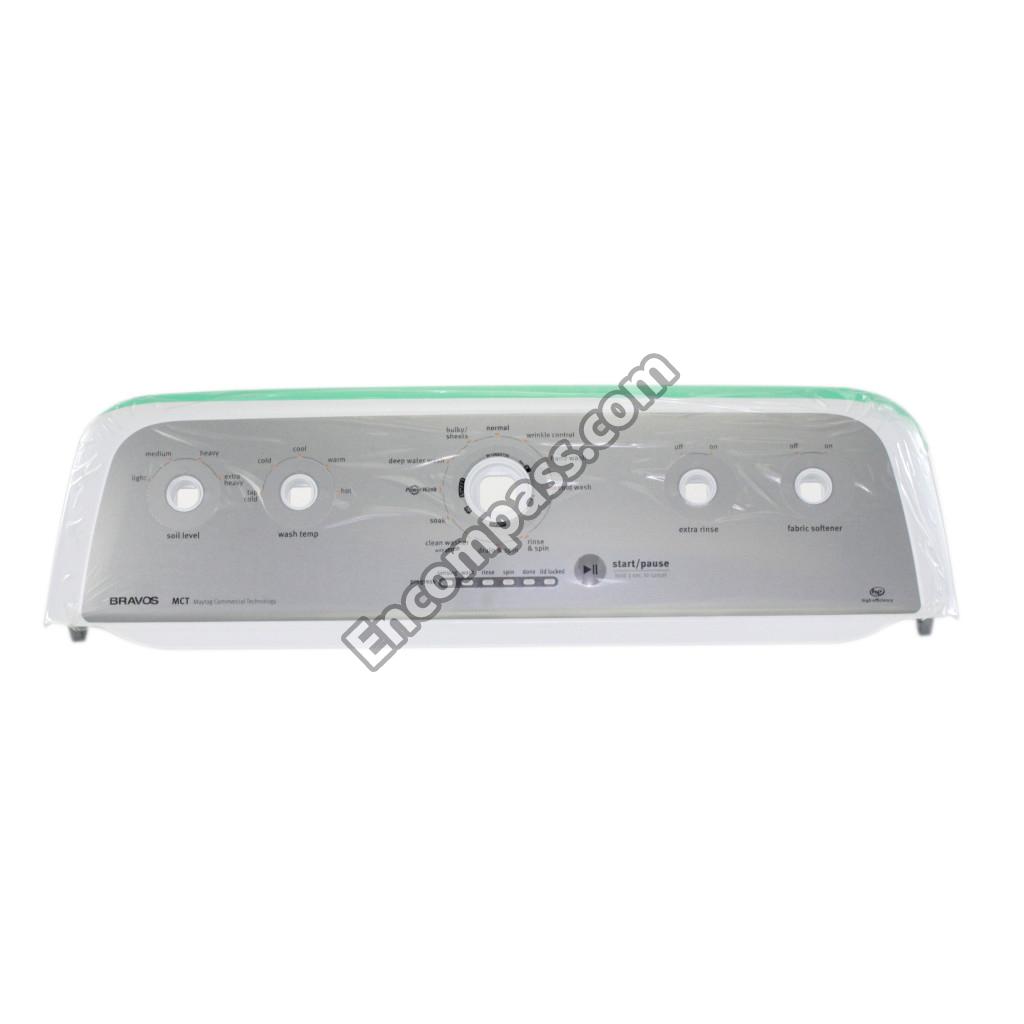

W11230941 W11230941 CONTROL PANEL
WP384496 WP384496 COUPLR-HSE
W10648853 W10648853 COVER, HARNESS
W10854969 W10854969 DISPENSER
W11307244 W11307244 DOOR LATCH

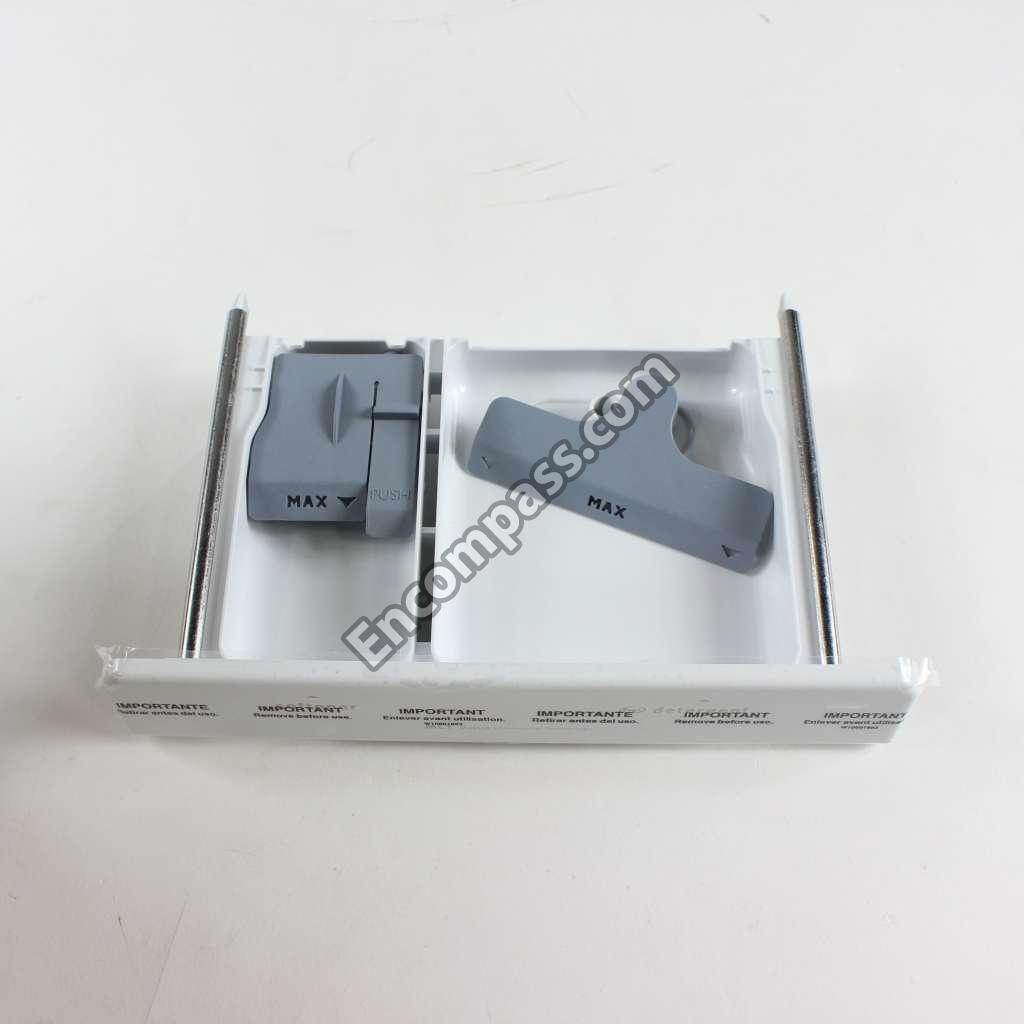

W11127356 W11127356 DRAWER
W11026785 W11026785 DRIVE MOTOR
W11253571 W11253571 ENERGY GUIDE
WPW10687506 WPW10687506 FEET-LVLNG
W11568797 W11568797 FILTER
W11454734 W11454734 GEARCASE
W10786100 W10786100 HARNESS, JUMPER
WP8572974 WP8572974 HINGE
WP8563965 WP8563965 HINGE
W10270398 W10270398 HINGE, LID (LEFT)
W10270399 W10270399 HINGE, LID (RIGHT)
W10802689 W10802689 HOSE
WP353244 WP353244 HOSE
W11244231 W11244231 HOSE
W11035296 W11035296 HOSE
W11127357 W11127357 HOUSING
W10528947 W10528947 HUB
8212487RP 8212487RP INLET HOSES, 5 FT. (TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
W10682737 W10682737 INSTRUCTIONS, INSTALLATION
WPW10562155 WPW10562155 KNOB
WPW10558463 WPW10558463 KNOB
W11117421 W11117421 LID
WPW10612925 WPW10612925 NAMEPLATE
W11213336 W11213336 NUT
W10783959 W10783959 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10641337 W10641337 PANEL, CONSOLE REAR COVER
W11417171 W11417171 PANEL, REAR

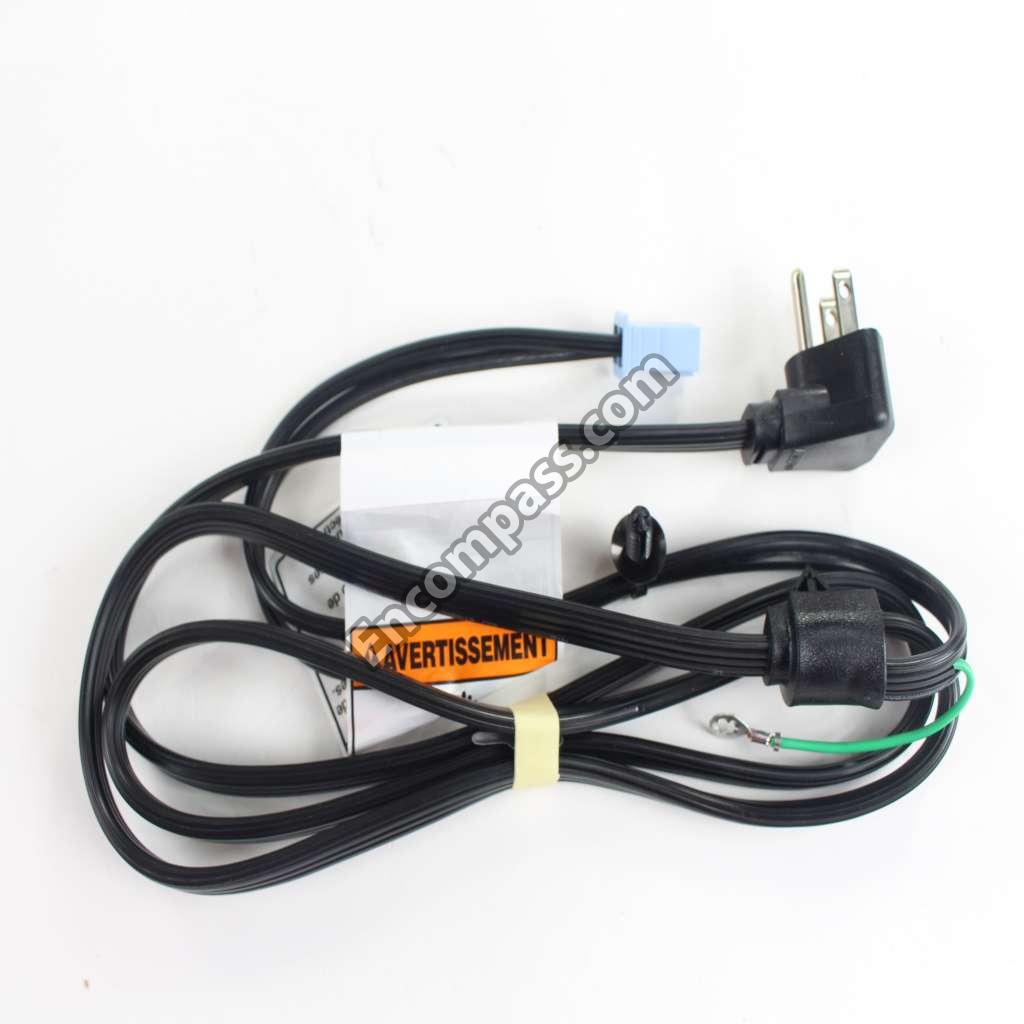

W11087430 W11087430 POWER CORD
W10783949 W10783949 QUICK START GUIDE
W11385424 W11385424 RETAINER
WPW10280024 WPW10280024 RETAINER

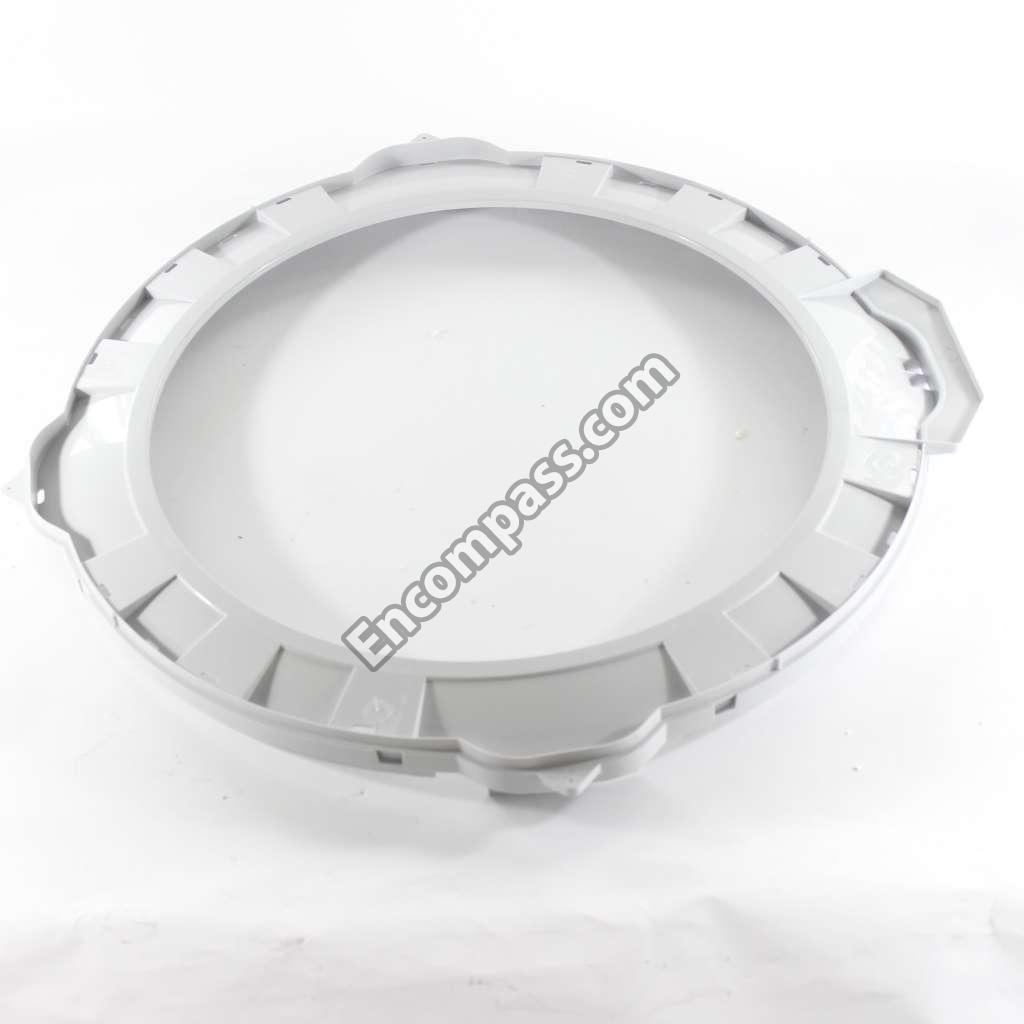

W10849477 W10849477 RING-TUB
W11573574 W11573574 SCREW
W11596033 W11596033 SCREW
W11685857 W11685857 SCREW
WPW10249633 WPW10249633 SCREW
WPW10004910 WPW10004910 SCREW
WP8533928 WP8533928 SCREW
WP8533953 WP8533953 SCREW
W10752187 W10752187 SCREW
WPW10109200 WPW10109200 SCREW
W10846509 W10846509 SCREW
W11685943 W11685943 SCREW
WP693995 WP693995 SCREW
W11404293 W11404293 SCREW
WP9740848 WP9740848 SCREW
WP285195 WP285195 SEALER
WPW10427633 WPW10427633 SHIELD
W10894129 W10894129 SHIELD, HEAT
W10721967 W10721967 SPLUTCH KIT (60HZ)
W11252738 W11252738 STRIKE

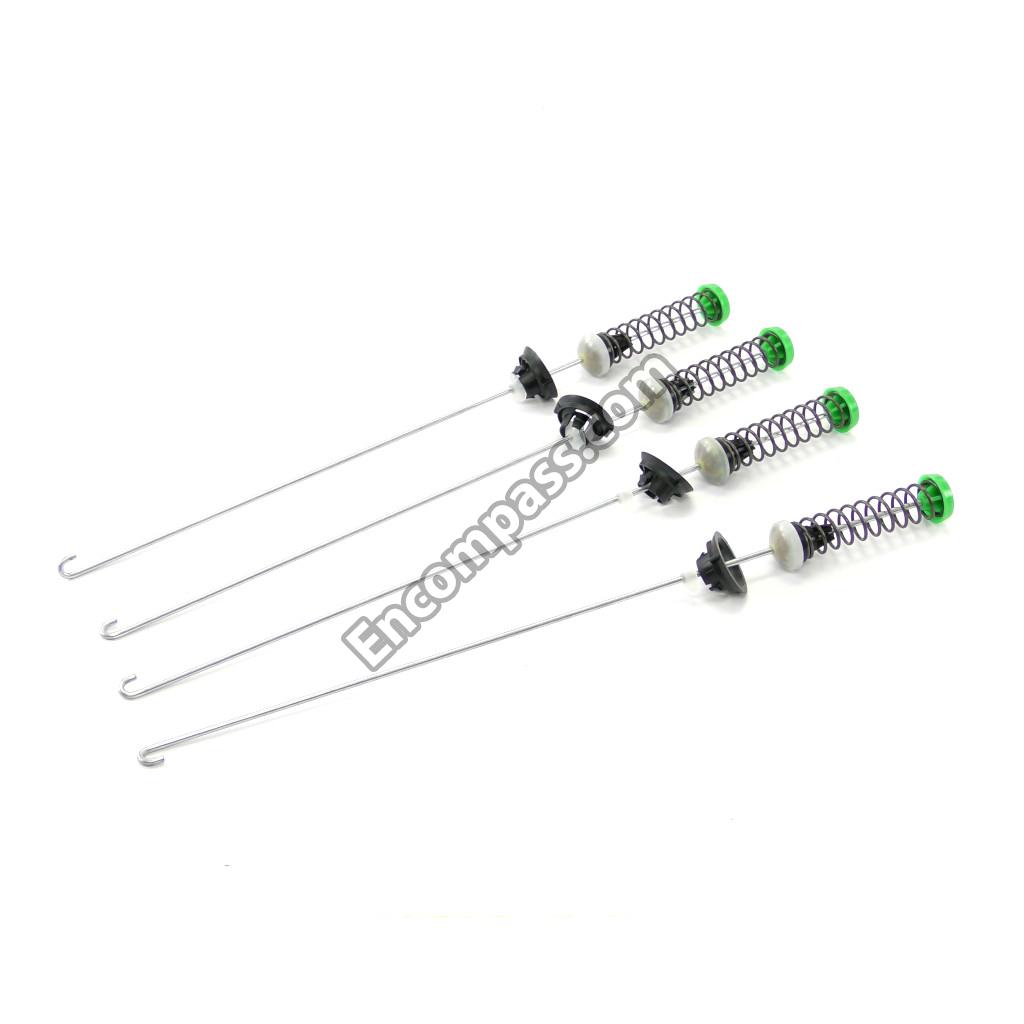

W11130362 W11130362 SUSPENSION ROD KIT

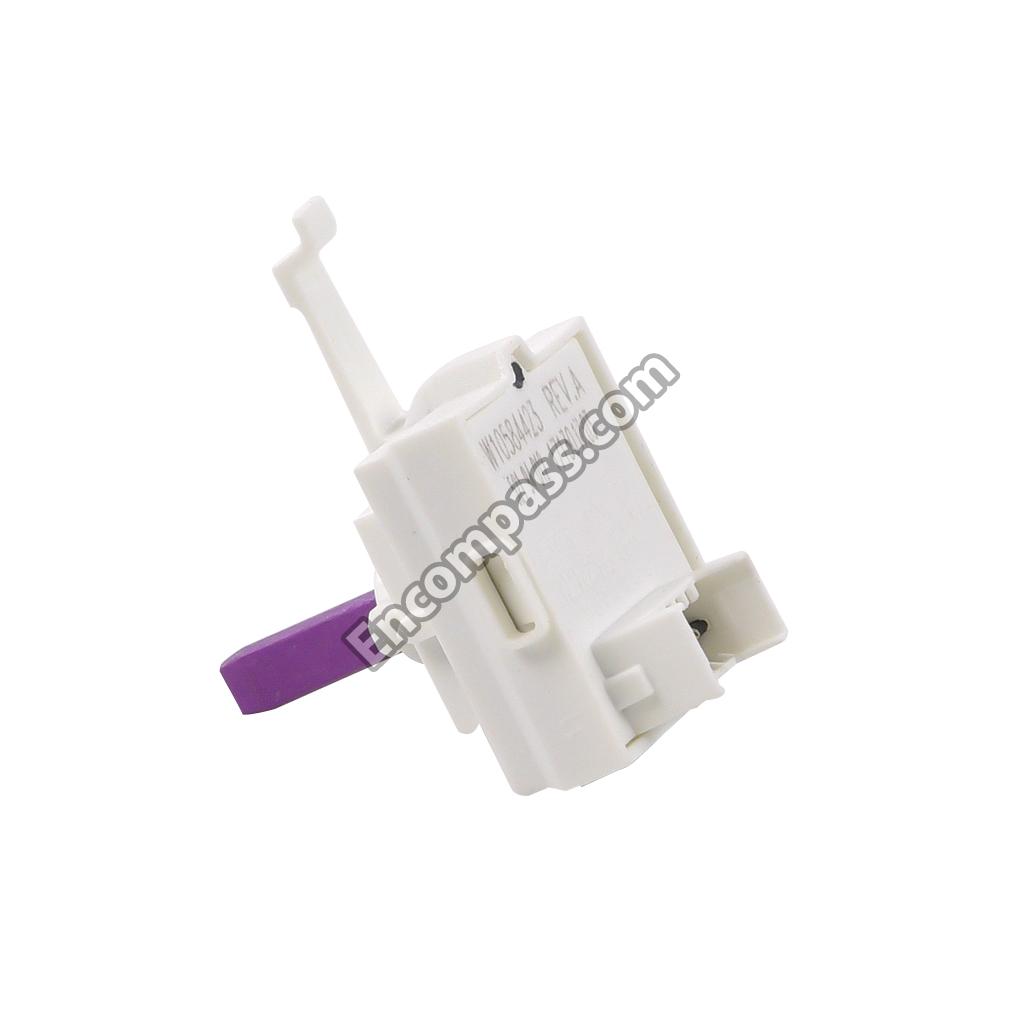

W10584422 W10584422 SWITCH, ROTARY ENCODER (4 POSITION)

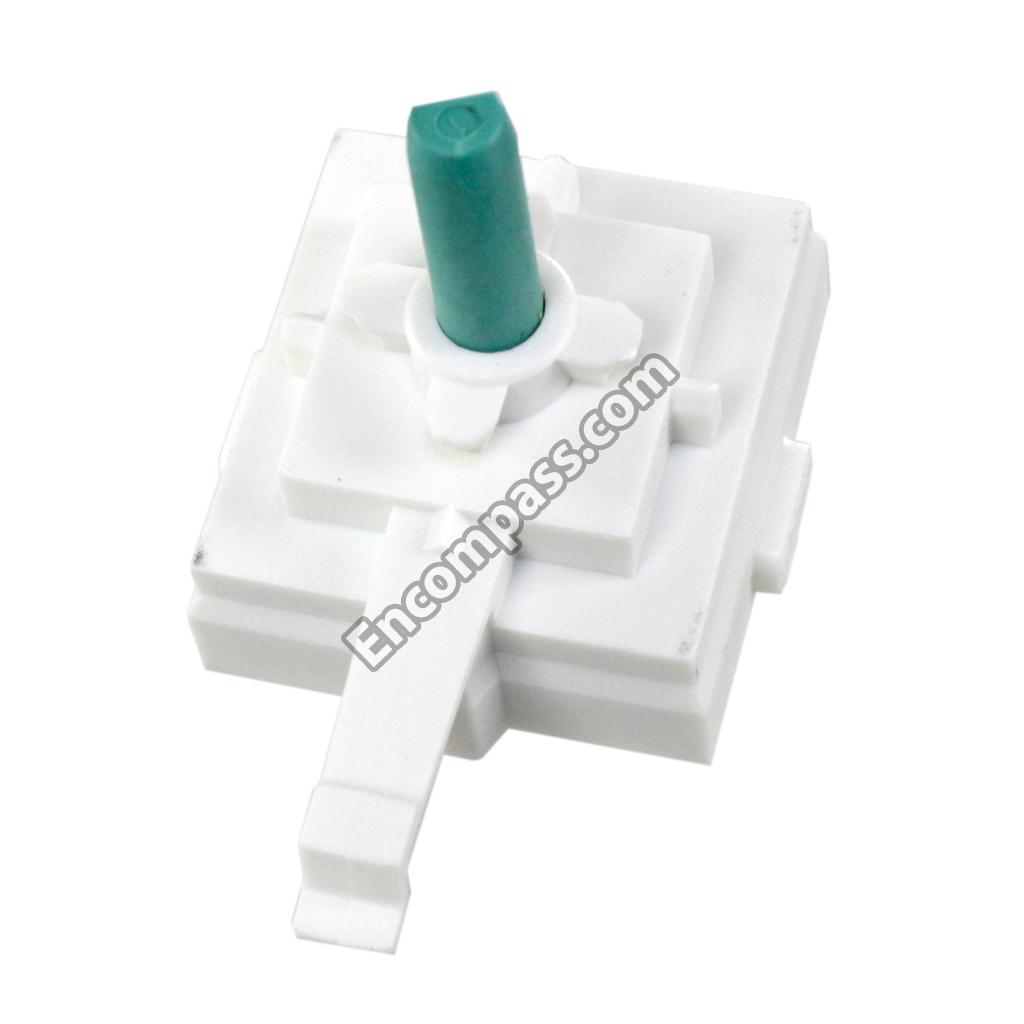

W11197418 W11197418 SWITCH-CYC

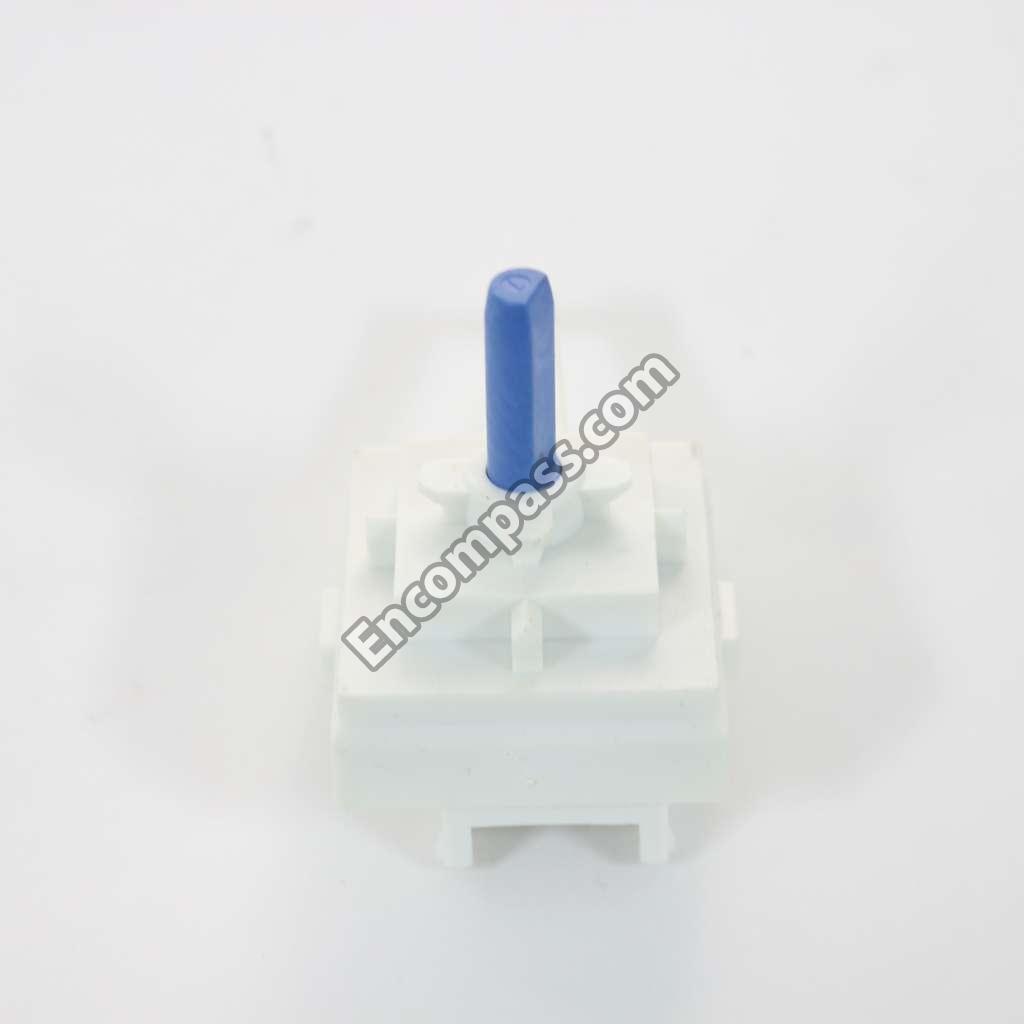

W10858095 W10858095 SWITCH-CYC
W10740624 W10740624 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
W11233067 W11233067 TOP
W11219115 W11219115 TUB

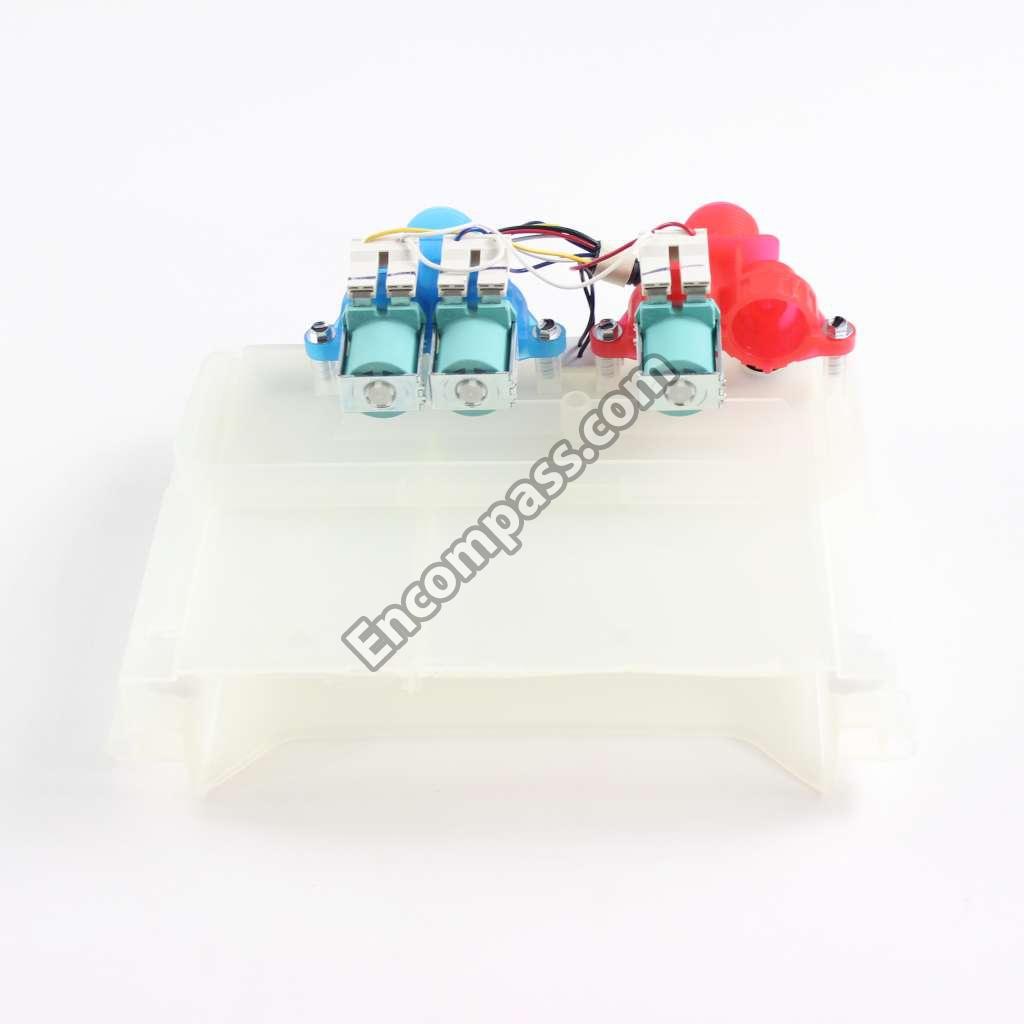

W11168743 W11168743 VALVE
W11168740 W11168740 VALVE
W10902814 W10902814 WASHPLATE
W10876600 W10876600 WATER PUMP
285863 285863 WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP
285835 285835 WATER SYSTEM PARTS, CONNECTOR ASSEMBLY
285834 285834 WATER SYSTEM PARTS, SIPHON BREAK KIT

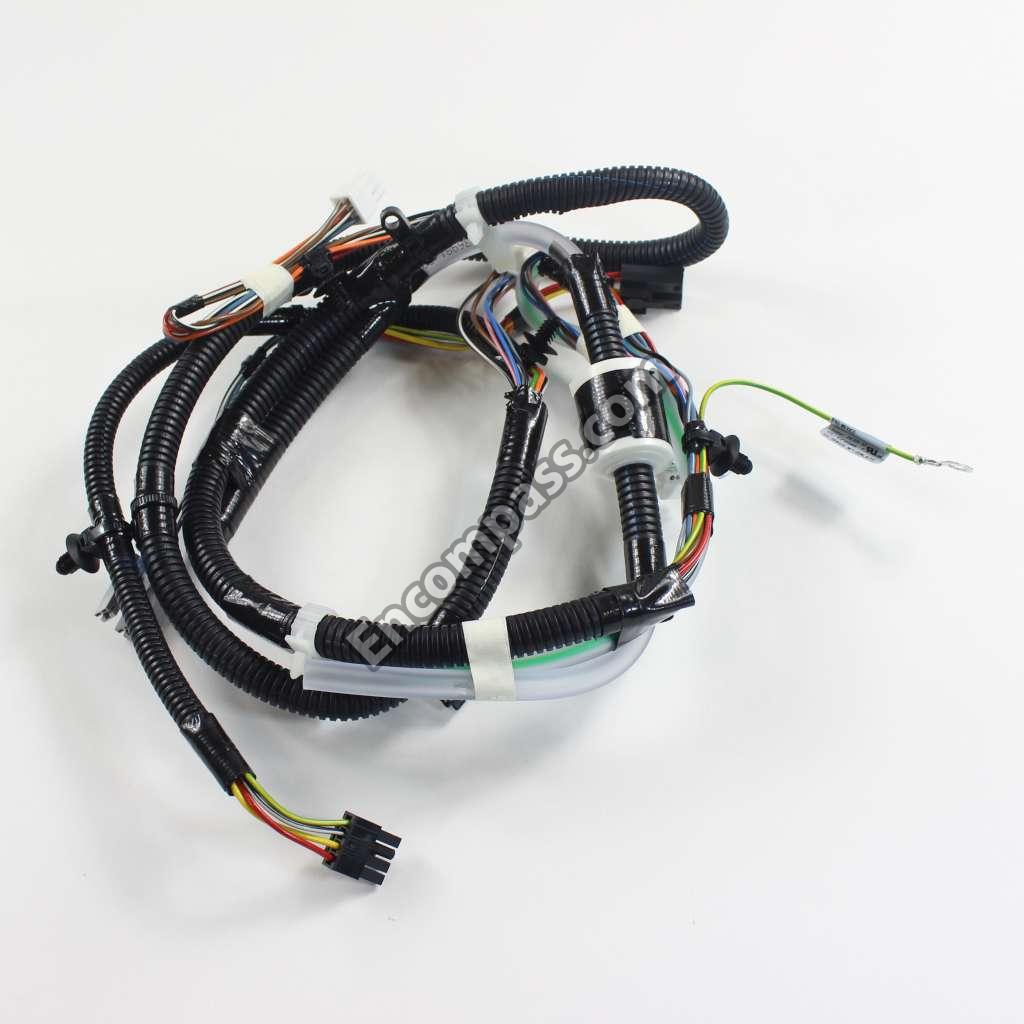

W11095106 W11095106 WIRE HARNESS
W11211519 W11211519 WIRE HARNESS
W11315693 W11315693 WIRE HARNESS
