Model Image
Manufacturer

Whirlpool

Model Number

NDE5805AZW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
56000 56000 ASSEMBLY, BLOWER FAN
504467W 504467W ASSEMBLY, CYLINDER (WHT)
503605 503605 ASSEMBLY, HEATER DUCT
37001125 37001125 BAFFLE, (WHT)
WP40111201 WP40111201 BELT
WP61923 WP61923 BLOCK- TER
WP37001036 WP37001036 BRACKET
WP37001287 WP37001287 BRACKET
40116201 40116201 BRACKET-DO
WP40113601 WP40113601 BRAKT-ROLL
WP503616WP WP503616WP BULKHEAD
502614WP 502614WP BULKHEAD, REAR
37001284 37001284 CABINET AS PACK
WP40094301 WP40094301 CAMERA LENS, LIGHT
WP660658 WP660658 CLAMP
504034 504034 CLIP WIRE
WP25-7220 WP25-7220 CLIP- CABI
37001145 37001145 CLIP- FRON
WFR500824 WFR500824 COMPLETE R
500078 500078 COVER, BLOWER HOUSING
37001028 37001028 DOOR
LA-1003 LA-1003 DOOR LATCH
WP37001029 WP37001029 DOOR, DRYER (WHT)

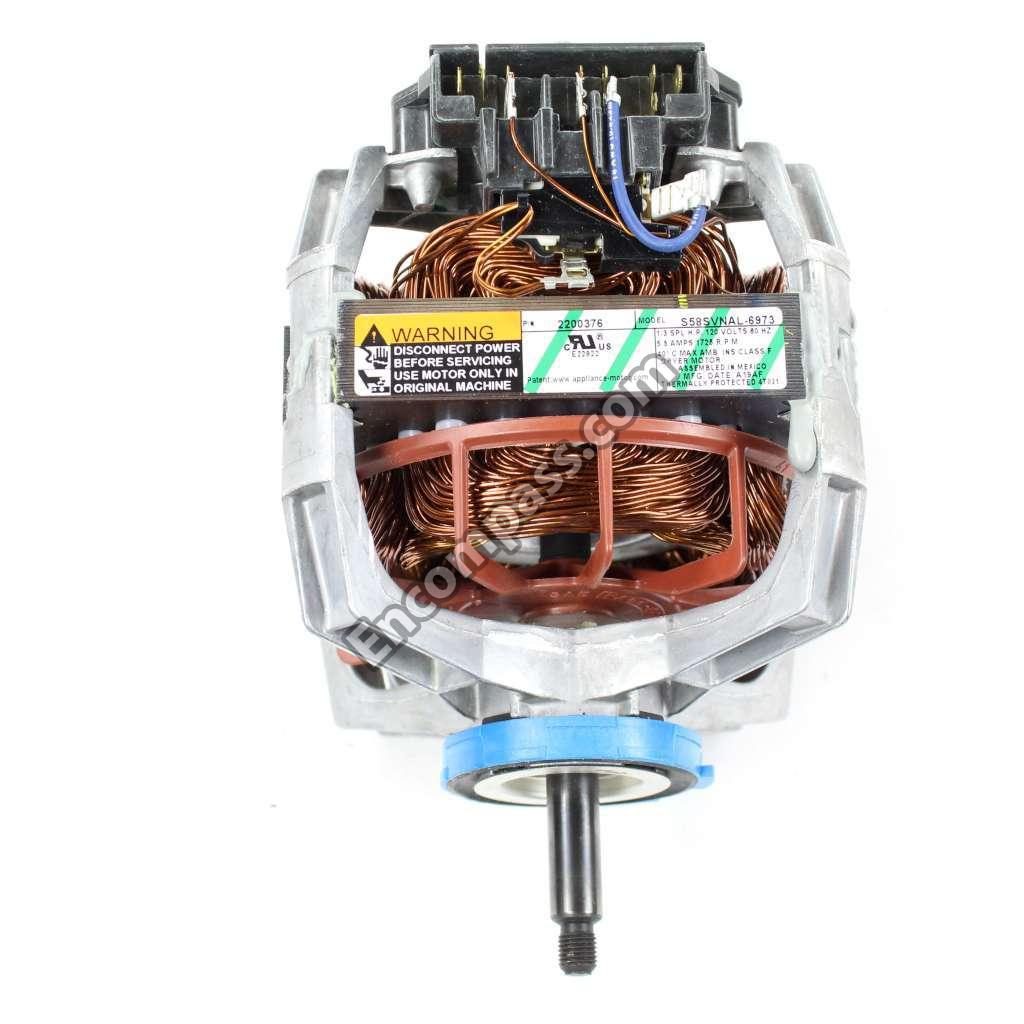

WP2200376 WP2200376 DRIVE MOTOR
37001156 37001156 DRYER BASE
505518 505518 DUCT, EXHAUST
37001141 37001141 DUCT-LINT
21001547 21001547 ENDCAP PA
21001546 21001546 ENDCAP PA
37001216 37001216 FACIA
WP37001142 WP37001142 FILTER- LI
21001965 21001965 FRAME, CONTROL PANEL, SUPPORT
37001154 37001154 FRONT PANE
204439 204439 FRONT PANEL BRACKET/FASTENER
WP40113801 WP40113801 FUSE-THRML
211881 211881 GROMMET, CORD
33001241 33001241 HANDLE
37001247 37001247 HARNESS W

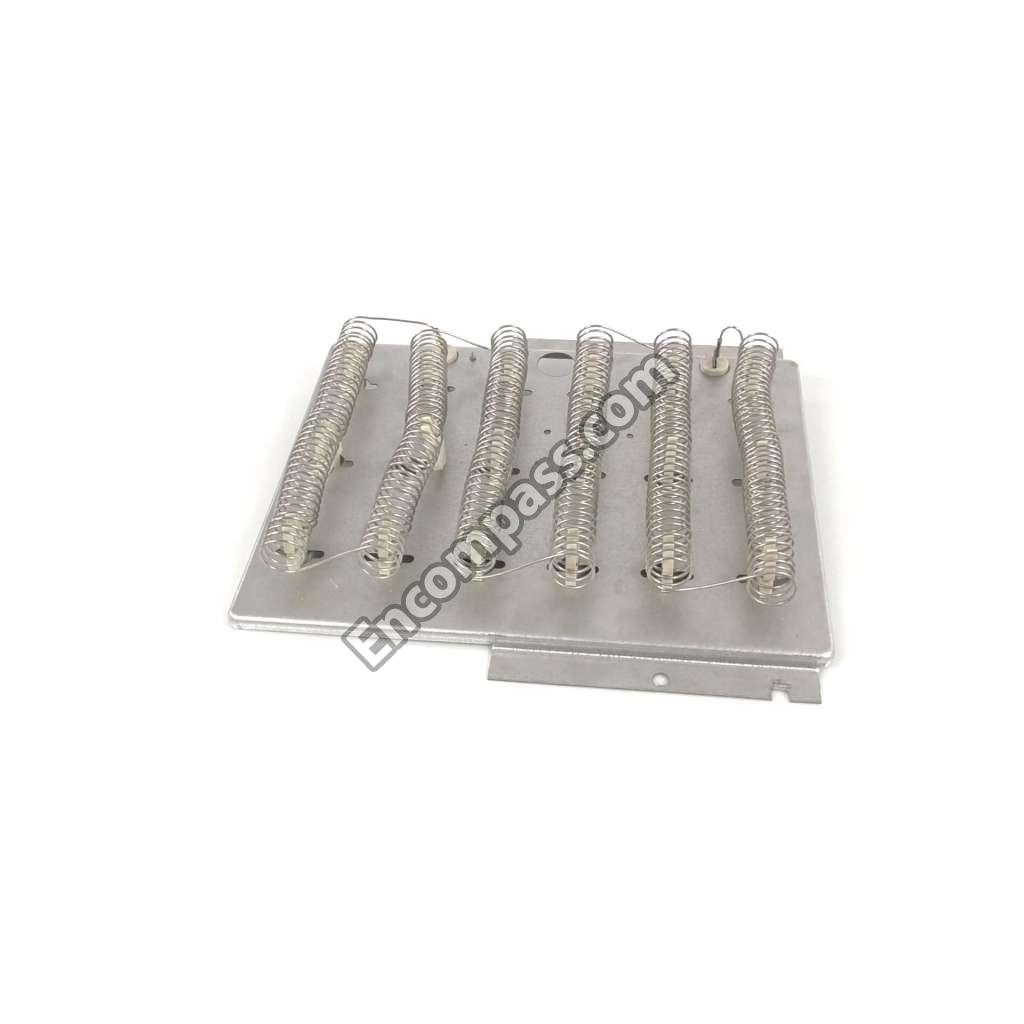

61927 61927 HEATER ASSEMBLY
Y503676 Y503676 HINGE- DOO
500003 500003 HINGE- TOP
511969 511969 HOUSING, BLOWER
WP528P3 WP528P3 KIT-EXHST
37001180 37001180 KNOB
Y500101 Y500101 LEG- LEVEL
Y504452 Y504452 LIGHT ASSEMBLY
W10857122 W10857122 LIGHT BULB
505187 505187 LOCATOR, PANEL
2206674 2206674 MANUAL, USE & CARE DRYER
503613 503613 MOUNT, MOTOR
WPW10139757 WPW10139757 NUT
WP500121 WP500121 PAD
Y56128 Y56128 PAD BUMPE
503293 503293 PLATE, ACCESS COVER
503126 503126 PLUG, HINGE HOLE
33002916 33002916 POWER CORD
Y504105 Y504105 RACK,DRYING
WPW10116735 WPW10116735 RANGE THERMOSTAT
WP23748 WP23748 RING- RETA
W10815455 W10815455 SCREW
WP489128 WP489128 SCREW
WP3400888 WP3400888 SCREW
WP3351614 WP3351614 SCREW
WPY014874 WPY014874 SCREW
WP90767 WP90767 SCREW
WP3177991 WP3177991 SCREW
WP3390631 WP3390631 SCREW
WP27001200 WP27001200 SCREW
501285 501285 SCREW #12
31260 31260 SCREW #8
37001030 37001030 SCREW #8A
500824 500824 SCREW 1 4
37001300 37001300 SCREW PKG
Y62588 Y62588 SCREW, 10BT-12 X 1 TAP
W10856845 W10856845 SEAL
37001119 37001119 SEAL- BLOW
WP37001132 WP37001132 SEAL- CYLI
21001603 21001603 SHIELD CO
37001233 37001233 SHIELD, BACKGUARD
WP500039 WP500039 STRIKE
WP37001042 WP37001042 SUPPORT
WP37001298 WP37001298 SUPPORT
16026315 16026315 SVC MAN, DOM DRYER GAS
31001190 31001190 SWITCH, TWO POSITION ROTARY
W10169313 W10169313 SWITCH-DOR
37001165 37001165 SWTCH-TEMP

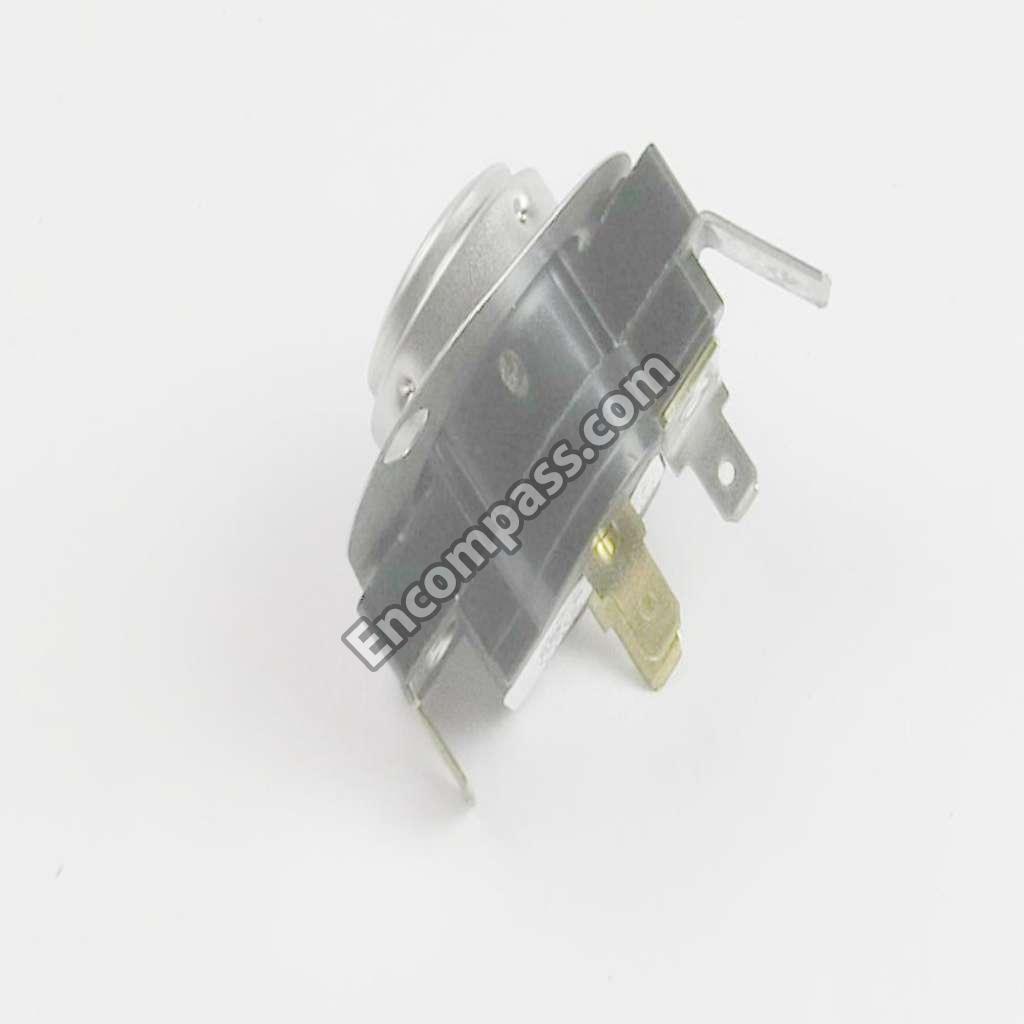

WP37001136 WP37001136 THERMOSTAT
WP37001251 WP37001251 TIMER - DR
37001183 37001183 TIMER KNOB
37001283 37001283 TOP AS PACK
WPW10121334 WPW10121334 WASHER
WPY504082 WPY504082 WASHER, WAVE
37001152 37001152 WIRE GROU
15003812 15003812 WIRING INFORMATION
