Model Image
Manufacturer

Whirlpool

Model Number

NTW4631BQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285452A 285452A ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2)
285448A 285448A ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4)
8212656RP 8212656RP ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212546RP 8212546RP ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212545RP 8212545RP ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED HOSE AND ONE BLUE HOSE W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212641RP 8212641RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212487RP 8212487RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAIDED HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212526 8212526 ACCESSORY PARTS, WASHER, DRIP TRAY
WPW10006355 WPW10006355 ACTUATOR
3363920A 3363920A ADAPTER
W10135699 W10135699 AFFRESH WASHER CLEANER
W10584118 W10584118 BASKET
WP21258 WP21258 BEARING
WPW10006384 WPW10006384 BELT
WPW10392041 WPW10392041 BEZEL
WP389140 WP389140 BLOCK
W11661767 W11661767 BRACE
W11712680 W11712680 BRACE
WP9724509 WP9724509 BUMPER
W10596395 W10596395 CABINET
W10006353 W10006353 CAM RING, SPLUTCH (INCLUDES ITEMS 9, 10, 12 AND 13)
W10006354 W10006354 CAM, SPLUTCH (INCLUDES ITEMS 9, 10, 11 AND 13)
WP3352483 WP3352483 CAP
W11158830 W11158830 CAPACITOR
WP285655 WP285655 CLAMP
WP356138 WP356138 CLAMP
W10005430 W10005430 CLAMP
WPW10663966 WPW10663966 CLAMPHOSE
W10355010 W10355010 CLEANER
WP8312709 WP8312709 CLIP
WP8536939 WP8536939 CLIP
WP90016 WP90016 CLIP
WPW10468327 WPW10468327 CONSOLE

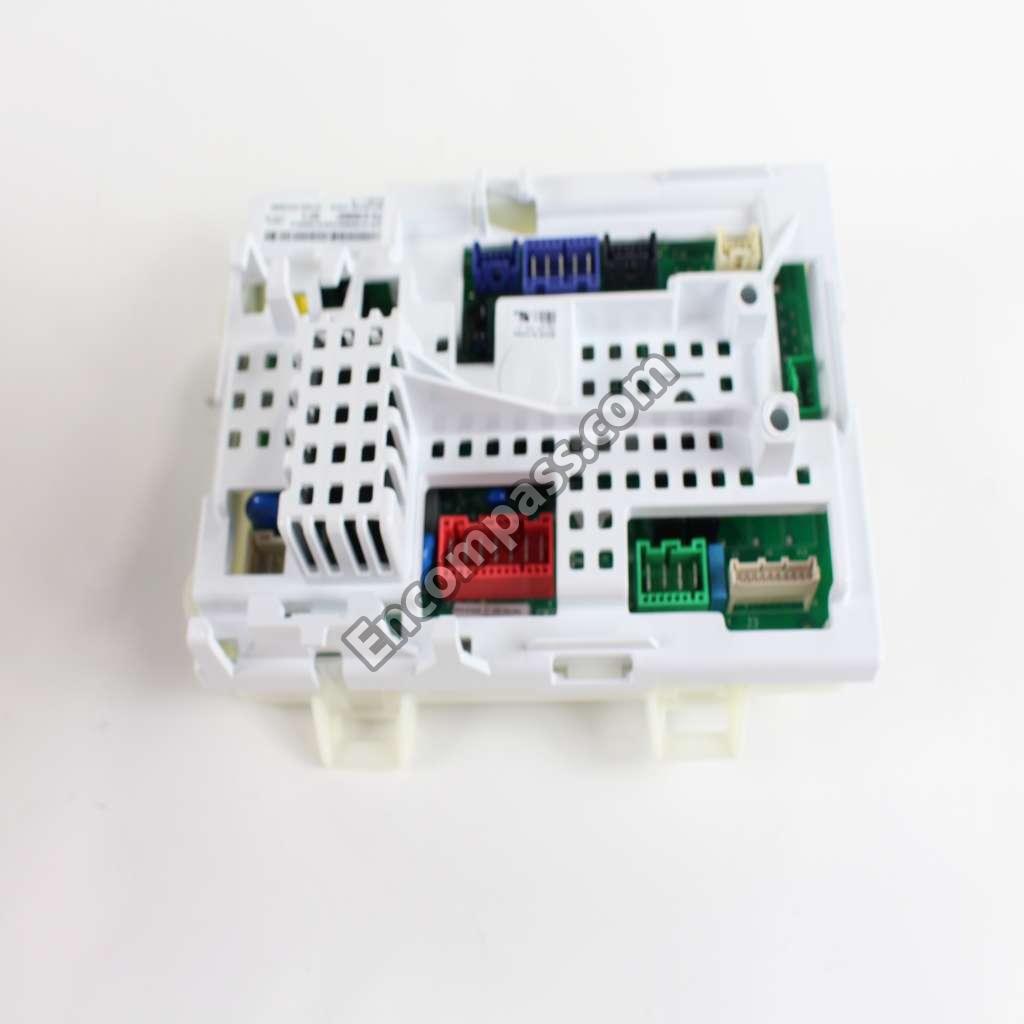

W10636057 W10636057 CONTROL BOARD
WP384496 WP384496 COUPLR-HSE
W10676061 W10676061 COVER, HARNESS
WPW10192089 WPW10192089 DISPENSER
W10404050 W10404050 DOOR LATCH
WPW10677715 WPW10677715 DRIVE MOTOR
W10063016 W10063016 ENERGY GUIDE
WPW10687506 WPW10687506 FEET-LVLNG
WPW10215093 WPW10215093 FILTER
W11454741 W11454741 GEARCASE
W10647151 W10647151 HARNESS, LOWER (INCLUDES PRESSURE HOSE & CABLE TIE)
W10475254 W10475254 HARNS-WIRE
WP91770 WP91770 HINGE
W10899966 W10899966 HOSE
WP353244 WP353244 HOSE
W11244231 W11244231 HOSE
DRNEXT4 DRNEXT4 HOSE
8212638RP 8212638RP INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
W10240509 W10240509 INSTALL INSTRUCTIONS
WPW10453947 WPW10453947 KNOB
WPW10711289 WPW10711289 KNOB
WPW10338625 WPW10338625 LID
W10759923 W10759923 NUT
WP21366 WP21366 NUT-SPANER
W10420472 W10420472 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT.) (WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
72017 72017 PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W11486091 W11486091 PANEL-REAR
W10409320 W10409320 PANEL-REAR
WPW10525192 WPW10525192 POWER CORD
WPW10251309 WPW10251309 PUSHBUTTON
WPW10280024 WPW10280024 RETAINER
W10429200 W10429200 RETAINER
WPW10531289 WPW10531289 RING-TUB
W11573574 W11573574 SCREW
W11596033 W11596033 SCREW
W11685857 W11685857 SCREW
WPW10249633 WPW10249633 SCREW
WPW10004910 WPW10004910 SCREW
WPW10109200 WPW10109200 SCREW
WP8533928 WP8533928 SCREW
W10772621 W10772621 SCREW
W10846509 W10846509 SCREW
WP489128 WP489128 SCREW
WP489069 WP489069 SCREW
WP8281163 WP8281163 SCREW
WPW10273971 WPW10273971 SCREW
WPW10119828 WPW10119828 SCREW
WP9740848 WP9740848 SCREW
W10324647 W10324647 SEAL-TUB
WP285195 WP285195 SEALER
WPW10427633 WPW10427633 SHIELD
W10339098 W10339098 SHIELD
W10721967 W10721967 SPRING, SPLUTCH (INCLUDES ITEMS 10, 11, 12 AND 13)
WPW10240513 WPW10240513 STRIKE
W10440729 W10440729 SUSPENSION ROD KIT
W10780045 W10780045 SUSPENSION ROD KIT
WPW10414398 WPW10414398 SWITCH-CYC
W10468340 W10468340 TECH SHEET
WPW10298887 WPW10298887 TIE-WIRE
WPW10339879 WPW10339879 TIE-WIRE
WPW10251299 WPW10251299 TOP
W10371566 W10371566 TUB-OUTER
WPW10683603 WPW10683603 VALVE
WP3949550 WP3949550 WASHER
WPW10131112 WPW10131112 WASHER AGITATOR
WPW10450959 WPW10450959 WATER LEVEL SWITCH
WPW10276397 WPW10276397 WATER PUMP
367031 367031 WATER SYSTEM PARTS, DRAIN PROTECTOR
285834 285834 WATER SYSTEM PARTS, SIPHON BREAK KIT
W10876654 W10876654 WIRE HARNESS
