Model Image
Manufacturer

Whirlpool

Model Number

PTB1551FRW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
12593203B 12593203B ACTR PAD FRAME ASSEMBLY (BLK)
61005173 61005173 ARM, SENSOR
WP627843 WP627843 ARM-EJECTR
WP2182124 WP2182124 ARM-STRIPR
61004832 61004832 BARRIER F
WP627985 WP627985 BIMETL-DEF
WP61005066 WP61005066 BLADE, EVAPORATOR FAN
WP12587601 WP12587601 BLADE- CON
WP2256087 WP2256087 BRACKET
69181-1 69181-1 BRACKET F
61001930 61001930 BRACKET, EVAPORATOR FAN
61002235 61002235 BUSHING, EVAPORATOR FAN
61002026 61002026 CAP FILL
61005395 61005395 CAP HANDL
61002027 61002027 CAP I M W
876595 876595 CAPACITOR
876776 876776 CAPACITOR
W10833902 W10833902 CLAMP
WP2315522 WP2315522 CLIP
61002117 61002117 CLIP RECE
M0104102 M0104102 CLIP, CORD
61006173 61006173 CLIP, DEFROST HEATER
2163787 2163787 CLIP, MOUNTING
61005175 61005175 CLIP, SENSOR ARM
WPM0114003 WPM0114003 CLIP- SPEE
61001975 61001975 CLIP-KICKPLATE
W10823815 W10823815 COMPRESSOR
61005454 61005454 CONDENSER
61005789 61005789 CONTROL ASSEMBLY., TEMPERATURE
61001938 61001938 COVER EVA
61004397 61004397 COVER, COMPRESSOR COMPARTMENT
61005374 61005374 COVER, ICE MAKER
WP61002138 WP61002138 COVER-TERM
WP628356 WP628356 CUP-FILL
WP61001920 WP61001920 DOOR HINGE
61002160 61002160 DOOR, DAIRY
WPW10143759 WPW10143759 DRIER-UV
12001396 12001396 EVAPORATOR
WP61004888 WP61004888 EVAPORATOR MOTOR
61005174 61005174 EXTENSION
61005475 61005475 FRONT- PIC
61005474 61005474 FRONT- PIC
61005478 61005478 FRONT- PIC
95099-1 95099-1 GREASE, SILICONE
WP4387558 WP4387558 GROMMET
61002033 61002033 GROMMET C
WP61005940 WP61005940 GROMMET, WATER ENTRY
WP61004743 WP61004743 GROMMET- B

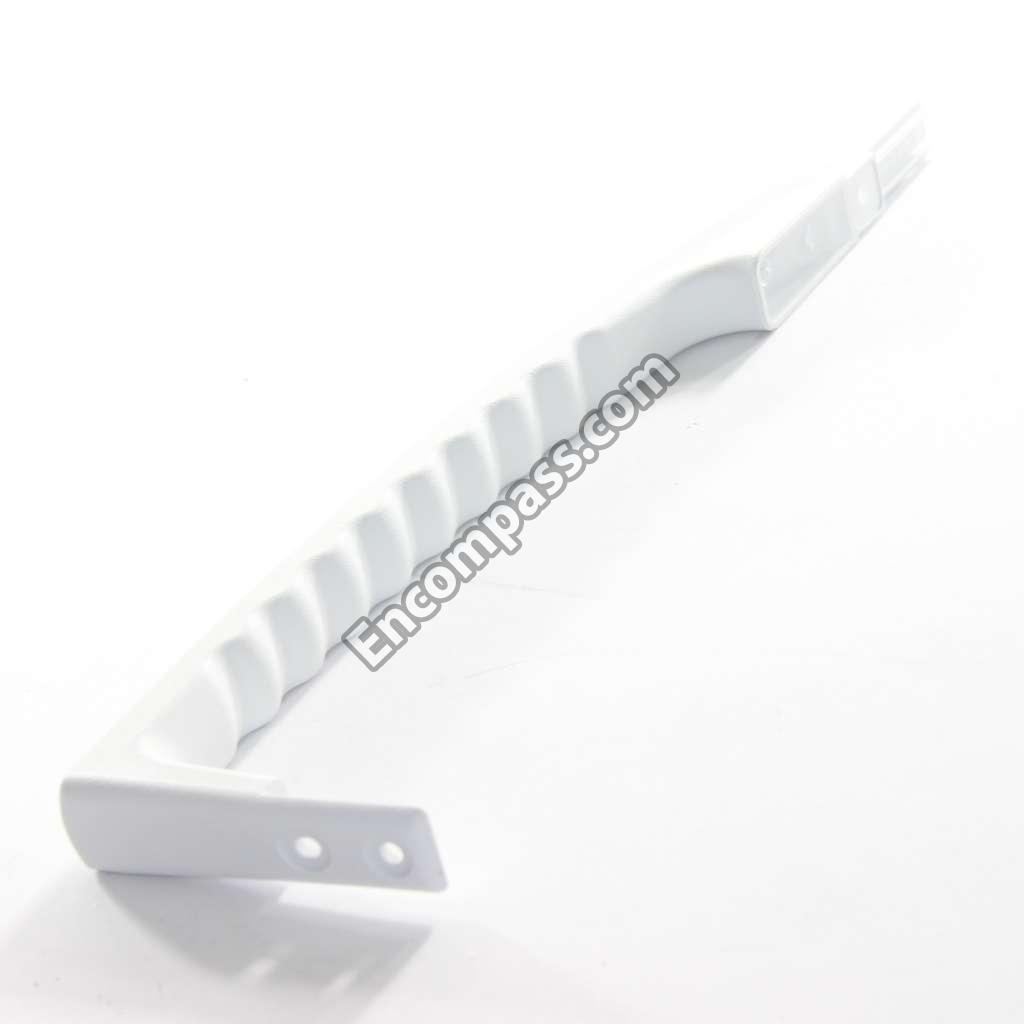

61005484 61005484 HANDLE
12001863 12001863 HANDLE ASY
61005476 61005476 HANDLE FR
WP61001946 WP61001946 HEATER- DE
WP61004896 WP61004896 HINGE, UPPER
WP61001918 WP61001918 HINGE- LOW
61004946 61004946 HOUSING, CONTROL
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP61005273 WP61005273 INLET VALVE
12001838 12001838 INSULATION
WP61002680 WP61002680 KICKPLATE W/CLIPS (WHT)
12001442 12001442 KIT, CRISPER SHELF (W/RAIL)
WP61006074 WP61006074 KNOB- CONT
61005668 61005668 LABEL, DUAL ENERGY GUIDE
61002014 61002014 LEG- LEVEL
W11679940 W11679940 LIGHT BULB
61001927 61001927 LINER FRZ
61003027 61003027 LINER, F.F. DOOR
16008248 16008248 MANUAL, SERVICE-NO REFUND
833697 833697 MOTOR-COND
61005228 61005228 NAMEPLATE
61005299 61005299 NLAMOWNERS M
WP245183 WP245183 NUT
WP627018 WP627018 NUT
WP486692 WP486692 NUT
61003672 61003672 OVERLOAD
61005242 61005242 PAN, COMPRESSOR MTG.
61001994 61001994 PAN, CRISPER
61004095 61004095 PAN, DRAIN
WP61001886 WP61001886 PAN, ICE
61002203 61002203 PANEL FF
61002154 61002154 PANEL, FRZ. DOOR (WHT)
WP61001925 WP61001925 PIN- LOWER
WP61002104 WP61002104 PIN- WHEEL
61001908 61001908 PLUG BUTTON, HINGE CUP (WHT)
61005015 61005015 PLUG BUTTON, ICE MAKER
52656-2 52656-2 PLUG COMP
67678-2 67678-2 PLUGHOLE
61001923 61001923 PLUGHOLE
61001795 61001795 PLUGHOLE
61004887 61004887 RAIL- CRIS
61004886 61004886 RAIL- CRIS
61004837 61004837 RELAY STA
61002234 61002234 RETAINER, EVAPORATOR FAN
WP61003826 WP61003826 ROLLER-CAB
WP8281227 WP8281227 SCREW
WP400021-1 WP400021-1 SCREW
WP489128 WP489128 SCREW
61004485 61004485 SCREW
W10856122 W10856122 SCREW
3400112 3400112 SCREW
WP3-24838-048 WP3-24838-048 SCREW
61002025 61002025 SCREW
WP489474 WP489474 SCREW
W11233072 W11233072 SCREW
WP33002917 WP33002917 SCREW
WP489478 WP489478 SCREW
61001876 61001876 SCREW
65275-81 65275-81 SCREW
61005394 61005394 SCREW
WP489399 WP489399 SCREW
61005388 61005388 SCREW
WPM0223816 WPM0223816 SCREW
WP67006715 WP67006715 SCREW
WP681249 WP681249 SCREW
61004560 61004560 SEAL EVAP
61001967 61001967 SEAL FOAM
61004002 61004002 SEAL FRZ
61001977 61001977 SEAL- DRAI
WP61003999 WP61003999 SEAL- F.F.
61001950 61001950 SHELF
61002141 61002141 SHELF, FREEZER
61001926 61001926 SHIM LOWE
61001922 61001922 SHIM- UPPE
61001941 61001941 SHROUD CO
WP487627 WP487627 SLEEVE
WPW10119935 WPW10119935 SOCKET
61006147 61006147 STOP, DOOR
61004481 61004481 STOP, DOOR (WHT)
61004836 61004836 SUPPORT E
61004835 61004835 SUPPORT, EVAPORATOR (LT)
61002143 61002143 SUPPORT- F
61002142 61002142 SUPPORT- F
W11384469 W11384469 SWITCH
WP61005254 WP61005254 THERMOSTAT

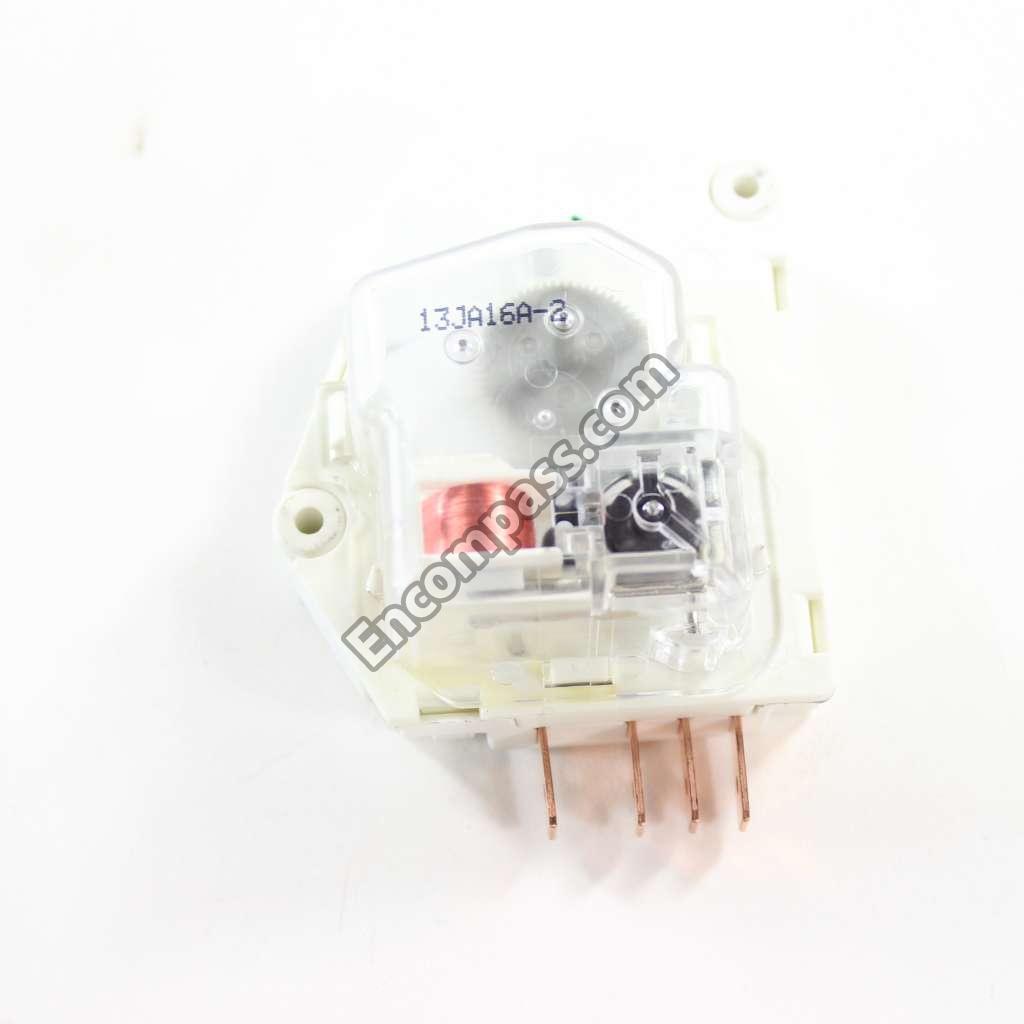

WP68233-2 WP68233-2 TIMER- DEF
61004830 61004830 TRAY, DRIP
WP61002140 WP61002140 TRAY-ICE
61001961 61001961 TRIM, GLASS
WPB5705307 WPB5705307 TUBE
WP61006123 WP61006123 TUBE- DRAI
61001943 61001943 TUNNEL, AIR
WPM0274039 WPM0274039 WASHER
WP61002231 WP61002231 WASHER- HI
61005216 61005216 WHEEL ASSEMBLY. (FRT)
61002212 61002212 WIRE HARNE
61002321 61002321 WIRE HARNE
WP61001882 WP61001882 WIRE HARNESS
61002012 61002012 WIRE HARNESS, COMP(W/PWR.CORD)
61005033 61005033 WIRE HARNESS, FRZ.
15002787 15002787 WIRING INFORMATION
12001492 12001492 YODER LOOP
