Model Image
Manufacturer

Whirlpool

Model Number

QCAM2730YQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285771 285771 BASE
W10389329 W10389329 BASKET
W10820043 W10820043 BASKTDRIVE
285205 285205 BEARING
WP8546462 WP8546462 BEARING
WP8546455 WP8546455 BEARING
WP21258 WP21258 BEARING
WP389140 WP389140 BLOCK
WP8576635 WP8576635 BOLT
3353994 3353994 BOLT, METER CASE (5/16-18 X 2.5)
W11190039 W11190039 BOX
WP64065 WP64065 BRACKET
WP64067 WP64067 BRACKET
3978858 3978858 BRACKET, CONTROL
3353948 3353948 BRACKET, LOCK
385575 385575 BRACKET, TIMER
WP3360977 WP3360977 BREAK-VAC
WP356908 WP356908 BUMPER
WP19119 WP19119 BUMPER
WP8546461 WP8546461 CAM-BRAKE
WP3348110 WP3348110 CAMERA LENS-LIGHT
WP3348109 WP3348109 CAMERA LENS-LIGHT
WP62646 WP62646 CAP
WP3352483 WP3352483 CAP
WP8572717 WP8572717 CAPACITOR
WPW10461200 WPW10461200 CASE
285203 285203 CENTERPOST BEARING KIT (INCLUDES ITEMS 13, 14 & 20)
WP356138 WP356138 CLAMP
WP616099 WP616099 CLAMP
WP596669 WP596669 CLAMP
WP285655 WP285655 CLAMP
W10113937 W10113937 CLAMP
WPW10251893 WPW10251893 CLAMP
3949496 3949496 CLAMP, CAPACITOR
WP3355454 WP3355454 CLIP
WP62780 WP62780 CLIP
8282518 8282518 CLIP, HARNESS
285930 285930 CLOCK BEZEL
WP8299642 WP8299642 CLUTCH
WP385571 WP385571 CLUTCH
285442 285442 CONNECTOR KIT, PLASTIC DRAIN HOSE
WP8578168 WP8578168 CONTROL BOARD
285852A 285852A COUPLING
WP16272 WP16272 COUPLR-HSE
285202 285202 COVER, GEARCASE
WP3954812 WP3954812 CUSHION
W11283272 W11283272 DOOR
367031 367031 DRAIN PROTECTOR (NOT INCLUDED)
WP661600 WP661600 DRIVE MOTOR
WPW10096320 WPW10096320 END CAP (L.H.)
3949740 3949740 END CAP (R.H.)
W11318367 W11318367 EXTENSION
WPW10001130 WPW10001130 FEET-LVLNG
285244 285244 FEET-LVLNG
279950 279950 FUNNEL
WP385421 WP385421 FUNNEL
W10814296 W10814296 GASKET
285515 285515 GEARCASE
3360629 3360629 GEARCASE
350849 350849 GREASE
WP62691 WP62691 GROMMET
W10138030 W10138030 HARNS-WIRE
W10138351 W10138351 HARNS-WIRE
W10114216 W10114216 HARNS-WIRE
WP54583 WP54583 HINGE
WP8524784 WP8524784 HINGE
285871 285871 HOSE
WPW10358149 WPW10358149 HOSE
WP8317926 WP8317926 HOSE
WP353244 WP353244 HOSE
WP96743 WP96743 HOSE
WP3949380 WP3949380 HOSE-FILL
WP3949381 WP3949381 HOSE-FILL
8524739 8524739 INSTALLATION INSTRUCTIONS
4396669 4396669 KEY
4396670 4396670 KIT, CHUTE DECAL
WPW10193854 WPW10193854 LID
W10858647 W10858647 LIGHT
285790 285790 LINING
W10817888 W10817888 LINING
WP63466 WP63466 LINK
3353812 3353812 LOCATOR
WP18776 WP18776 LOCK
W11315637 W11315637 LOCK-CAM
285208 285208 LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
3954579 3954579 MISCELLANEOUS PARTS BAG
388253A 388253A NEUTRL-PAK
WP3359452 WP3359452 NUT
WP3400029 WP3400029 NUT
WP689559 WP689559 NUT
WPW10131123 WPW10131123 NUT
WP90406 WP90406 NUT
WP358473 WP358473 NUT
WP21366 WP21366 NUT-SPANER
350572 350572 OIL
285744 285744 PAD
285219 285219 PAD
WP62747 WP62747 PAD
WP21097 WP21097 PAD
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP3358500 WP3358500 PANEL
WPW10470741 WPW10470741 PANEL, CONSOLE
285929 285929 PANEL-REAR
3353949 3353949 PIN, LOCATOR
WP62837 WP62837 PIN-DOWEL
WP62611 WP62611 PLATE
3353813 3353813 PLATE, MOUNTING
WP387371 WP387371 PLUG
285928 285928 POWER CORD
285777 285777 RELIEF-STR
8559320 8559320 RESTRAINT, HOSE
3976395 3976395 RESTRAINT, HOSE
WPW10145155 WPW10145155 RETAINER
WP8546127 WP8546127 RETAINER
WPW10086010 WPW10086010 RETAINER
WP389379 WP389379 RETAINER
WP8055003 WP8055003 RETAINER
62677 62677 RETAINER, SPRING
WP62658 WP62658 RING
WP63134 WP63134 RING
285353 285353 RING
WPW10080230 WPW10080230 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
WP387240 WP387240 RING-BAL
WP354987 WP354987 RING-E
285765 285765 RING-RETNR
W10880720 W10880720 RING-TUB
W11033823 W11033823 RING-WIRE
WP356907 WP356907 RIVET
63554 63554 RIVET
W10846509 W10846509 SCREW
WP273556 WP273556 SCREW
WP3400516 WP3400516 SCREW
W10772621 W10772621 SCREW
WP3390631 WP3390631 SCREW
WP9740848 WP9740848 SCREW
WP8533976 WP8533976 SCREW
W10841059 W10841059 SCREW
WP3400064 WP3400064 SCREW
W11715721 W11715721 SCREW
WPW10109200 WPW10109200 SCREW
WP90767 WP90767 SCREW
WP8281182 WP8281182 SCREW
WPW10139210 WPW10139210 SCREW
WP3373329 WP3373329 SCREW
3353993 3353993 SCREW
W10852658 W10852658 SCREW
WPW10119828 WPW10119828 SCREW
WP3351614 WP3351614 SCREW
3400073 3400073 SCREW, 10-24 X 3/8
339805 339805 SCREW, 10-32 X 3/16
3400086 3400086 SCREW, 10-32 X 3/8
WP3400611 WP3400611 SCREW, LID SWITCH
WP8577376 WP8577376 SEAL
W11095997 W11095997 SEAL
285352 285352 SEAL, THRUST PLUG
WP3349985 WP3349985 SEAL-COVER
WP356427 WP356427 SEAL-SHAFT
WP8577374 WP8577374 SEAL-SHAFT
WP3976308 WP3976308 SEAL-TUB
WP285195 WP285195 SEALER
WP389387 WP389387 SHAFT-AGIT
WP3946532 WP3946532 SHIELD
8539874 8539874 SHIELD, SUDS
W10838408 W10838408 SHIELD-MTR
285438 285438 SHOE-BRAKE
3976382 3976382 SIDE PANEL (LH)
3976380 3976380 SIDE PANEL (RH)
285320 285320 SIPHON BREAK KIT (NOT INCLUDED)
WP3946509 WP3946509 SKATE PLT
WP63022 WP63022 SLEEVE
285658 285658 SLEEVE
285321 285321 SLEEVE KIT, (CONTAINS 2 SLEEVES)
W11244229 W11244229 SLIDE-COIN
3353950 3353950 SPACER, CABINET TO TOP
WPW10250667 WPW10250667 SPRING
8316845 8316845 SPRING
WP63907 WP63907 SPRING
WP8559387 WP8559387 SPRING
62676 62676 SPRING, AGITATE
387806 387806 SPRING, BRAKE
WP8568314 WP8568314 STRAP
280184 280184 SUPPORT
WP8519200 WP8519200 SUPPORT
WP8054980 WP8054980 SWITCH-LID
WPW10330137 WPW10330137 SWITCH-PB
WPW10330140 WPW10330140 SWITCH-PB
WPW10112081 WPW10112081 TIMER
WP8524688 WP8524688 TOP
63849 63849 TUB
WP64208 WP64208 TUBE-SPIN
WP3979346 WP3979346 VALVE
WP388815 WP388815 WASHER
WP63292 WP63292 WASHER
WP3949550 WP3949550 WASHER
WP16123 WP16123 WASHER
WPW10131112 WPW10131112 WASHER AGITATOR
285766 285766 WASHER KIT, THRUST
62619 62619 WASHER, AGITATE GEAR
62618 62618 WASHER, CAM THRUST

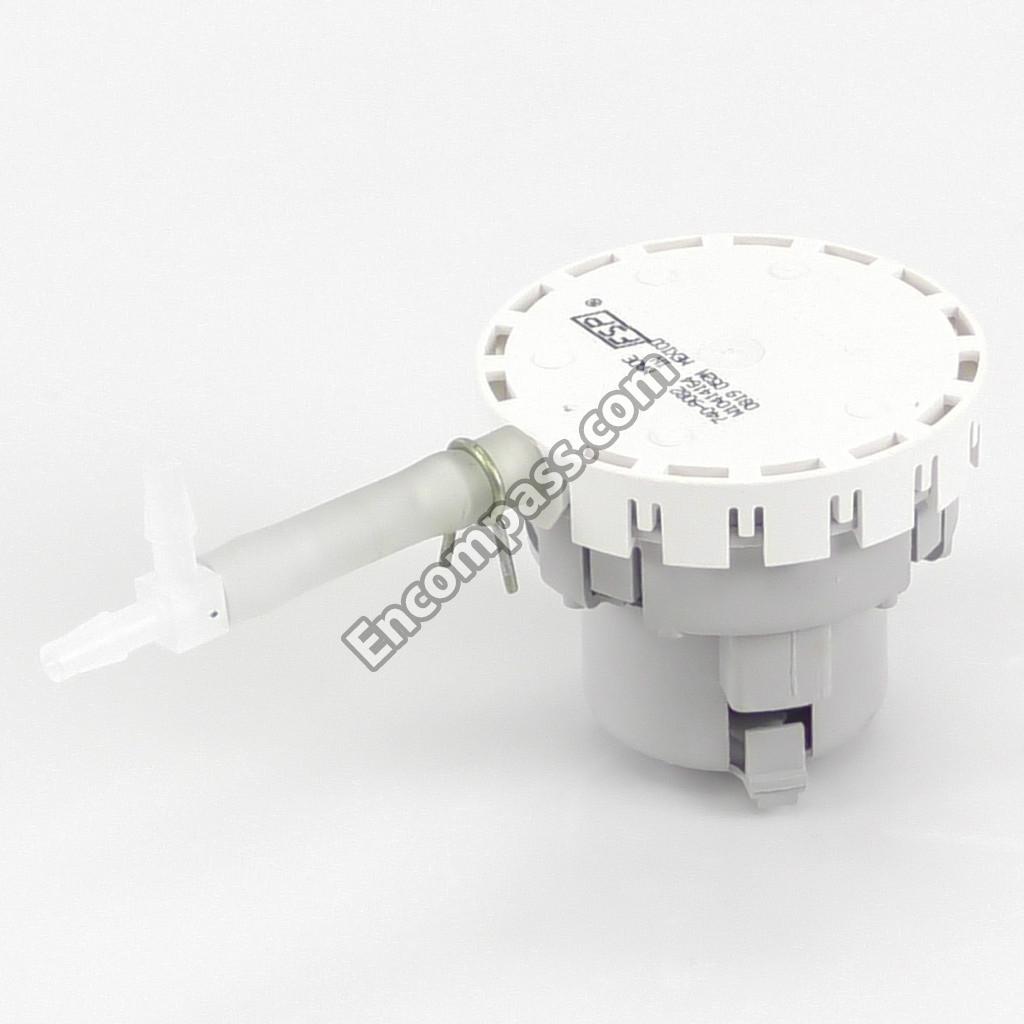

WPW10414162 WPW10414162 WATER LEVEL SWITCH
WPW10414164 WPW10414164 WATER LEVEL SWITCH
WP3363394 WP3363394 WATER PUMP
W10135801 W10135801 WIRING DIAGRAM
