Model Image
Manufacturer

Whirlpool

Model Number

RBD305PRB00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
8303342 8303342 ASSEMBLY, DOOR GLASS (BISCUIT)
8303330 8303330 ASSEMBLY, DOOR GLASS (BLACK)
WP8303314 WP8303314 ASSEMBLY, DOOR GLASS (STAINLESS)
4452233 4452233 BACK, CHASSIS
4452234 4452234 BACK, CHASSIS
W10123223 W10123223 BACK, CONTROL
9759713 9759713 BASE, CHASSIS
WP8203546 WP8203546 BLOCK-TERM

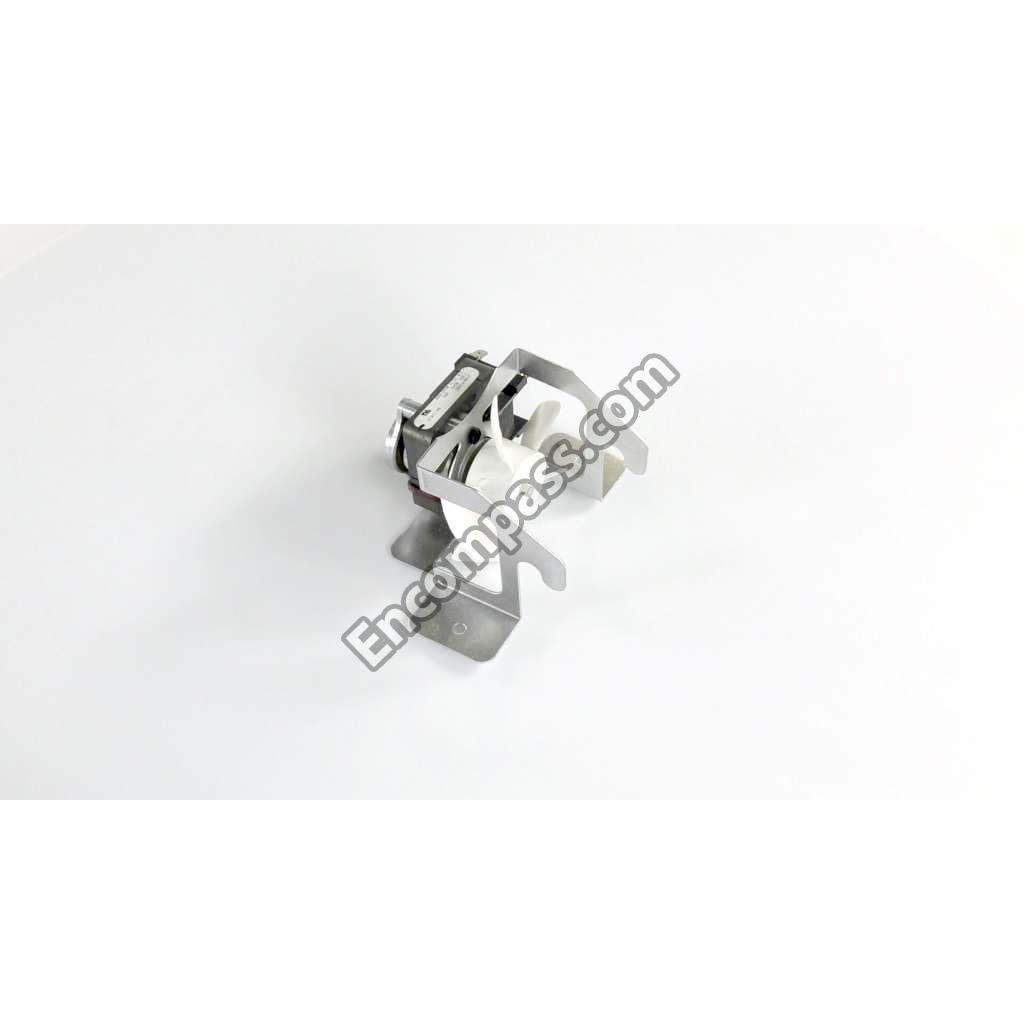

WPW10176670 WPW10176670 BLOWER
WPW10016550 WPW10016550 BLOWER
WPW10222959 WPW10222959 BRACKET, CONTROL
W10136473 W10136473 BRACKET, HANDLE
4452152 4452152 BRACKET, MOUNTING BOTTOM VENT
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
4396923 4396923 BROILER PAN ASSEMBLY
4448520 4448520 BUMPER, DOOR
4452165 4452165 CAMERA LENS, LIGHT
4448664 4448664 CLAMP
4450953 4450953 CONDUIT, DOUBLE
WP8301848 WP8301848 CONTROL BOARD
WP8302849 WP8302849 CONTROL PANEL
WP8302848 WP8302848 CONTROL PANEL
8302850 8302850 CONTROL PANEL ASSEMBLY. (BISCUIT)
WP4451747 WP4451747 COVER-REAR
WP4452367 WP4452367 COVER-TOP
9760677 9760677 DEFLECTOR, VENT
WP9760889 WP9760889 DOOR DOOR LATCH
8303339 8303339 DOOR GLASS, ASSEMBLY (WHITE)
8302815 8302815 DOOR HANDLE (BISCUIT)
WP8302813 WP8302813 DOOR HANDLE (BLACK)
8302814 8302814 DOOR HANDLE (WHITE)
WP9760574 WP9760574 DOOR HINGE
WP9760571 WP9760571 DOOR HINGE
WP9760573 WP9760573 DOOR HINGE
WP9760572 WP9760572 DOOR HINGE
4455177 4455177 ELBOW, VENT BOTTOM
4455178 4455178 ELBOW, VENT TOP
WPW10207397 WPW10207397 ELEMENT
WP9760771 WP9760771 ELMNT-BROL
3191638 3191638 ENGLISH
WP4451664 WP4451664 FAN-BLWR
4455611 4455611 FRAME, FRONT
9759060 9759060 FRAME, FRONT
9759133 9759133 FRENCH

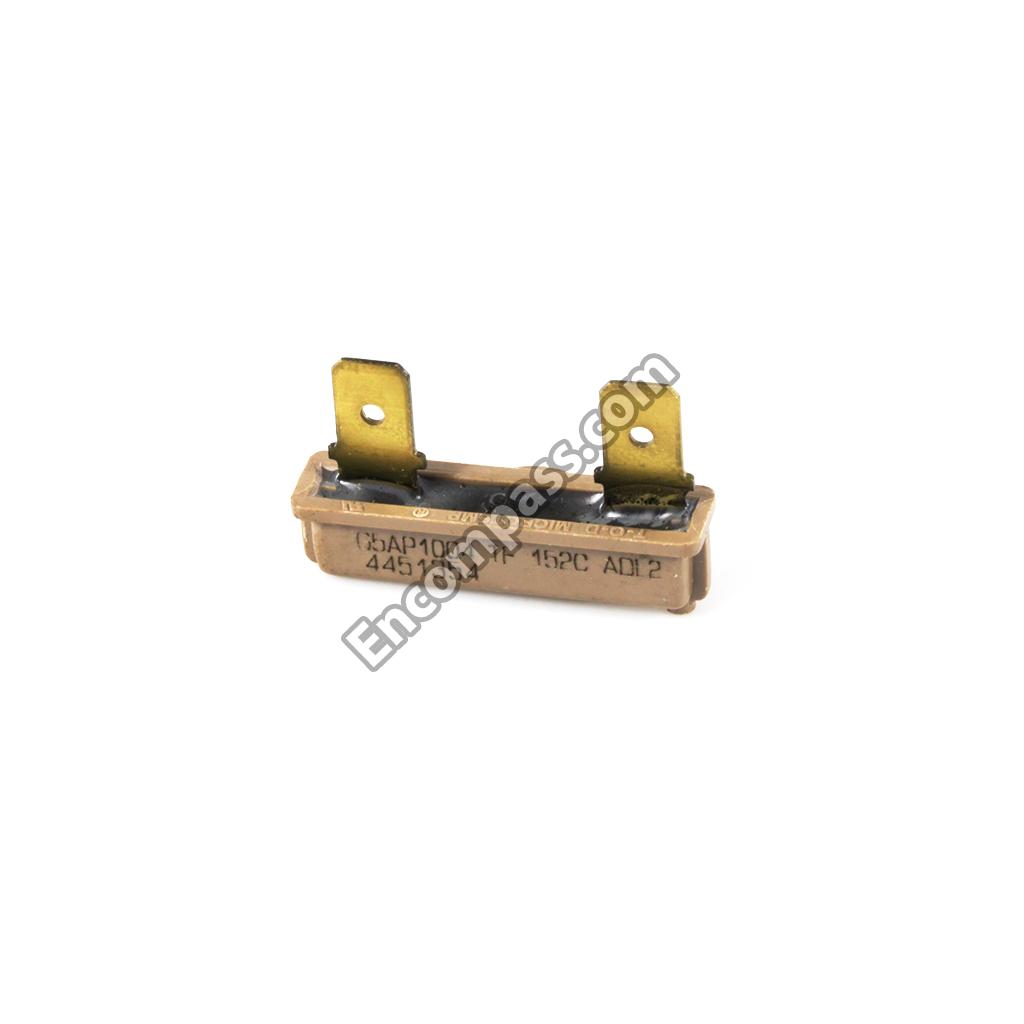

WP4451354 WP4451354 FUSE-THRML
W10203265 W10203265 GASKET, DOOR
WP4455381 WP4455381 GASKT-DOOR
WP9759228 WP9759228 GLASS DOOR
WP9759225 WP9759225 GLASS DOOR
WP4449259 WP4449259 GLASS DOOR
WP4448444 WP4448444 GROMMET
8302154 8302154 HARNESS, WIRE STD (MAIN)
9760566 9760566 HINGE, DOOR (LEFT SIDE (SS MODEL ONLY))
9760568 9760568 HINGE, DOOR (LEFT SIDE)
9760565 9760565 HINGE, DOOR (RIGHT SIDE)
9760567 9760567 HINGE, DOOR (RIGHT SIDE)
WP4455605 WP4455605 HINGE-RECV
WP4455606 WP4455606 HINGE-RECV
8303647 8303647 INSTALLATION INSTRUCTIONS
WP4451722 WP4451722 INSULATION
WPW10110696 WPW10110696 INSULATION BOTTOM VENT
WP4450365 WP4450365 INSULATION, BACK
WP4450364 WP4450364 INSULATION, BACK
4459316 4459316 INSULATION, WRAP
4449315 4449315 INSULATION, WRAP
WP4173175 WP4173175 LIGHT BULB
100000 100000 LINER, OVEN (NOT SERVICEABLE)
WP9759413 WP9759413 LINER-DOOR

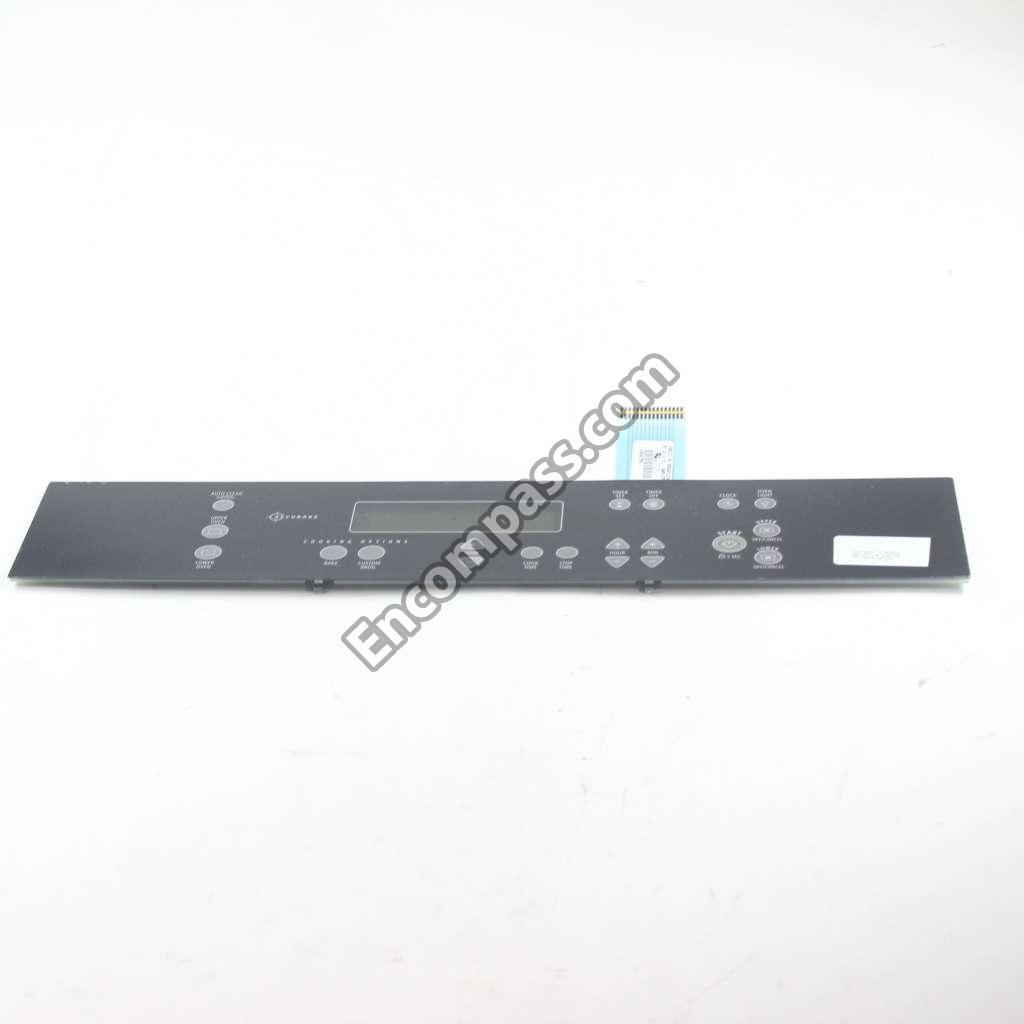

WP8304275 WP8304275 MEMBRANE SWITCH
WPW10438750 WPW10438750 MICROCOMPUTER
W10854980 W10854980 NAMEPLATE
WP112432 WP112432 NUT
4452368 4452368 OVEN LIGHT ASSEMBLY
WP261869 WP261869 PAINT CW
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
814381 814381 PIN HINGE KIT
4454943 4454943 PLATE, FAN
4450935 4450935 PLUG, DOOR
WPW10179152 WPW10179152 RACK-OVEN
8302794 8302794 RAIL, SIDE (LEFT SIDE)
WP8302793 WP8302793 RAIL-MTG
WP9759243 WP9759243 RANGE THERMOSTAT
WPW10158497 WPW10158497 RETAINER
W10205119 W10205119 RETAINER
WP4448933 WP4448933 RETAINER
W10205117 W10205117 RETAINER, DOOR (BLACK)
8303389WH 8303389WH RETAINER, DOOR (WHITE)
WP4457132 WP4457132 RETAINER, GLASS
4450800 4450800 SCREW
WP4448950 WP4448950 SCREW
WP4450038 WP4450038 SCREW
W11684512 W11684512 SCREW
WP4449745 WP4449745 SCREW
WP4449746 WP4449746 SCREW
W11233072 W11233072 SCREW
WP4449743 WP4449743 SCREW
WP4449154 WP4449154 SCREW
WP4449040 WP4449040 SCREW
WP4449809 WP4449809 SCREW
WP3400832 WP3400832 SCREW
WP3400805 WP3400805 SCREW
8303878 8303878 SEAL - DOOR
W10491987 W10491987 SEAL-FOAM
4452267 4452267 SENSOR
WPW10131825 WPW10131825 SENSOR
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
W10782197 W10782197 SIDE, CHASSIS
W10790240 W10790240 SIDE, CONTROL TOP (LEFT)
W10755214 W10755214 SIDE, CONTROL TOP (RIGHT)
4452490 4452490 SPACER, FOAM
8301878 8301878 STAINLESS MODEL
4449845 4449845 SUPPORT, BRACKET
4451477 4451477 SUPPORT, INSULATION
4451478 4451478 SUPPORT, INSULATION
4451761 4451761 SUPPORT, WIRING
WP8302143 WP8302143 SUPPRESSOR
8302068 8302068 TECH SHEET SAFER COOKING TIPS
WPW10339879 WPW10339879 TIE-WIRE
8303099 8303099 TOP CHASSIS
4455864 4455864 TOP, CHASSIS
WP4450551 WP4450551 TOP-CABNT
WP9760587 WP9760587 TRANSFORMR
W10151131A W10151131A TRIM
WPW10207689 WPW10207689 TRIM
WPW10339502 WPW10339502 TRIM
WPW10339501 WPW10339501 TRIM
WPW10339500 WPW10339500 TRIM
WPW10339499 WPW10339499 TRIM
W10145003A W10145003A TRIM
WPW10136103 WPW10136103 TRIM, SIDE (LH BISCUIT)
W10145002A W10145002A TRIM, SIDE (LH STAINLESS)
W10339503 W10339503 TRIM, SIDE RIGHT (BISCUIT)
WPW10172165 WPW10172165 TRIM-PANEL
W10861715 W10861715 TUBE-VENT
8303870 8303870 USE & CARE GUIDE (OVEN)
4452266 4452266 VENT, CENTER
4451759 4451759 VENT, EXHAUST
8303497 8303497 VENT,CONTROL PANEL
242828 242828 WIRE (12 GA. 150 C BLACK)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
