Model Image
Manufacturer

Whirlpool

Model Number

RBS275PRT02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
8302846 8302846 ASSEMBLY, CONTROL PANEL (BISCUIT)
WP8302845 WP8302845 ASSEMBLY, CONTROL PANEL (WHITE)
8303341 8303341 ASSEMBLY, DOOR GLASS (BISCUIT)
8303320 8303320 ASSEMBLY, DOOR GLASS (BLACK)
8303313 8303313 ASSEMBLY, DOOR GLASS (STAINLESS)
8303338 8303338 ASSEMBLY, DOOR GLASS (WHITE)
W10123223 W10123223 BACK, CONTROL
4455529 4455529 BASE, CHASSIS
WP8203546 WP8203546 BLOCK-TERM
WPW10176670 WPW10176670 BLOWER
W10136472 W10136472 BRACKET, HANDLE
4452152 4452152 BRACKET, MOUNTING BOTTOM VENT
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
W10105790 W10105790 BUMPER
4448664 4448664 CLAMP
WP98997 WP98997 CLIP
WP4450952 WP4450952 CONDUIT
WPW10340935 WPW10340935 CONTROL BOARD
WP8302844 WP8302844 CONTROL PANEL
4452366 4452366 COVER, TOP FRONT
4450550 4450550 COVER, TOP REAR
WP4451747 WP4451747 COVER-REAR
W10161109 W10161109 COVER-REAR
9760676 9760676 DEFLECTOR, VENT
WP9760889 WP9760889 DOOR DOOR LATCH
8302812 8302812 DOOR HANDLE (BISCUIT)
8302810 8302810 DOOR HANDLE (BLACK)
8302811 8302811 DOOR HANDLE (WHITE)
WP9760572 WP9760572 DOOR HINGE
WP9760571 WP9760571 DOOR HINGE
4455177 4455177 ELBOW, VENT BOTTOM
4455178 4455178 ELBOW, VENT TOP
WPW10207397 WPW10207397 ELEMENT
WP9760771 WP9760771 ELMNT-BROL
W10130370 W10130370 FRAME-FRNT
WP4455381 WP4455381 GASKT-DOOR
WP9759227 WP9759227 GLASS DOOR
WP4449253 WP4449253 GLASS DOOR
WP9759224 WP9759224 GLASS, INNER
WP4448444 WP4448444 GROMMET

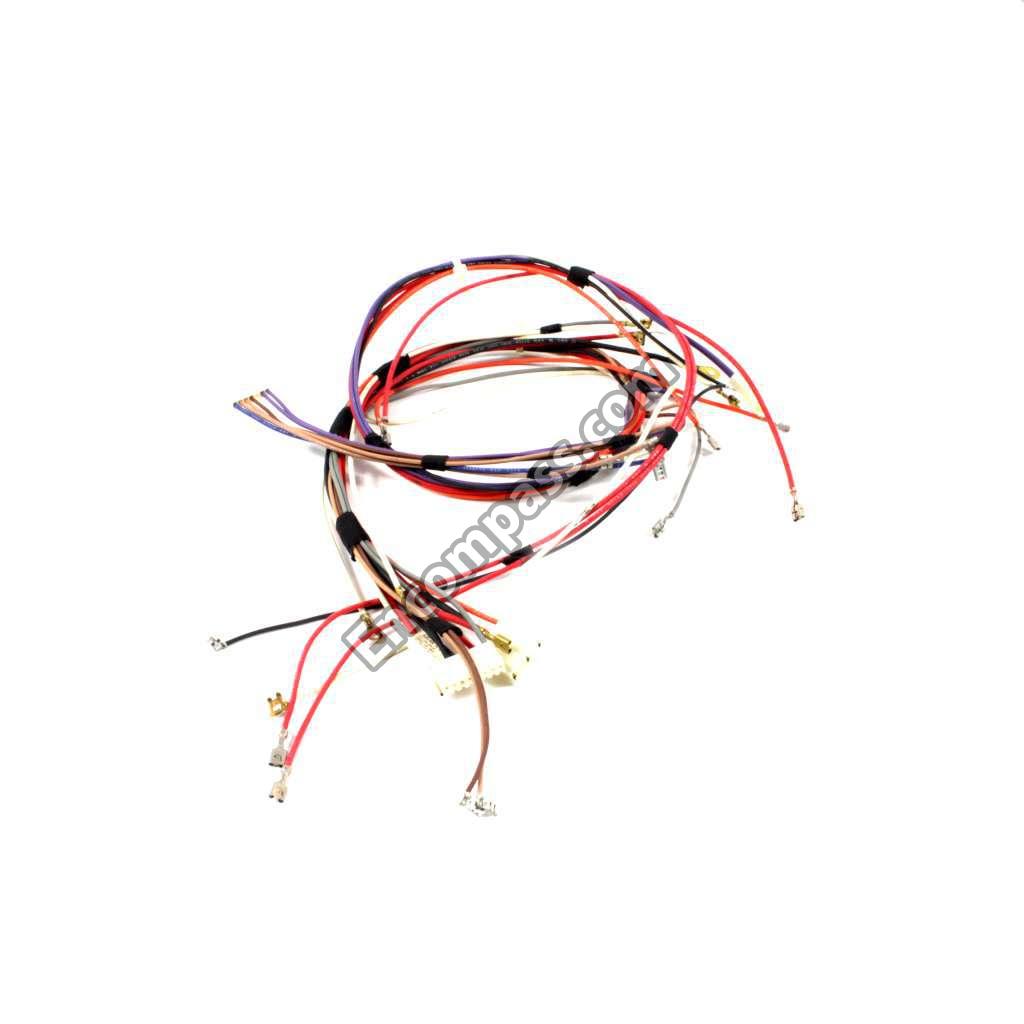

8301400 8301400 HARNESS, MAIN
814381 814381 HINGE PIN KIT
9760570 9760570 HINGE, DOOR (LEFT)
9760569 9760569 HINGE, DOOR (RIGHT)
WP4455606 WP4455606 HINGE-RECV
WP4455605 WP4455605 HINGE-RECV
8303648 8303648 INSTALLATION INSTRUCTIONS
8301928 8301928 INSTALLATION, MWO TRIM KIT
8304571 8304571 INSTALLATION, UNDERCOUNTER
WP4450364 WP4450364 INSULATION, BACK
4451721 4451721 INSULATION, DOOR
4449315 4449315 INSULATION, WRAP
4452400 4452400 LEAD, GROUND STRAP
W10067870 W10067870 LENS-LIGHT
WP4173175 WP4173175 LIGHT BULB
WPW10734065 WPW10734065 LIGHT-OVEN
100000 100000 LINER, OVEN (NOT SERVICEABLE)
WP8303699 WP8303699 LINER-DOOR
WP8304269 WP8304269 MEMBRANE SWITCH
WP8304270 WP8304270 MEMBRANE SWITCH
W10854980 W10854980 NAMEPLATE
WP112432 WP112432 NUT
WP7103P027-60 WP7103P027-60 NUT
WP261869 WP261869 PAINT CW
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP4448715 WP4448715 RACK, OVEN
8303116 8303116 RAIL, SIDE (LEFT)
8303115 8303115 RAIL, SIDE (RIGHT)
WP9759243 WP9759243 RANGE THERMOSTAT
WPW10158497 WPW10158497 RETAINER
WP4448933 WP4448933 RETAINER
4457131 4457131 RETAINER, GLASS
9762761 9762761 SAFER COOKING TIPS (ENGLISH
W10065852 W10065852 SAFER COOKING TIPS (FRENCH)
WP4450038 WP4450038 SCREW
W11684512 W11684512 SCREW
WP4449746 WP4449746 SCREW
WP4449743 WP4449743 SCREW
WP4449745 WP4449745 SCREW
WP4449154 WP4449154 SCREW
WP4449040 WP4449040 SCREW
WP4449809 WP4449809 SCREW
W11233072 W11233072 SCREW
WP3400805 WP3400805 SCREW
WP3400832 WP3400832 SCREW
4450800 4450800 SCREW, GROUND
W10106930 W10106930 SCREW, INSTALL
8303877 8303877 SEAL-DOOR
W10491987 W10491987 SEAL-FOAM
WPW10131825 WPW10131825 SENSOR
4457102 4457102 SHIELD, HEAT
4457113 4457113 SHIELD, HEAT (BOTTOM)
W10782197 W10782197 SIDE, CHASSIS
W10790240 W10790240 SIDE, CONTROL TOP (LEFT)
W10755214 W10755214 SIDE, CONTROL TOP (RIGHT)
4452222 4452222 SPACER, HARNESS
W10153087 W10153087 SUPPORT
4449845 4449845 SUPPORT, BRACKET
4451477 4451477 SUPPORT, INSULATION
4451761 4451761 SUPPORT, WIRING
WP8302143 WP8302143 SUPPRESSOR
8301758 8301758 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
4455864 4455864 TOP, CHASSIS
WPW10207684 WPW10207684 TRIM
WPW10339496 WPW10339496 TRIM
WPW10339494 WPW10339494 TRIM
WPW10339493 WPW10339493 TRIM
WPW10339495 WPW10339495 TRIM
W10339498 W10339498 TRIM
WPW10145005 WPW10145005 TRIM, SIDE LEFT (STAINLESS)
W10339497 W10339497 TRIM, SIDE RIGHT (BISCUIT)
WPW10145004 WPW10145004 TRIM, SIDE RIGHT (STAINLESS)
WPW10172170 WPW10172170 TRIM-PANEL
W10861715 W10861715 TUBE-VENT
W10162170 W10162170 USE & CARE GUIDE
8303498 8303498 VENT, CONTROL PANEL
4451759 4451759 VENT, EXHAUST
242828 242828 WIRE (12 GA. 150 C BLACK)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
