Model Image
Manufacturer

Whirlpool

Model Number

RED4516FW1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3406839 3406839 ACCESSORY PARTS, DRY RACK
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
W10899578 W10899578 ASSEMBLY, DRUM (COMPLETE)
WP692490 WP692490 BAFFLE-DRM
WP3403636 WP3403636 BAFFLE-DRM
WP348780 WP348780 BASE
341241 341241 BELT, DRIVE
WP3397659 WP3397659 BLOCK-TERM
3400500 3400500 BOLT
W11676909 W11676909 BOX
W11684613 W11684613 BRACKET
W11035878 W11035878 BRNG&SEAL
W11178667 W11178667 BULKHEAD
8533643 8533643 CABINET
WPW10529197 WPW10529197 CATCH
W11429587 W11429587 CATCH
W11117429 W11117429 CHUTE
WPW10121316 WPW10121316 CLAMP
WP3404162 WP3404162 CLAMP
WP90296 WP90296 CLIP
279771 279771 CLIP
279220 279220 CLIP
W10854425 W10854425 CLIP
WP8536939 WP8536939 CLIP
WP8312709 WP8312709 CLIP
W10096999 W10096999 CONSOLE
W11173656 W11173656 COVER
W11298298 W11298298 COVER
W10861224 W10861224 DOOR
WPW10463967 WPW10463967 DOOR
279827 279827 DRIVE MOTOR
279838 279838 ELEMENT
49621 49621 FEET-LVLNG
WP3392519 WP3392519 FUSE-THRML
W10861225 W10861225 HANDLE
WPW10362431 WPW10362431 HINGE
WP8066217 WP8066217 HINGE
WP8577230 WP8577230 HOUSING
W11566973 W11566973 INSTALLATION INSTRUCTIONS
4392065 4392065 KIT, DRYER REPAIR
W10900067 W10900067 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WPW10711289 WPW10711289 KNOB
WPW10453948 WPW10453948 KNOB
WP8066092 WP8066092 LOCK
W11229607 W11229607 NUT
WP98234 WP98234 NUT
W11213336 W11213336 NUT
W11409002 W11409002 PAD
W11627518 W11627518 PAD
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10806345 W10806345 PANEL
W11626083 W11626083 PANEL-REAR
WPW10416486 WPW10416486 PANEL-REAR
W11481394 W11481394 PLUG
W11684591 W11684591 PLUG
WP691366 WP691366 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
WP3977767 WP3977767 RANGE THERMOSTAT
WP3387134 WP3387134 RANGE THERMOSTAT
WPW10512946 WPW10512946 RING
279441 279441 RING, BEARING
W11607443 W11607443 SCREEN
W10853898 W10853898 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
WP308685 WP308685 SCREW
WP488627 WP488627 SCREW
WP3390631 WP3390631 SCREW
WP3395530 WP3395530 SCREW
WP681414 WP681414 SCREW
W11693756 W11693756 SCREW
WP90767 WP90767 SCREW
WP693995 WP693995 SCREW
279393 279393 SCREW KIT, TERMINAL BLOCK
W10612022 W10612022 SEAL
WP339956 WP339956 SEAL
W11415783 W11415783 SEAL
W11596046 W11596046 SEAL
W10861521 W10861521 SEAL-DOOR
WPW10359270 WPW10359270 SHAFT
WPW10359269 WPW10359269 SHAFT
W11233063 W11233063 SHIELD
3389682 3389682 SPACER, TOE PANEL
W11429589 W11429589 STRIKE
WPW10314173 WPW10314173 SUPPORT
WPW10237959 WPW10237959 SWITCH-DOR
WPW10420741 WPW10420741 SWITCH-PTS
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)

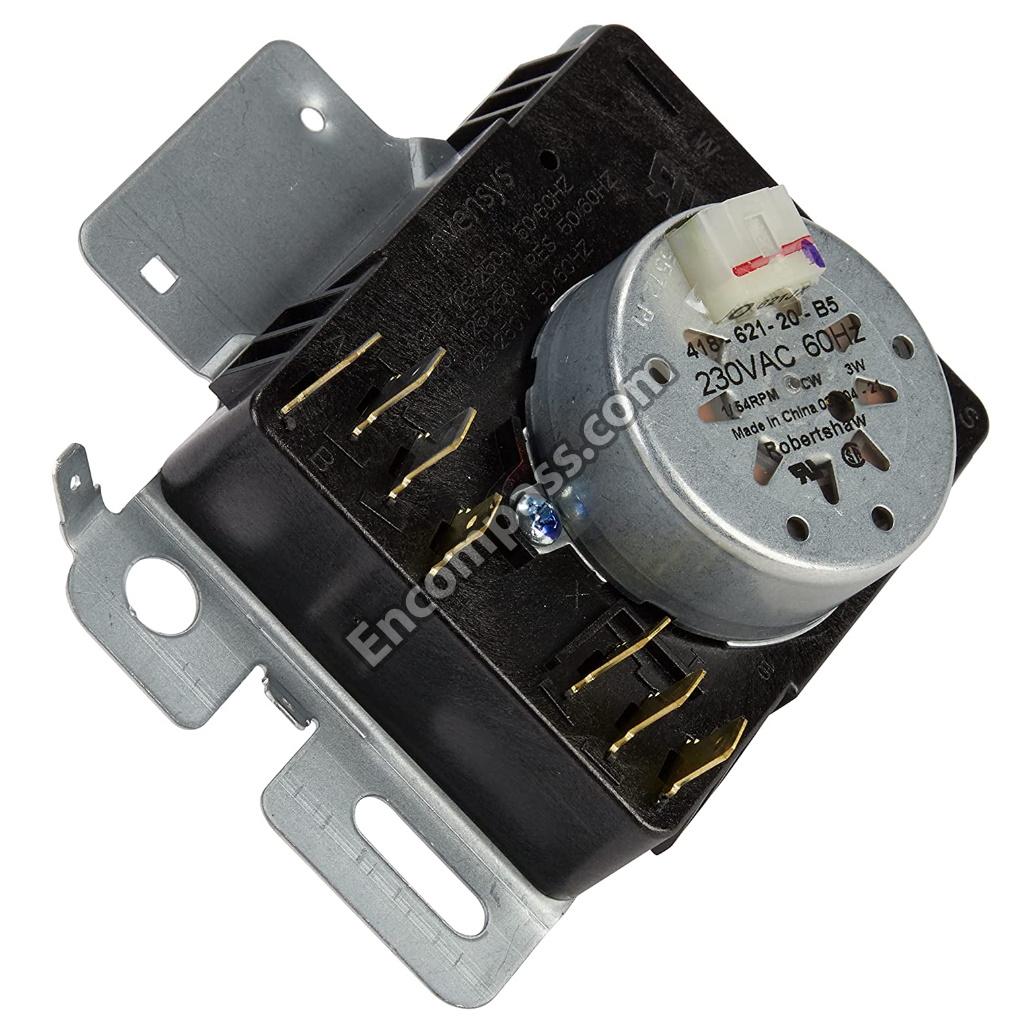

W10857612 W10857612 TIMER
WP8563663 WP8563663 TOP
W11459717 W11459717 USE AND CARE GUIDE
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL
WPW10450286 WPW10450286 WIRE HARNESS
W10185989 W10185989 WIRING DIAGRAM
